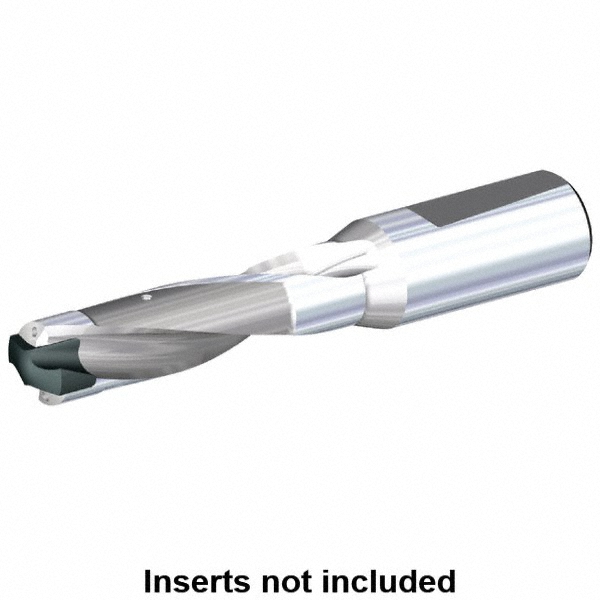

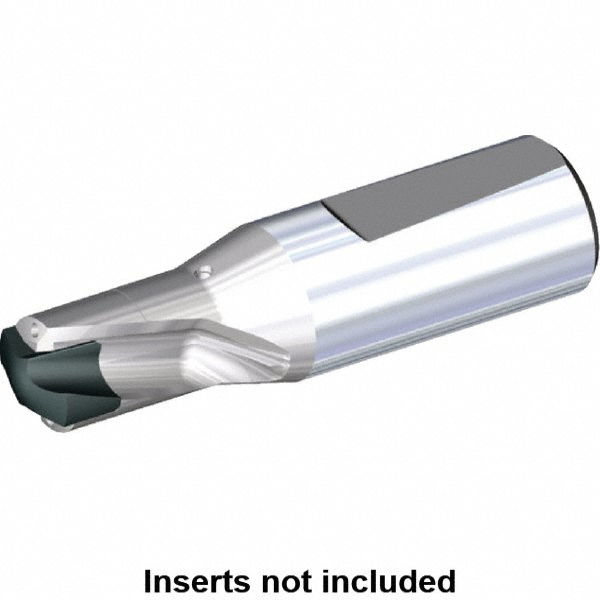

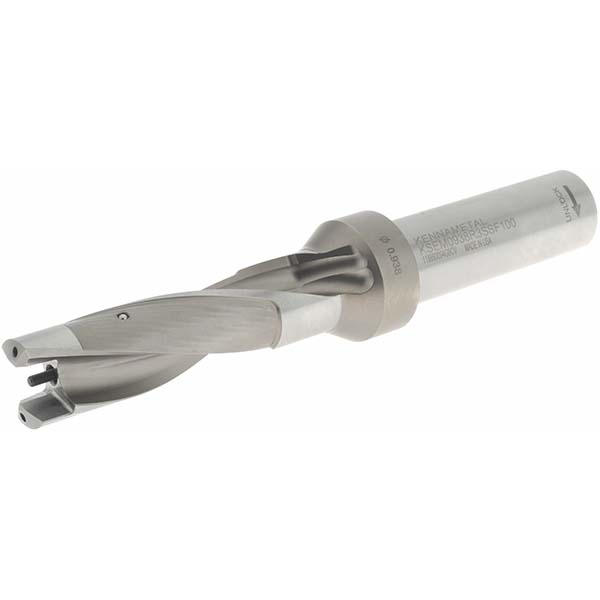

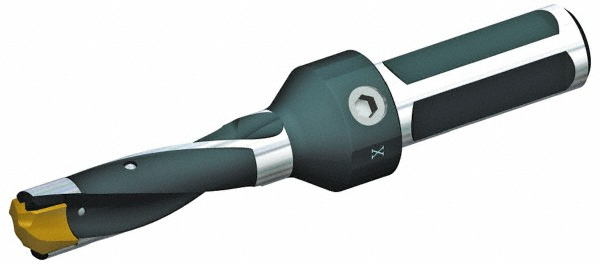

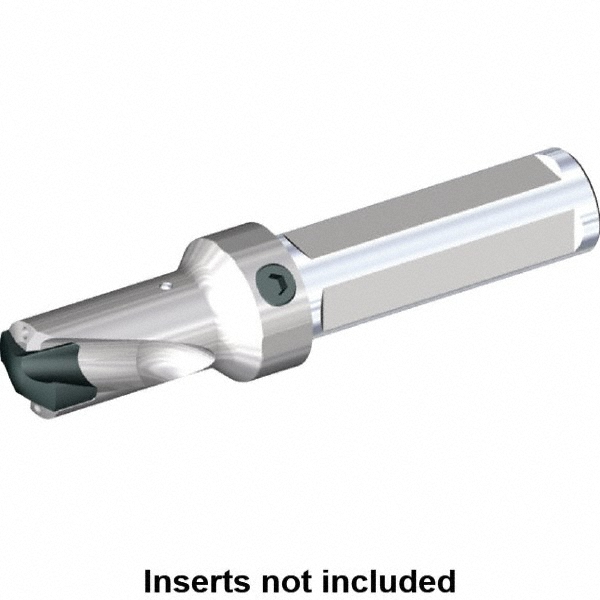

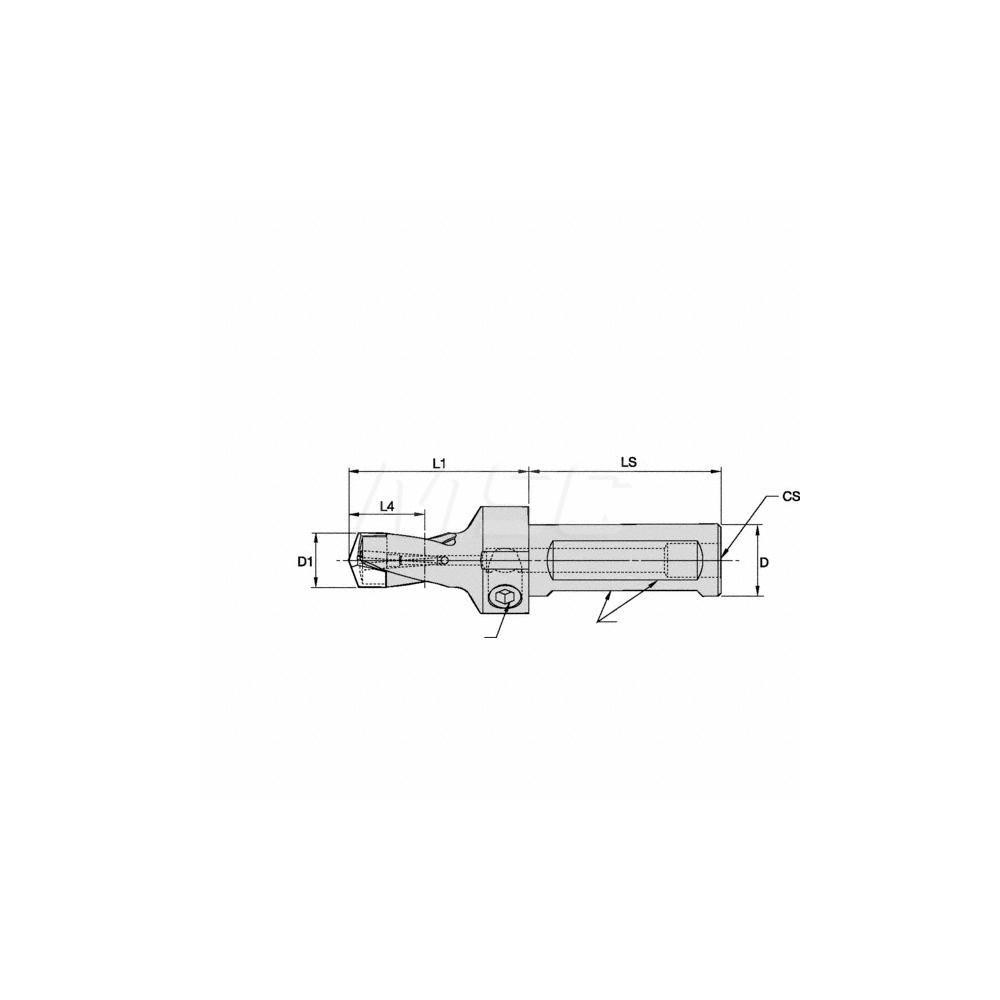

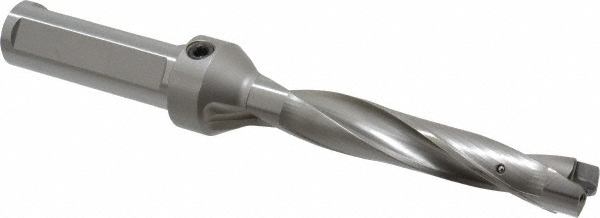

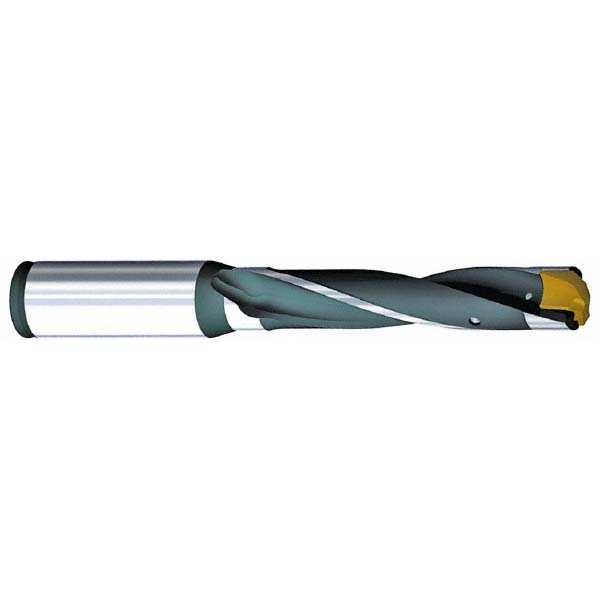

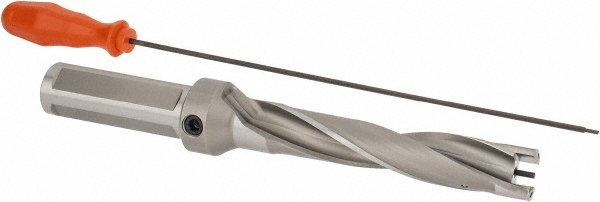

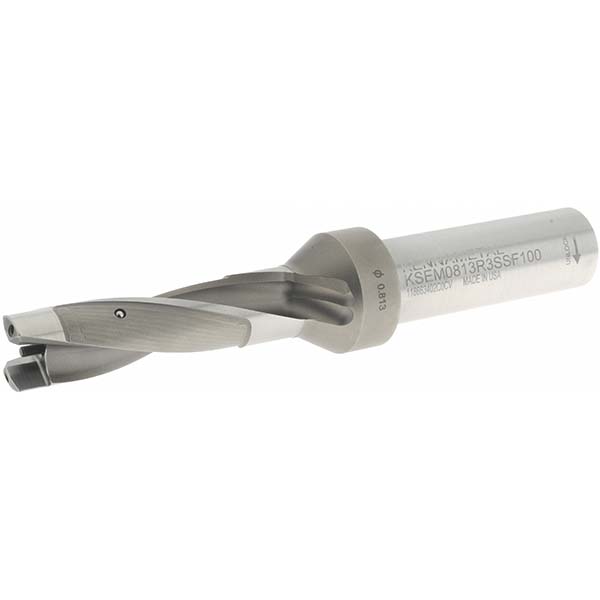

Uses KSEM2450 Inserts, Seat Size 5, 142.88 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
|---|---|
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 25.91 |
| Maximum Drill Depth (Decimal Inch) | 1.0200 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 5 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |

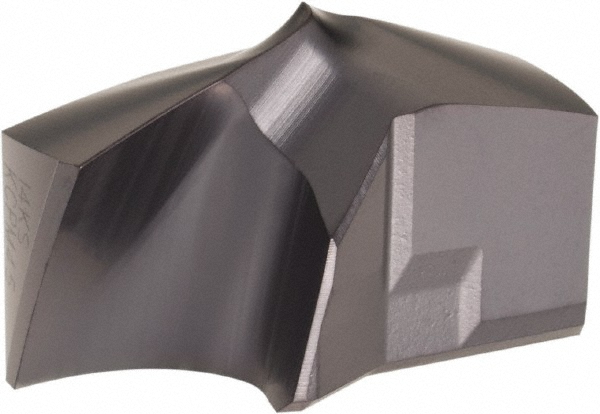

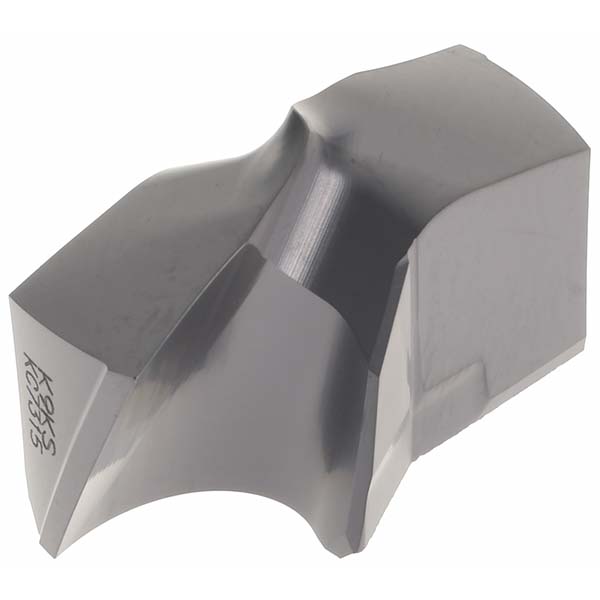

| Compatible Insert Style | KSEM2450 |
| Overall Length (mm) | 142.88 |
| Overall Length (Decimal Inch) | 5.6252 |
| Series | KSEM |
| Flute Length (mm) | 45.47 |
| Flute Length (Decimal Inch) | 1.7902 |
| Body Length (Decimal Inch) | 2.63 |
| Shank Length (Decimal Inch) | 3.0000 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 82698499 |
