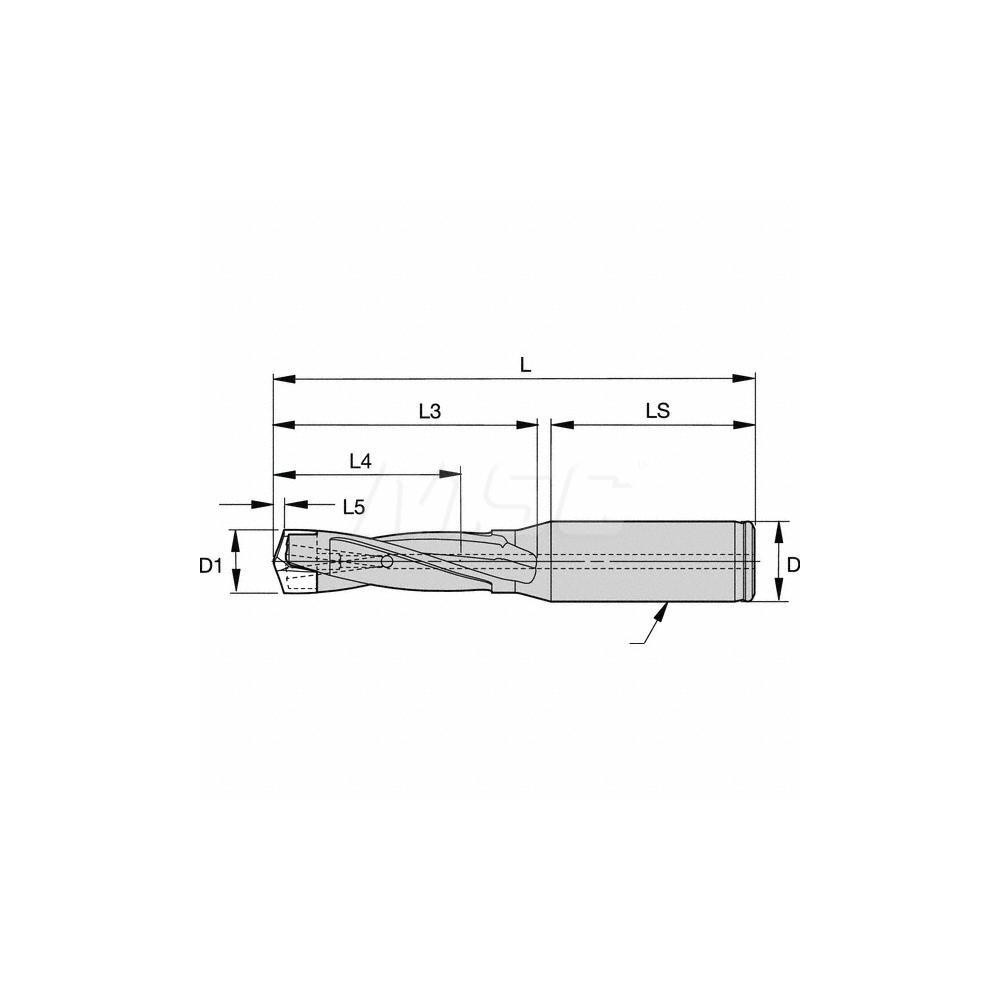

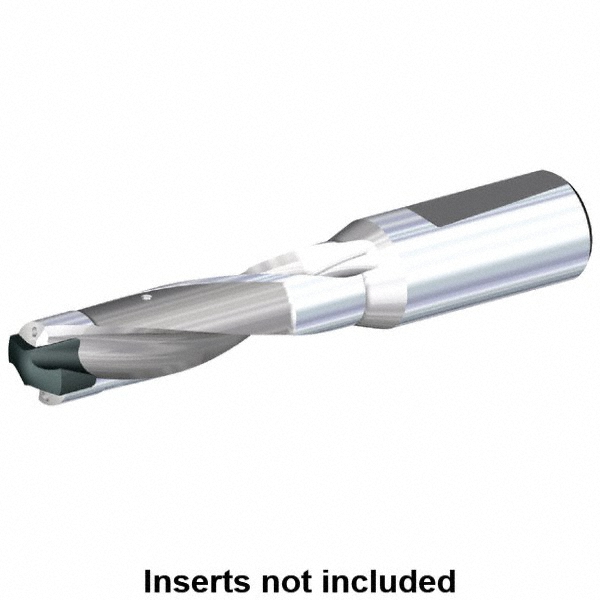

Uses KSEM0984 Inserts, Seat Size 5, 7.13" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
|---|---|
| Minimum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (mm) | 25.50 |
| Maximum Drill Diameter (Decimal Inch) | 1.0039 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 75.01 |
| Maximum Drill Depth (Decimal Inch) | 2.9500 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 5 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |

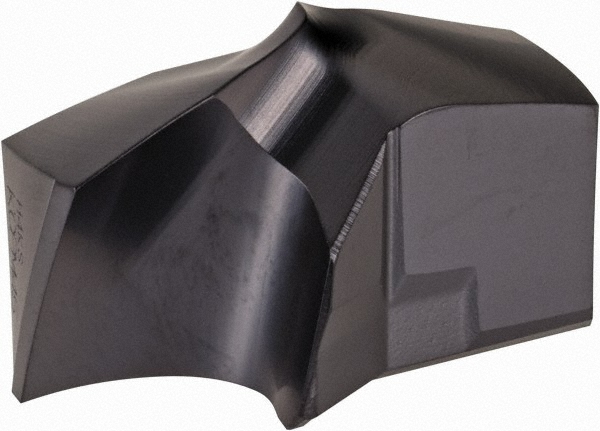

| Compatible Insert Style | KSEM0984 |
| Overall Length (Decimal Inch) | 7.13 |
| Series | KSEM |
| Flute Length (Decimal Inch) | 3.9700 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
