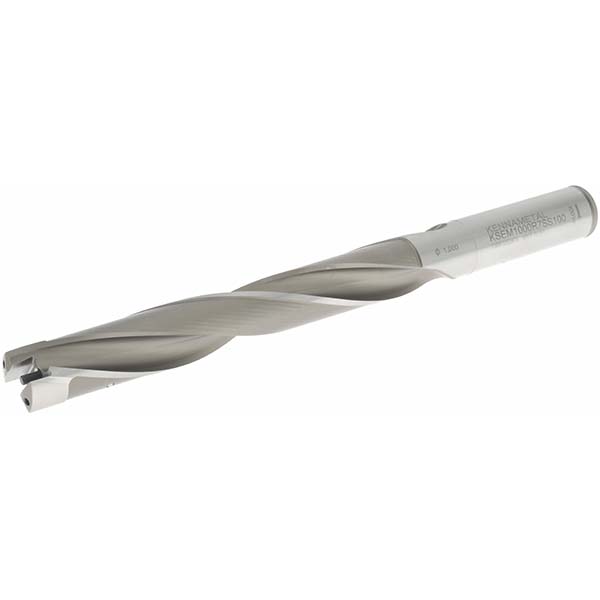

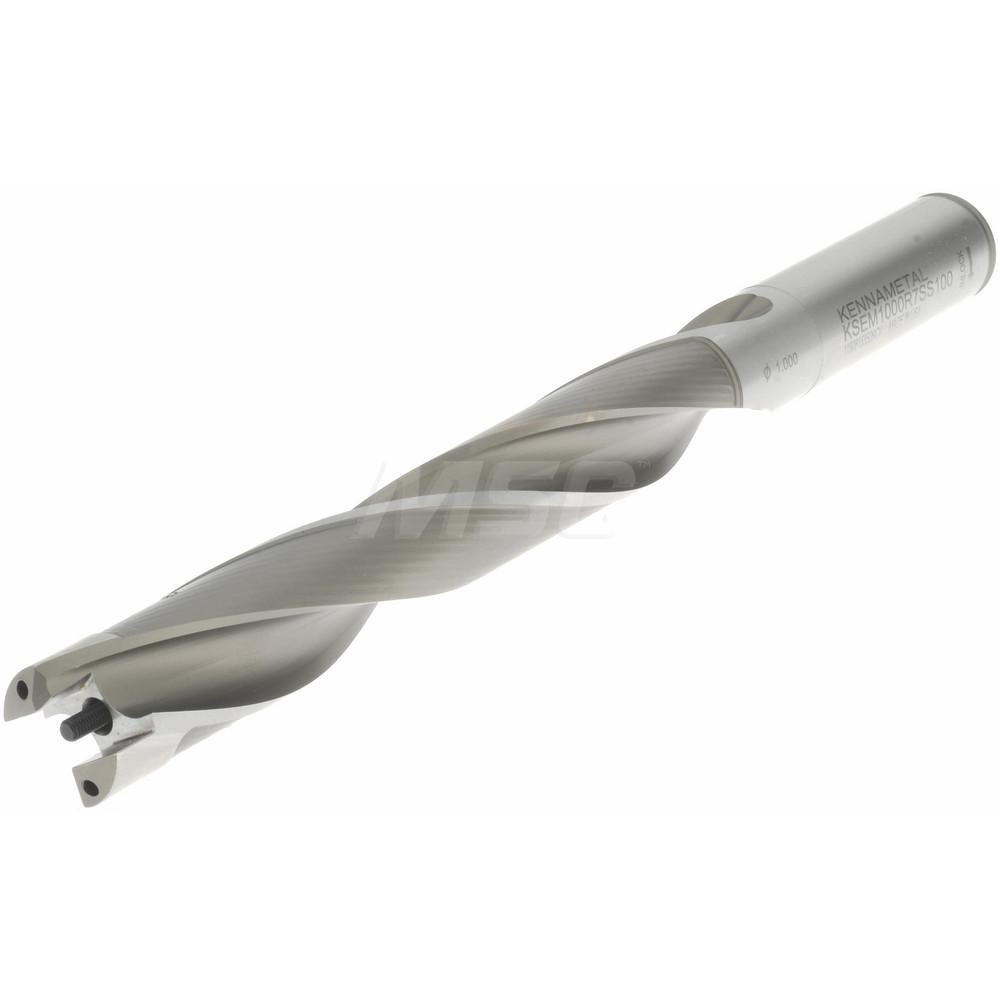

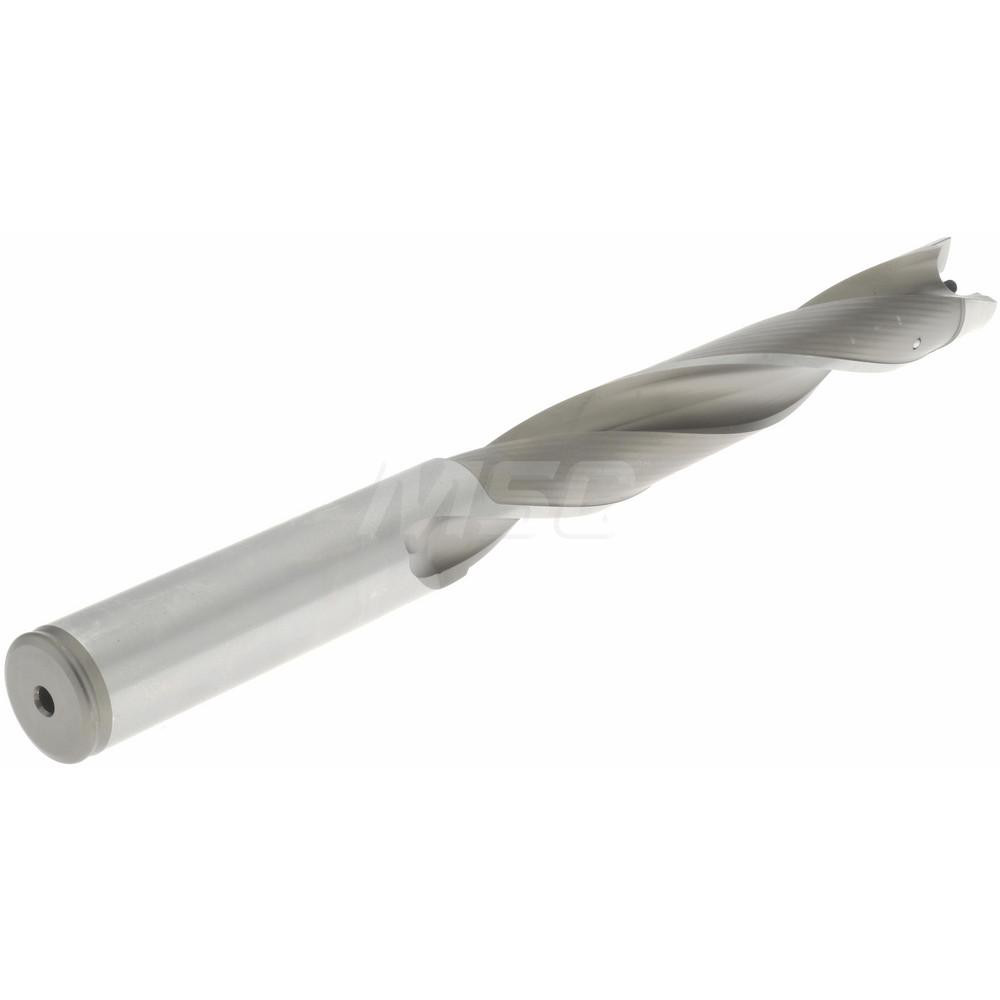

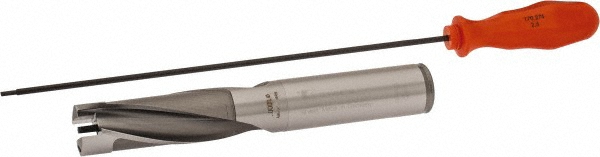

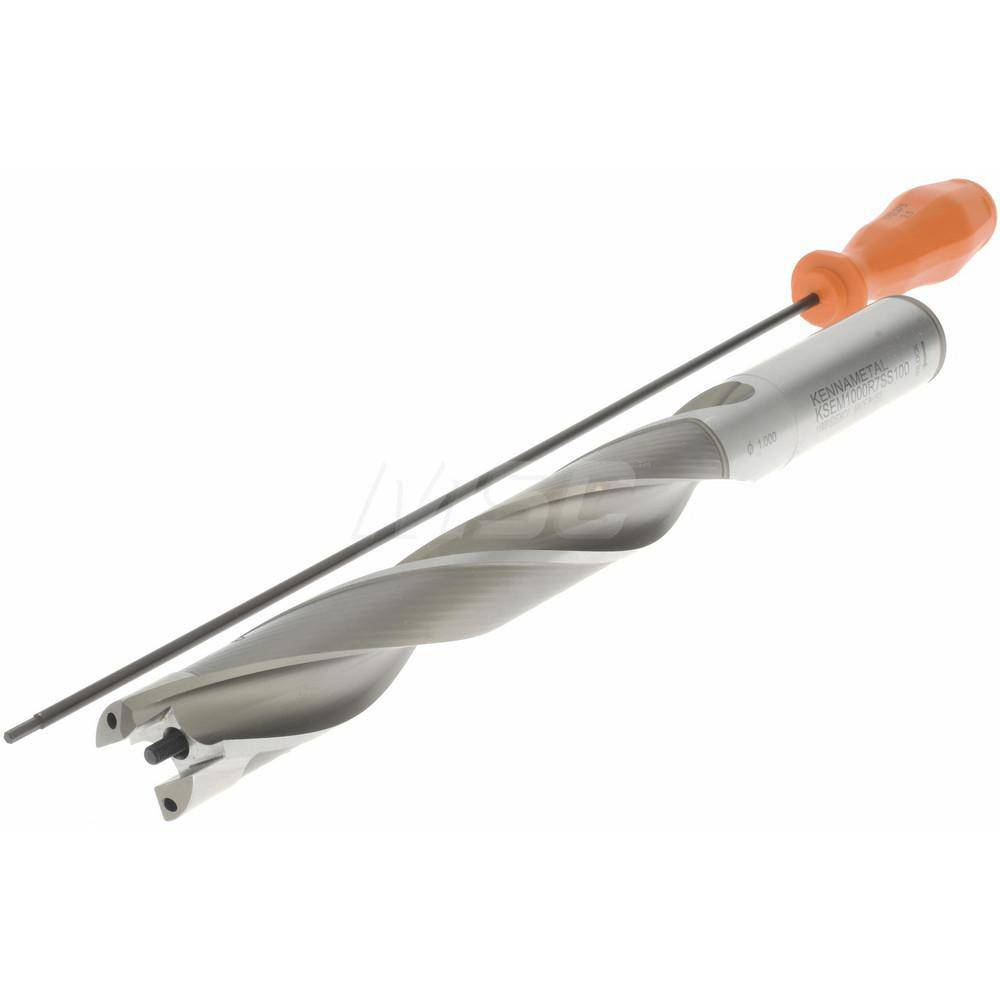

Uses KSEM1000 Inserts, Seat Size 5, 295.28 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Minimum Drill Diameter (mm) | 25.40 |
| Maximum Drill Diameter (mm) | 25.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.0197 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 182.00 |
| Maximum Drill Depth (Decimal Inch) | 7.1700 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 5 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |

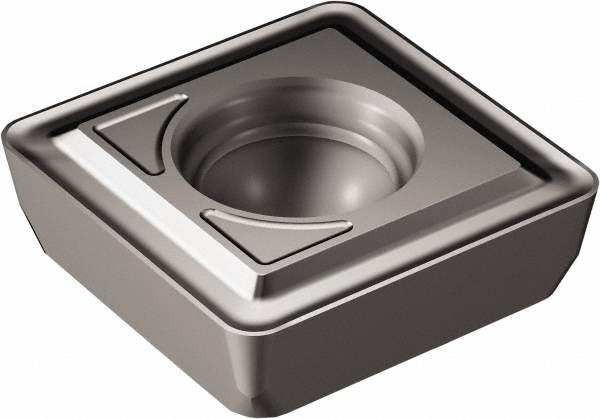

| Compatible Insert Style | KSEM1000 |
| Overall Length (mm) | 295.28 |
| Series | KSEM |
| Flute Length (mm) | 215.06 |
| Flute Length (Decimal Inch) | 8.4669 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01292226 |
