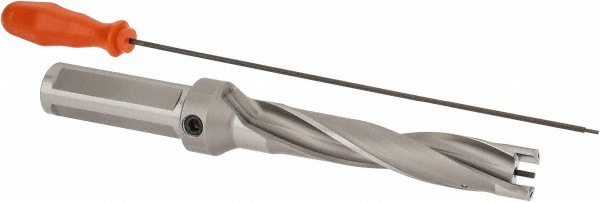

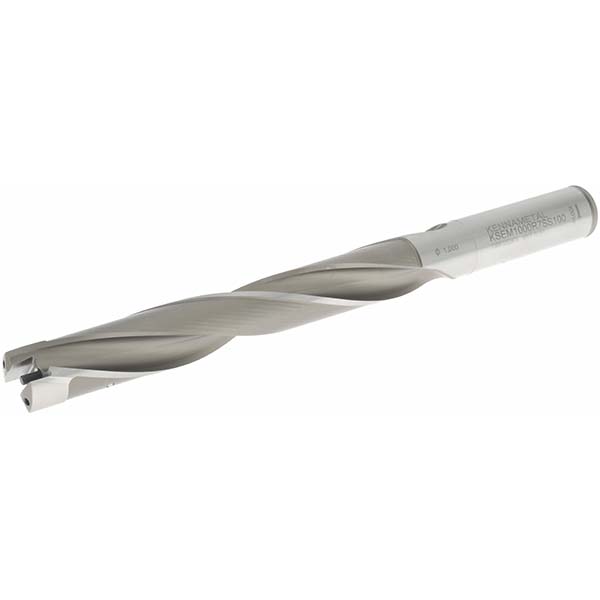

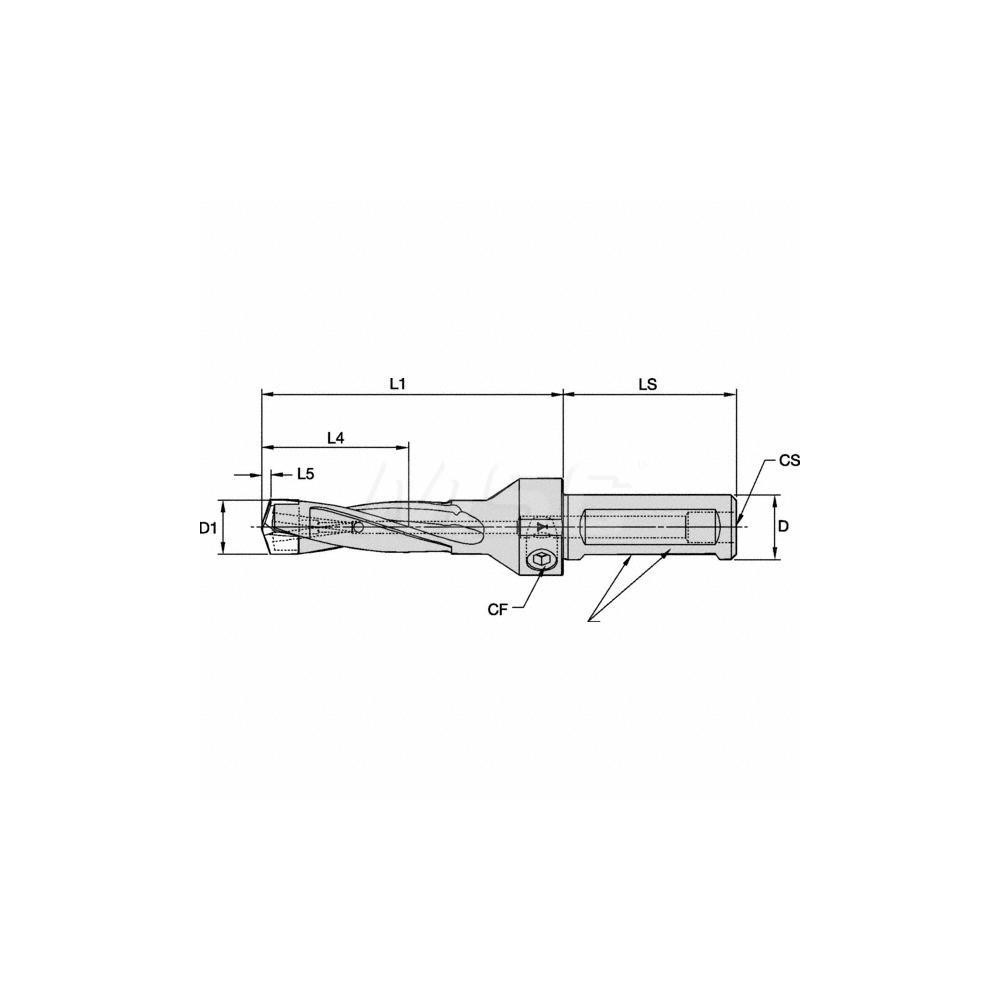

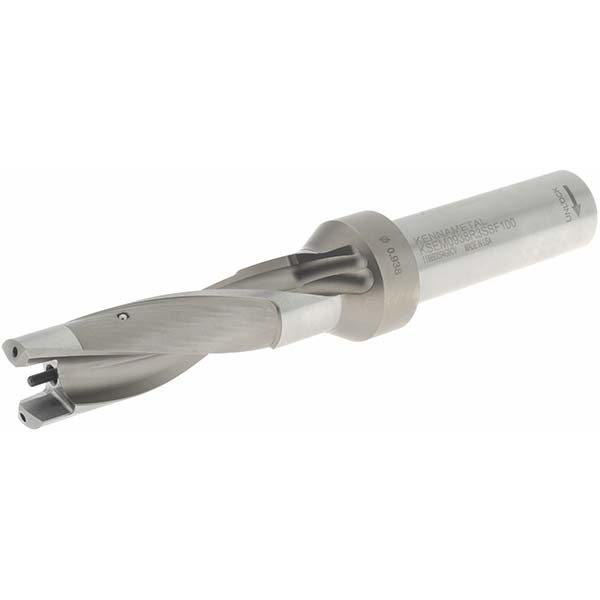

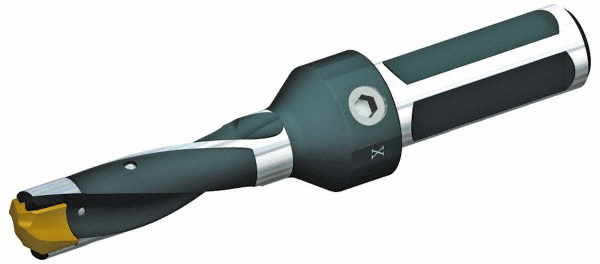

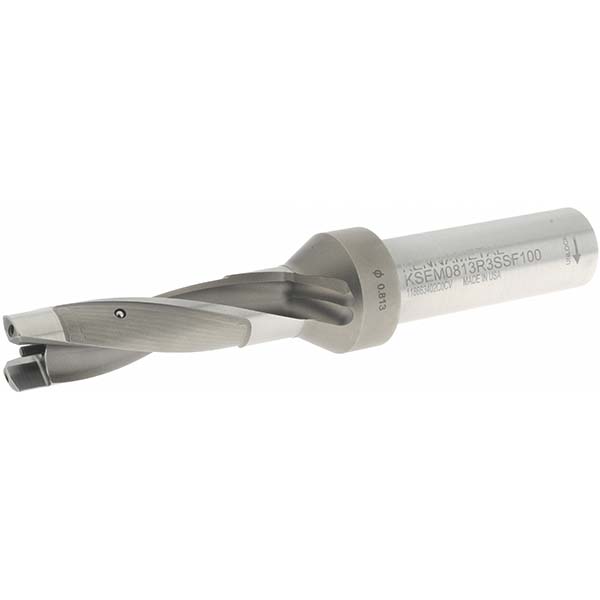

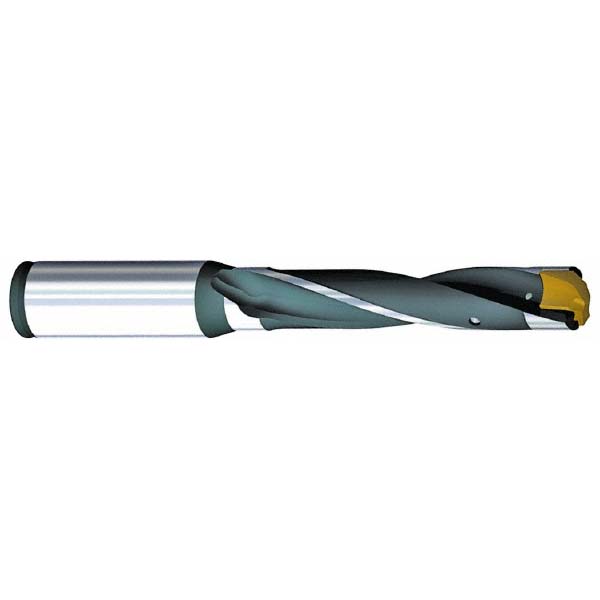

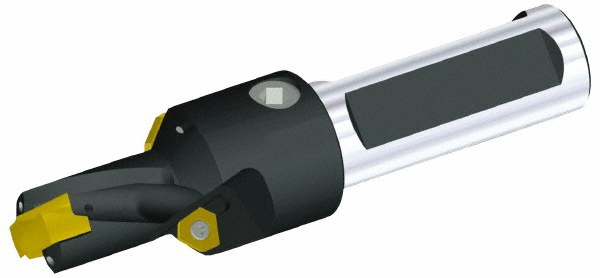

Uses KSEM1000 Inserts, Seat Size 5, 206.38 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Minimum Drill Diameter (mm) | 25.40 |
| Maximum Drill Diameter (mm) | 25.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.0197 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 78.00 |
| Maximum Drill Depth (Decimal Inch) | 3.0700 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 5 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |

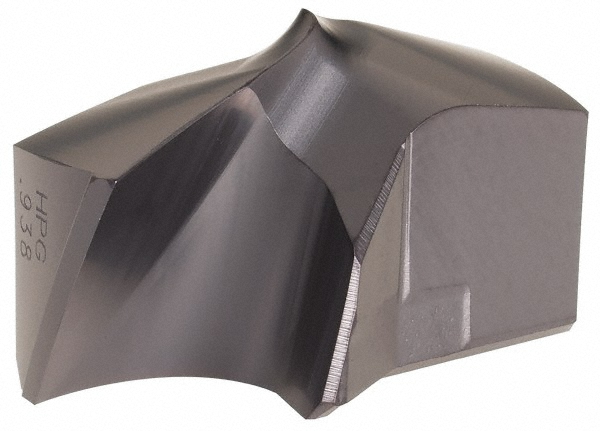

| Compatible Insert Style | KSEM1000 |
| Overall Length (mm) | 206.38 |
| Overall Length (Decimal Inch) | 8.1252 |
| Series | KSEM |
| Flute Length (mm) | 109.47 |
| Flute Length (Decimal Inch) | 4.3098 |
| Shank Length (Decimal Inch) | 3.0000 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02734754 |
