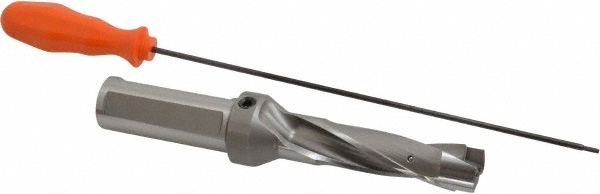

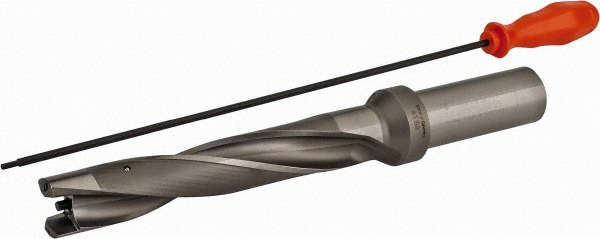

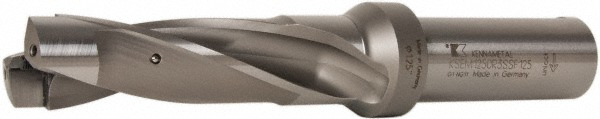

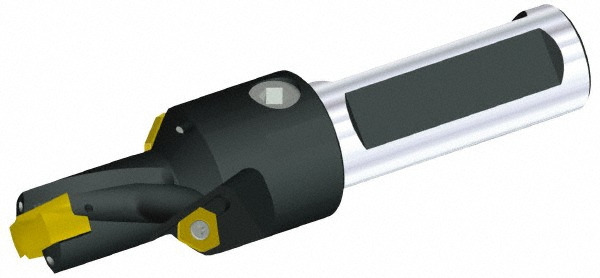

Uses KSEM1047 Inserts, Seat Size 6, 222.25 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.0469 |
|---|---|
| Minimum Drill Diameter (mm) | 26.59 |
| Maximum Drill Diameter (mm) | 27.09 |
| Maximum Drill Diameter (Decimal Inch) | 1.0665 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 84.07 |
| Maximum Drill Depth (Decimal Inch) | 3.3100 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 6 |
| Shank Diameter (mm) | 31.75 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KSEM1047 |
| Overall Length (mm) | 222.25 |
| Overall Length (Decimal Inch) | 8.75 |
| Series | KSEM |
| Flute Length (mm) | 117.09 |
| Flute Length (Decimal Inch) | 4.6098 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
