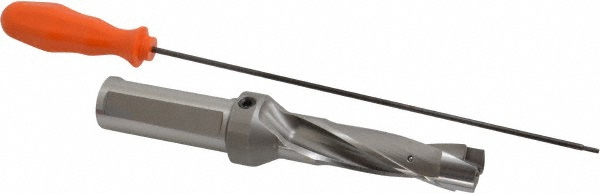

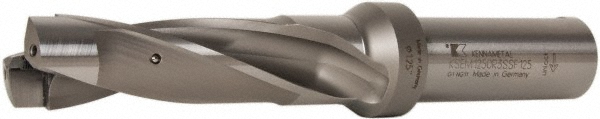

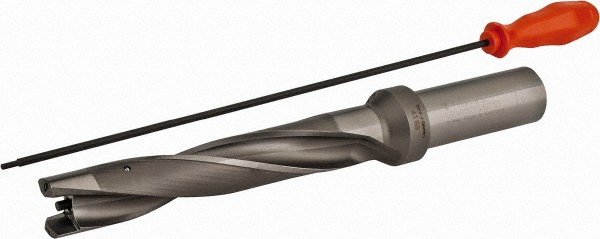

Uses KSEM1063 Inserts, Seat Size 6, 342.9 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.0626 |
|---|---|
| Minimum Drill Diameter (mm) | 26.99 |
| Maximum Drill Diameter (mm) | 27.49 |
| Maximum Drill Diameter (Decimal Inch) | 1.0823 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 215.90 |
| Maximum Drill Depth (Decimal Inch) | 8.5000 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 6 |
| Shank Diameter (mm) | 31.75 |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | KSEM1063 |
| Overall Length (mm) | 342.9 |
| Series | KSEM |
| Flute Length (mm) | 244.64 |
| Flute Length (Decimal Inch) | 9.6315 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
| MSC Number | MSC# 02754273 |
