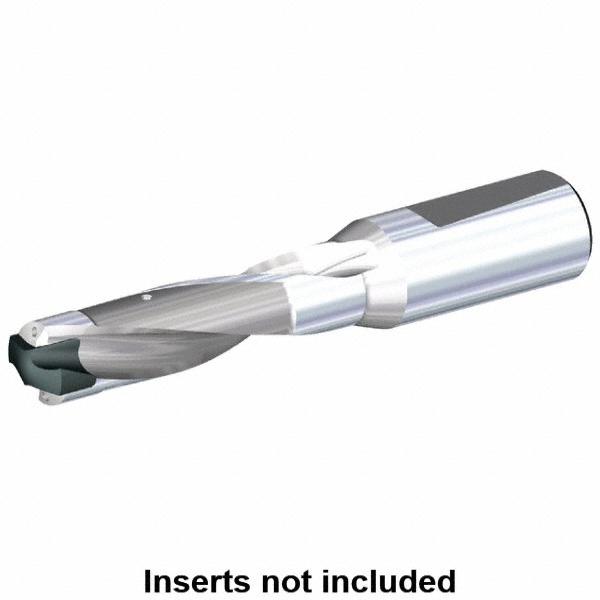

Uses KSEM2850 Inserts, Seat Size 7, 190 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.1220 |
|---|---|
| Minimum Drill Diameter (mm) | 28.50 |
| Maximum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1417 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 90.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Seat Size | 7 |
| Shank Diameter (mm) | 32.00 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |

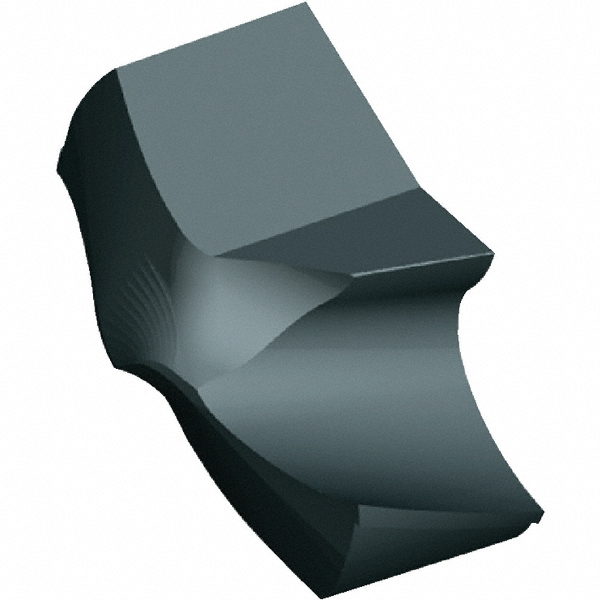

| Compatible Insert Style | KSEM2850 |

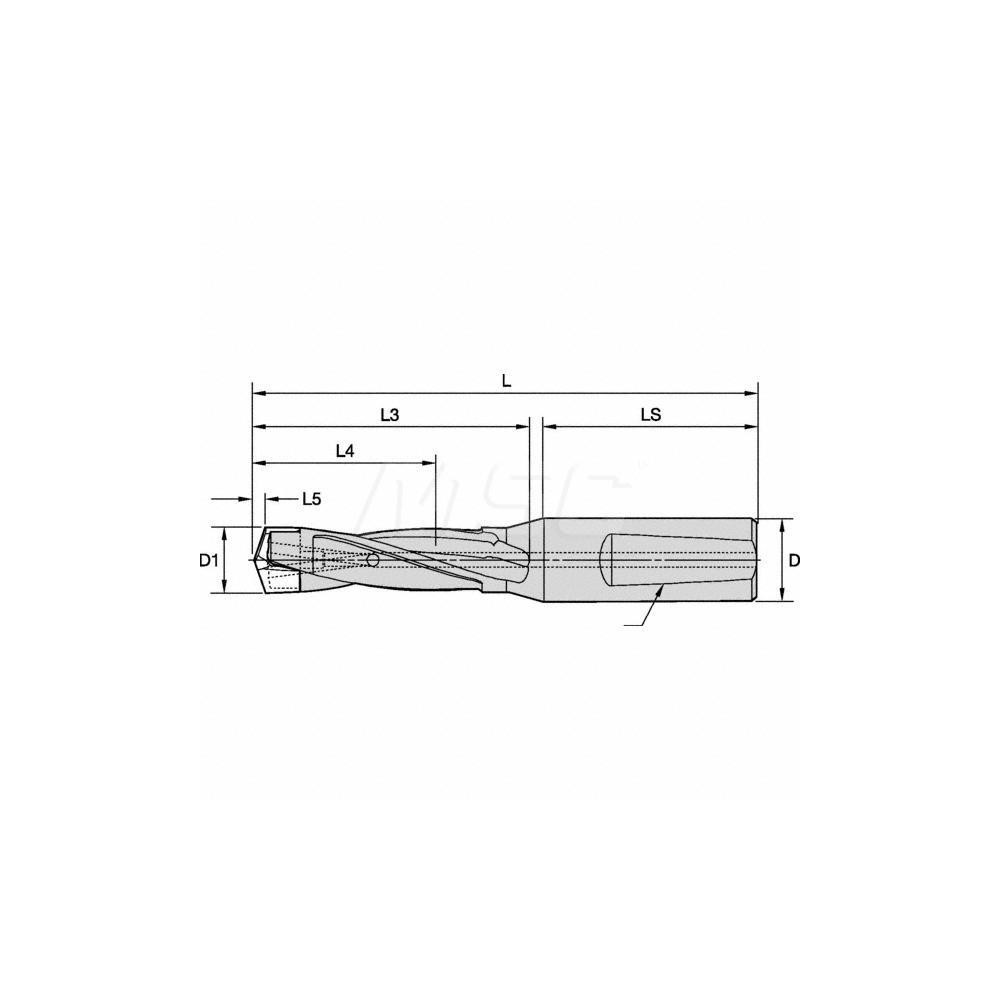

| Overall Length (mm) | 190 |
| Series | KSEM |
| Flute Length (mm) | 125.00 |
| Flute Length (Decimal Inch) | 4.9213 |
| Shank Length (mm) | 60.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
| MSC Number | MSC# 02734648 |
