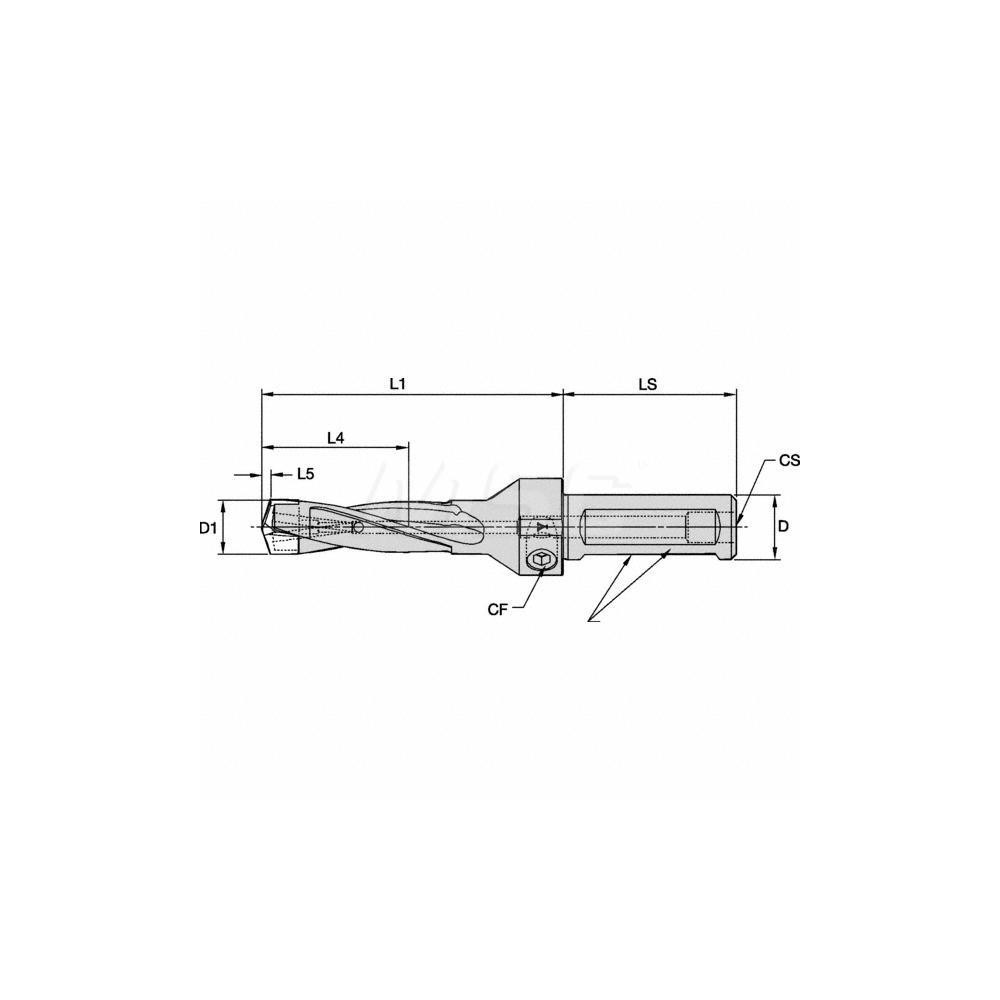

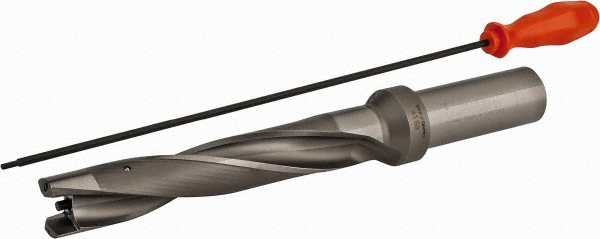

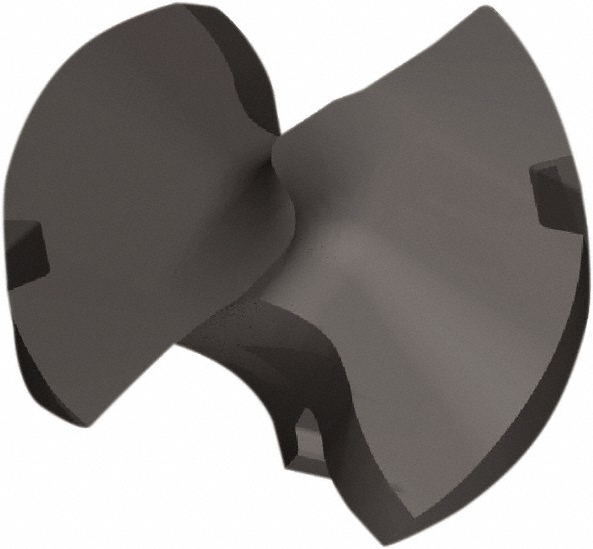

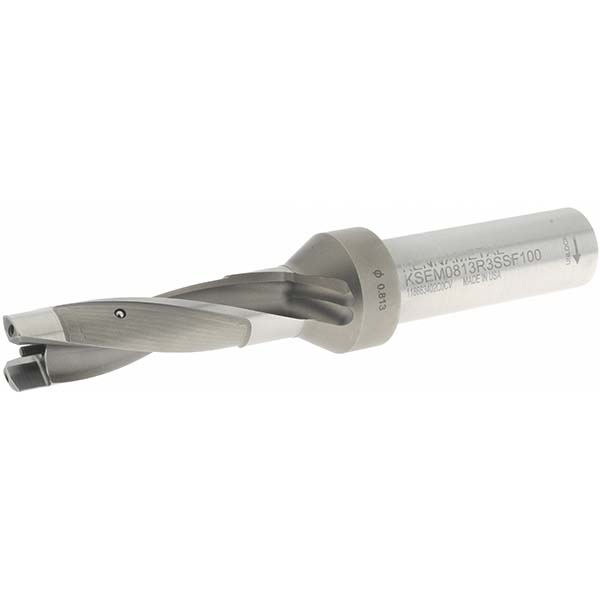

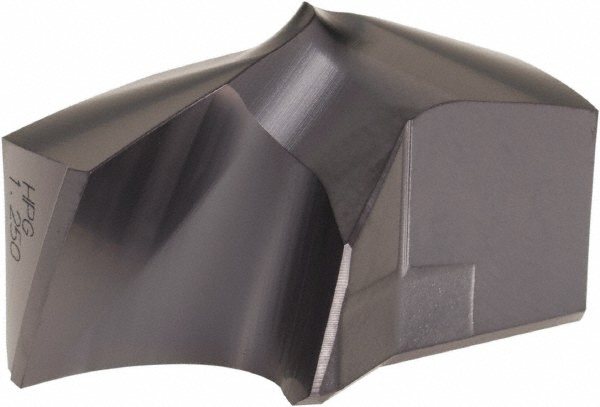

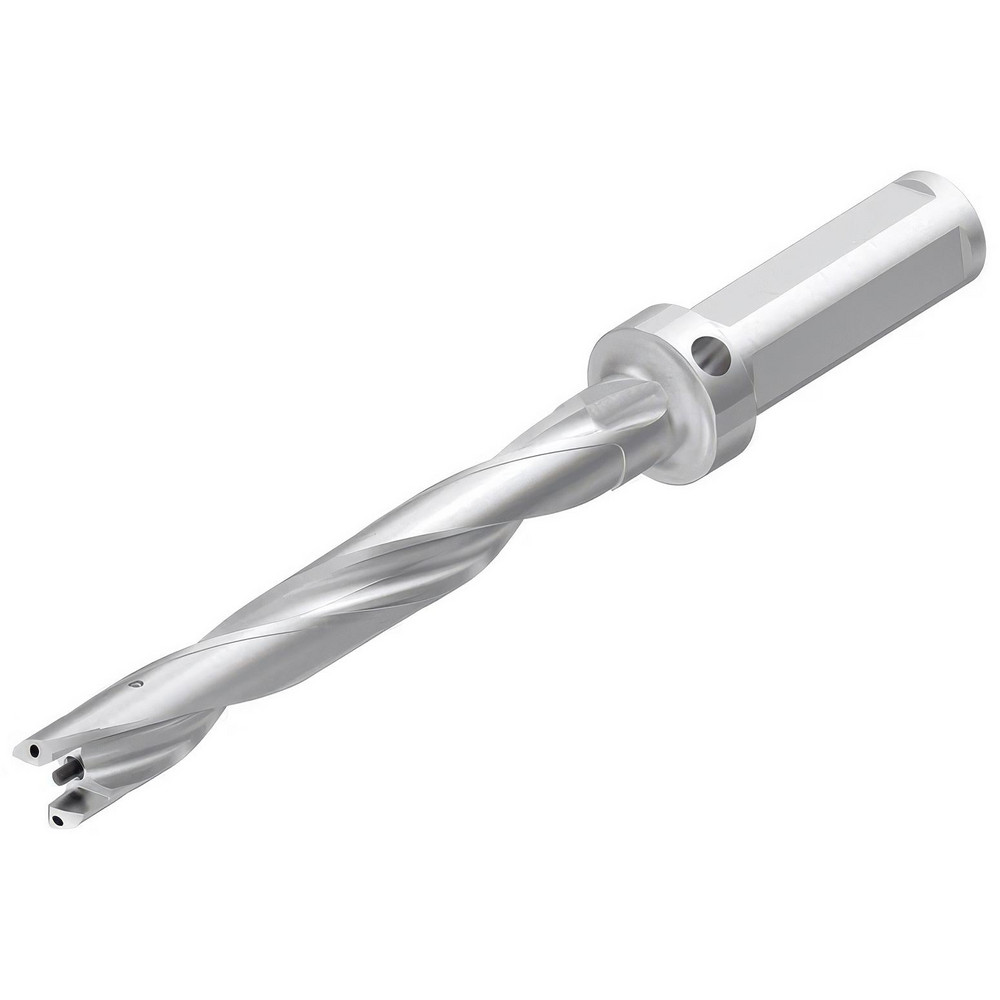

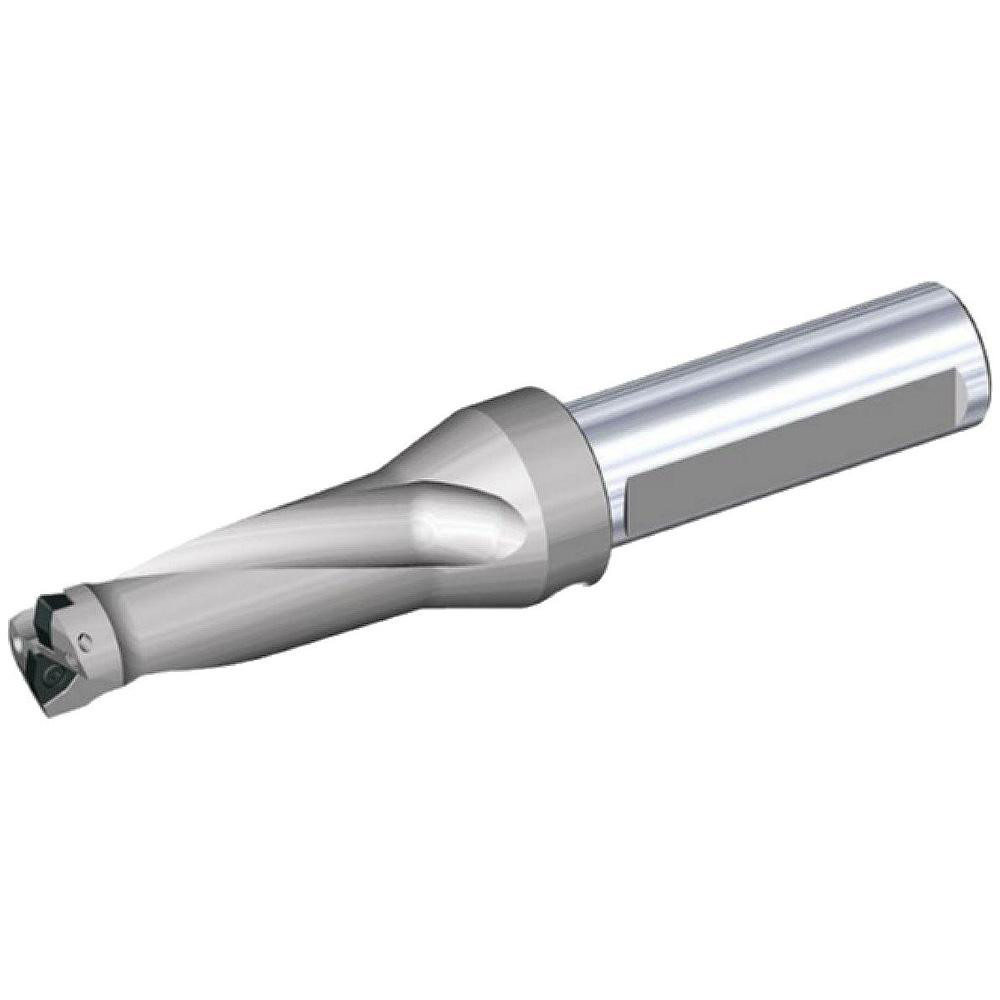

Uses KSEM1125 Inserts, Seat Size 7, 288.93 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.1252 |
|---|---|
| Minimum Drill Diameter (mm) | 28.58 |
| Maximum Drill Diameter (mm) | 29.08 |
| Maximum Drill Diameter (Decimal Inch) | 1.1449 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 150.00 |
| Maximum Drill Depth (Decimal Inch) | 5.9100 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 7 |
| Shank Diameter (mm) | 31.75 |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |

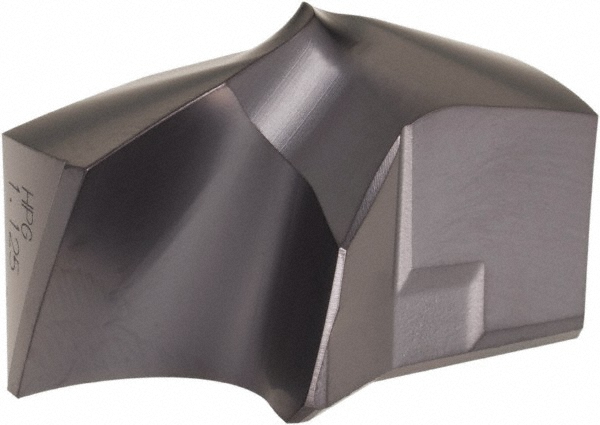

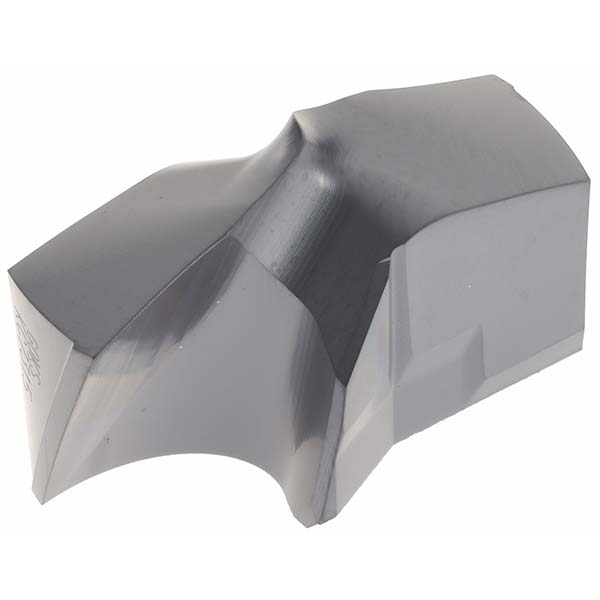

| Compatible Insert Style | KSEM1125 |
| Overall Length (mm) | 288.93 |
| Series | KSEM |
| Flute Length (mm) | 185.42 |
| Flute Length (Decimal Inch) | 7.3000 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01256197 |
