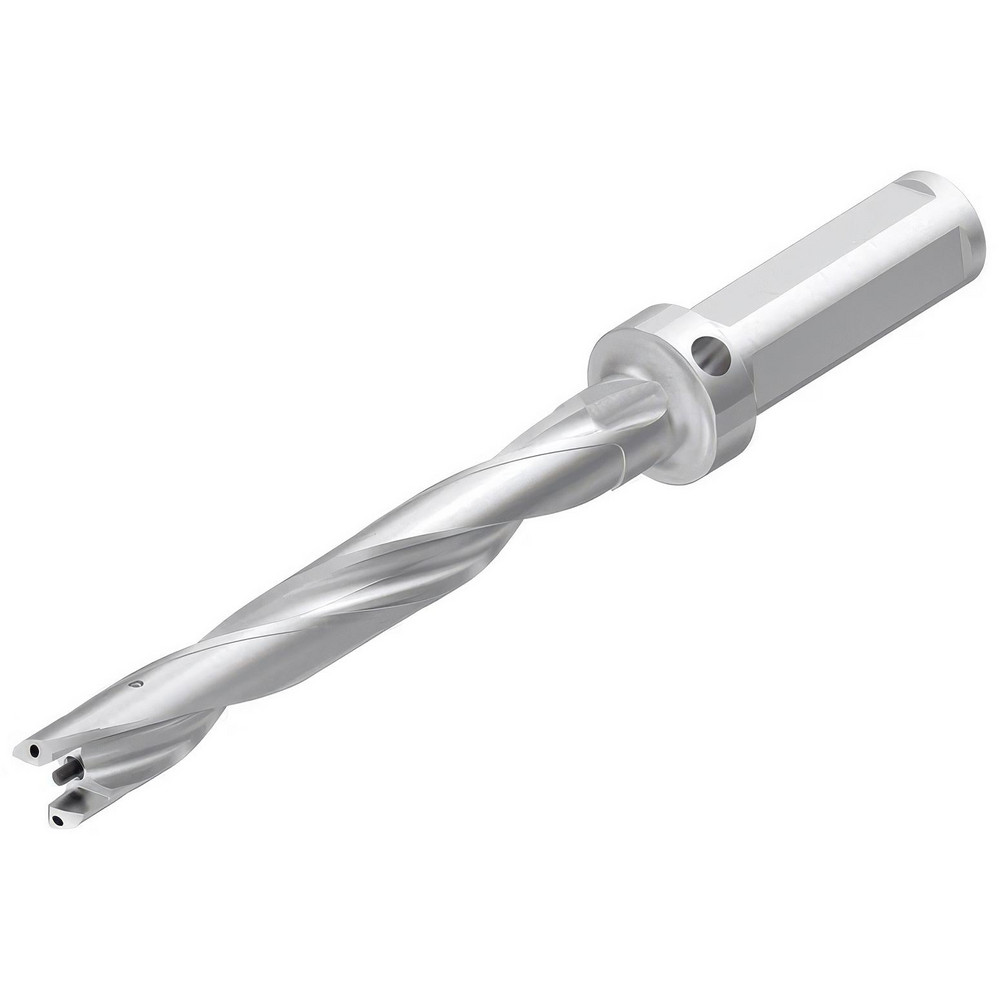

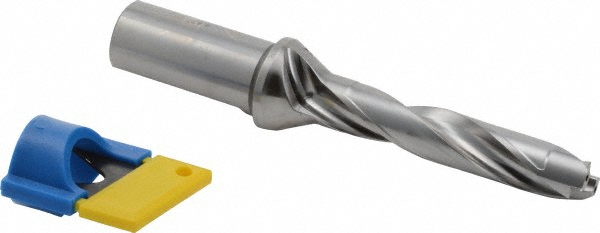

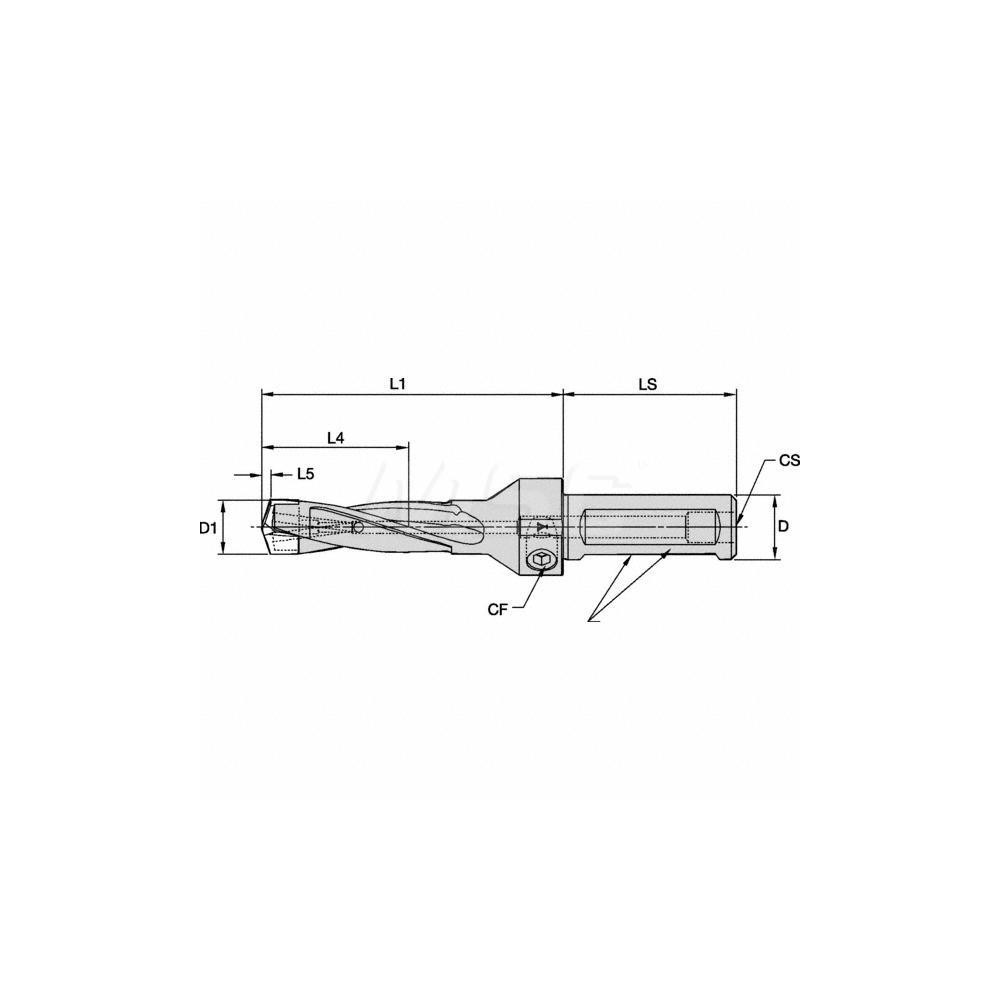

Uses KSEM1125 Inserts, Seat Size 7, 228.6 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.1252 |
|---|---|
| Minimum Drill Diameter (mm) | 28.58 |
| Maximum Drill Diameter (mm) | 29.08 |
| Maximum Drill Diameter (Decimal Inch) | 1.1449 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 90.00 |
| Maximum Drill Depth (Decimal Inch) | 3.5400 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 7 |
| Shank Diameter (mm) | 31.75 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KSEM1125 |
| Overall Length (mm) | 228.6 |
| Overall Length (Decimal Inch) | 9 |
| Series | KSEM |
| Flute Length (mm) | 125.48 |
| Flute Length (Decimal Inch) | 4.9402 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02734788 |
