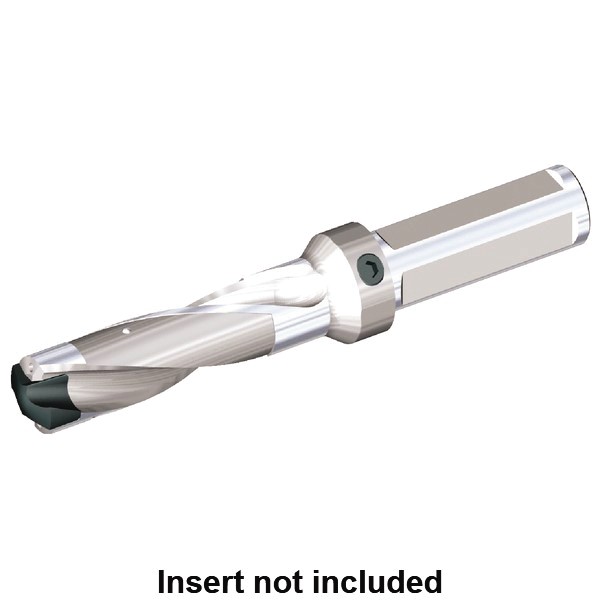

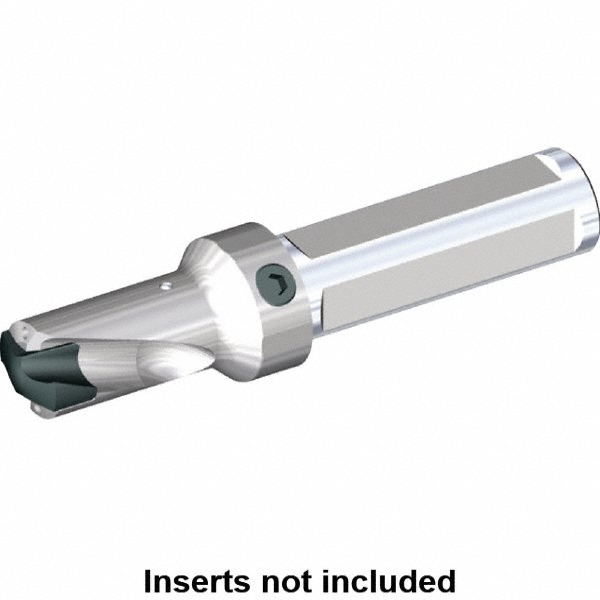

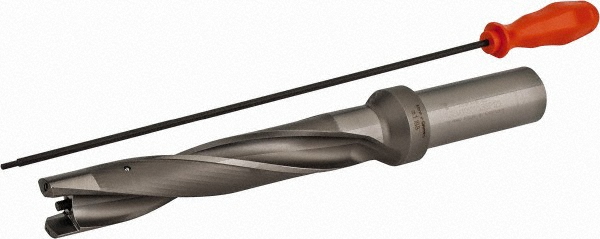

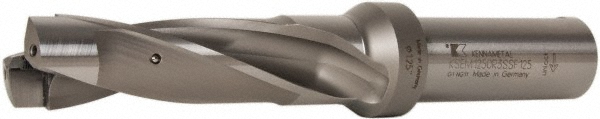

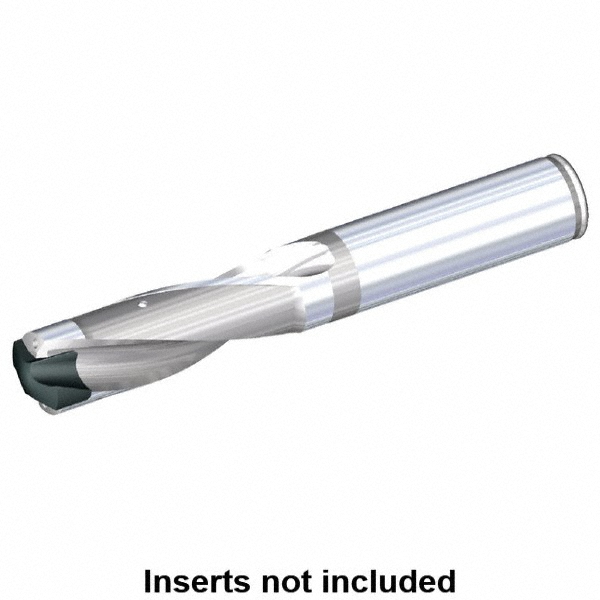

Uses KSEM3250 Inserts, Seat Size 9, 165.1 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.2598 |
|---|---|
| Minimum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4173 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 36.07 |
| Maximum Drill Depth (Decimal Inch) | 1.4200 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 9 |
| Shank Diameter (mm) | 31.75 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | KSEM3250 |
| Overall Length (mm) | 165.1 |
| Overall Length (Decimal Inch) | 6.5 |
| Series | KSEM |
| Flute Length (mm) | 60.60 |
| Flute Length (Decimal Inch) | 2.3858 |
| Body Length (Decimal Inch) | 3.25 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 82698531 |
