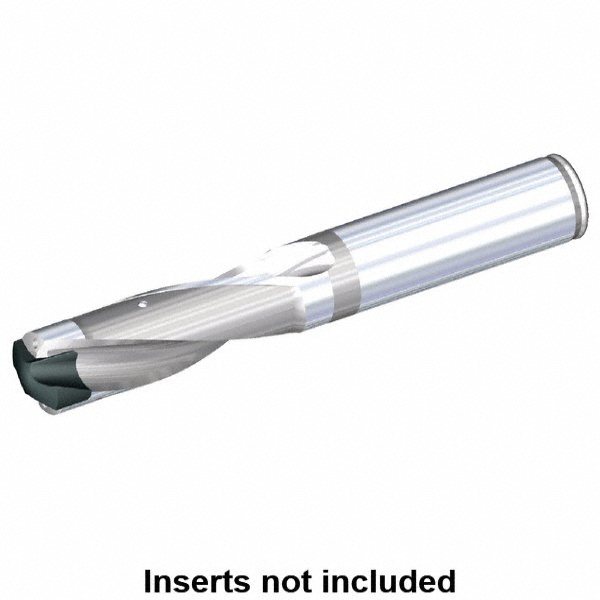

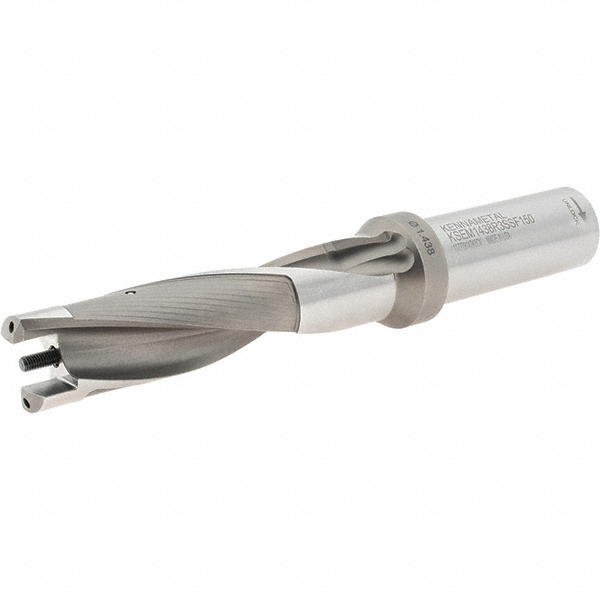

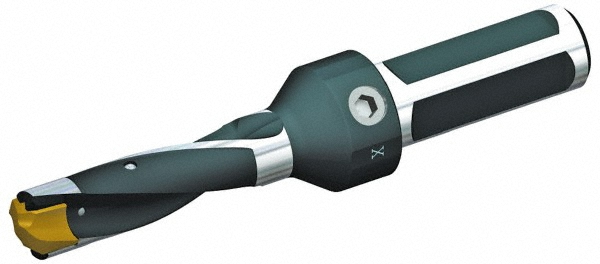

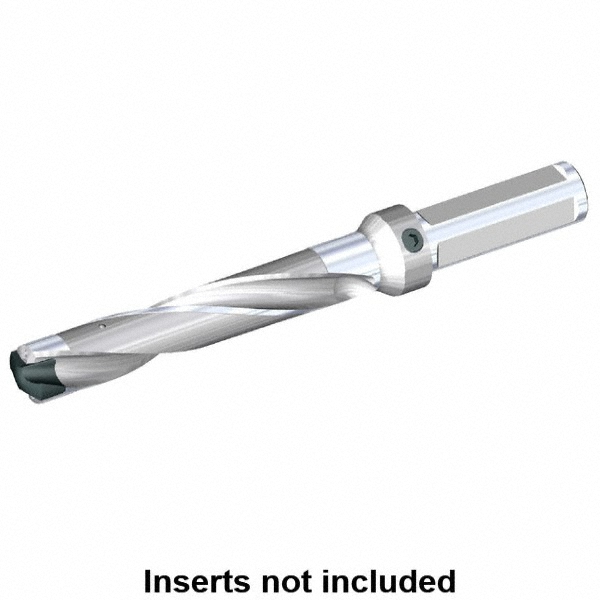

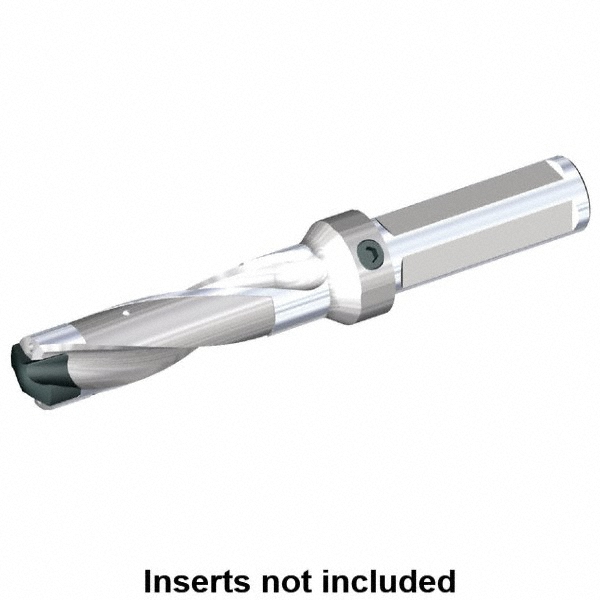

Uses KSEM1313 Inserts, Seat Size 9, 276.23 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.3130 |
|---|---|
| Minimum Drill Diameter (mm) | 33.35 |
| Maximum Drill Diameter (mm) | 34.35 |
| Maximum Drill Diameter (Decimal Inch) | 1.3524 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 102.11 |
| Maximum Drill Depth (Decimal Inch) | 4.0200 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 9 |
| Shank Diameter (mm) | 38.10 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |

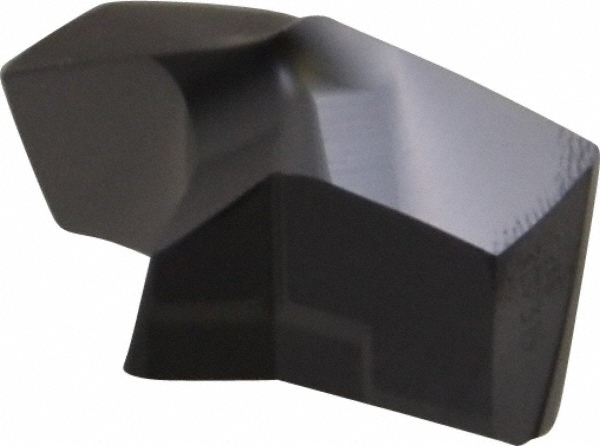

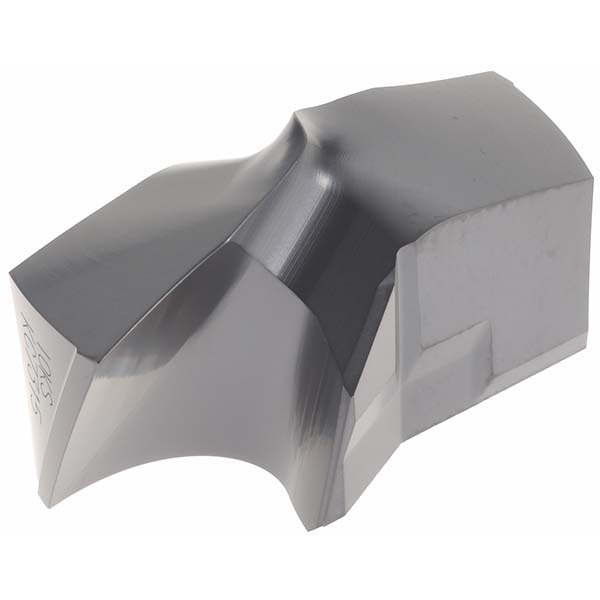

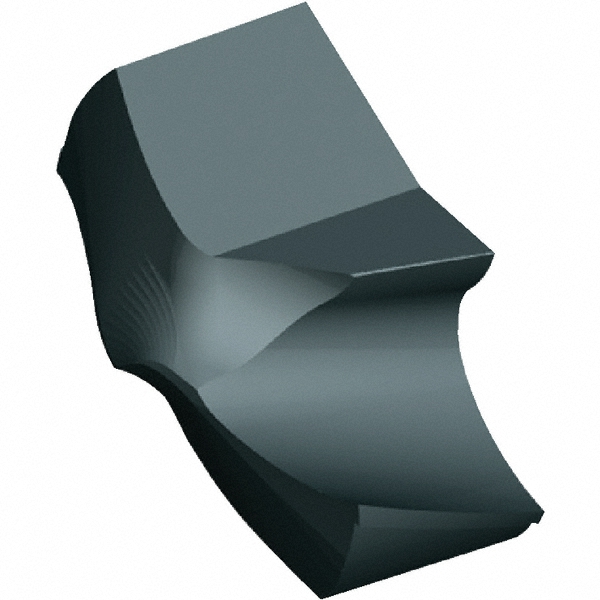

| Compatible Insert Style | KSEM1313 |

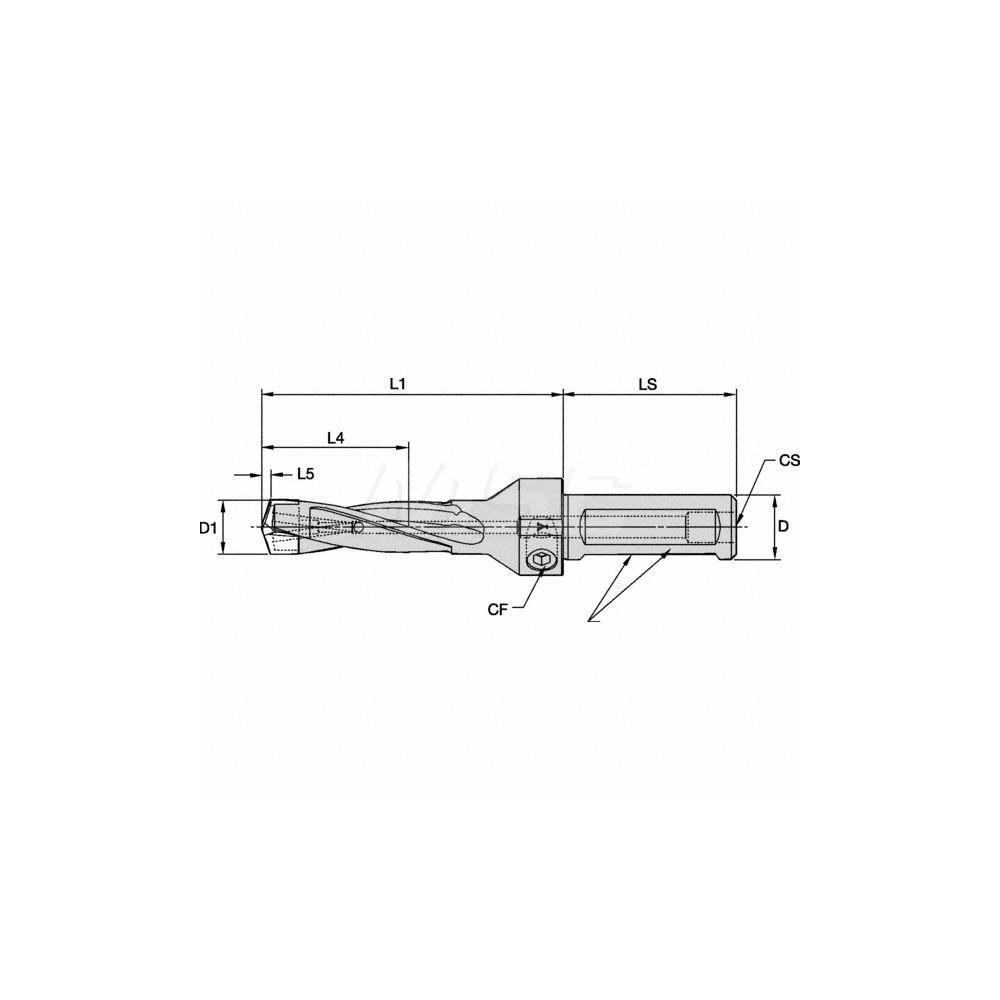

| Overall Length (mm) | 276.23 |
| Overall Length (Decimal Inch) | 10.8752 |
| Series | KSEM |
| Flute Length (mm) | 157.99 |
| Flute Length (Decimal Inch) | 6.2201 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02735041 |
