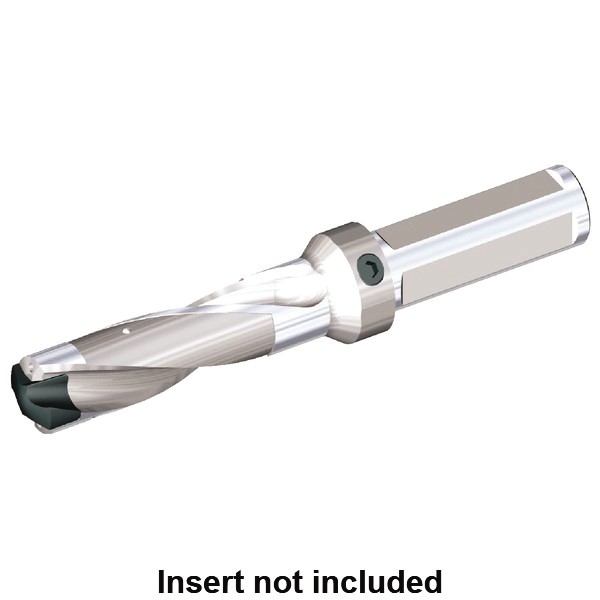

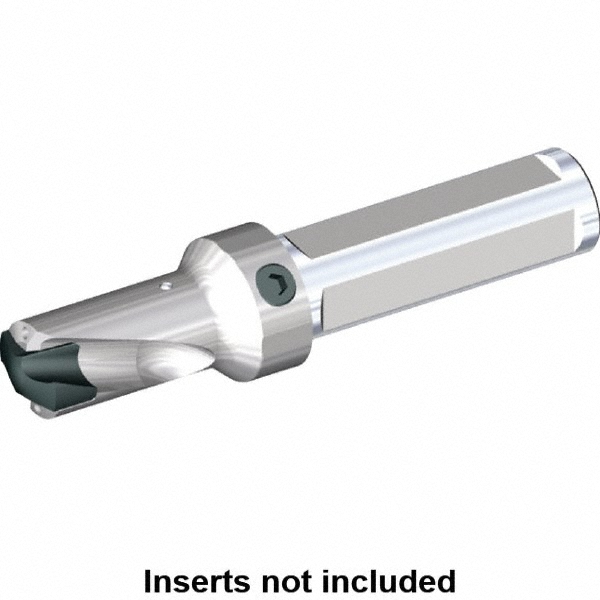

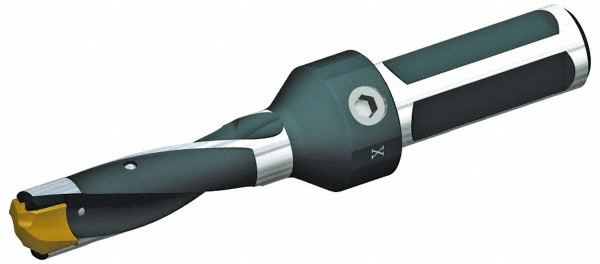

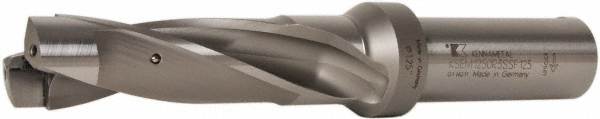

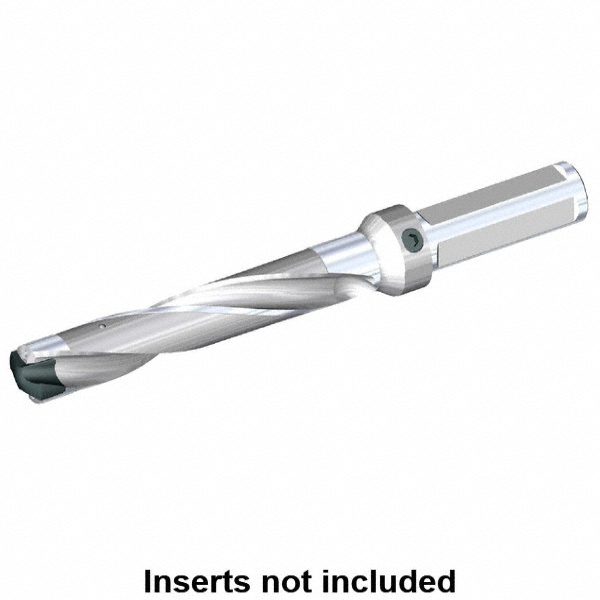

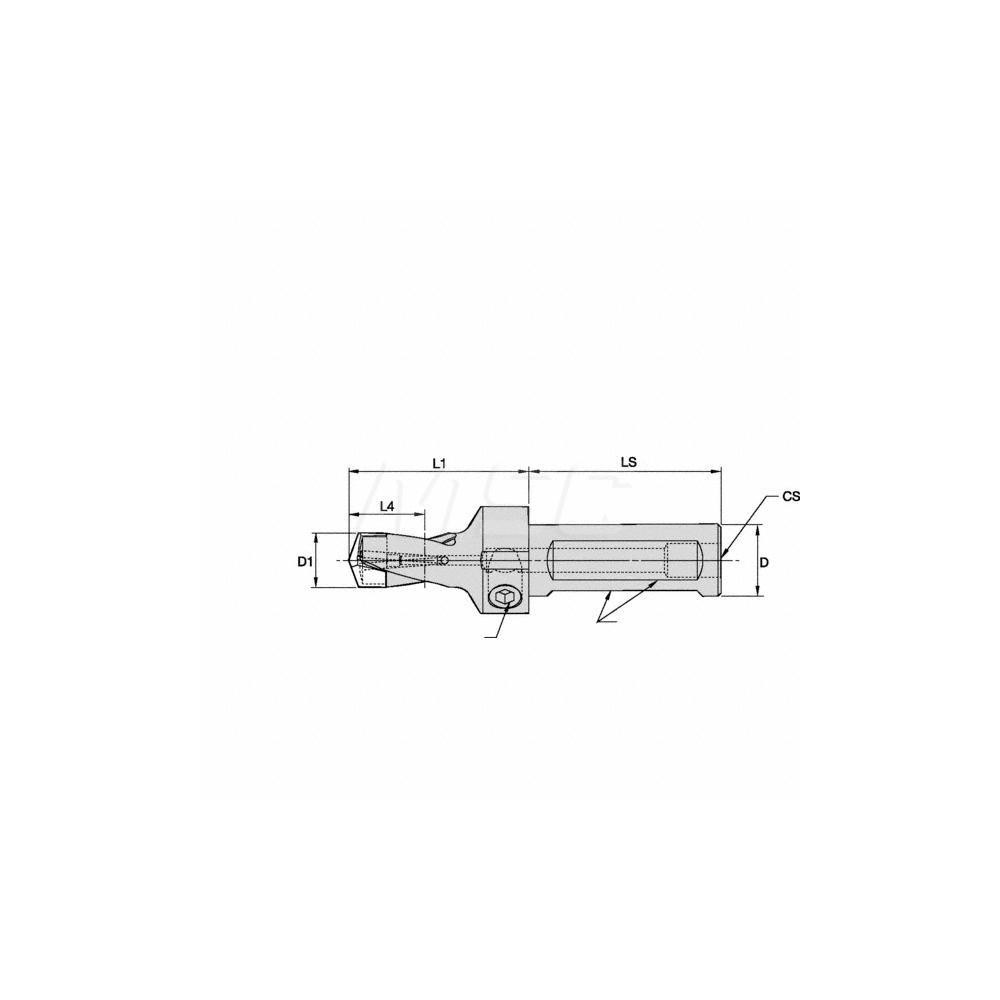

Uses KSEM1422 Inserts, Seat Size 10, 168.28 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.4181 |
|---|---|
| Minimum Drill Diameter (mm) | 36.02 |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 39.88 |
| Maximum Drill Depth (Decimal Inch) | 1.5700 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 10 |
| Shank Diameter (mm) | 31.75 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | KSEM1422 |
| Overall Length (mm) | 168.28 |
| Overall Length (Decimal Inch) | 6.6252 |
| Series | KSEM |
| Flute Length (mm) | 65.63 |
| Flute Length (Decimal Inch) | 2.5839 |
| Body Length (Decimal Inch) | 3.38 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 82698549 |
