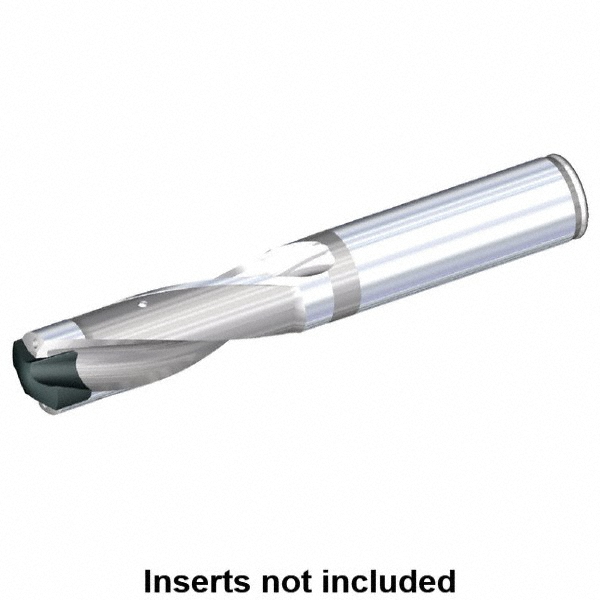

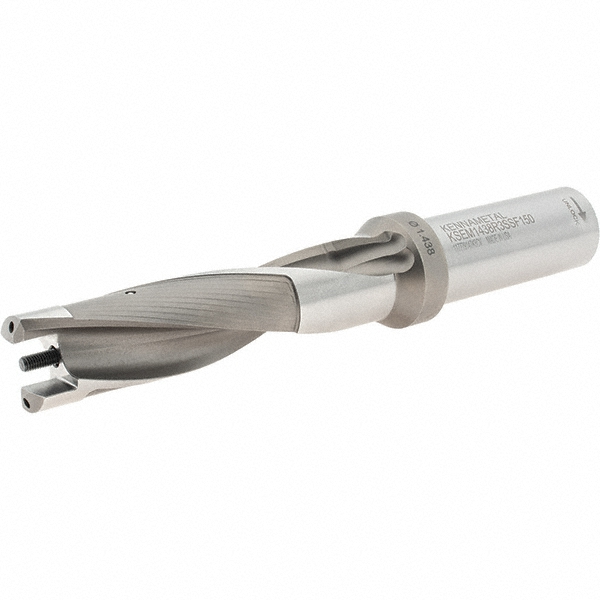

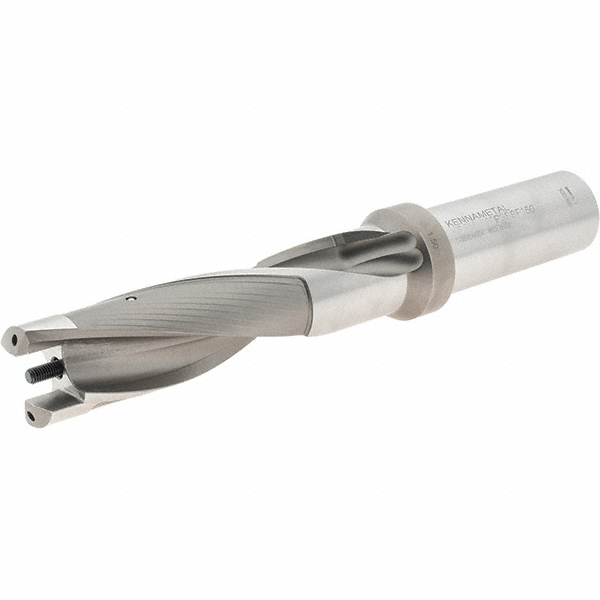

Uses KSEM1438 Inserts, Seat Size 10, 342.9 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.4374 |
|---|---|
| Minimum Drill Diameter (mm) | 36.51 |
| Maximum Drill Diameter (mm) | 37.51 |
| Maximum Drill Diameter (Decimal Inch) | 1.4768 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 182.63 |
| Maximum Drill Depth (Decimal Inch) | 7.1902 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 10 |
| Shank Diameter (mm) | 38.10 |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |

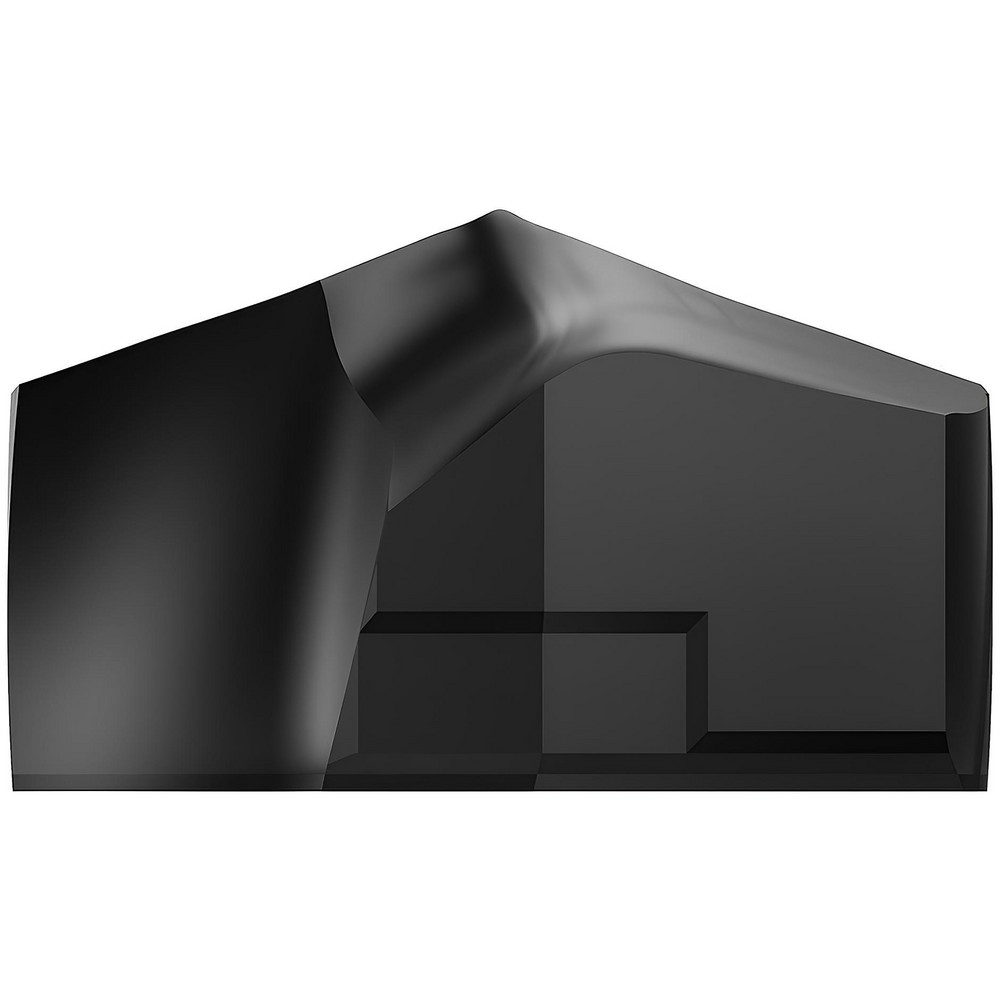

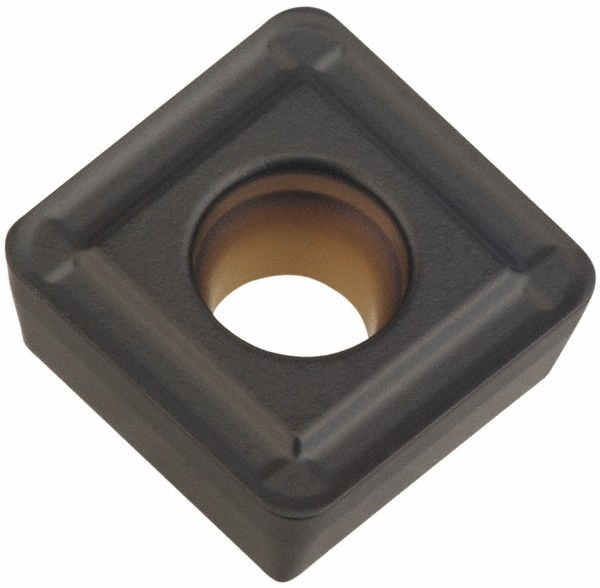

| Compatible Insert Style | KSEM1438 |
| Overall Length (mm) | 342.9 |
| Series | KSEM |
| Flute Length (mm) | 243.59 |
| Flute Length (Decimal Inch) | 9.5902 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 01256502 |
