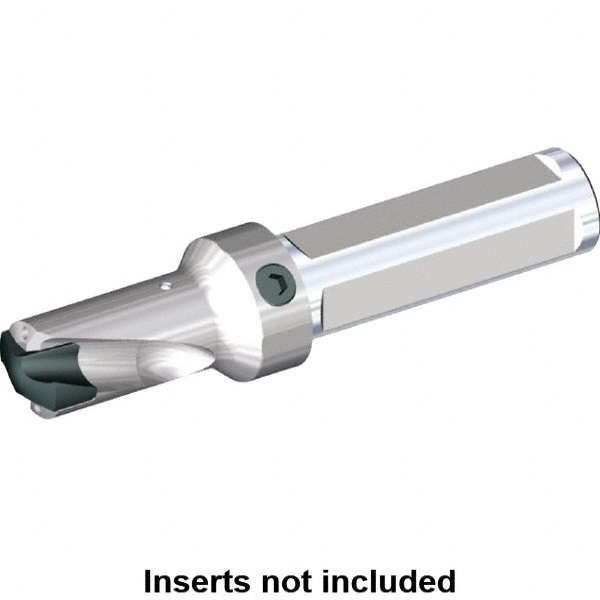

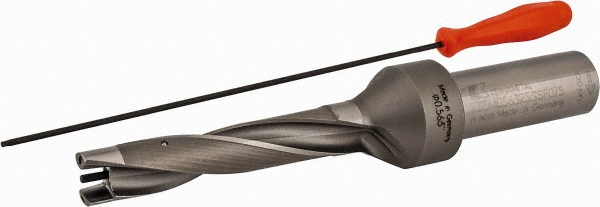

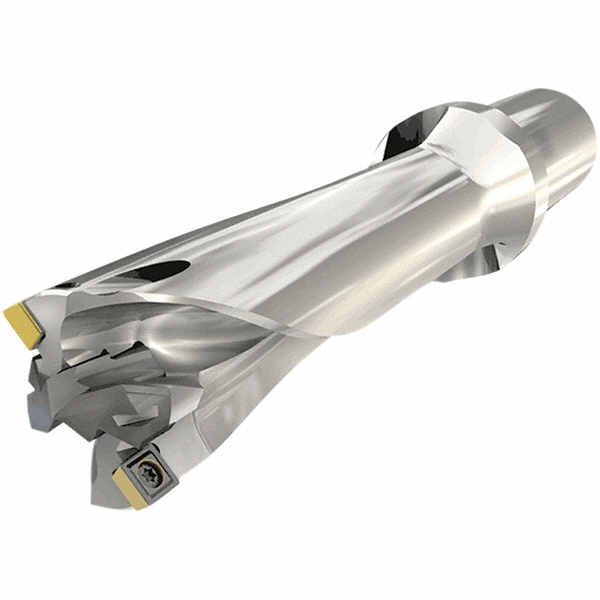

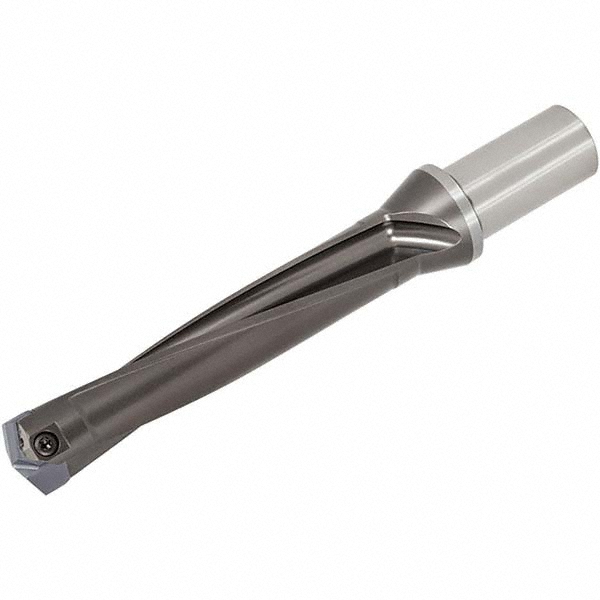

Uses KSEM3651HPGM Inserts, Seat Size 10, 342.85 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.4378 |
|---|---|
| Minimum Drill Diameter (mm) | 36.52 |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5740 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 182.60 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Seat Size | 10 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |

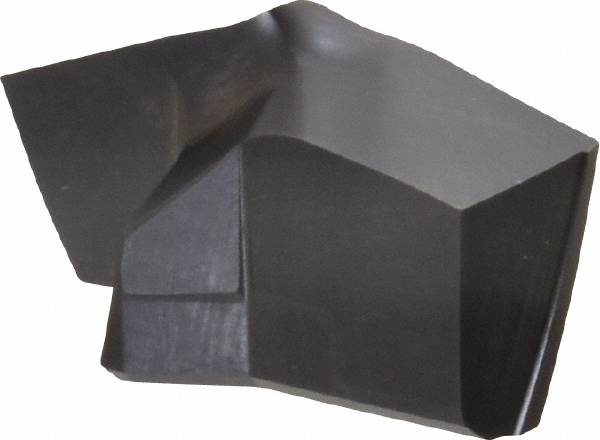

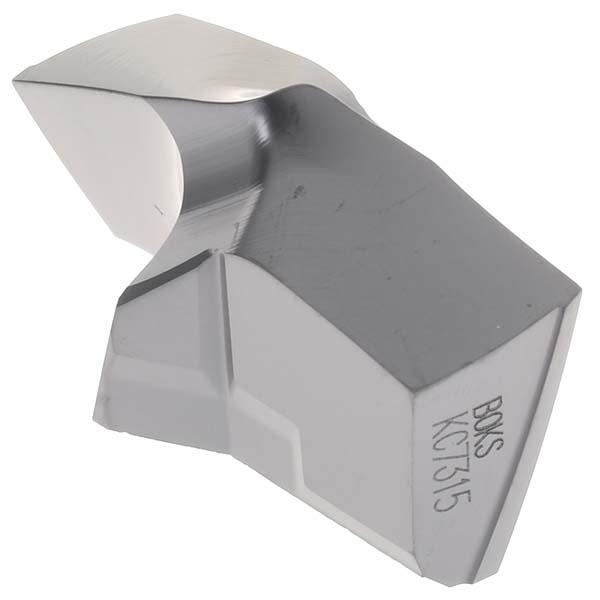

| Compatible Insert Style | KSEM3651HPGM |

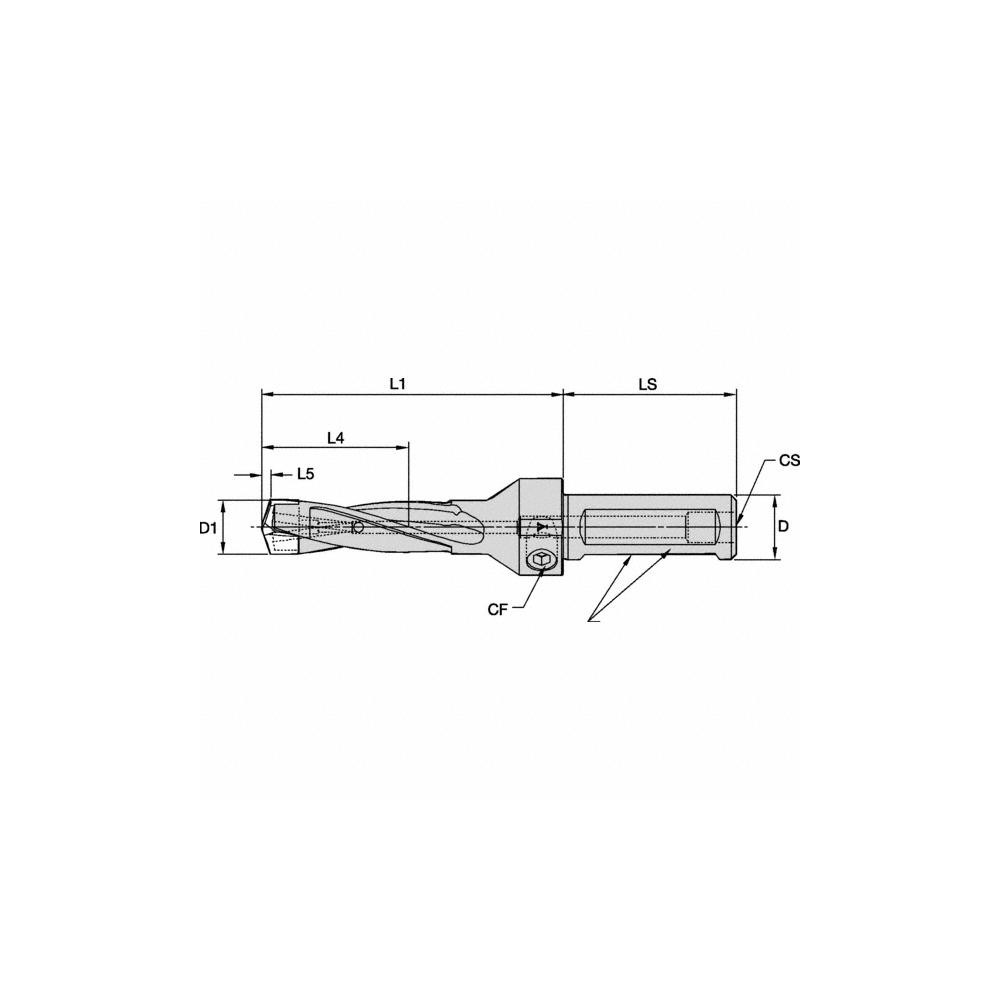

| Overall Length (mm) | 342.85 |
| Series | KSEM |
| Toolholder Style | KSEM |
| Flute Length (mm) | 232.90 |
| Body Length (mm) | 247.60 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 38646287 |
