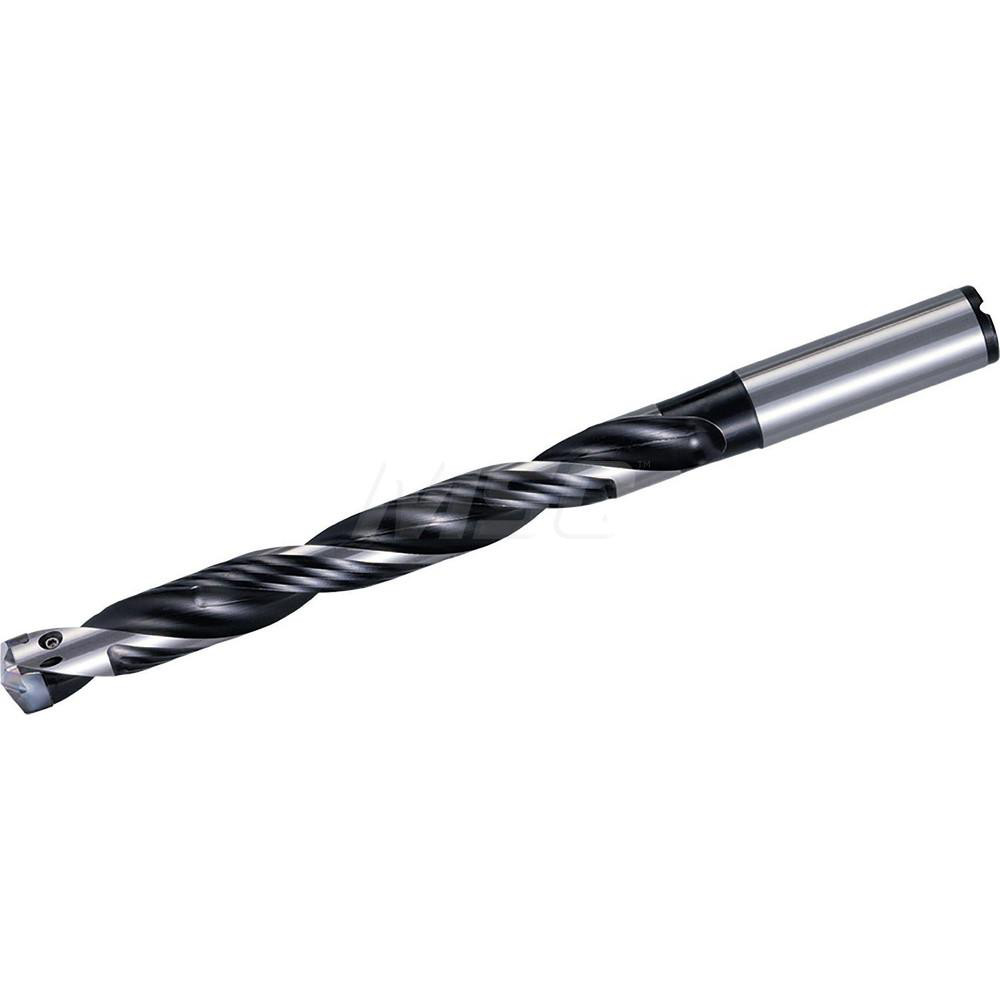

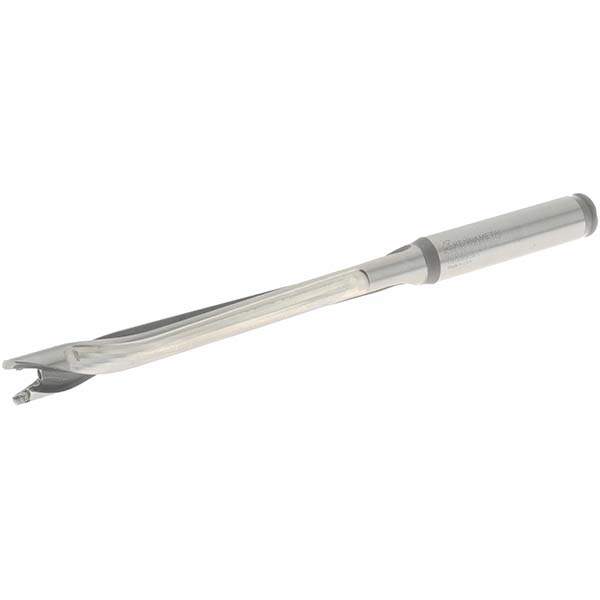

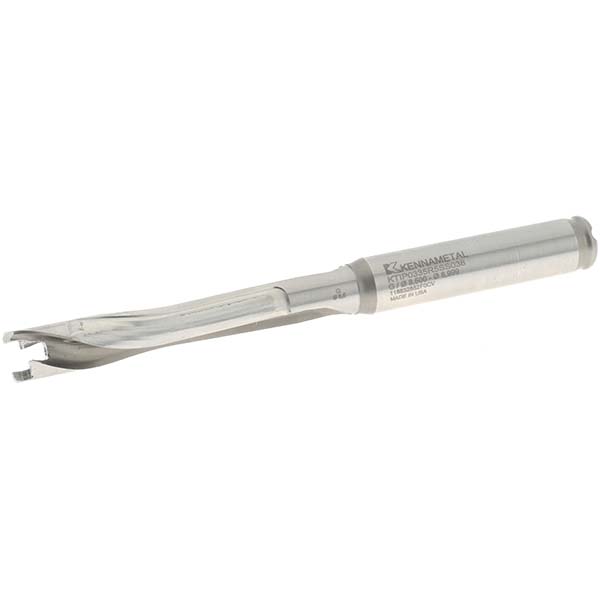

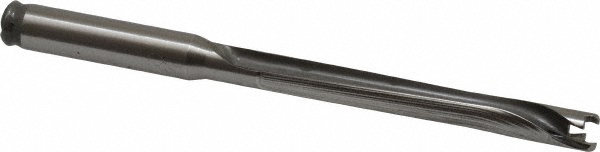

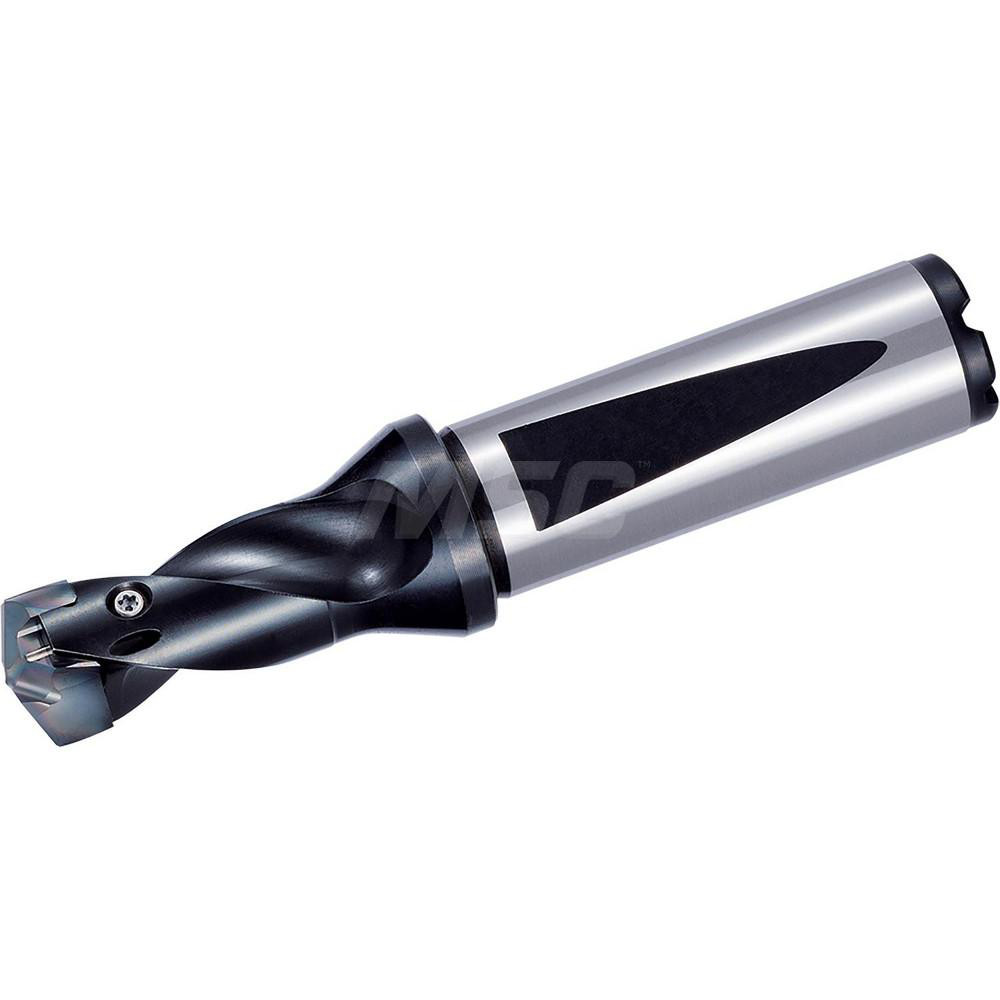

Uses KTIP03390HP Inserts, Seat Size G, 82.55 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
|---|---|
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 26.92 |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | G |
| Shank Diameter (mm) | 9.53 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | KTIP03390HP |
| Overall Length (mm) | 82.55 |
| Overall Length (Decimal Inch) | 3.25 |
| Series | KenTIP |
| Flute Length (mm) | 35.05 |
| Flute Length (Decimal Inch) | 1.3799 |
| Shank Length (Decimal Inch) | 1.5900 |
| Shank Length (mm) | 40.39 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01243237 |
