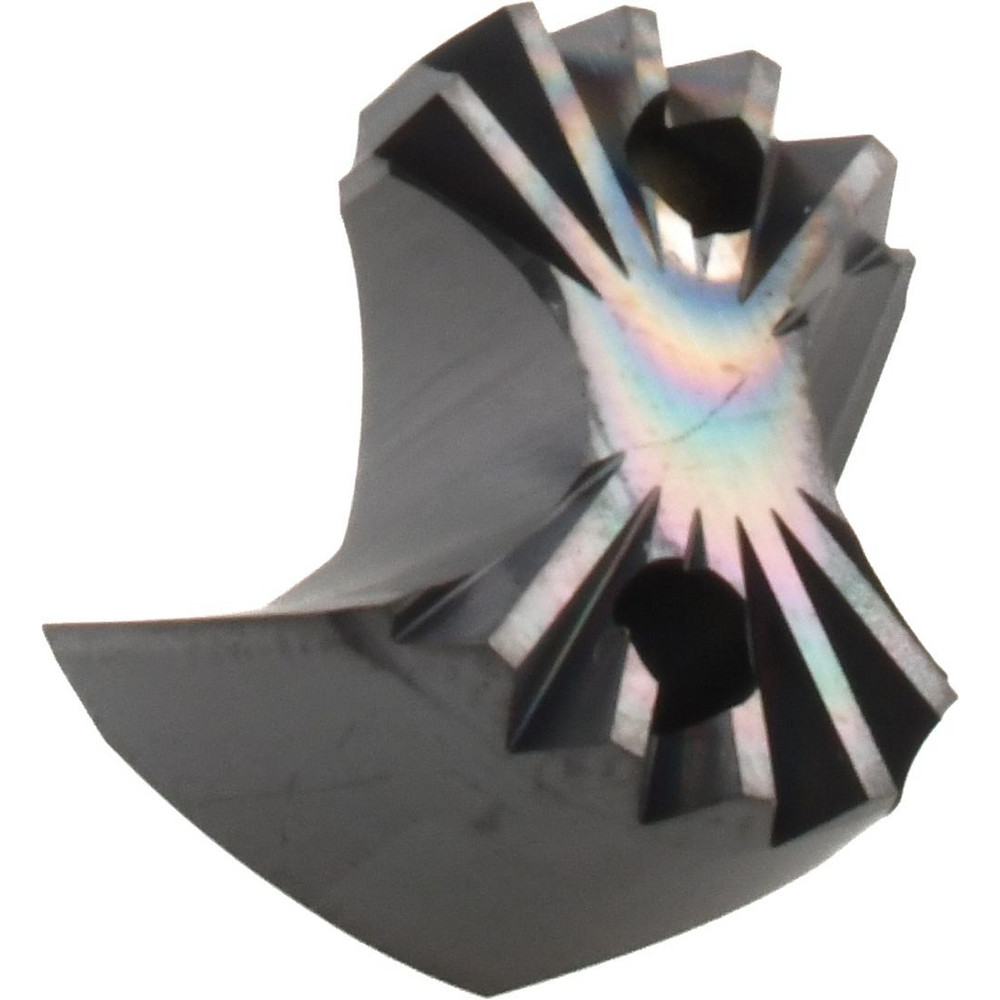

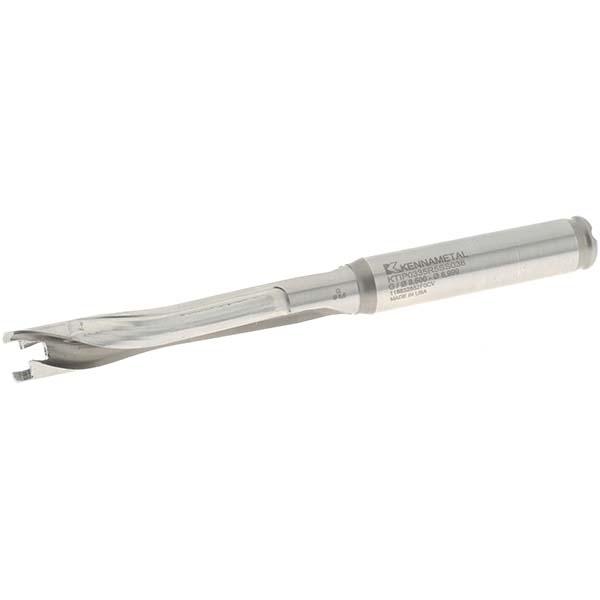

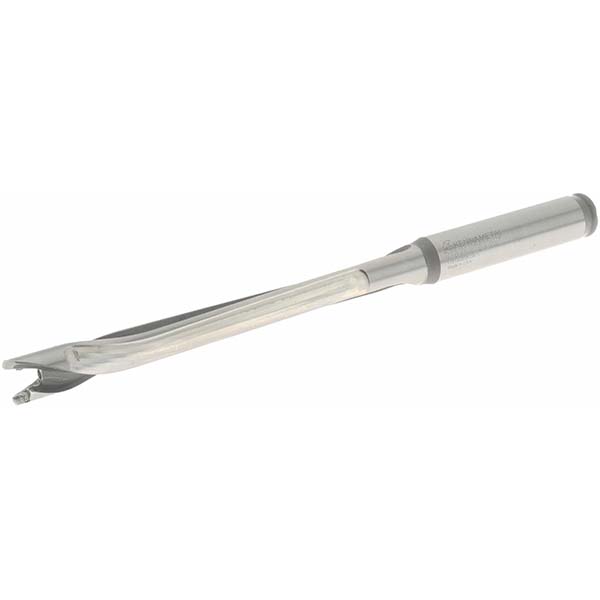

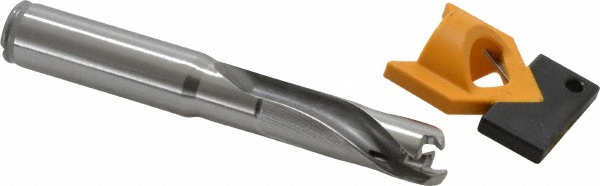

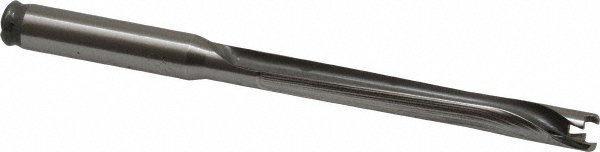

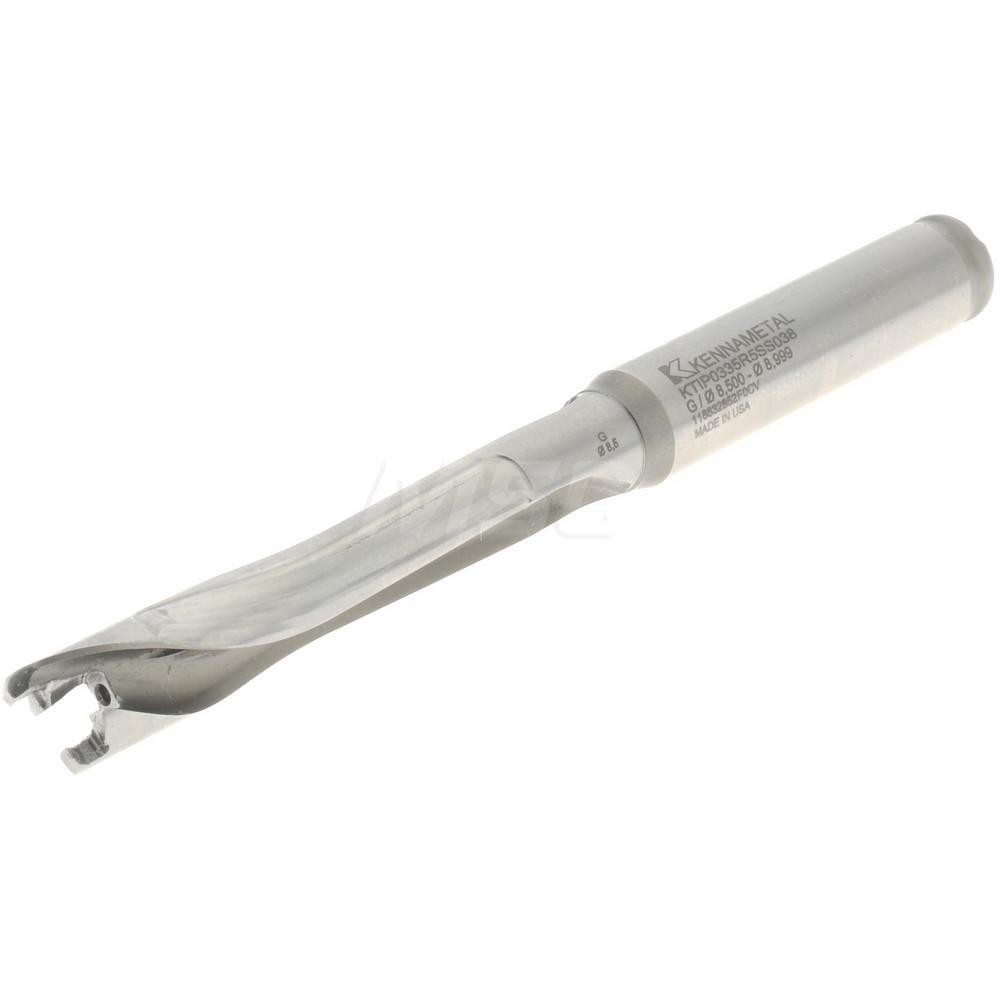

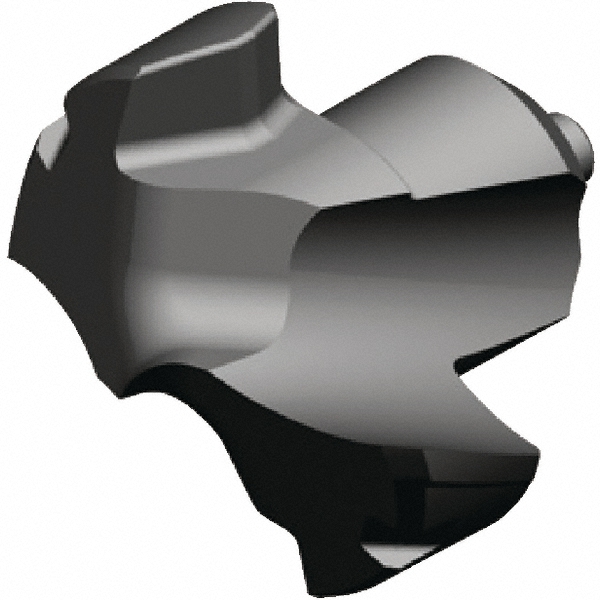

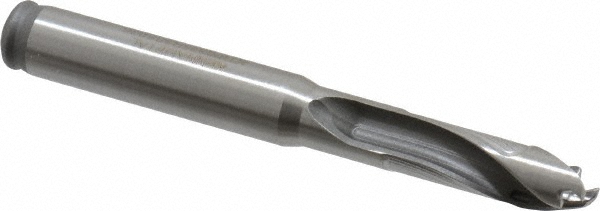

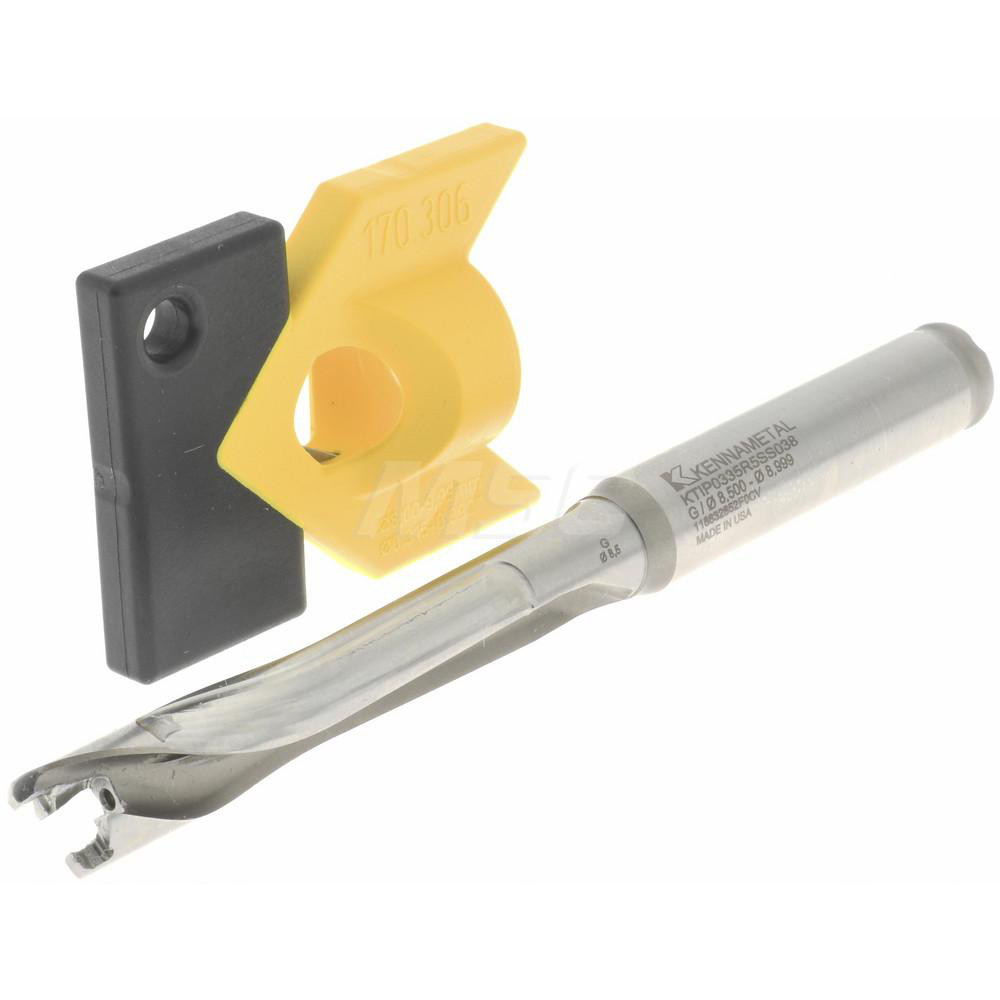

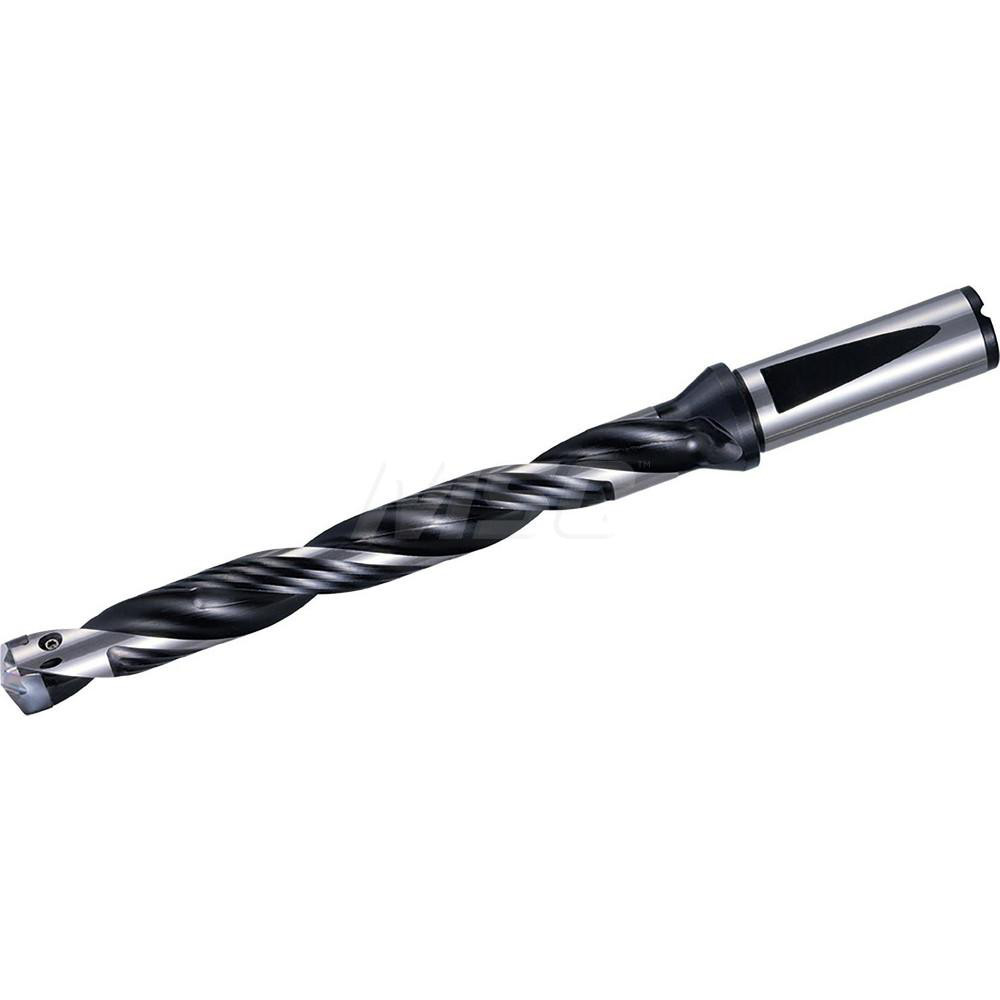

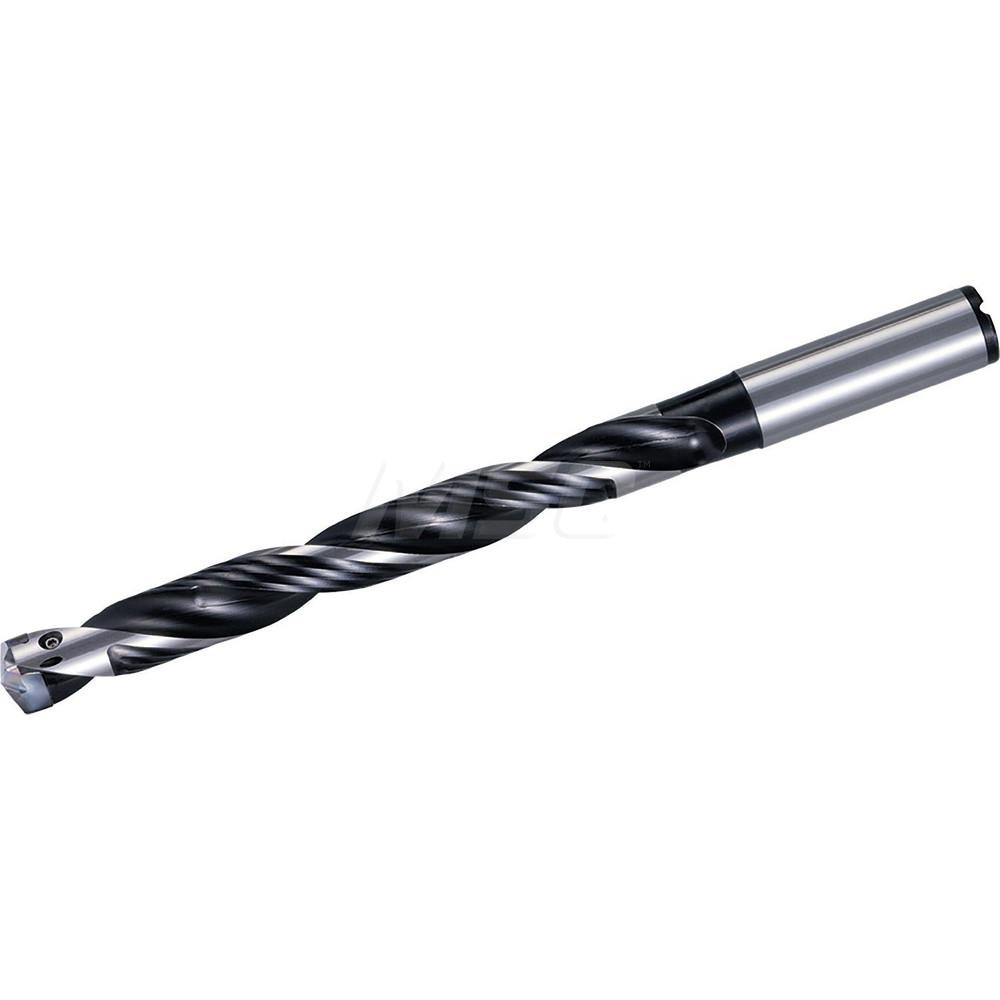

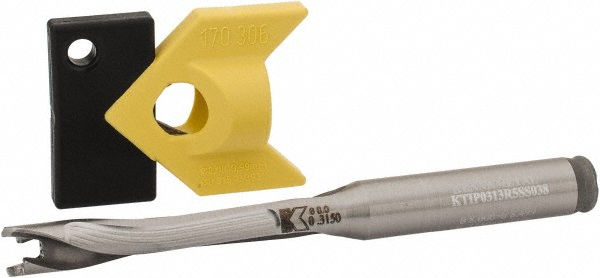

Uses KTIP03390HP Inserts, Seat Size G, 101.6 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
|---|---|
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 44.96 |
| Maximum Drill Depth (Decimal Inch) | 1.7700 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | G |
| Shank Diameter (mm) | 9.53 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | KTIP03390HP |
| Overall Length (mm) | 101.6 |
| Overall Length (Decimal Inch) | 4 |
| Series | KenTIP |
| Flute Length (mm) | 54.86 |
| Flute Length (Decimal Inch) | 2.1598 |
| Shank Length (Decimal Inch) | 1.5900 |
| Shank Length (mm) | 40.39 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01242585 |
