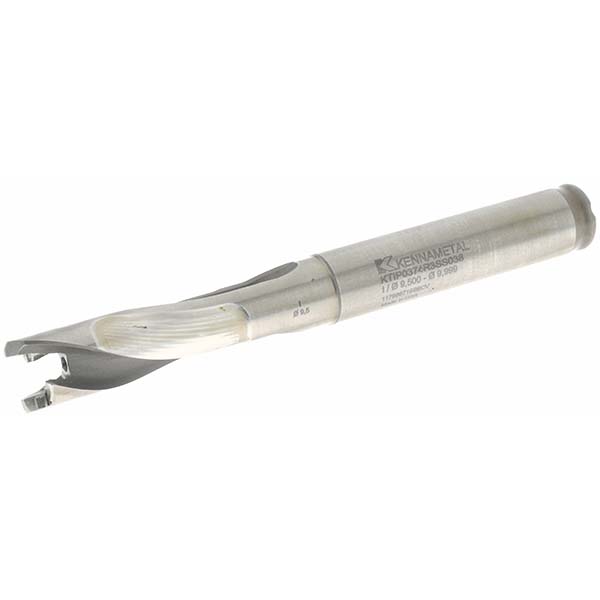

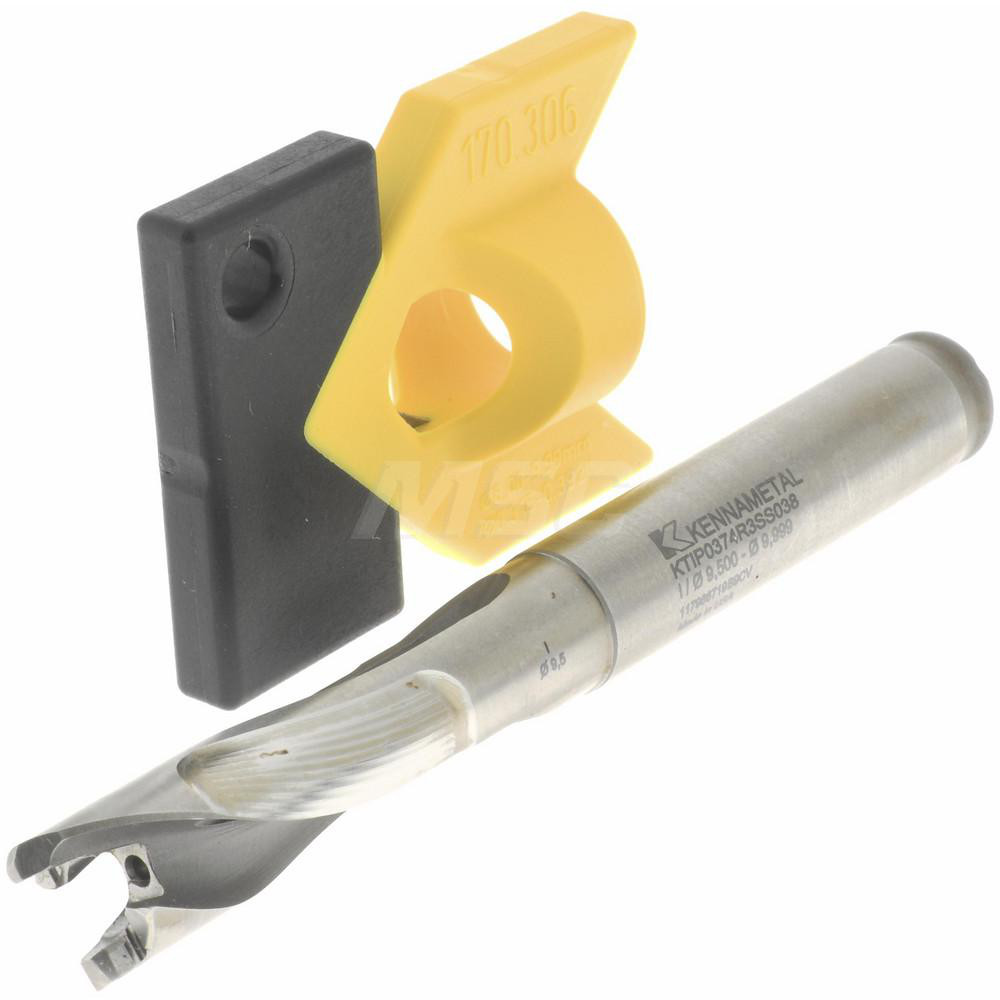

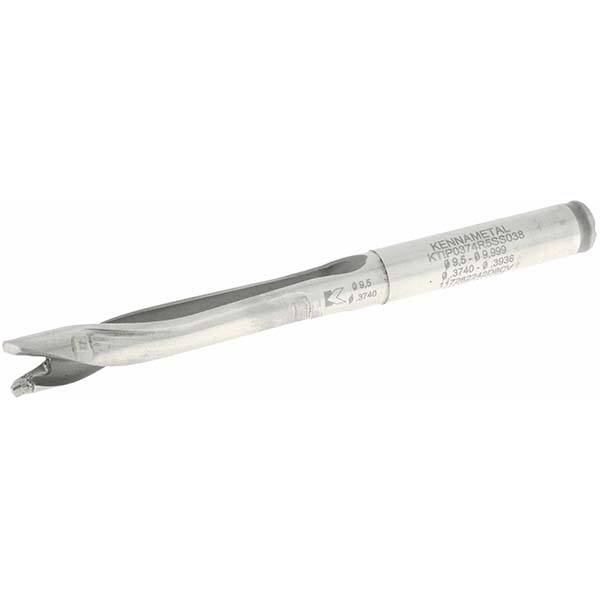

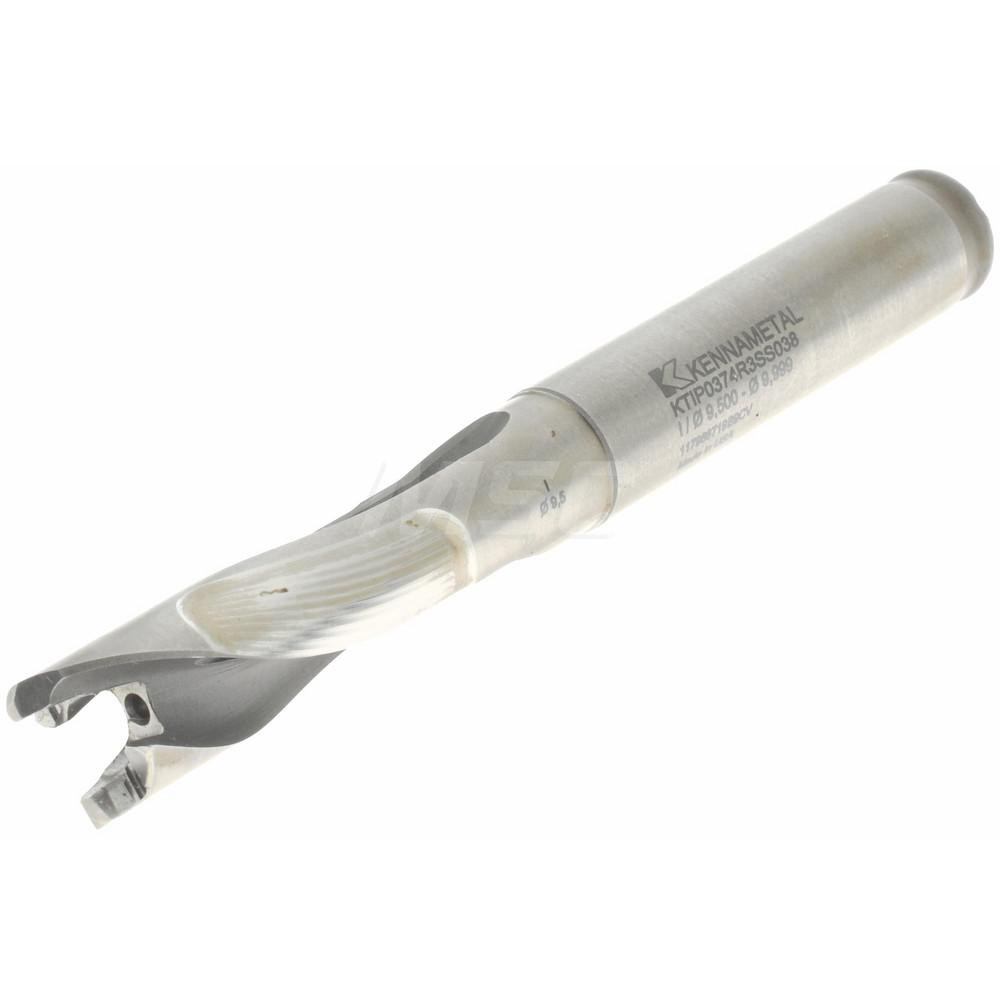

Uses KTIP03750HP Inserts, Seat Size I, 85.73 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
|---|---|
| Minimum Drill Diameter (mm) | 9.50 |
| Maximum Drill Diameter (mm) | 9.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3933 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 29.97 |
| Maximum Drill Depth (Decimal Inch) | 1.1800 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | I |
| Shank Diameter (mm) | 9.53 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | KTIP03750HP |
| Overall Length (mm) | 85.73 |
| Overall Length (Decimal Inch) | 3.3752 |
| Series | KenTIP |
| Flute Length (mm) | 39.12 |
| Flute Length (Decimal Inch) | 1.5402 |
| Shank Length (Decimal Inch) | 1.5900 |
| Shank Length (mm) | 40.39 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01243260 |
