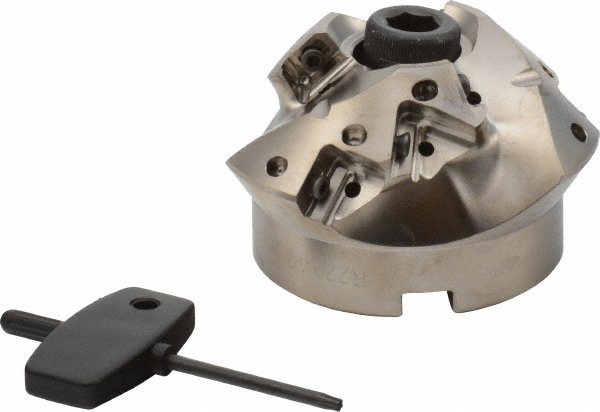

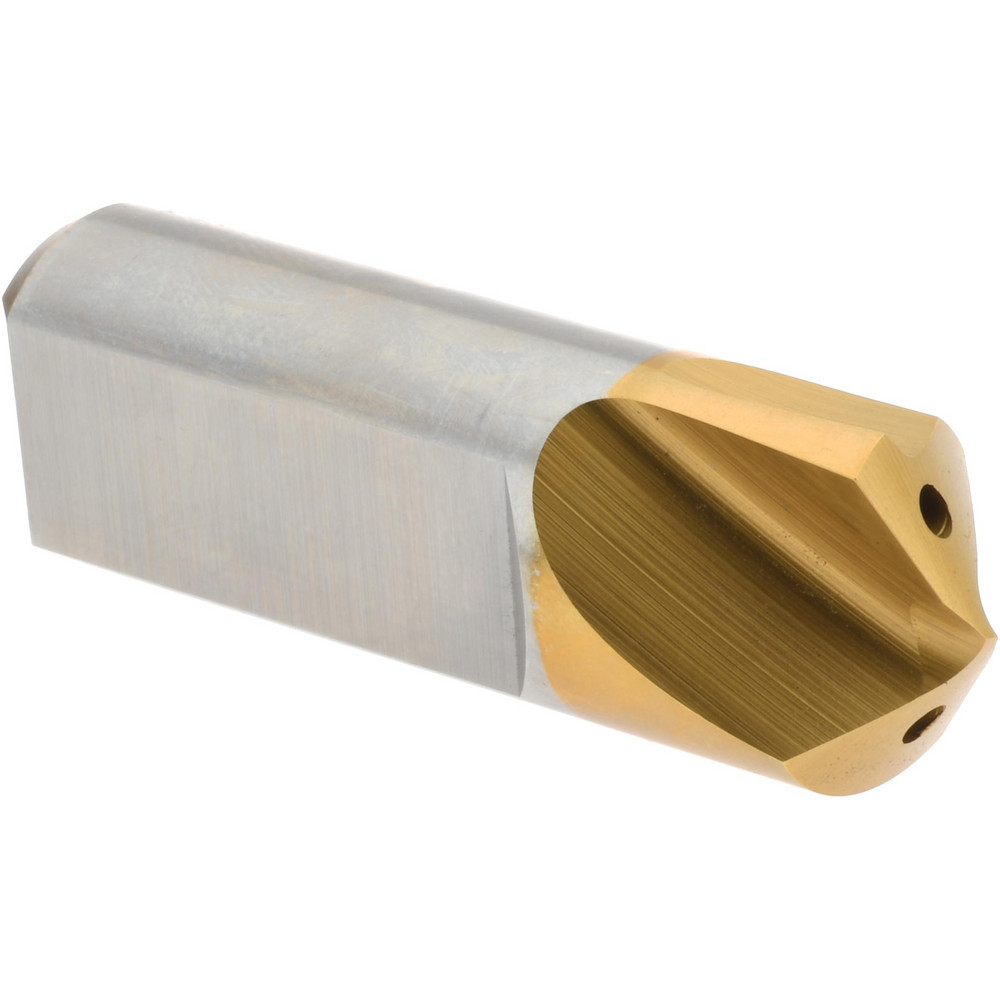

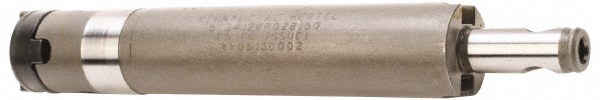

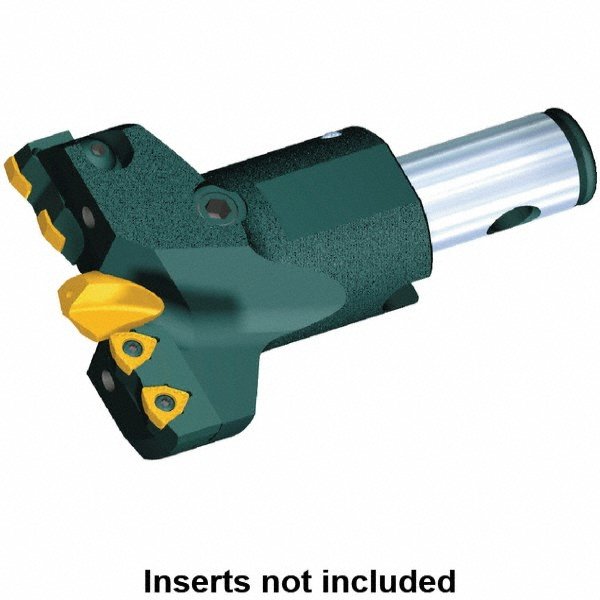

B510S25000 Pilot Drill, 25mm Pilot Drill Dia, Takes 4 Nonpilot Inserts, 90mm Head Length
| Head Connection Size | 40 mm |
|---|---|
| Fixed Pilot | Pilot Drill |
| Maximum Drill Diameter (mm) | 130.00 |
| Maximum Drill Diameter (Decimal Inch) | 5.1181 |
| Pilot Drill Diameter (mm) | 25.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.9843 |
| Pilot Drill Style | B510S25000 |
| Drill Head Style | 3.76 |
| Insert Holding Method | Cartridge |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Series | HTS DFT |
| Back of Head Diameter (Decimal Inch) | 2.7953 |
| Back of Head Diameter (mm) | 71.00 |

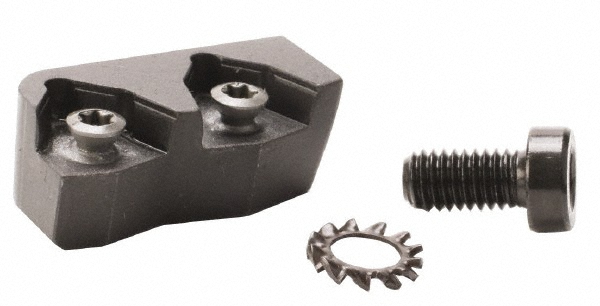

| Includes | Clamping Screw; Adjusting Screw |
| Overall Length (Decimal Inch) | 5.7087 |
| Overall Length (mm) | 145 |
| Coolant Through | Yes |
| Number of Non Pilot Inserts | 4 |
| UNSPSC Code | 23291500 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 09094400 |
