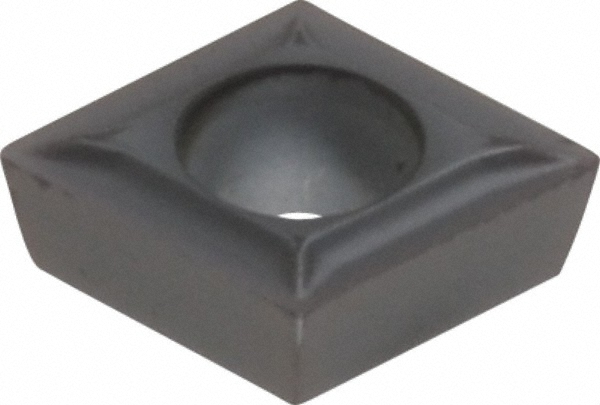

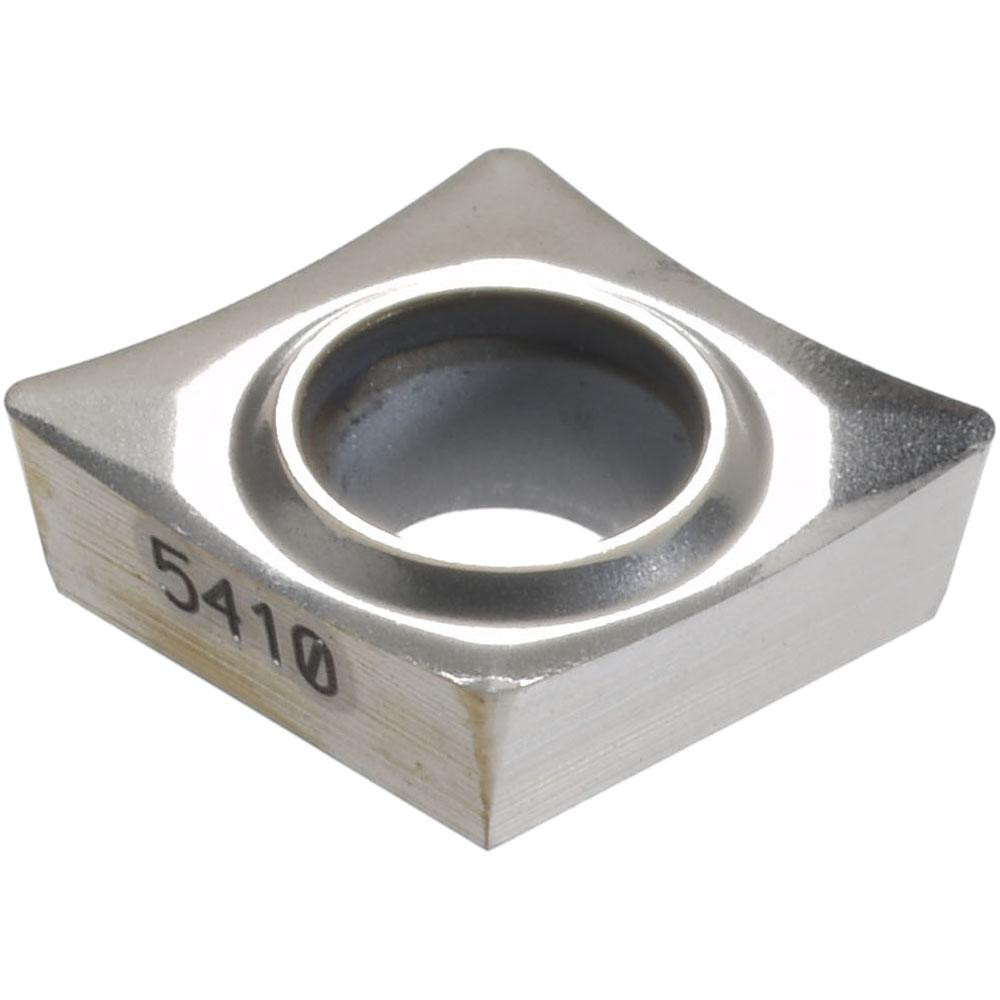

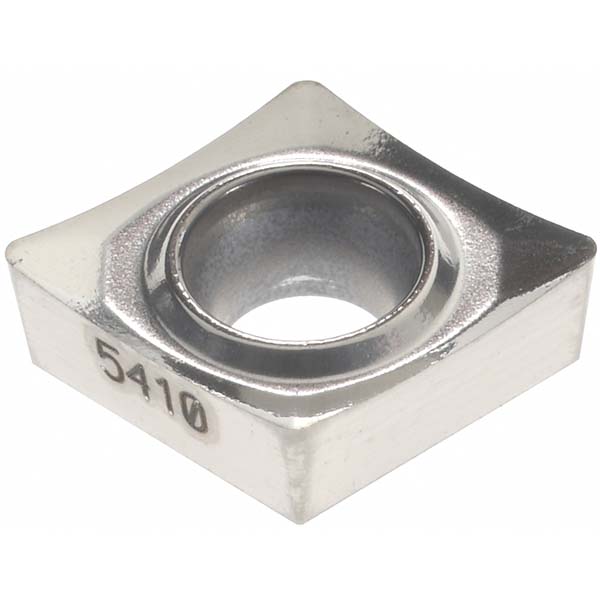

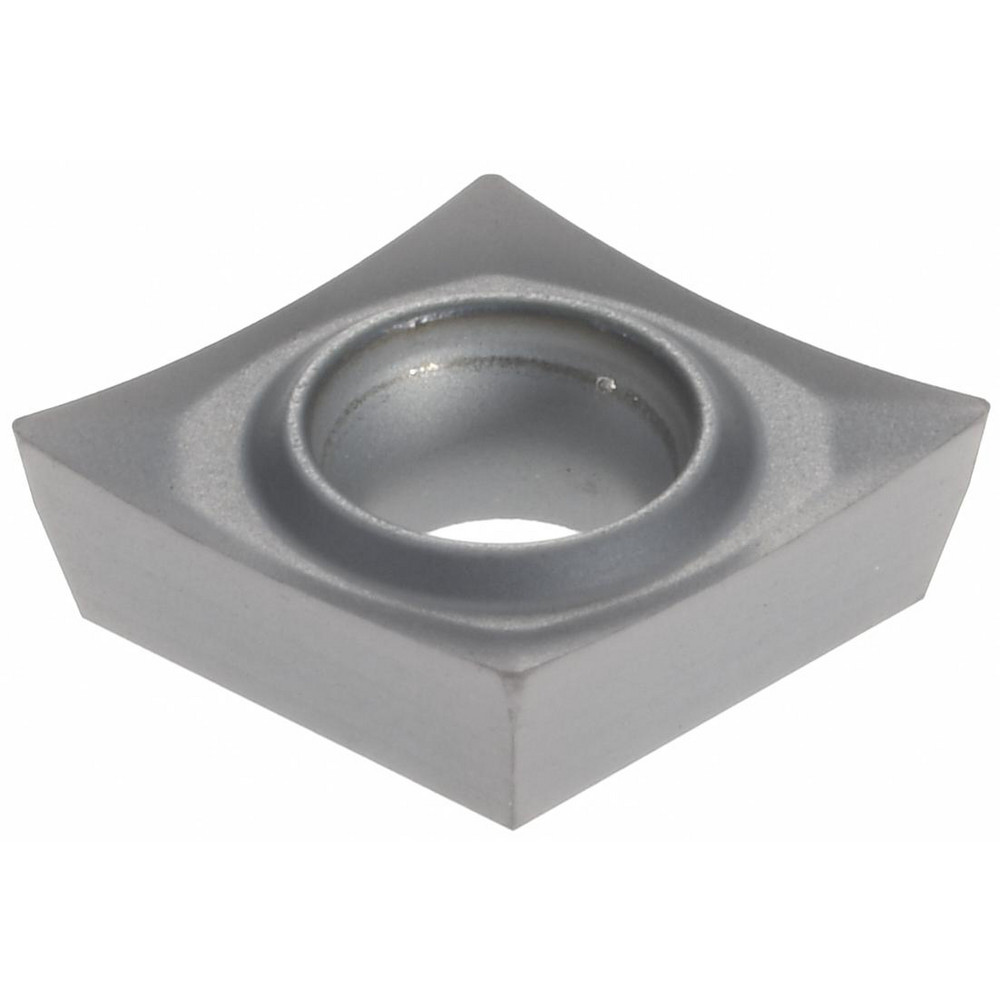

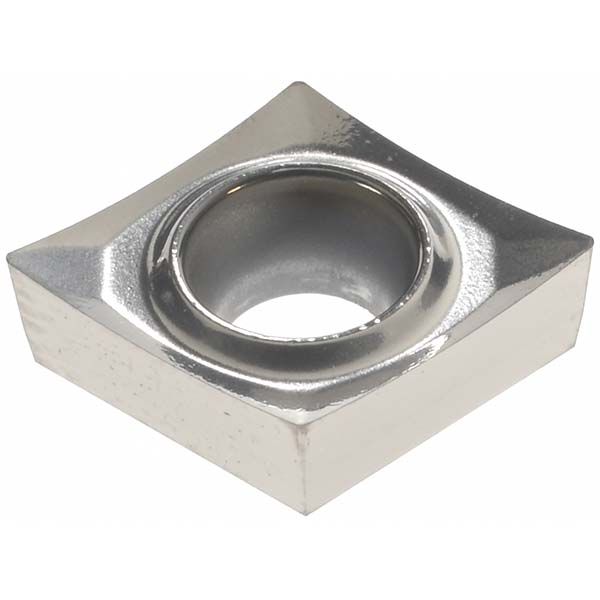

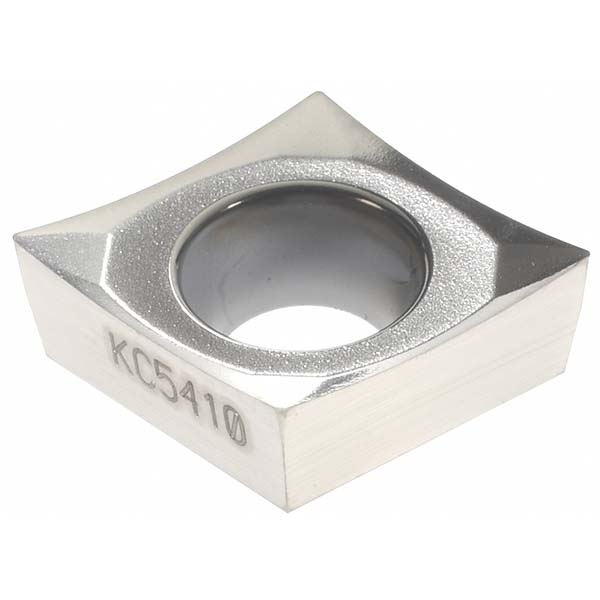

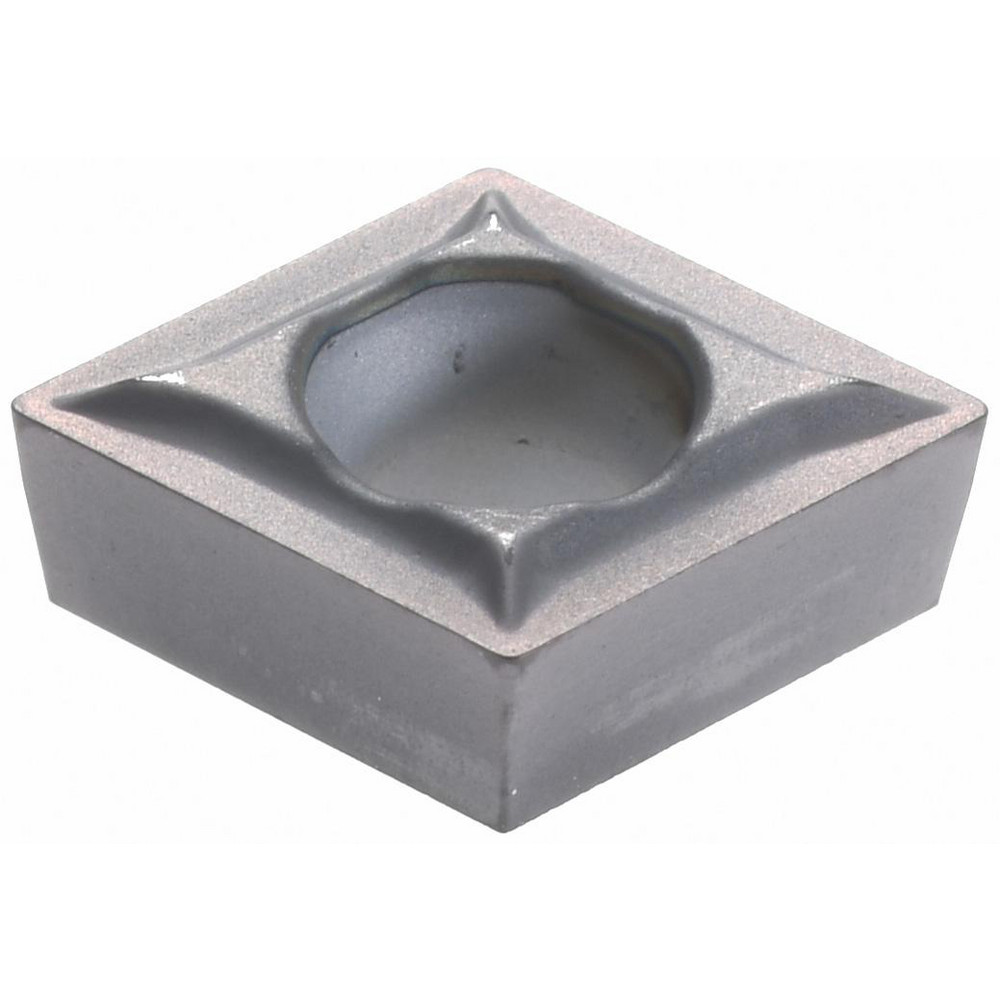

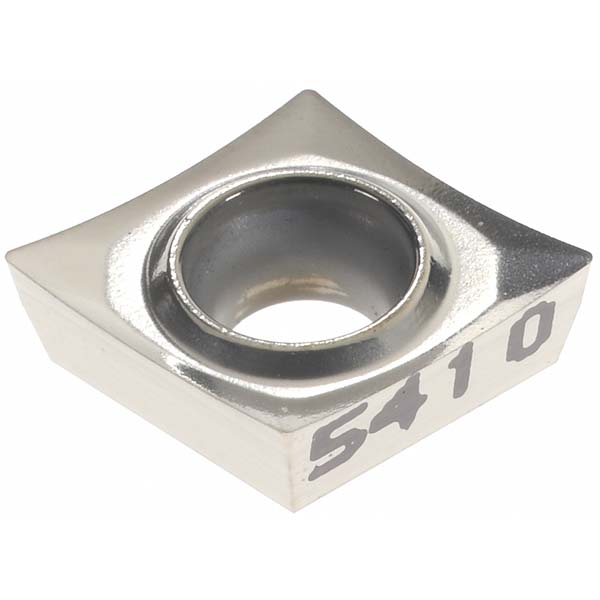

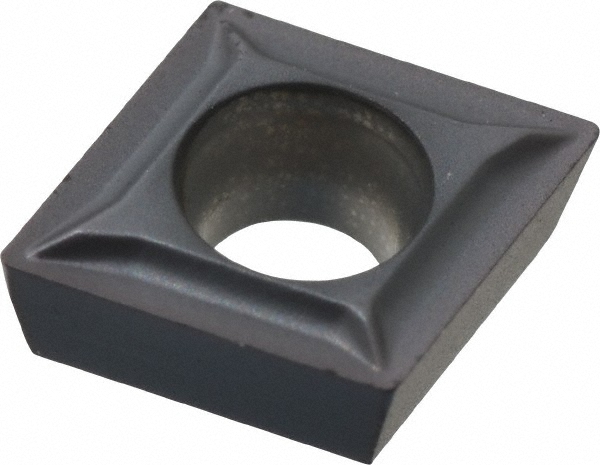

TiB2 Finish, Neutral, 6.45 mm Long, 80 deg C - Diamond (Rhombic) 80-Deg, Series Screw-On
| Insert Style | CCGT |
|---|---|
| ISO Size Code | 060202 |
| ANSI Size Code | 21.50.5 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5410 |
| Coating/Finish | TiB2 |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| ISO Insert Code | CCGT060202 |
| ANSI Insert Code | CCGT21.50.5 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2543 |
| Insert Length (mm) | 6.45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 1560600 |
| Material Grade | C3; C4 |
| Proprietary Coating Designation | TiB2 |
| Coating Classification | PVD |
| Chip Breaker | HP |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCGT21505HP |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21505 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01389543 |
