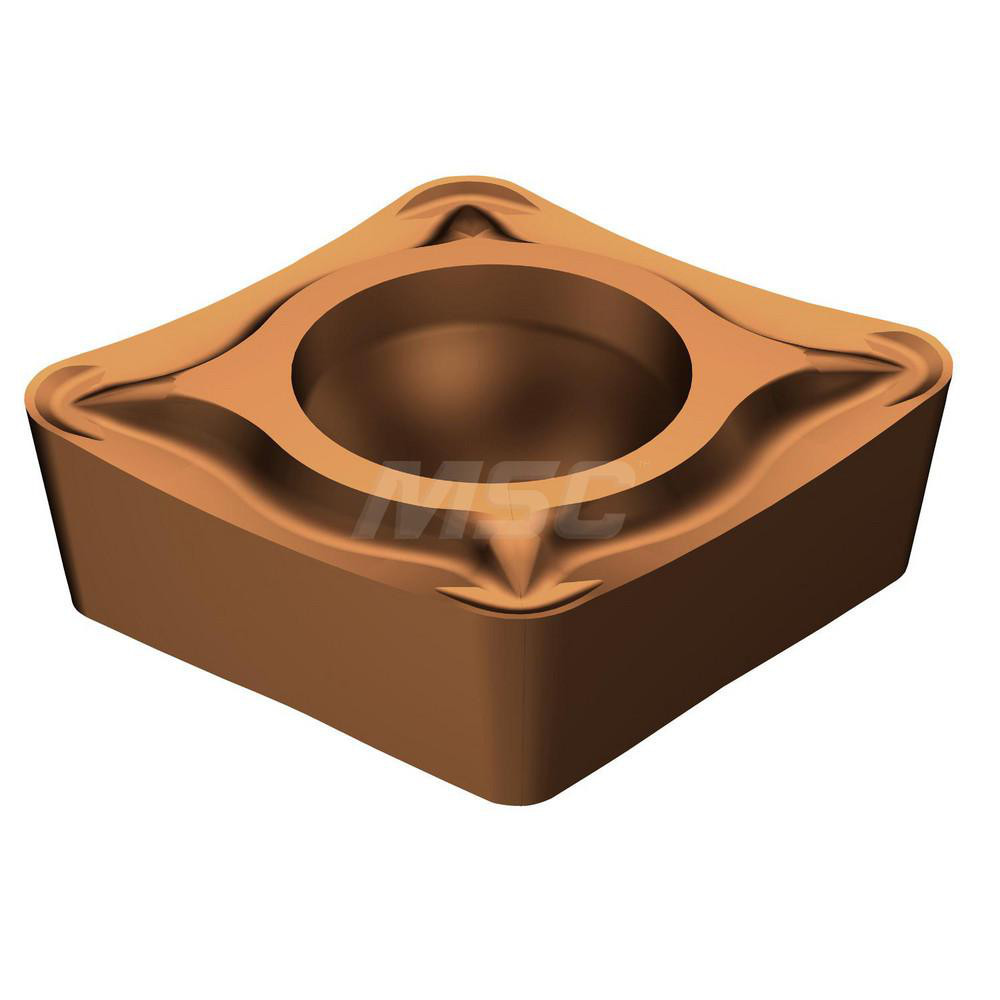

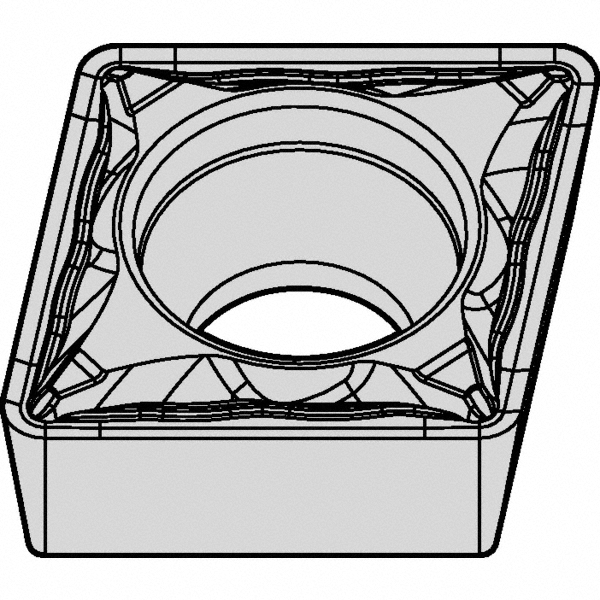

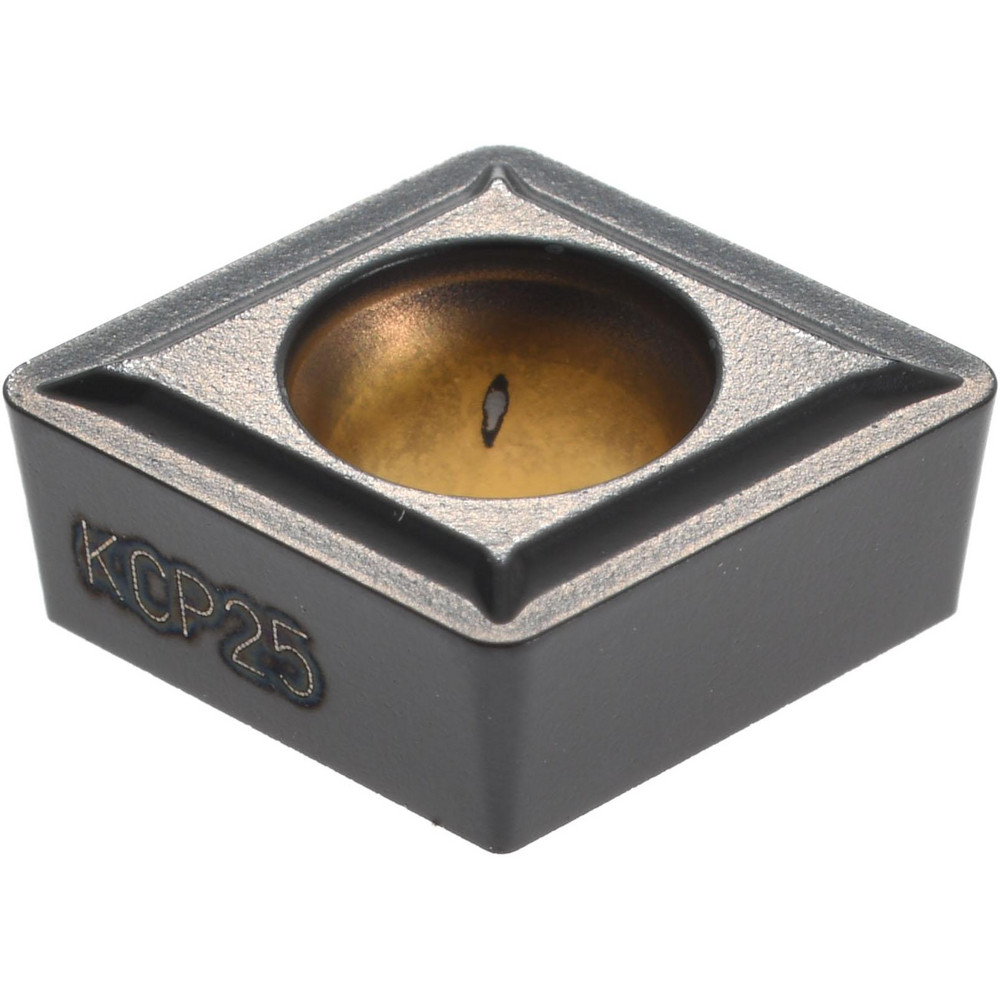

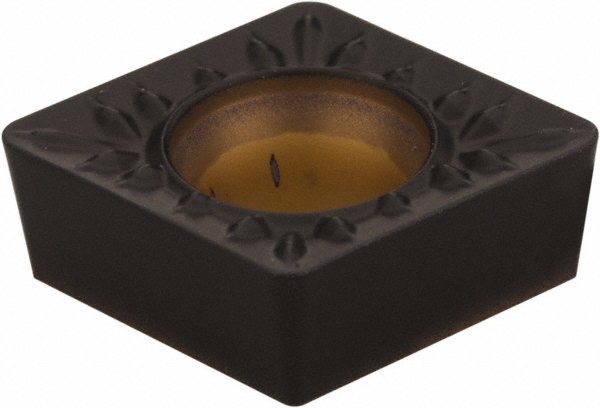

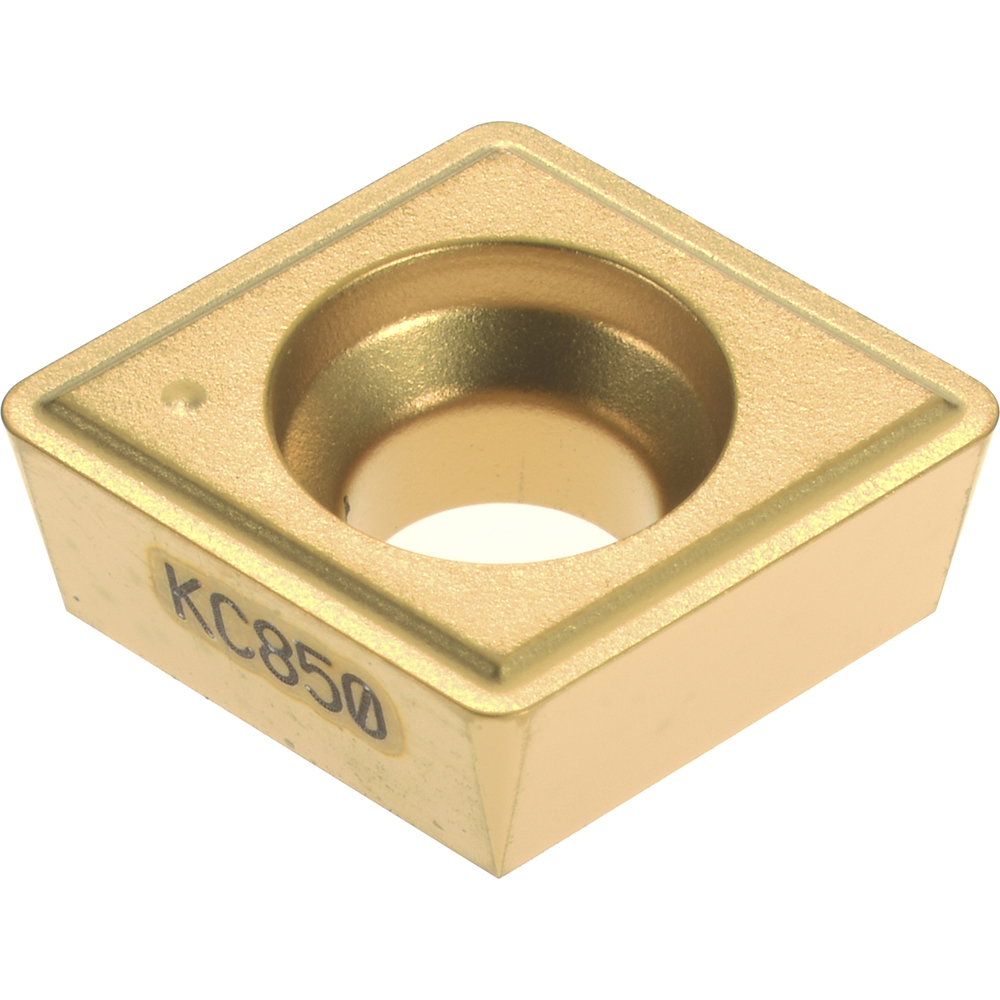

TiCN & Al2O3 Finish, Neutral, 9.67 mm Long, 80 deg C - Diamond (Rhombic) 80-Deg, Series Screw-On
| Insert Style | CCMT |
|---|---|
| ISO Size Code | 09T308 |
| ANSI Size Code | 32.52 |

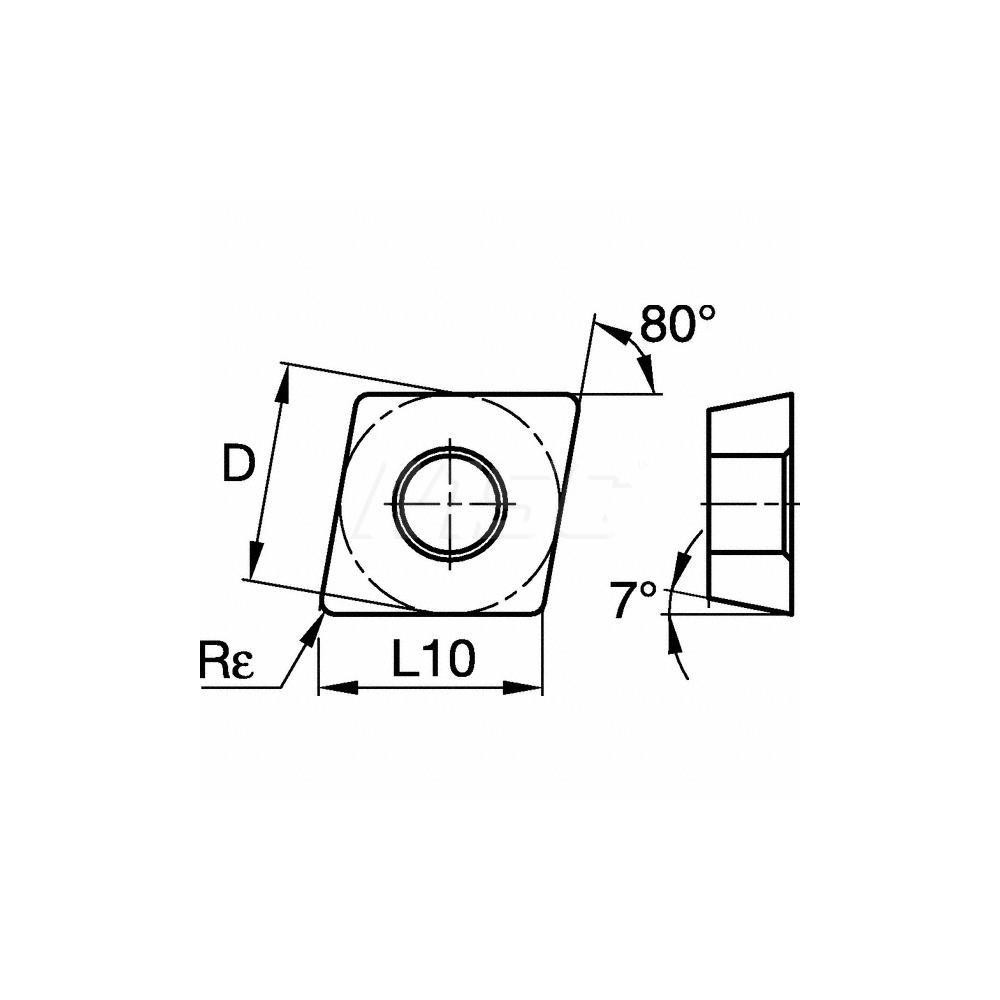

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | KCP25 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.1268 |
| ISO Insert Code | CCMT09T308 |
| ANSI Insert Code | CCMT32.52 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3808 |
| Insert Length (mm) | 9.67 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; N |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 3744887 |
| Material Grade | C3; C6; C7; C2 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | MP |
| Rake Angle | 12 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCMT3252MP |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3252 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 65853269 |
