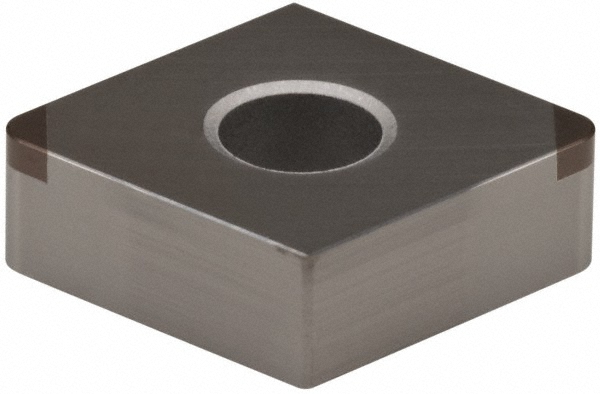

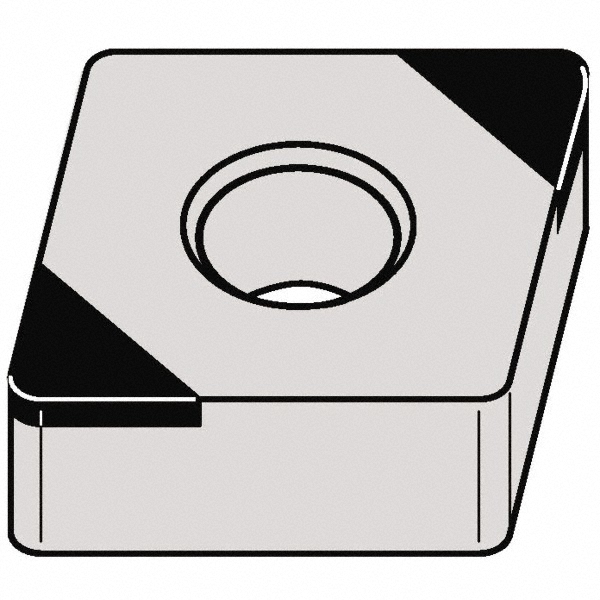

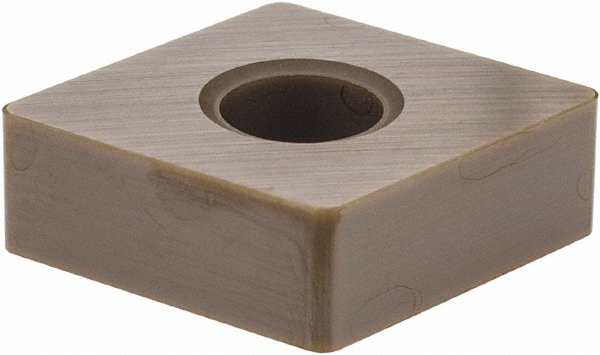

Bright/No Finish, Neutral, 0.5080" Long, 0.5000" Inscribed Circle, 0.0313" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series KENLOC
| Insert Style | CNGA |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | PCBN |
| Manufacturer Grade | KBH10 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Chip Breaker Operation | Flat Top |
| Number Of Cutting Edges | 2 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1692 |
| ISO Insert Code | CNGA120408 |
| ANSI Insert Code | CNGA432 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | CNGA120408S01015MT |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6295900 |
| Material Grade | H05; H15 |
| Single or Multi Tipped | Multi Tipped |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNGA432S0415MT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 38327169 |
