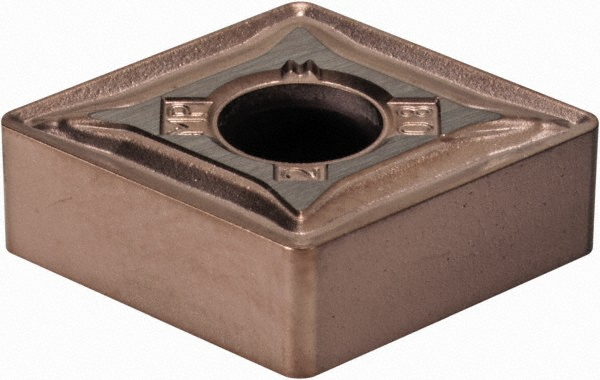

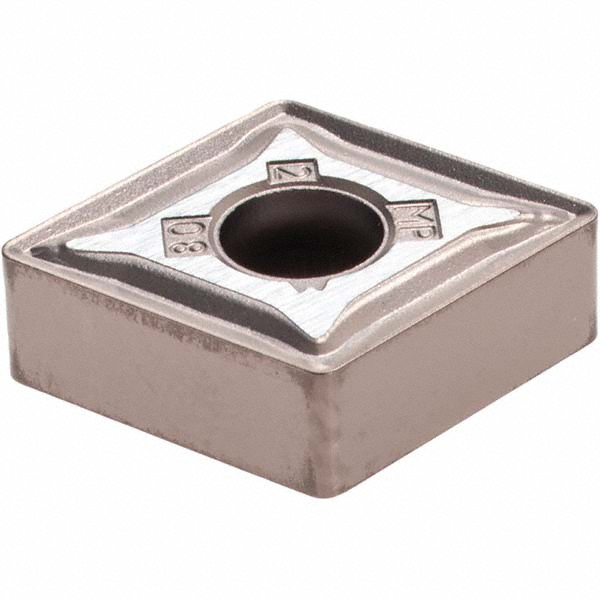

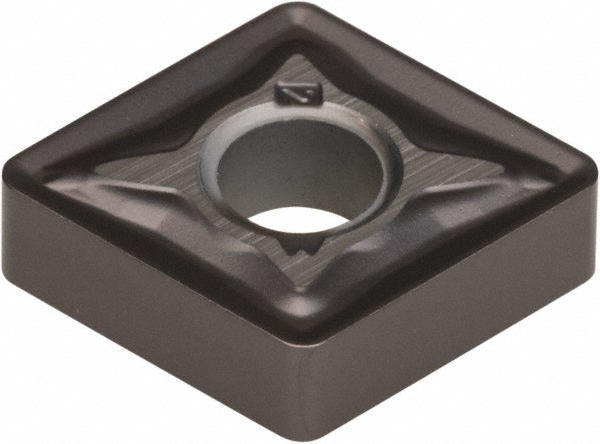

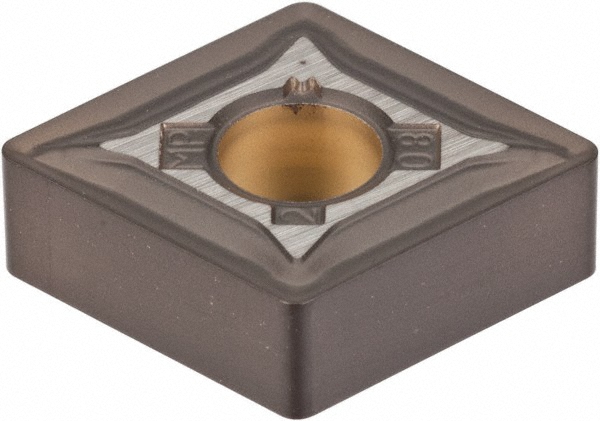

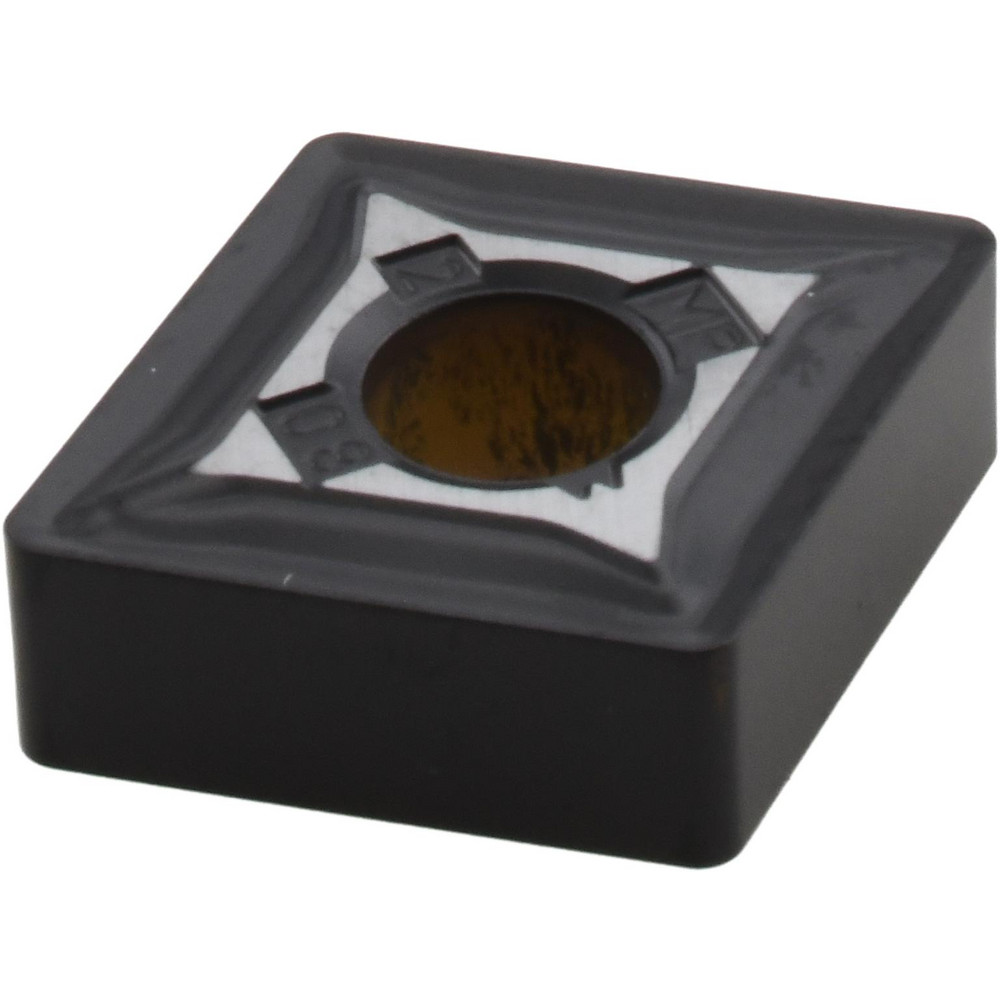

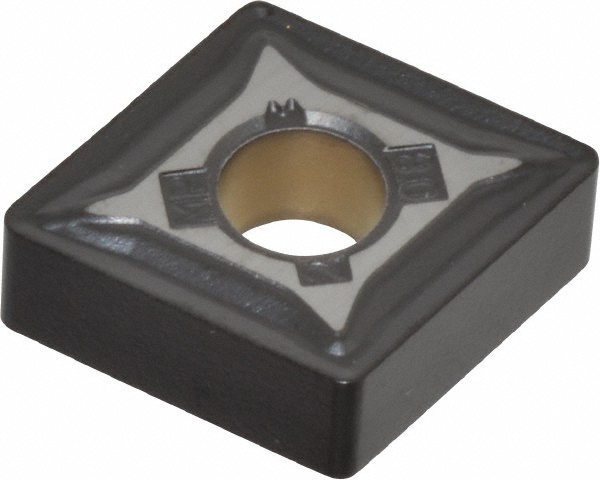

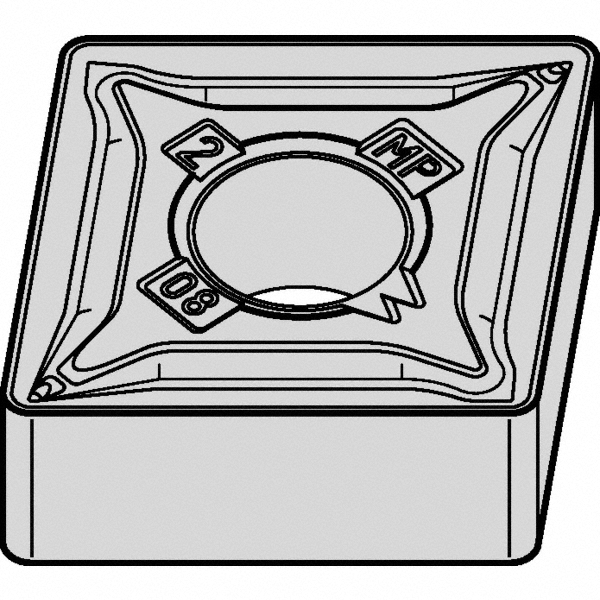

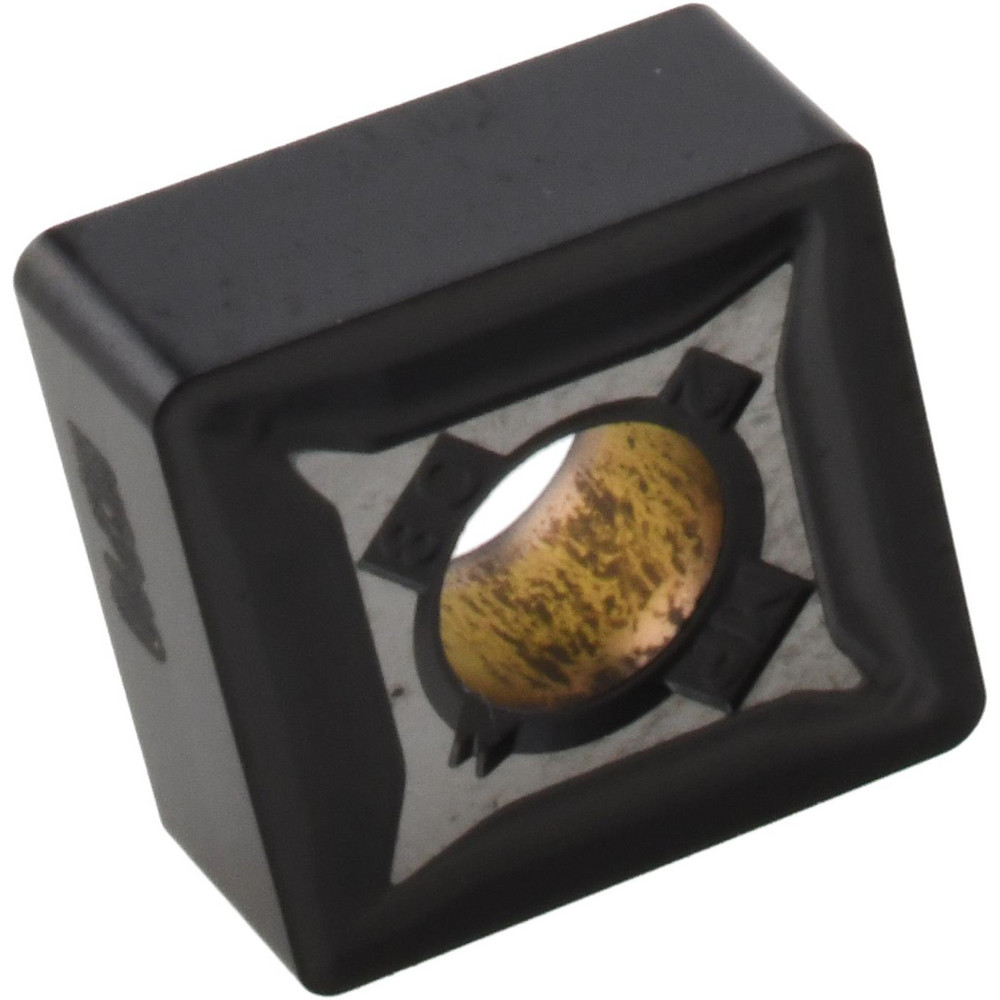

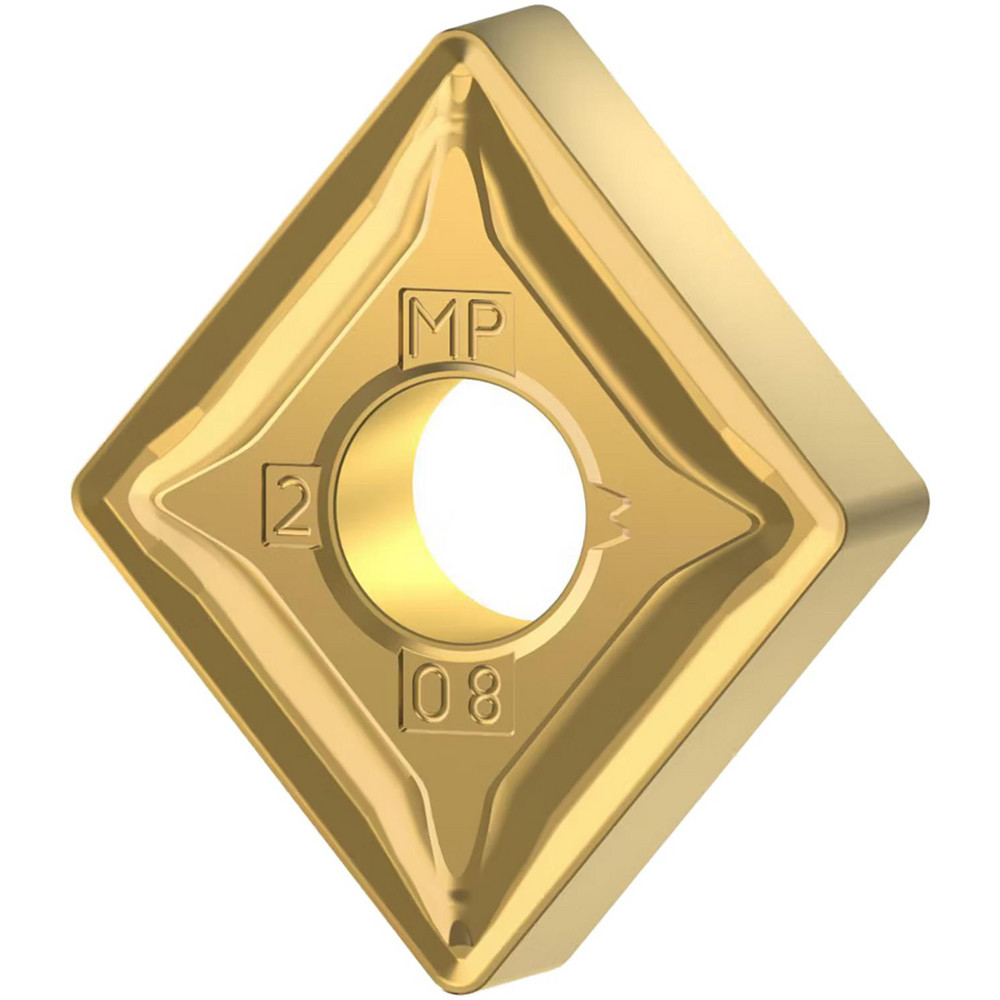

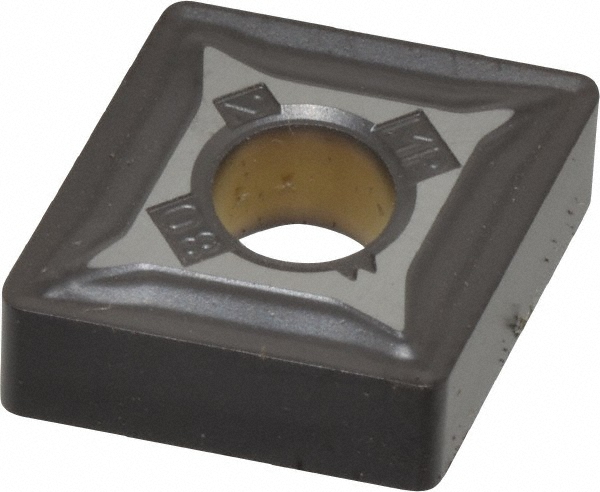

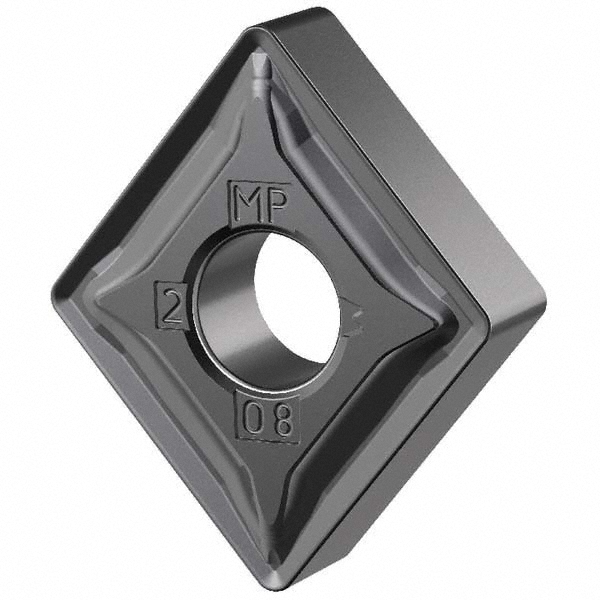

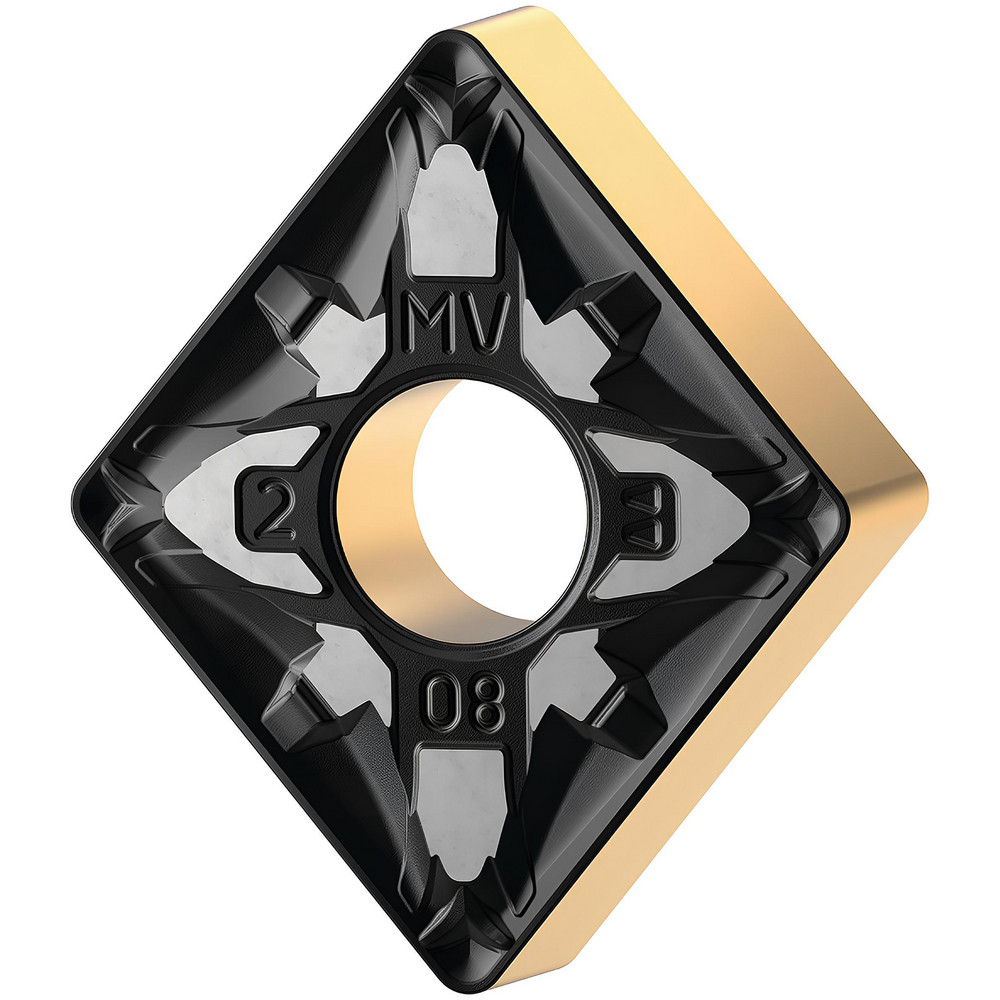

TiCN & Al2O3 Finish, Neutral, 0.5077" Long, 0.5000" Inscribed Circle, 0.0313" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series KENLOC
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | KCP10 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - High Wear-Resistance |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.1691 |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5077 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; N |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 3855561 |
| Material Grade | C3; C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | MP |
| Rake Angle | 6 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNMG432MP |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 91771782 |
