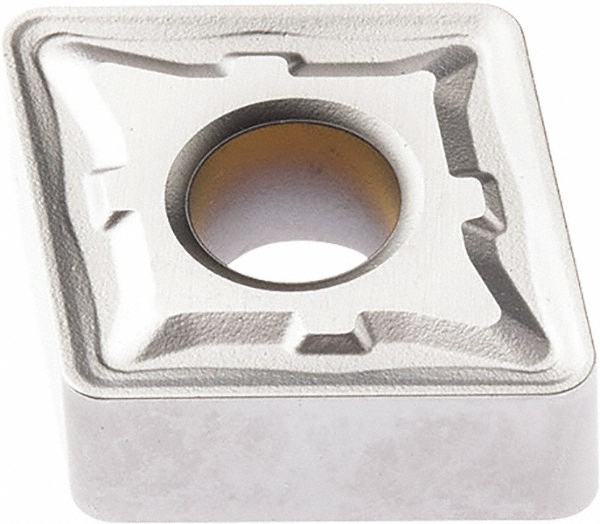

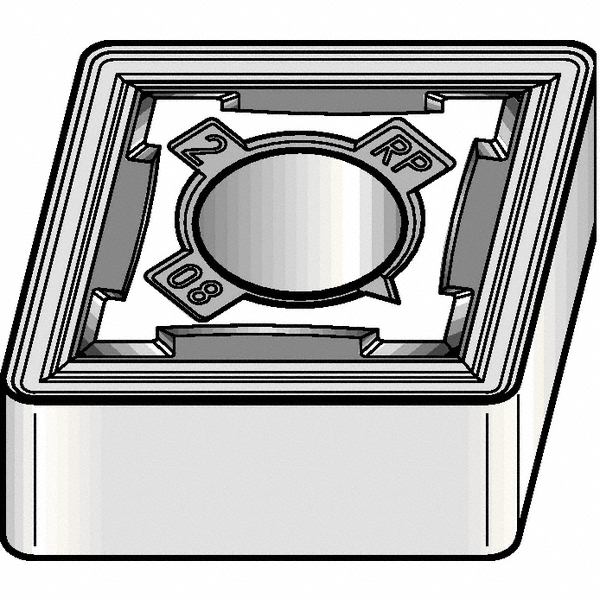

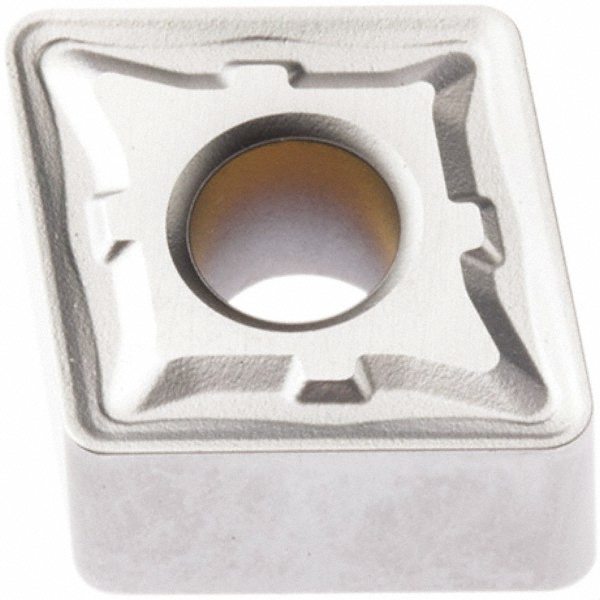

AlTiN & AlCrN Finish, Neutral, 16.12 mm Long, 80 deg C - Diamond (Rhombic) 80-Deg, Series KENLOC
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 160616 |
| ANSI Size Code | 544 |

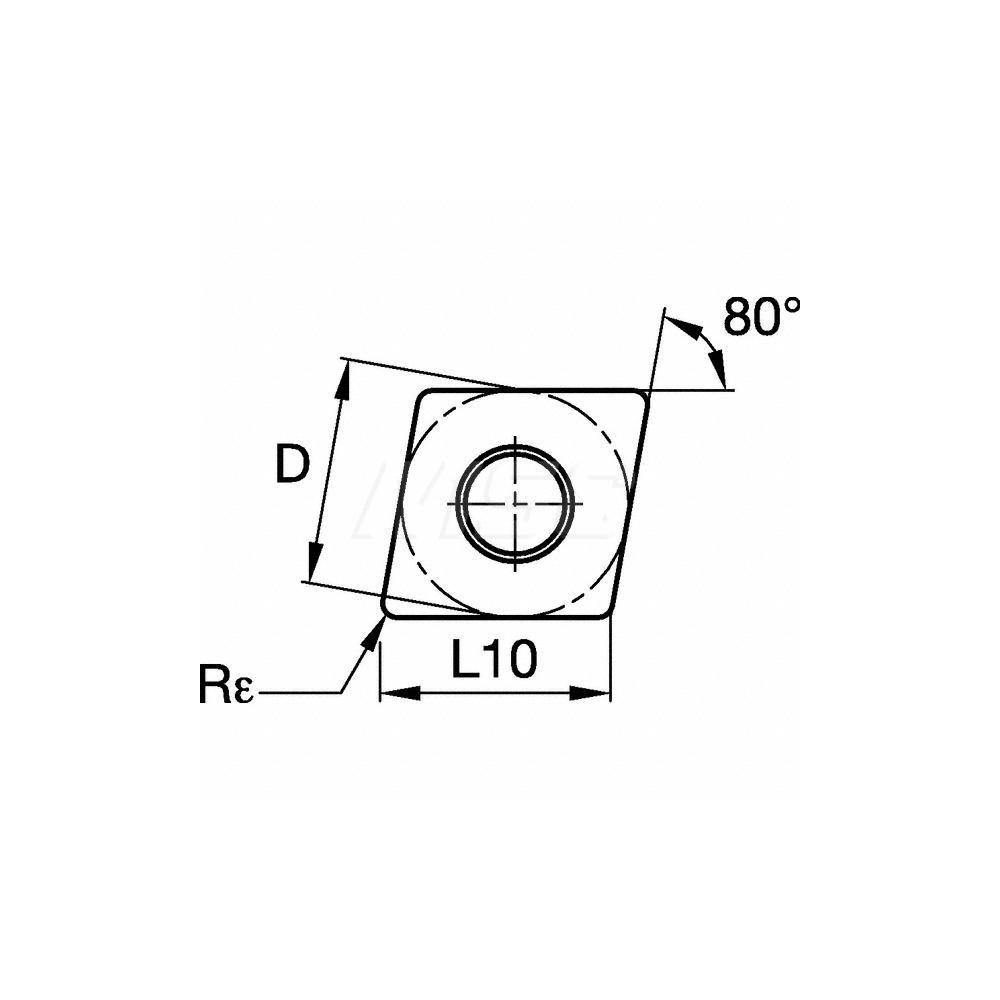

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Insert Material | Carbide |
| Manufacturer Grade | KCK20 |
| Coating/Finish | AlCrN; AlTiN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 1/4 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| ISO Insert Code | CNMG160616 |
| ANSI Insert Code | CNMG544 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 5/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6346 |
| Insert Length (mm) | 16.12 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 3753879 |
| Material Grade | K10; K25 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | PVD |
| Chip Breaker | RP |
| Rake Angle | 5 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNMG544RP |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 544 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 76367317 |
