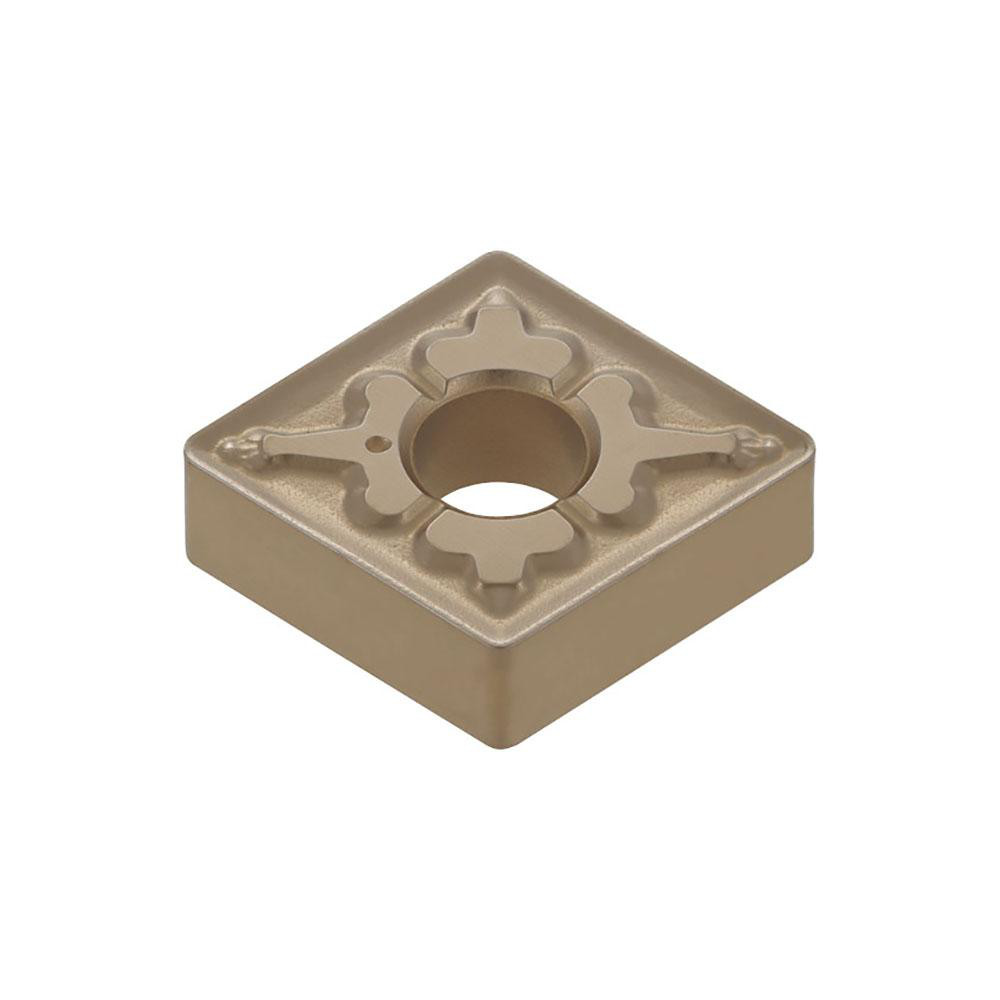

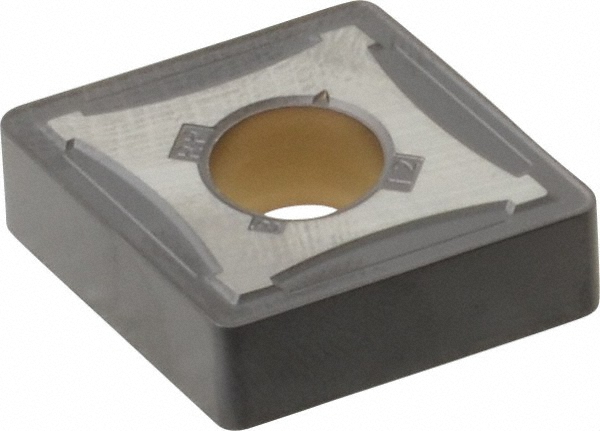

TiCN, Al2O3 & TiOCN Finish, Neutral, 19.34 mm Long, 80 deg C - Diamond (Rhombic) 80-Deg, Series KENLOC
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 190612 |
| ANSI Size Code | 643 |

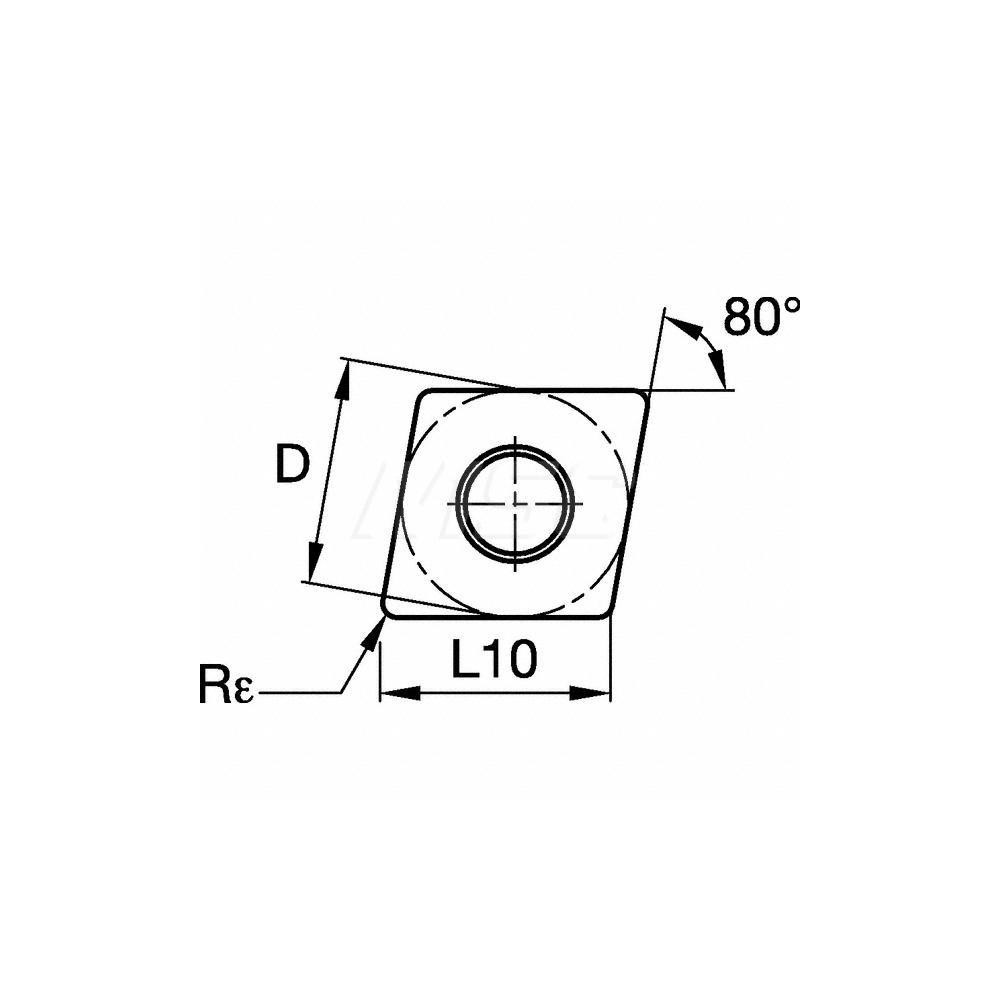

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Insert Material | Carbide |
| Manufacturer Grade | KCP10B |
| Coating/Finish | TiOCN; TiCN; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 1/4 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - High Wear-Resistance |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.93 |
| Maximum Depth of Cut (Decimal Inch) | 0.2536 |
| ISO Insert Code | CNMG190612 |
| ANSI Insert Code | CNMG643 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/4 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.7616 |
| Insert Length (mm) | 19.34 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; N |
| Iso Code | CNMG190612RP |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 5697939 |
| Material Grade | C3; C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |

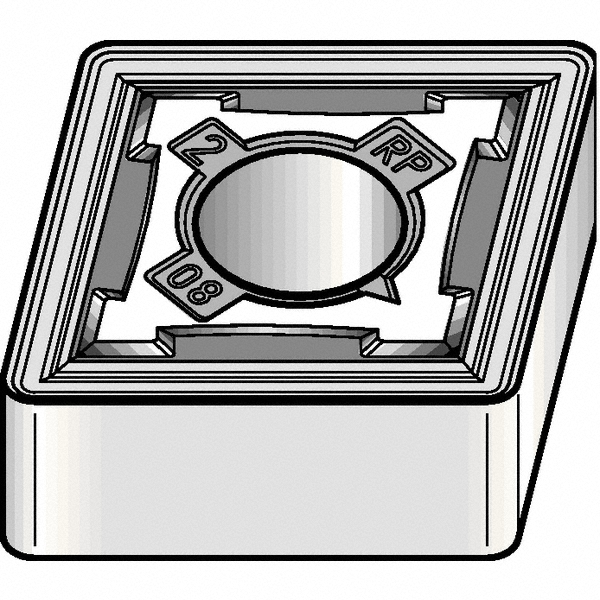

| Chip Breaker | RP |
| Rake Angle | 5 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNMG643RP |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 643 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 61283792 |
