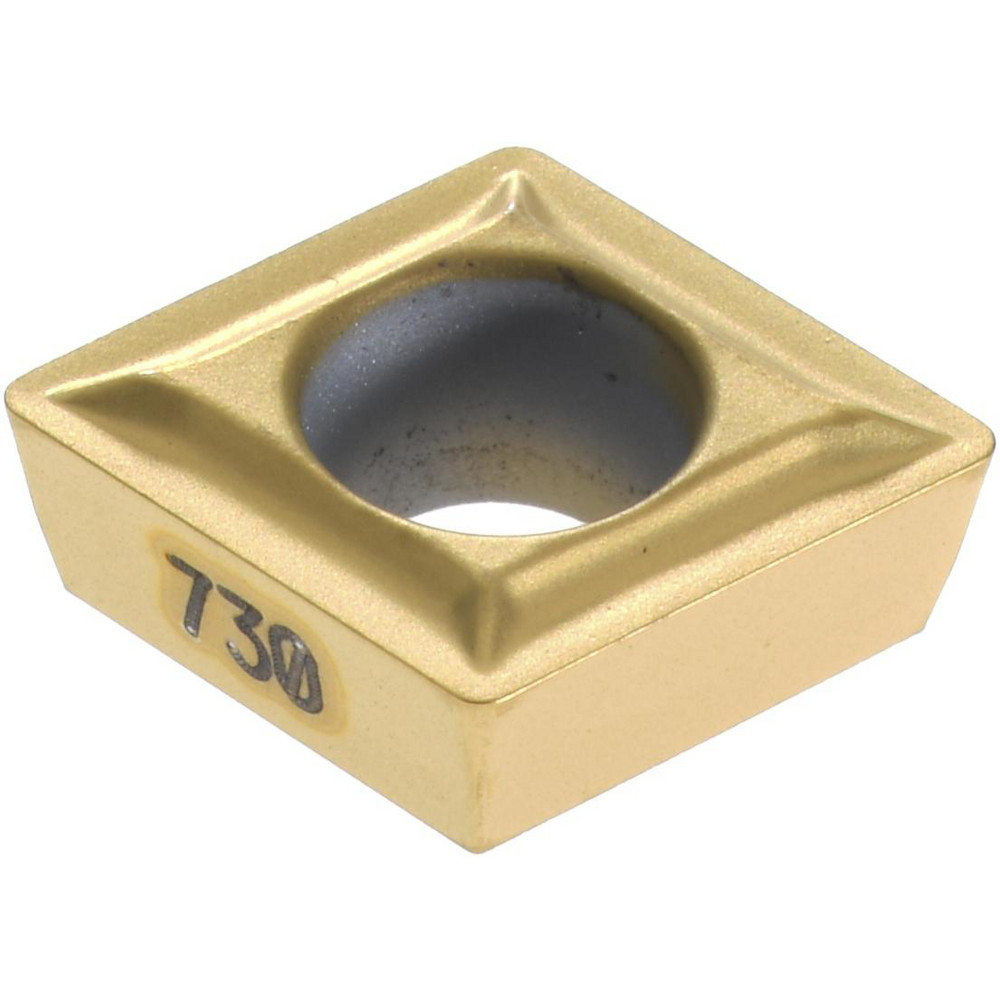

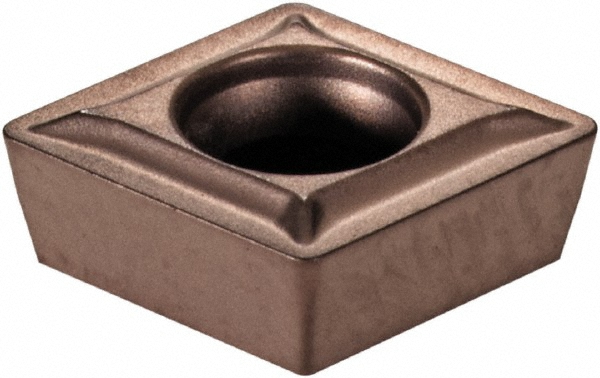

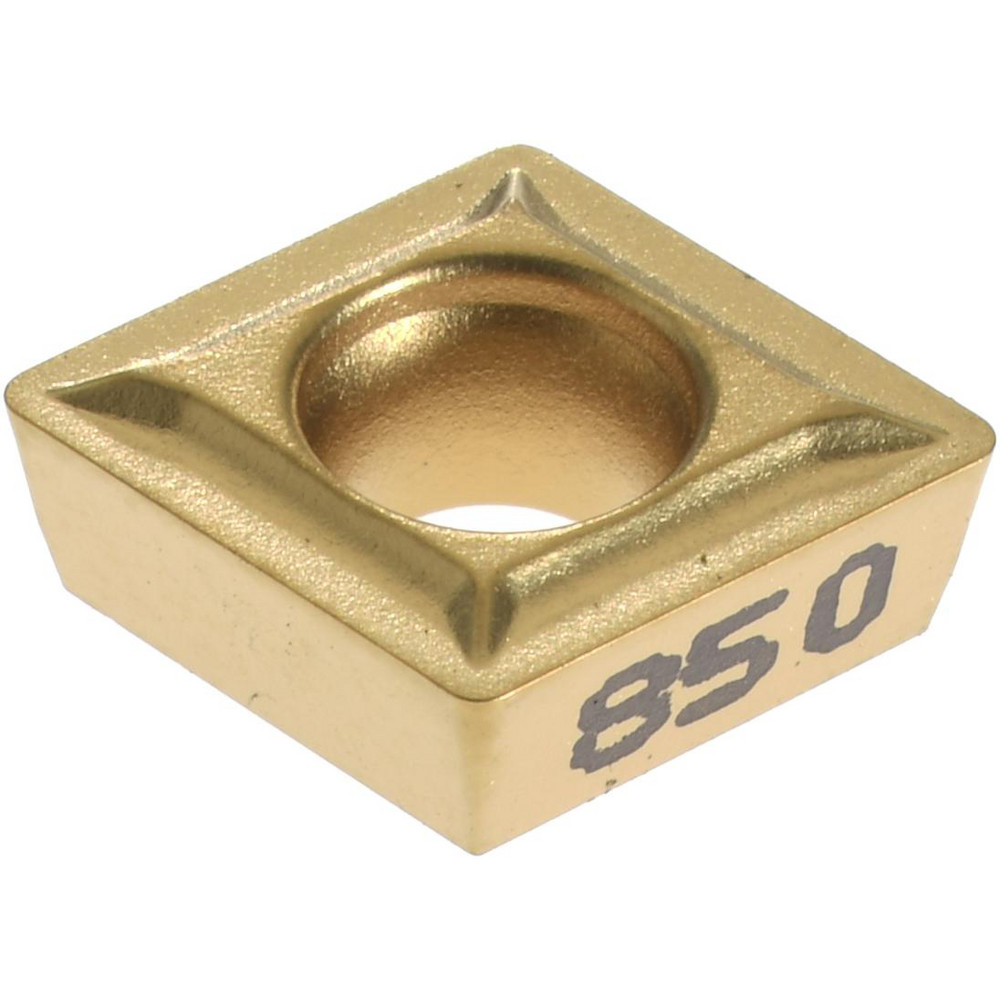

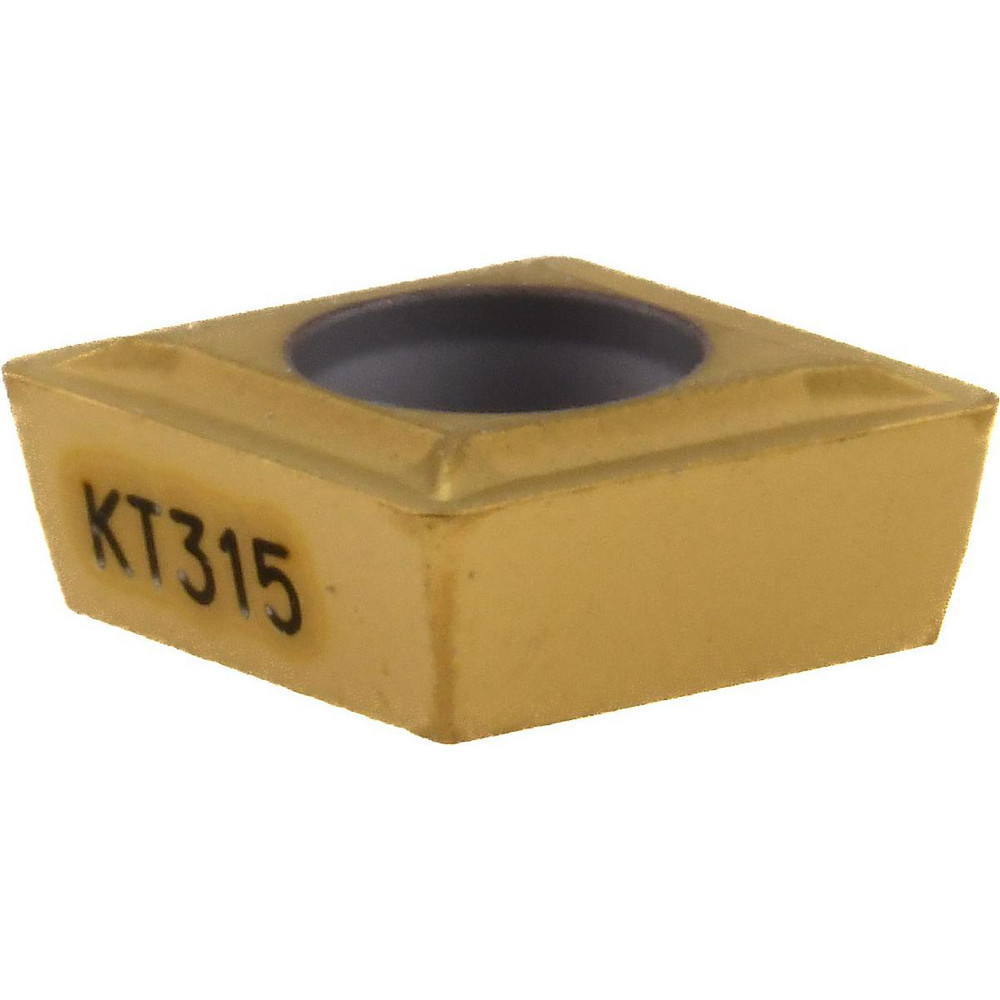

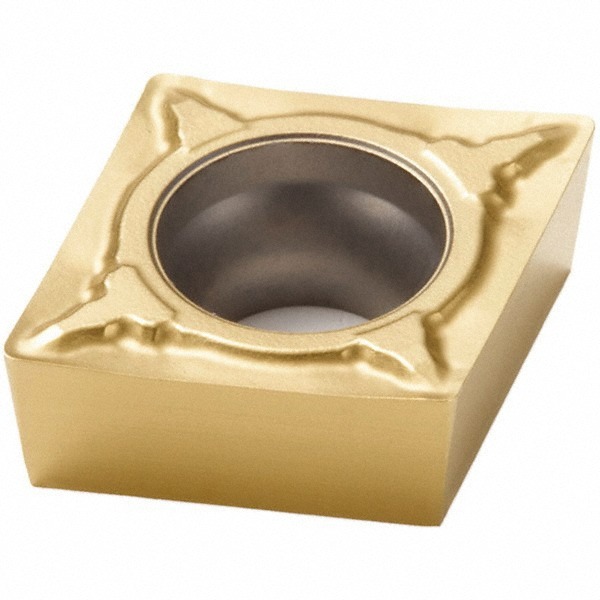

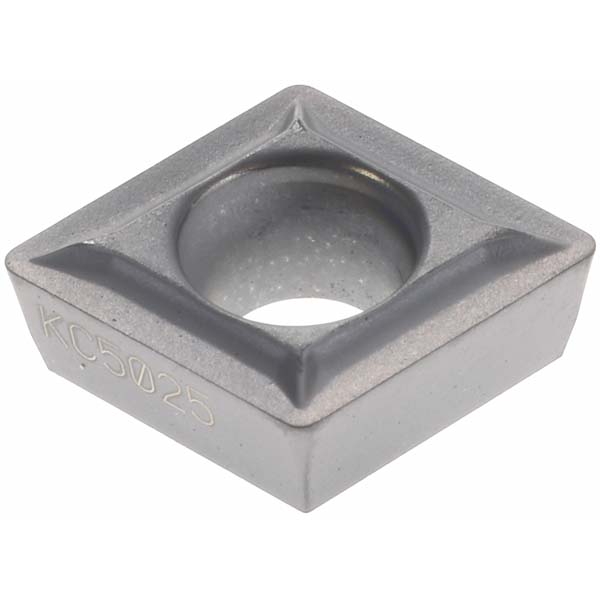

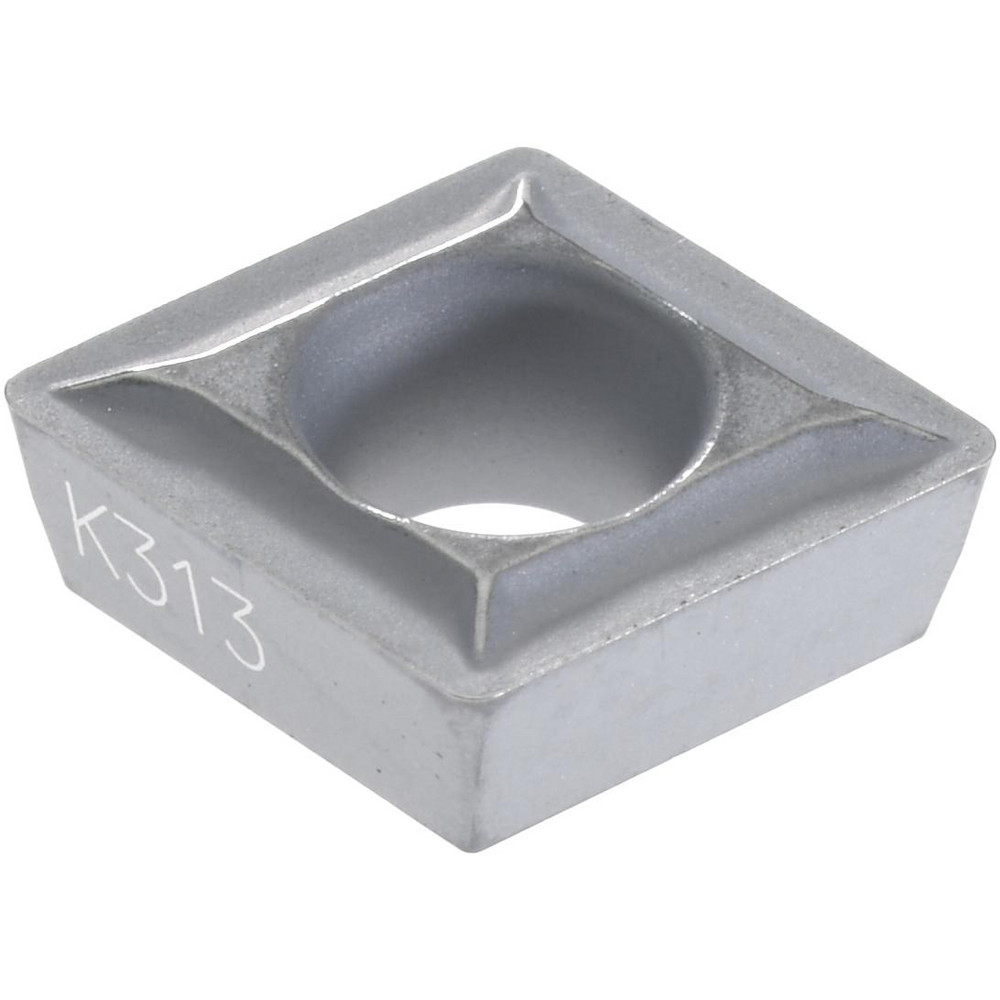

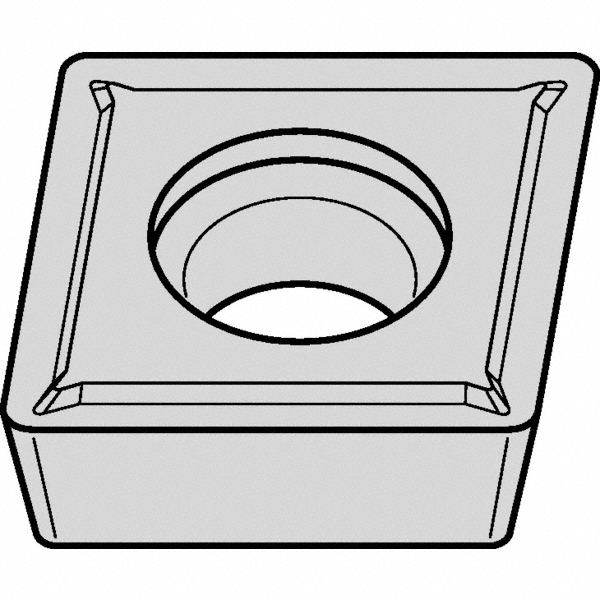

TiCN, Al2O3 & TiOCN Finish, Neutral, 6.45 mm Long, 80.00 deg C - Diamond (Rhombic) 80-Deg, Series Screw-On
| Insert Style | CPMT |
|---|---|
| ISO Size Code | 060204 |
| ANSI Size Code | 21.51 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80.00 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | KCP25B |
| Coating/Finish | TiOCN; TiCN; Al2O3 |
| Relief Angle | 11.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0845 |
| ISO Insert Code | CPMT060204 |
| ANSI Insert Code | CPMT21.51 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2539 |
| Insert Length (mm) | 6.45 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; N |
| Iso Code | CPMT21.51 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 5698169 |
| Material Grade | C3; C6; C7; C2 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CPMT2151LF |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
| Country of Origin | China |
| MSC Number | MSC# 61284394 |
