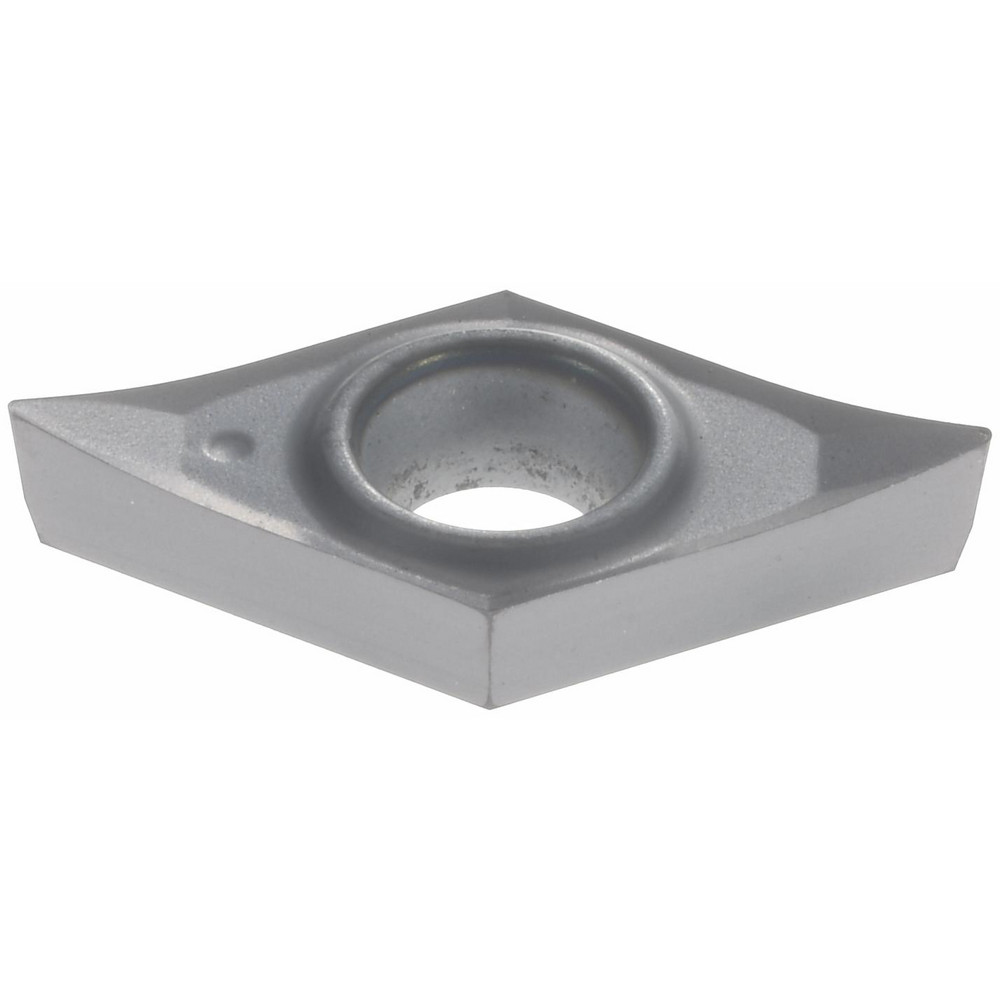

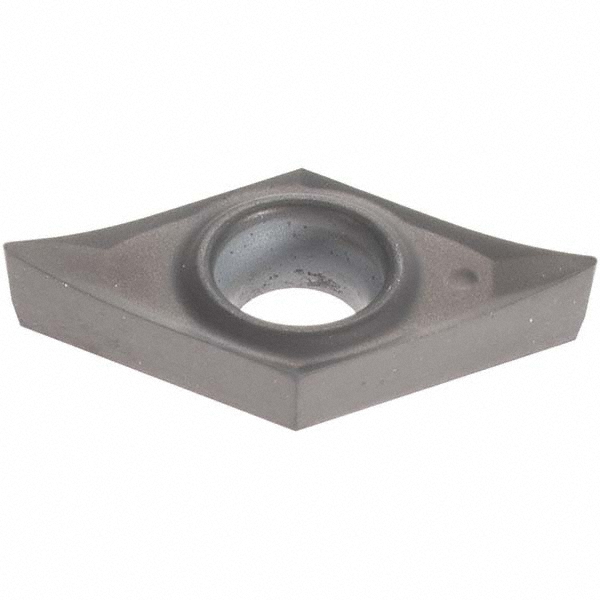

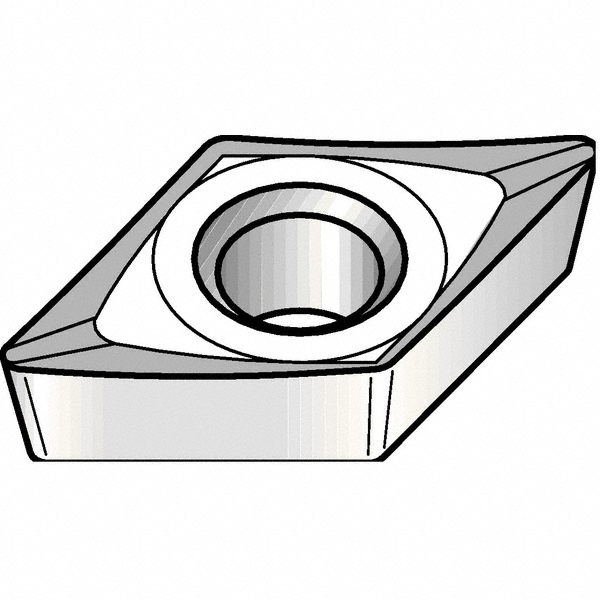

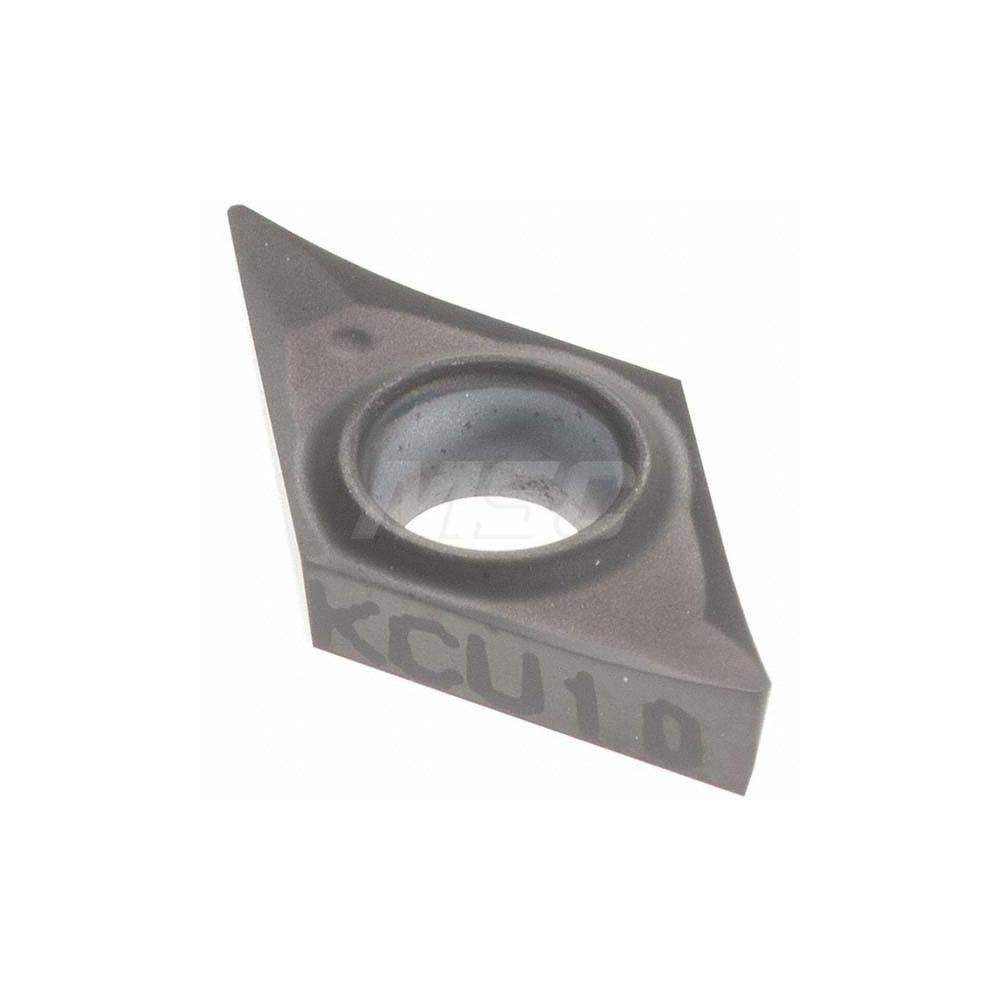

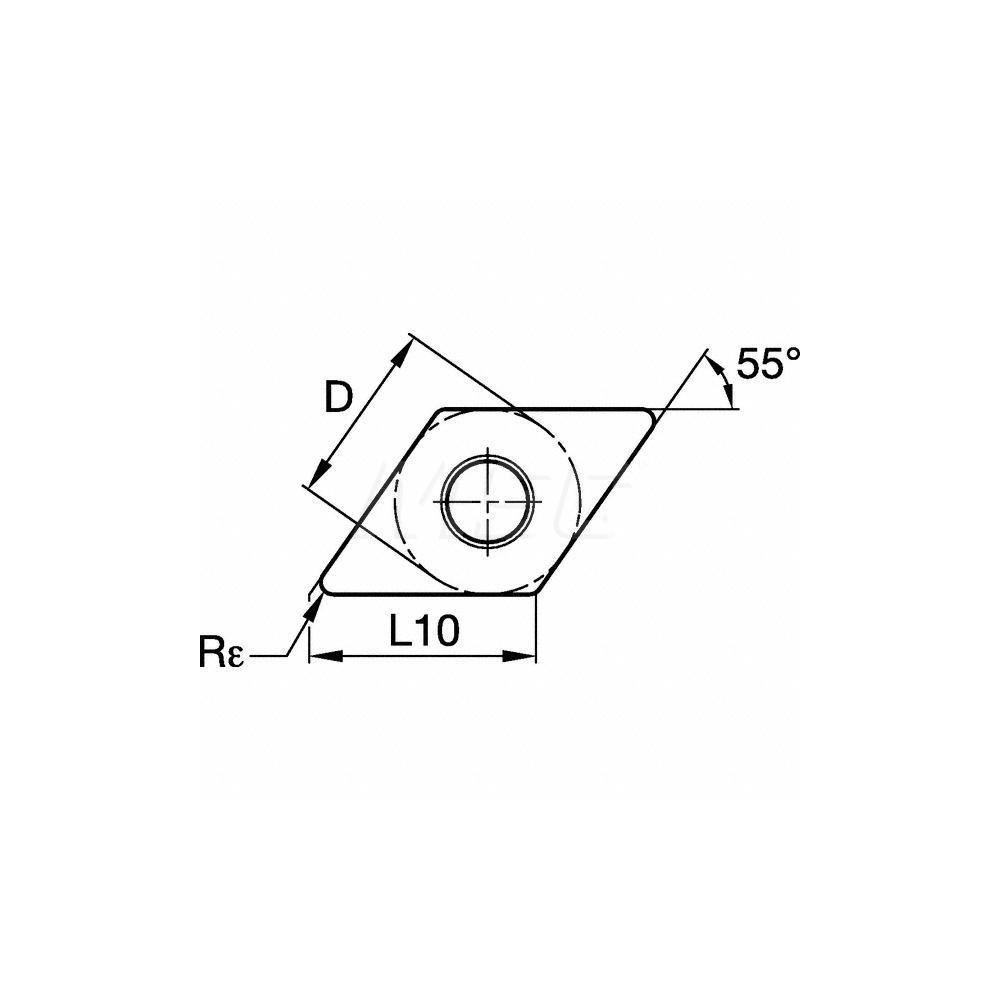

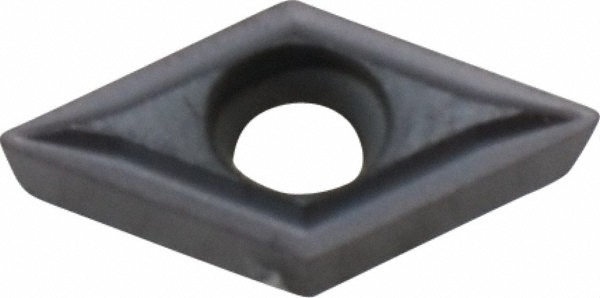

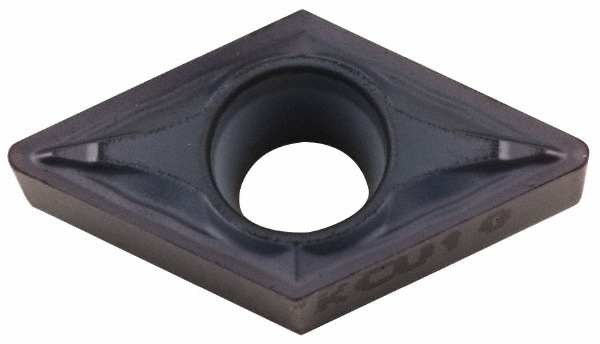

TiAlN Finish, Neutral, 0.6104" Long, 0.2500" Inscribed Circle, 0.0079" Corner Radius, 55 deg D - Diamond (Rhombic) 55-Deg, Series Screw-On
| Insert Style | DCGT |
|---|---|
| ISO Size Code | 070202 |
| ANSI Size Code | 21.50.5 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Coating/Finish | TiAlN |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2033 |
| Maximum Depth of Cut (Fractional Inch) | 13/64 |
| ISO Insert Code | DCGT070202 |
| ANSI Insert Code | DCGT21.50.5 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6104 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | DCGT070202HP |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 4045237 |
| Material Grade | C3; C4 |
| Coating Classification | PVD |
| Chip Breaker | HP |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DCGT21505HP |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21505 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 69257830 |
