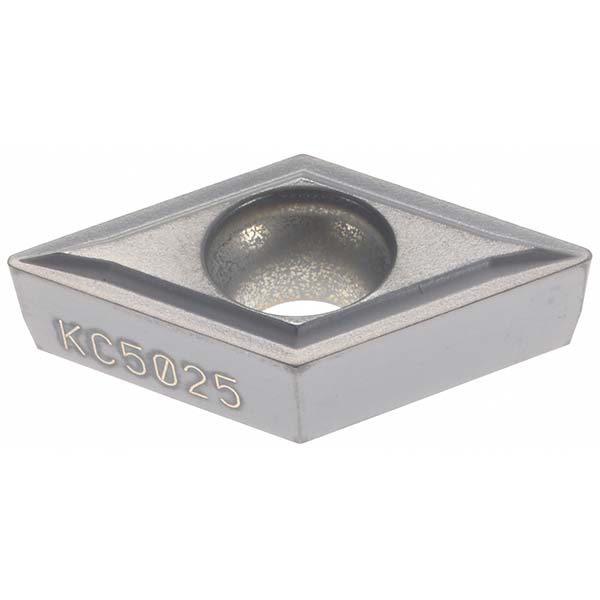

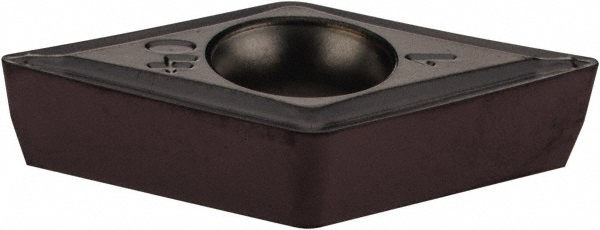

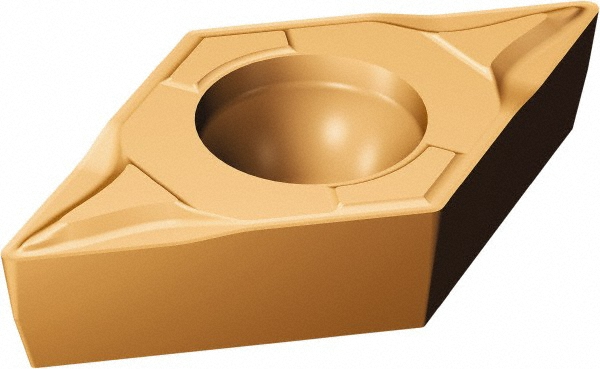

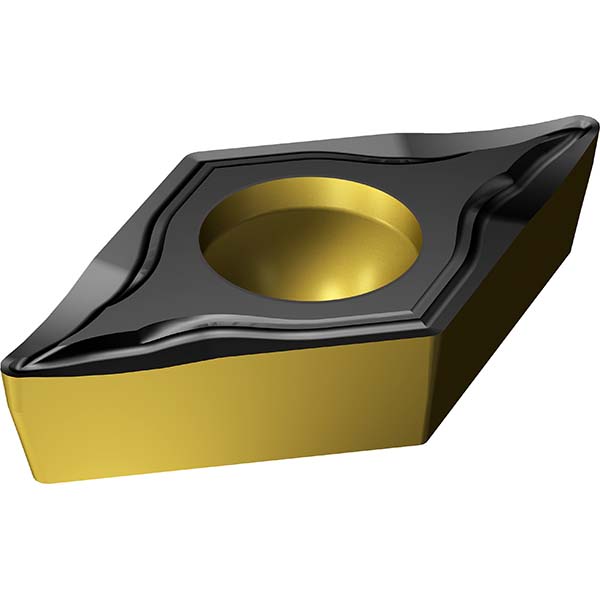

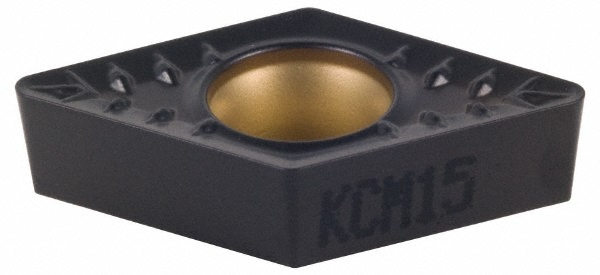

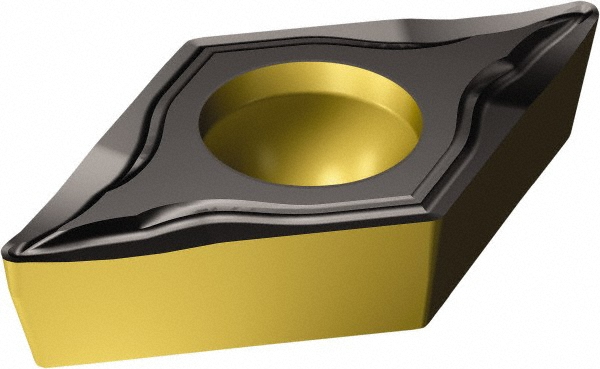

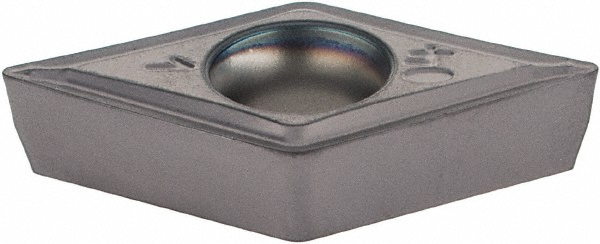

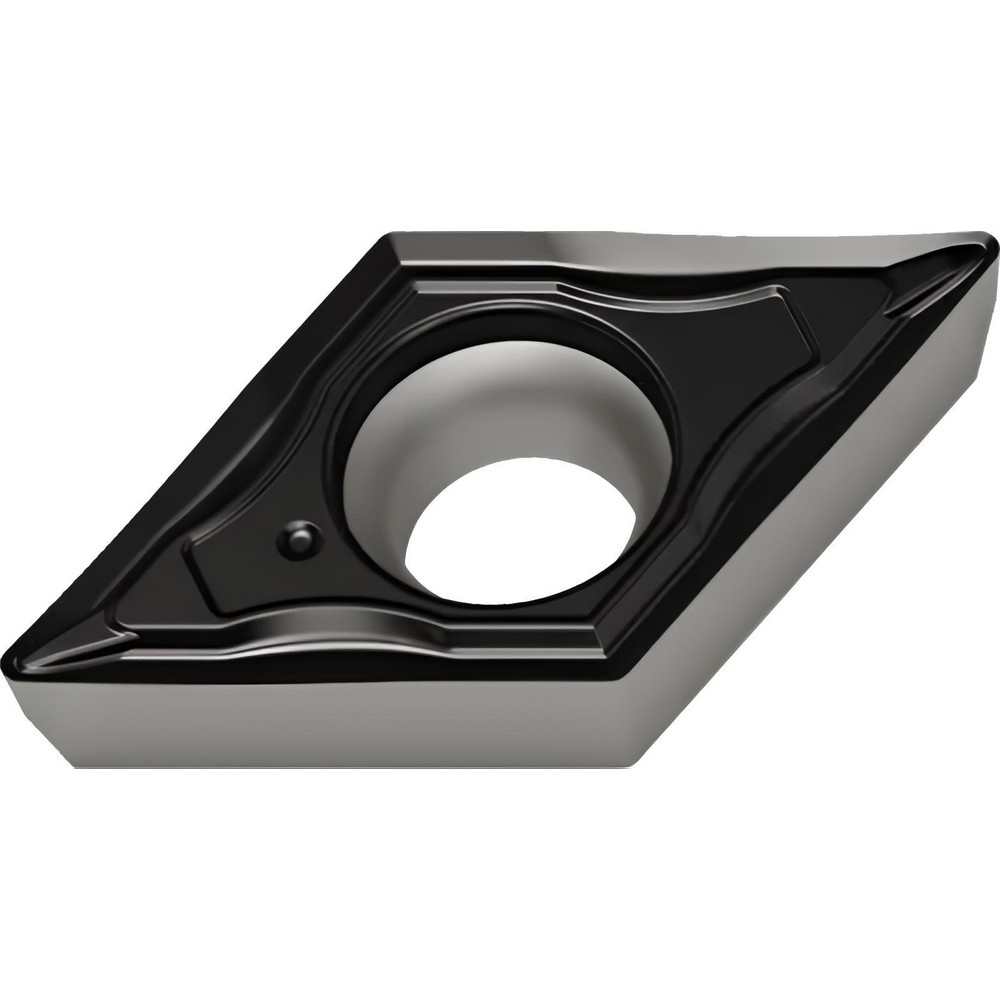

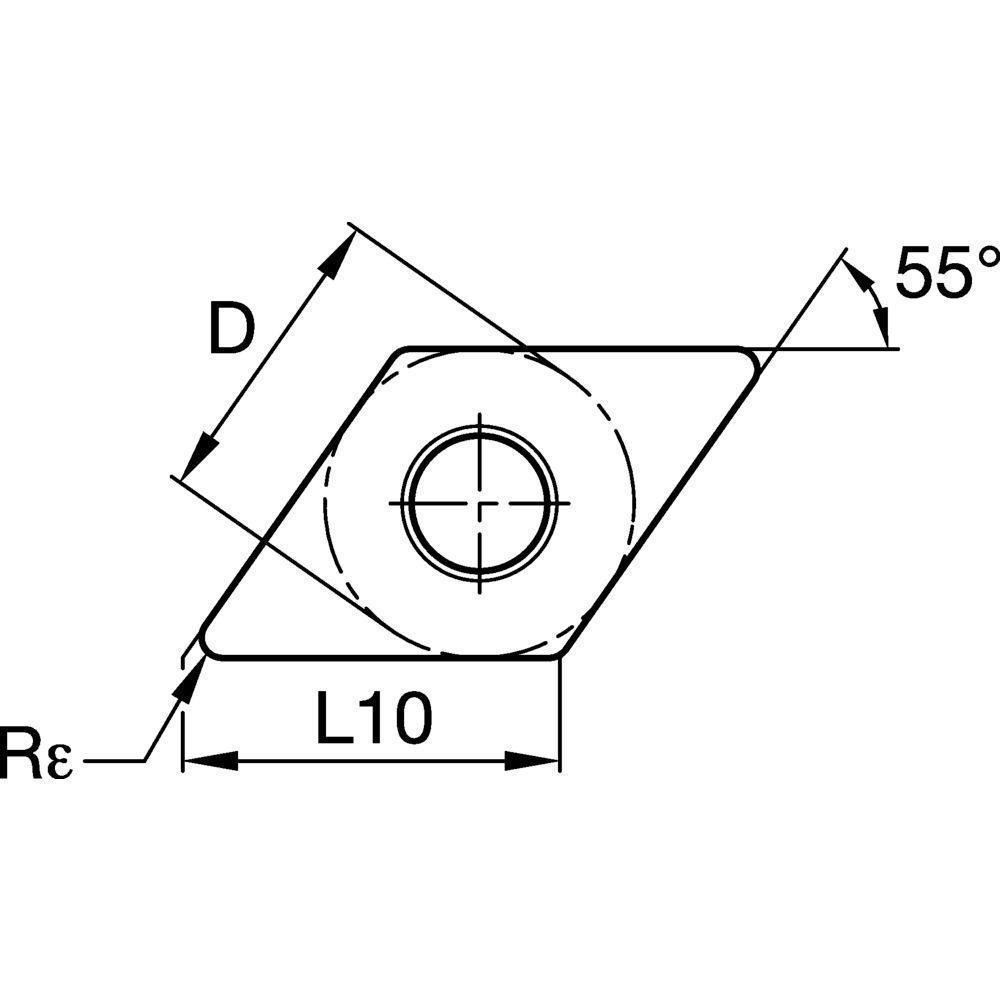

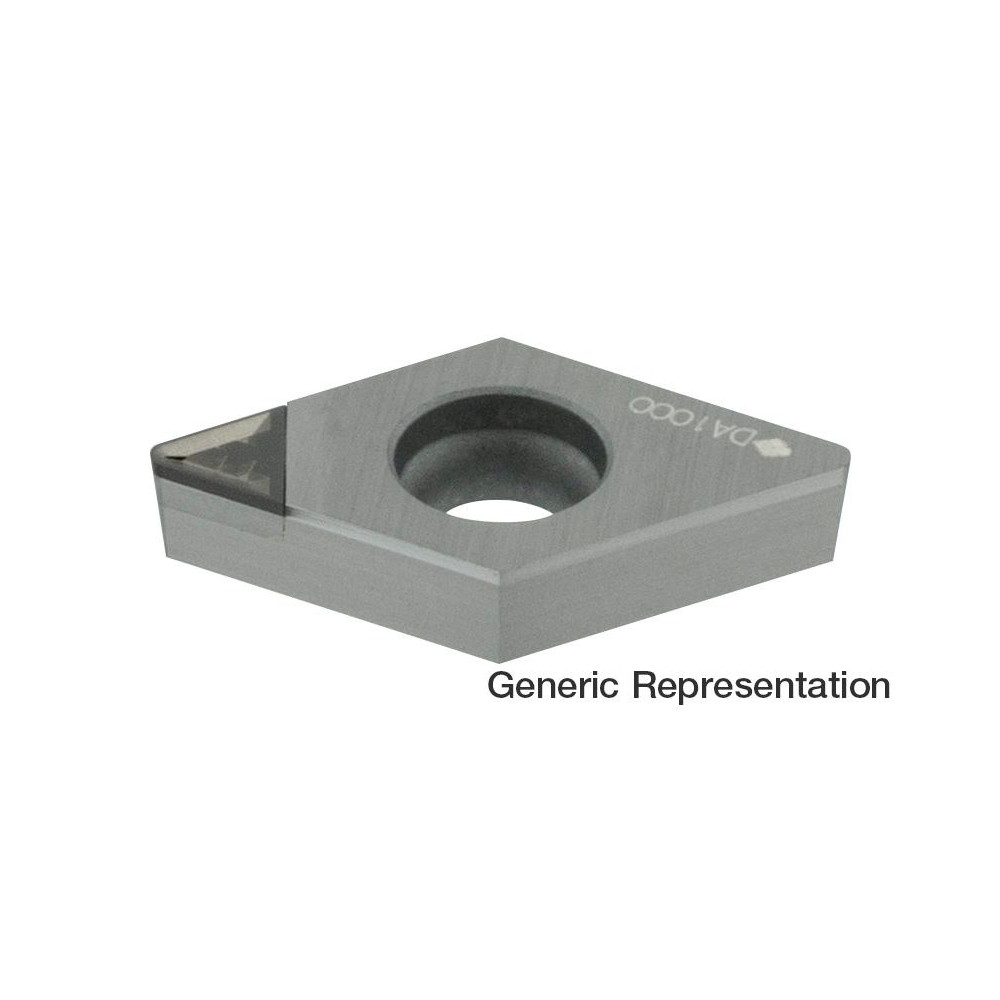

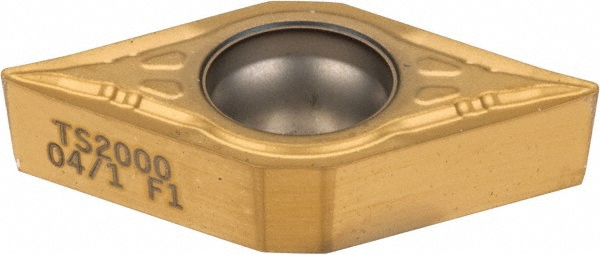

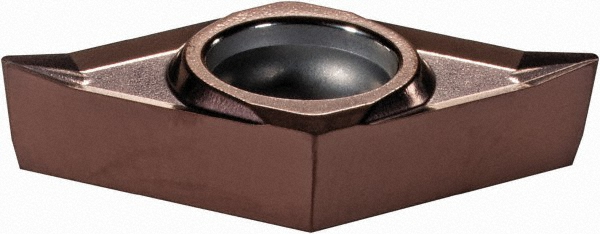

AlTiN Finish, Neutral, 0.3750" Inscribed Circle, 0.0157" Corner Radius, 55 deg D - Diamond (Rhombic) 55-Deg
| Insert Style | DCMT |
|---|---|
| ISO Size Code | 11T304 |
| ANSI Size Code | 32.51 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Coating/Finish | AlTiN |
| Relief Angle | 7 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Hand | Neutral |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | D |
| ISO Insert Code | DCMT11T304 |
| ANSI Insert Code | DCMT32.51 |
| Width (Inch) | 5/32 |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; K; M; N |
| Chip Breaker | LF |
| Width (Decimal Inch - 4 Decimals) | 0.1563 |
| Width (mm - 2 Decimals) | 3.97 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3251 |
| undefined | undefined |
| MSC Number | MSC# 80245616 |
