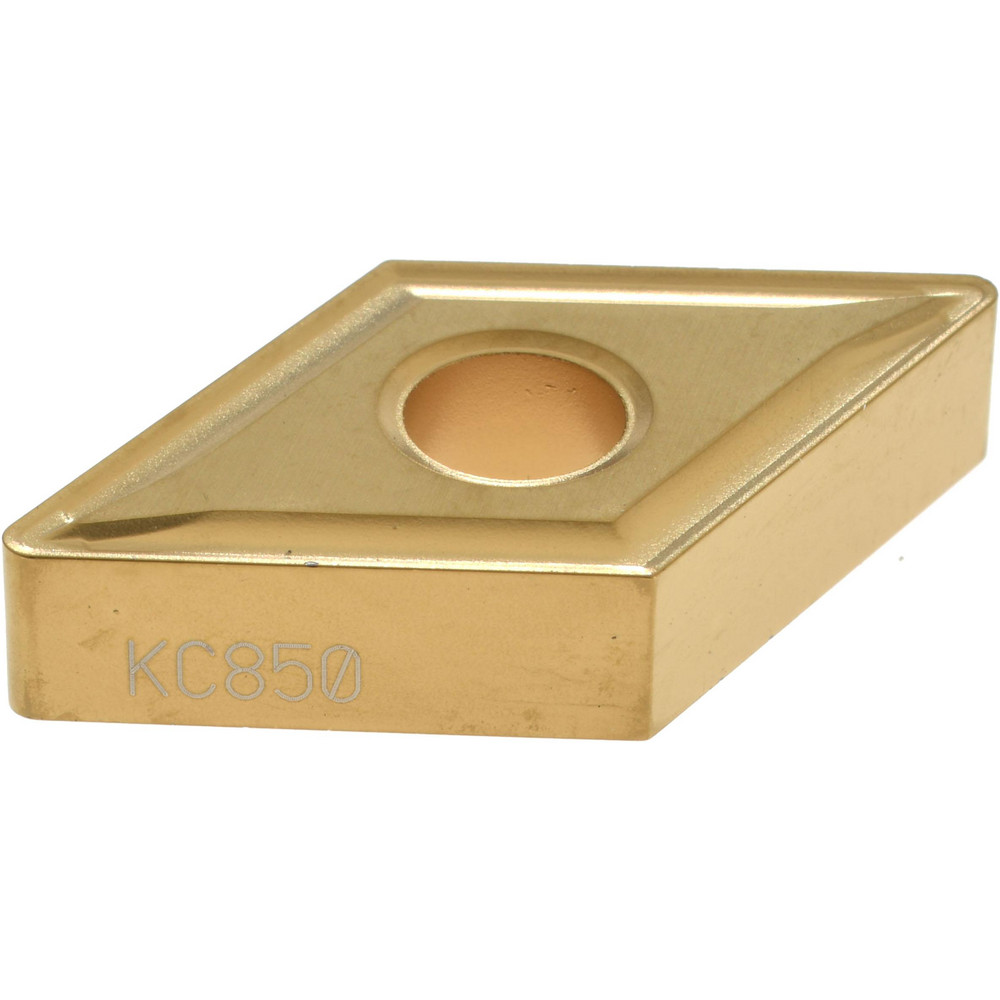

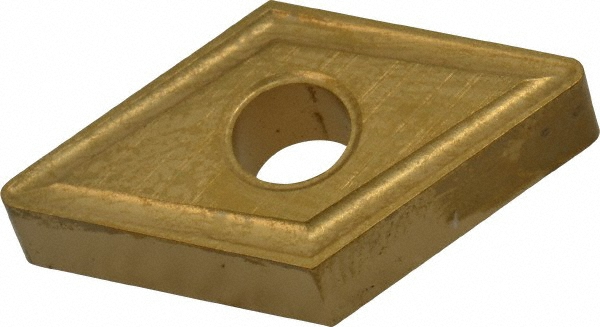

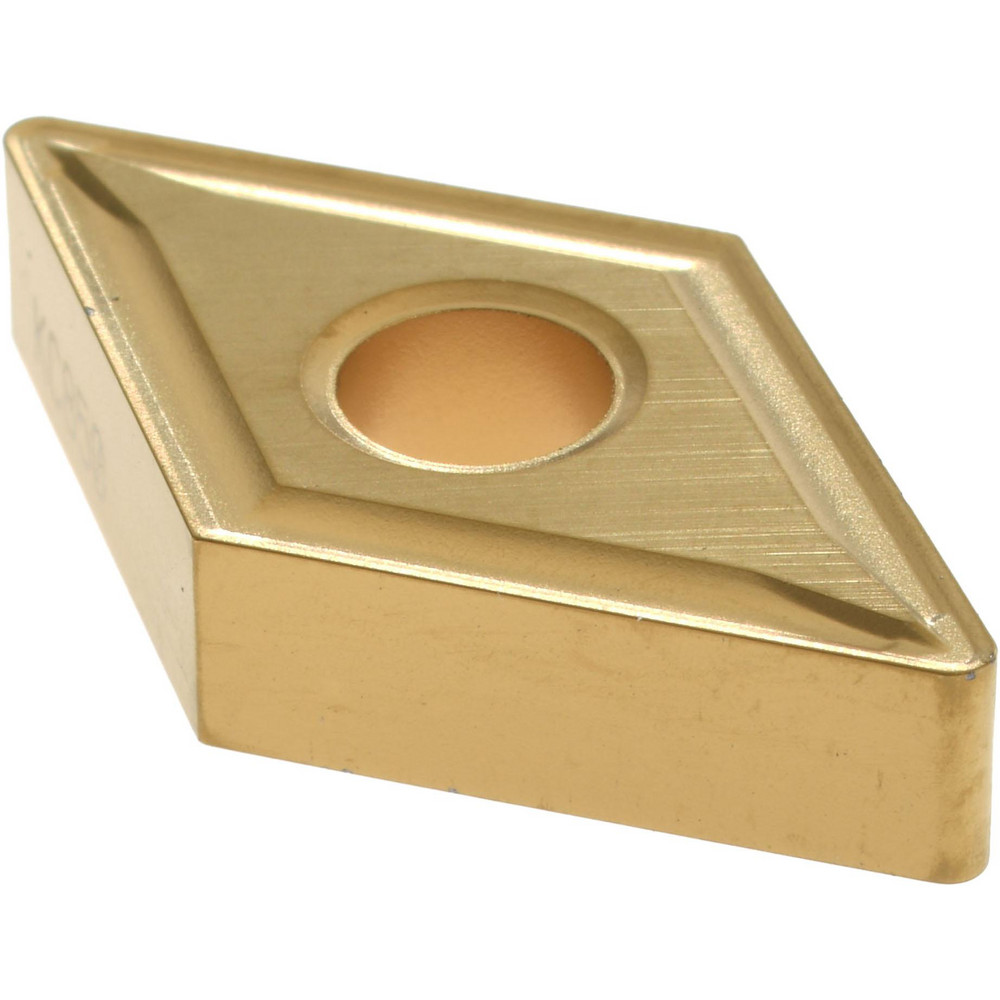

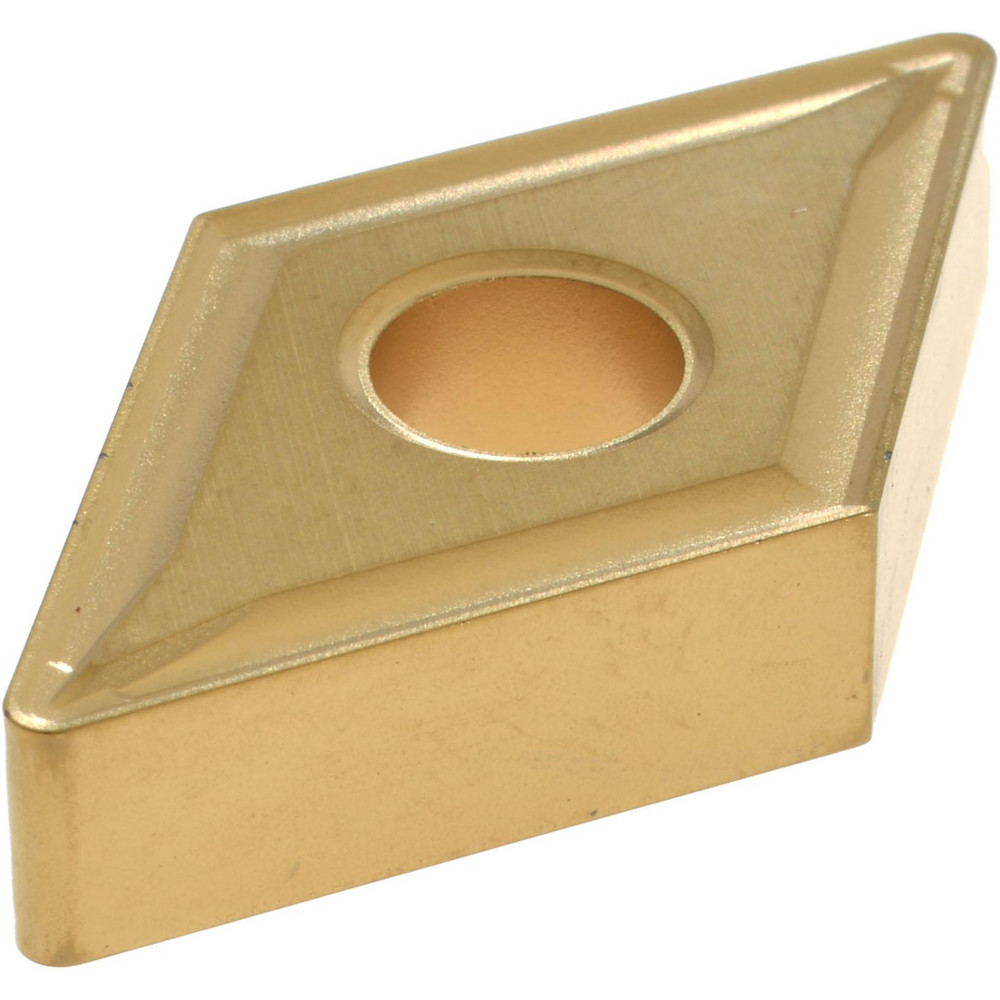

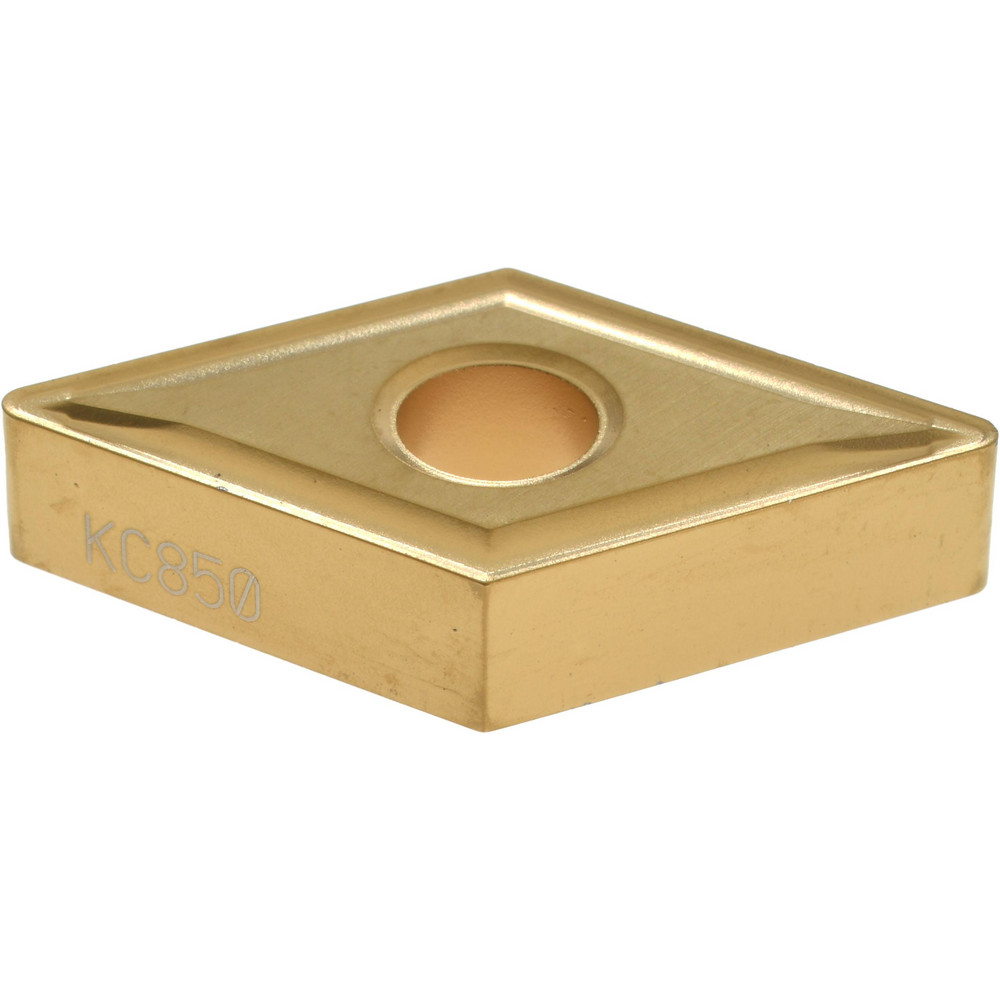

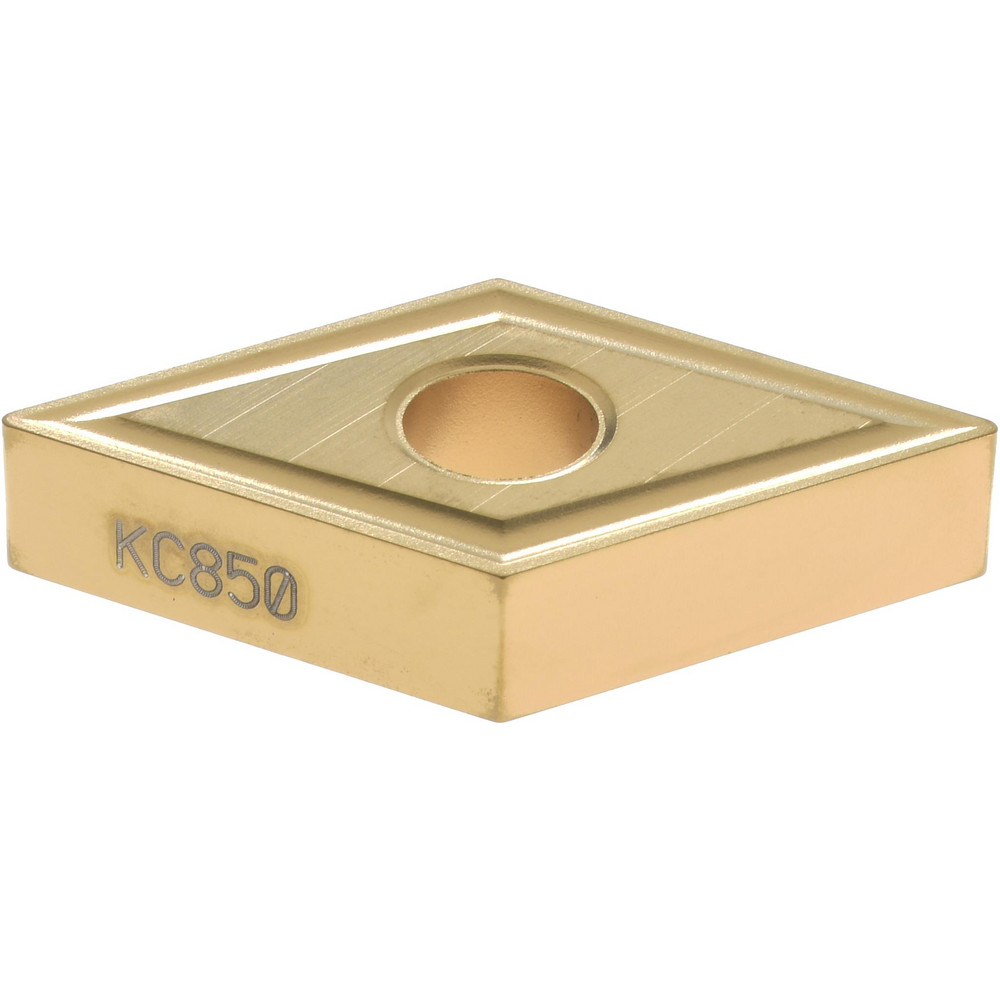

TiC, TiCN & TiN Finish, Neutral, 15.50 mm Long, 55 deg D - Diamond (Rhombic) 55-Deg, Series KENLOC
| Insert Style | DNMG |
|---|---|
| ISO Size Code | 150408 |
| ANSI Size Code | 432 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Insert Material | Carbide |
| Manufacturer Grade | KC850 |
| Coating/Finish | TiCN; TiN; TiC |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| ISO Insert Code | DNMG150408 |
| ANSI Insert Code | DNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6102 |
| Insert Length (mm) | 15.50 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material Code | K; M |
| Manufacturers Catalog Number | 1160364 |
| Material Grade | C5; C6 |
| Chip Breaker | K |
| Industry Standard Number | TCMT325111 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 62288543 |
