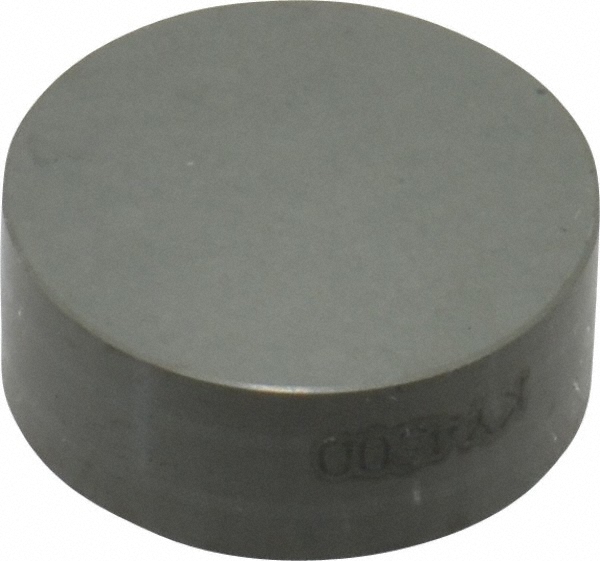

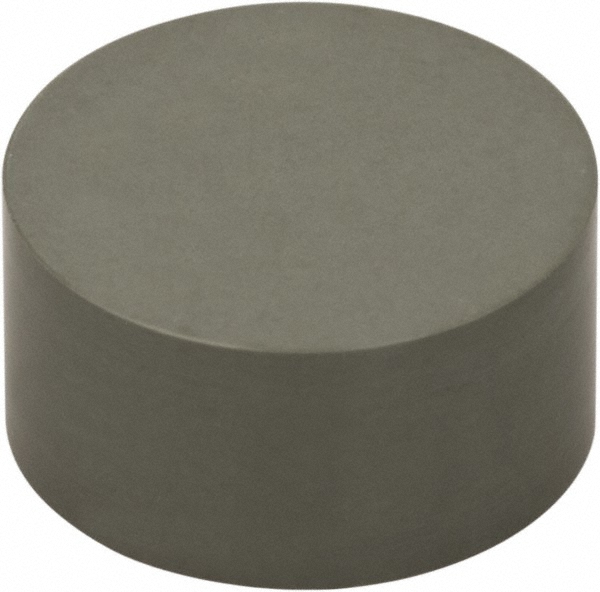

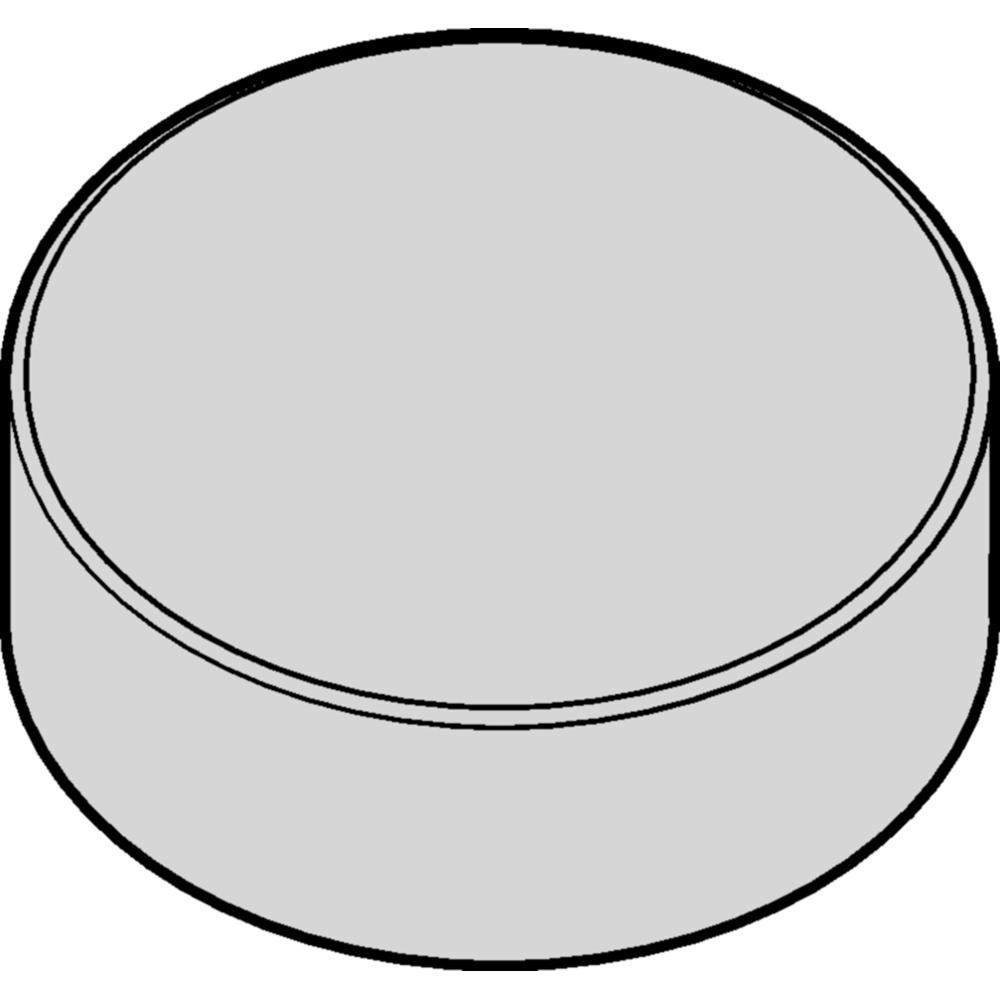

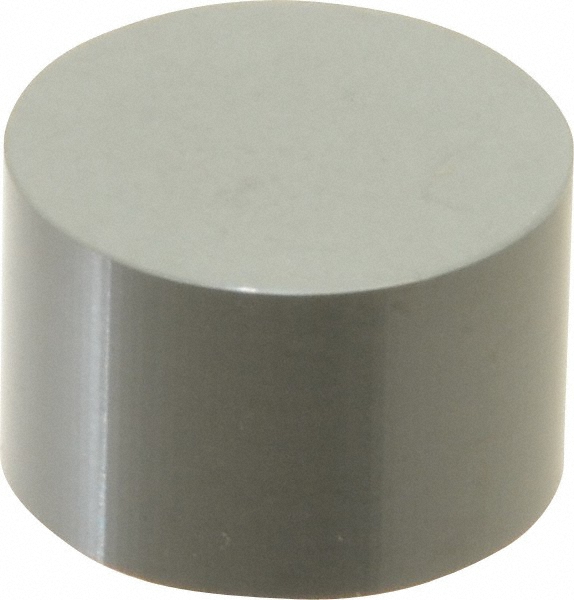

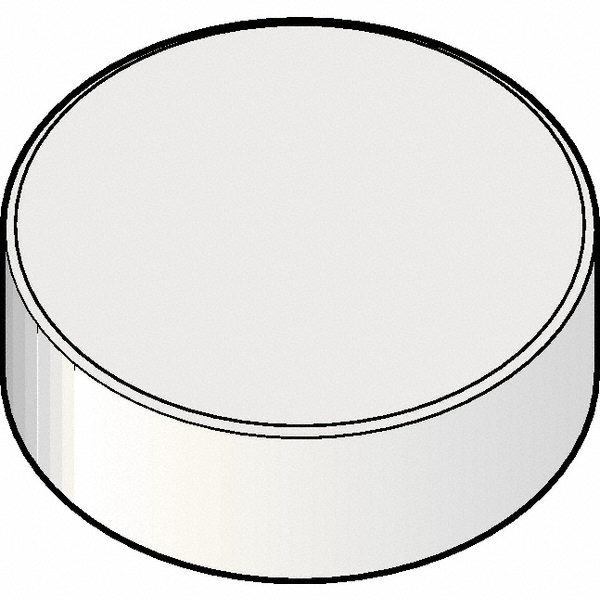

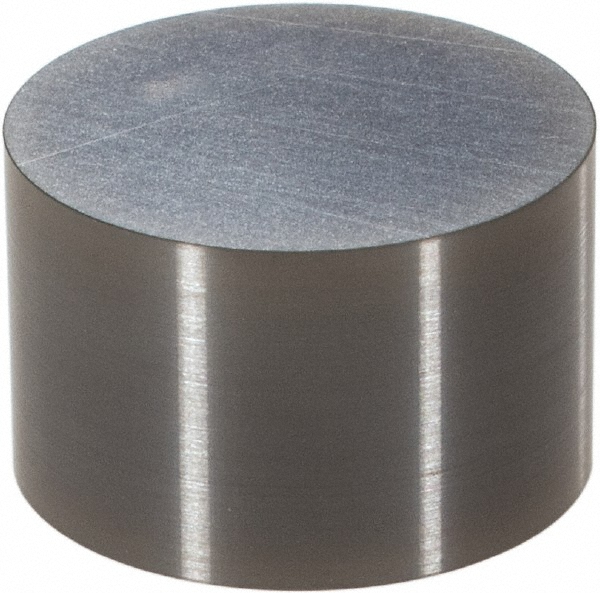

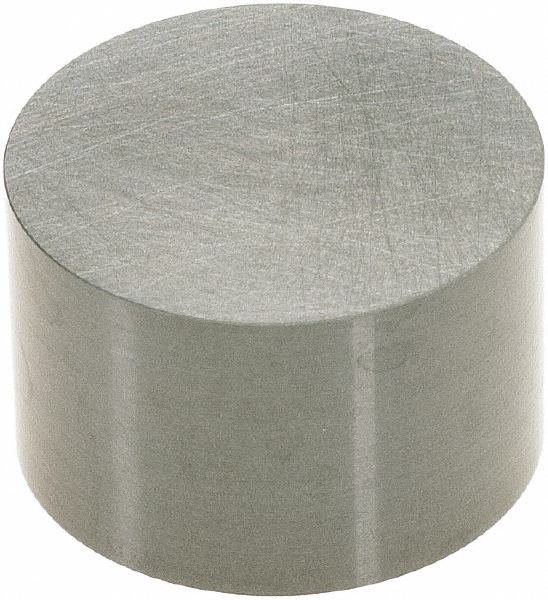

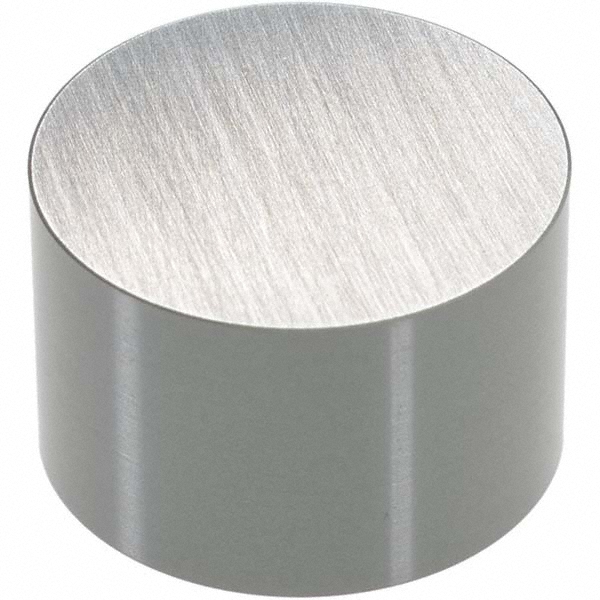

Bright/No Finish, Neutral, 1/2" Long, 1/2" Inscribed Circle, 1/4" Corner Radius, 360 deg R - Round, Series KENDEX
| Insert Style | RNG |
|---|---|
| ISO Size Code | 120700 |
| ANSI Size Code | 45 |
| Insert Shape | R - Round |
| Included Angle | 360 |

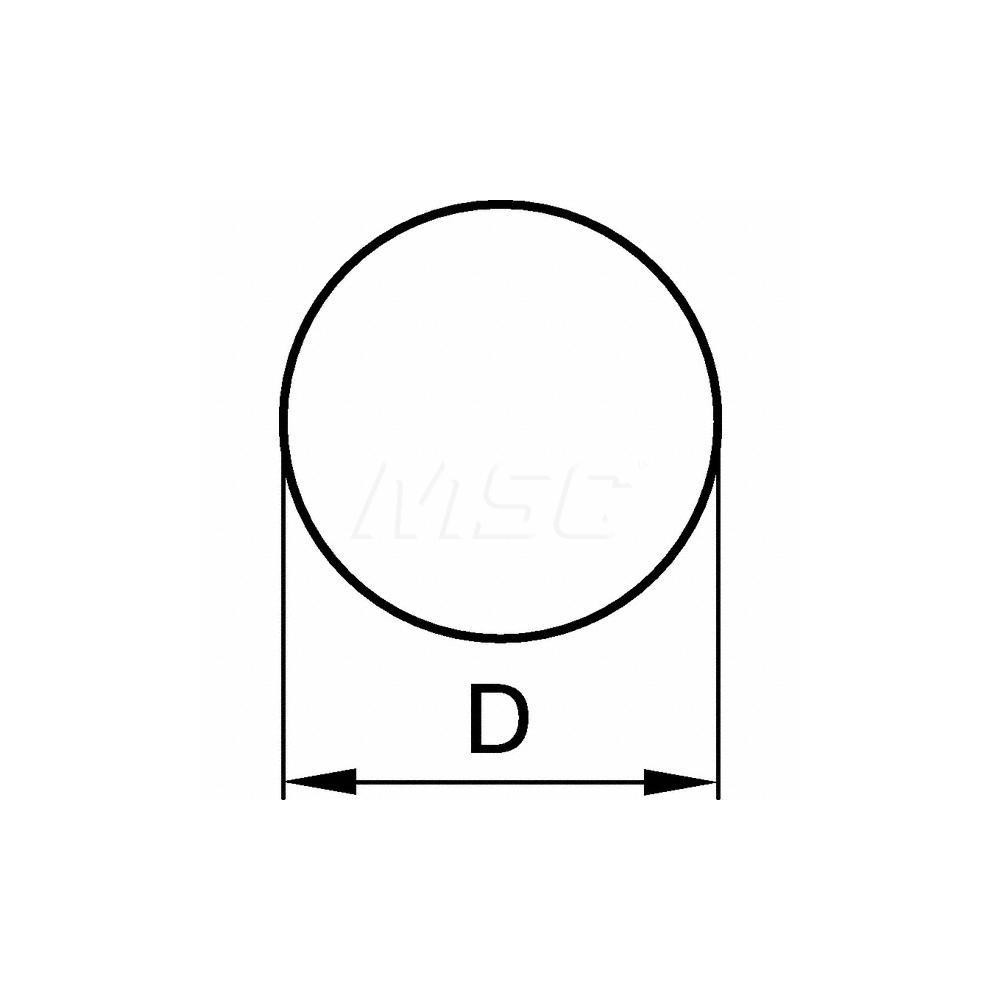

| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Insert Material | Whiskered Ceramic |
| Manufacturer Grade | KY4300 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.3125 |
| Insert Thickness (Inch) | 5/16 |
| Insert Hand | Neutral |
| Series | KENDEX |
| Chip Breaker Operation | Flat Top |
| Number Of Cutting Edges | 8 |
| Side Clearance | Negative |
| Insert Shape Code | R |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| ISO Insert Code | RNG120700 |
| ANSI Insert Code | RNG45 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Hard Material; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 1203627 |
| Material Grade | Alumina SiC |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Industry Standard Number | RNG45T0420 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 45 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 76193077 |
