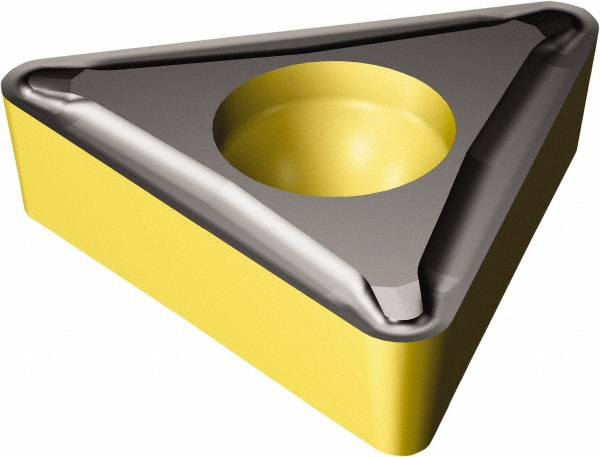

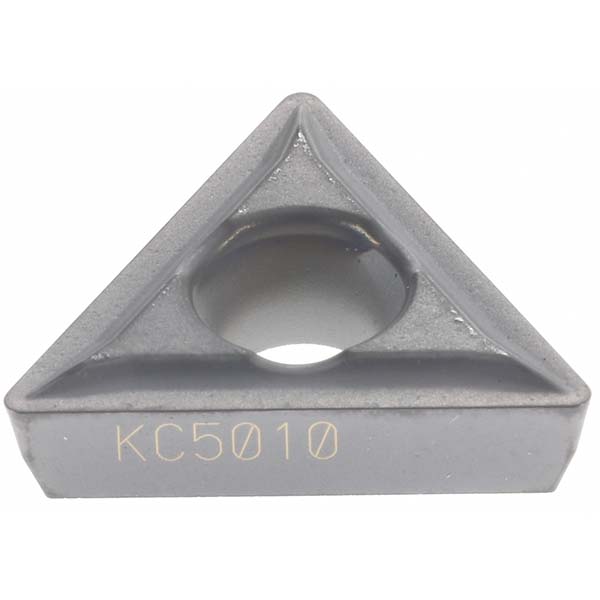

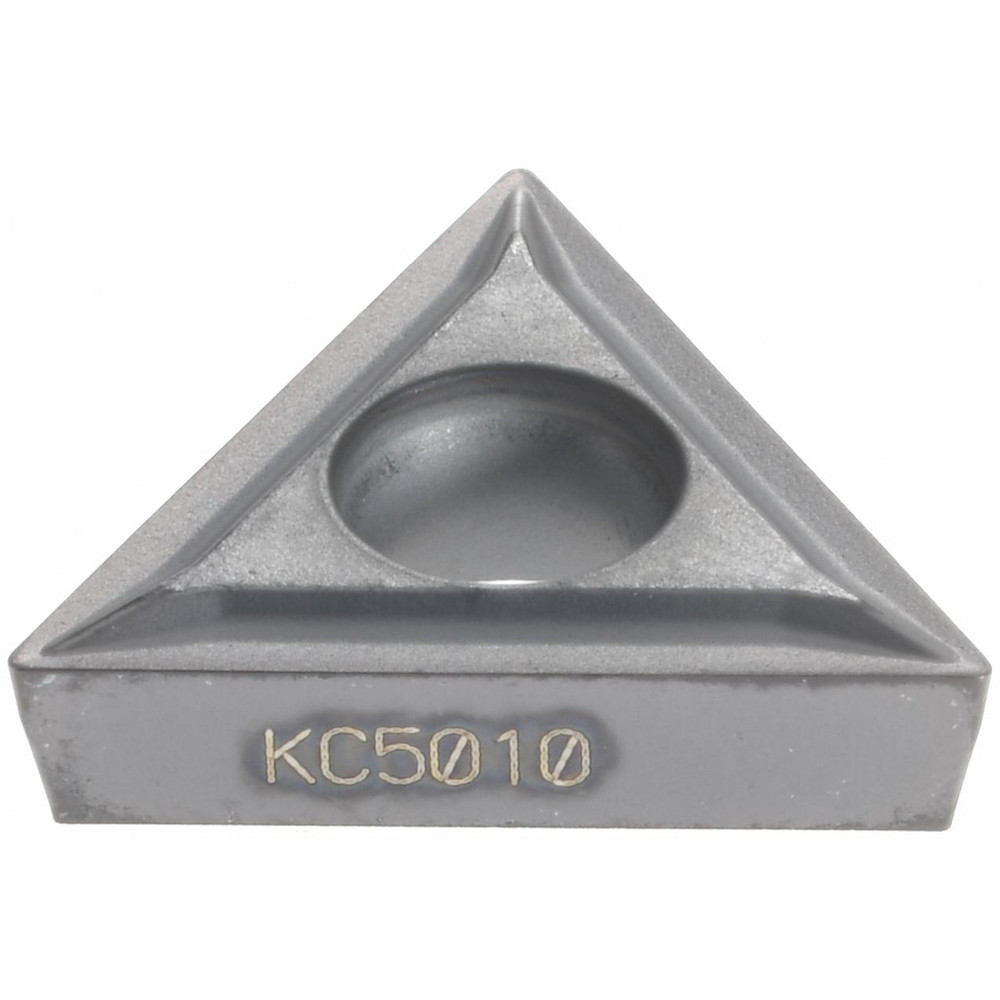

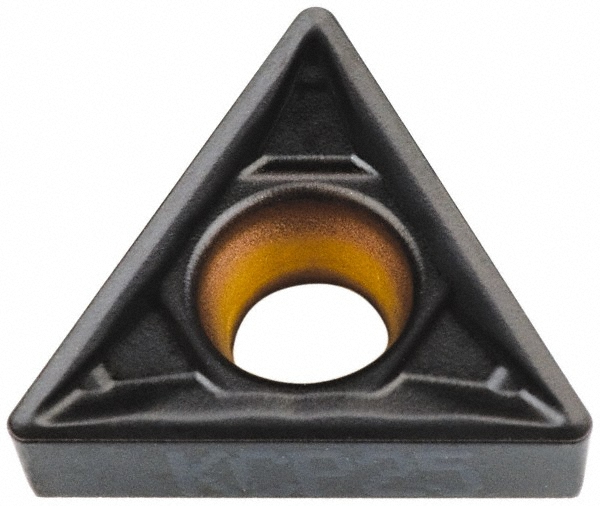

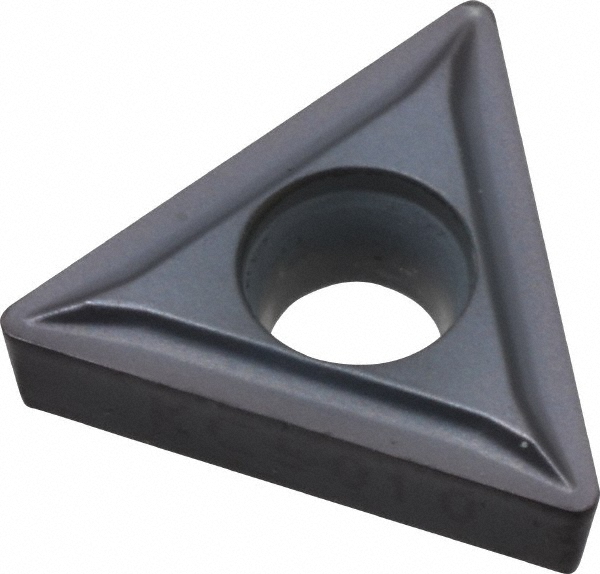

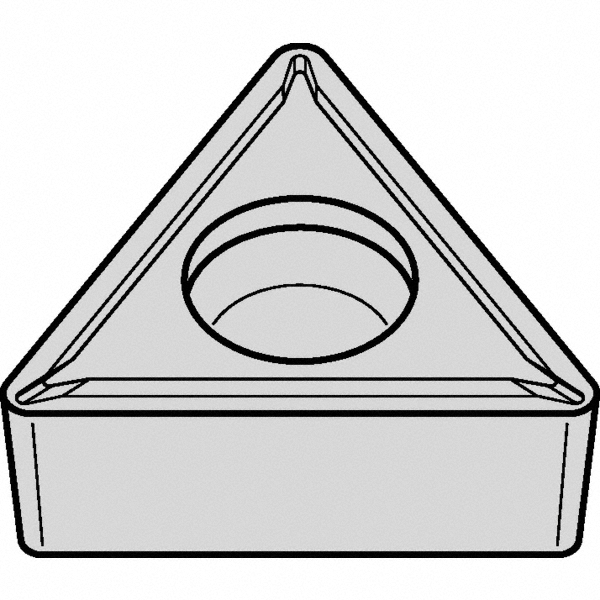

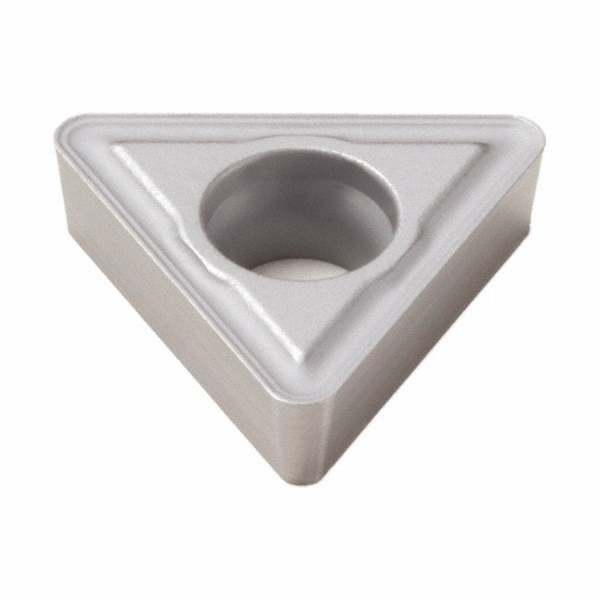

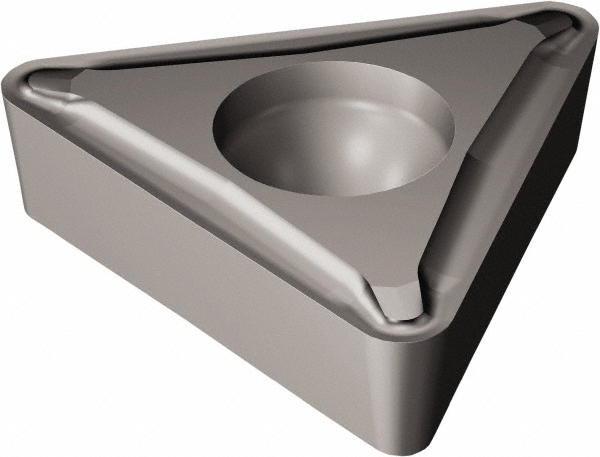

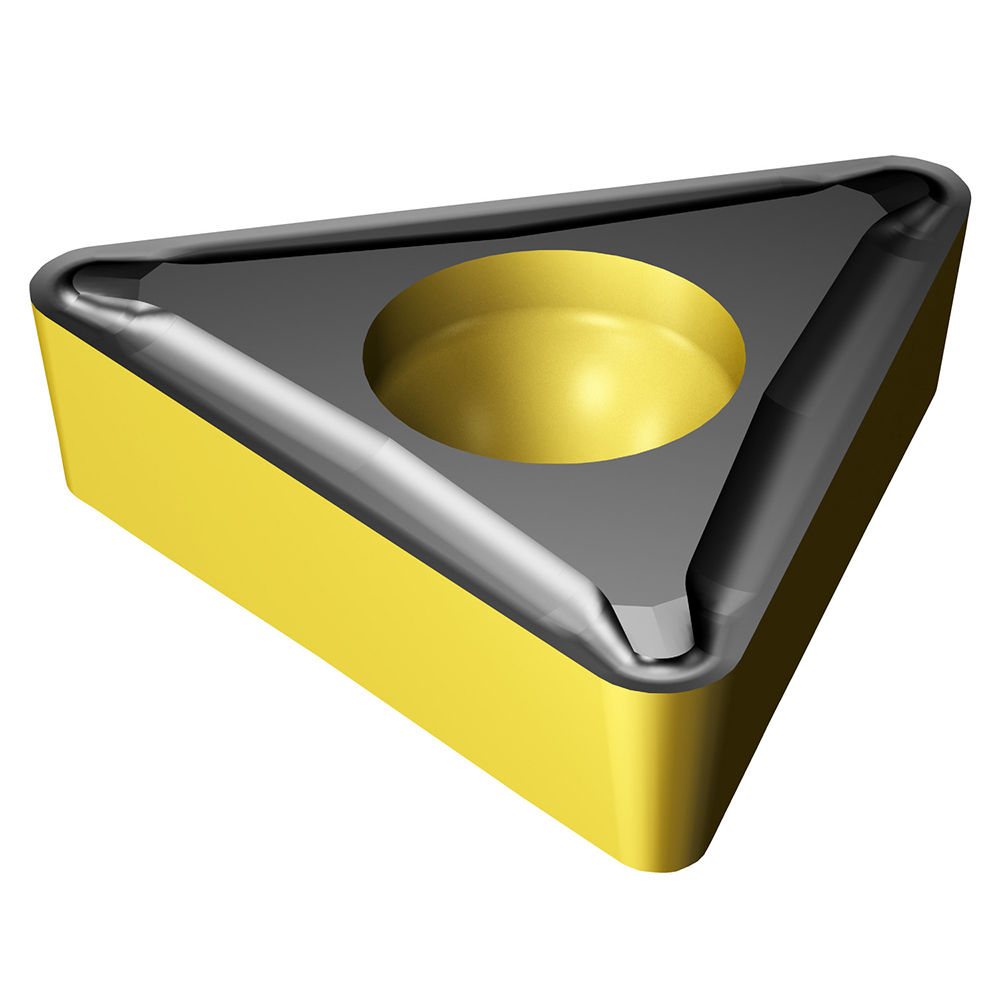

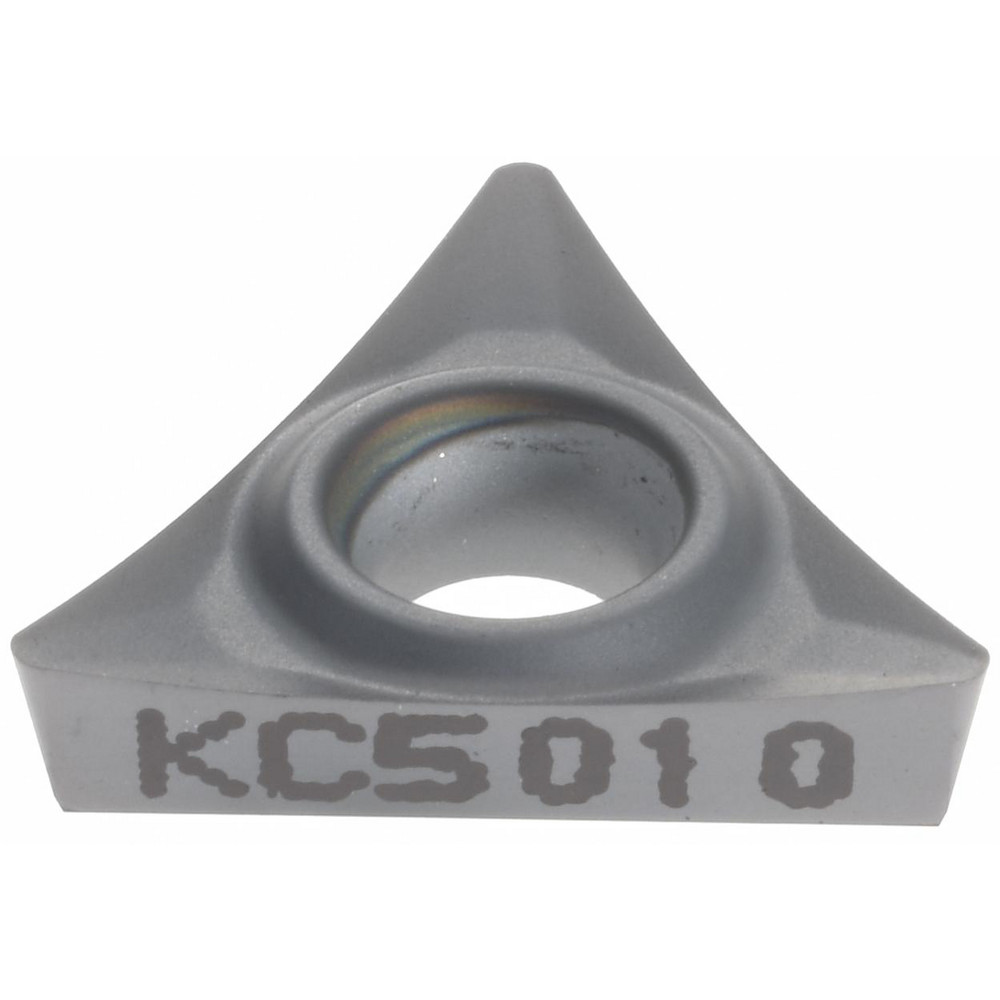

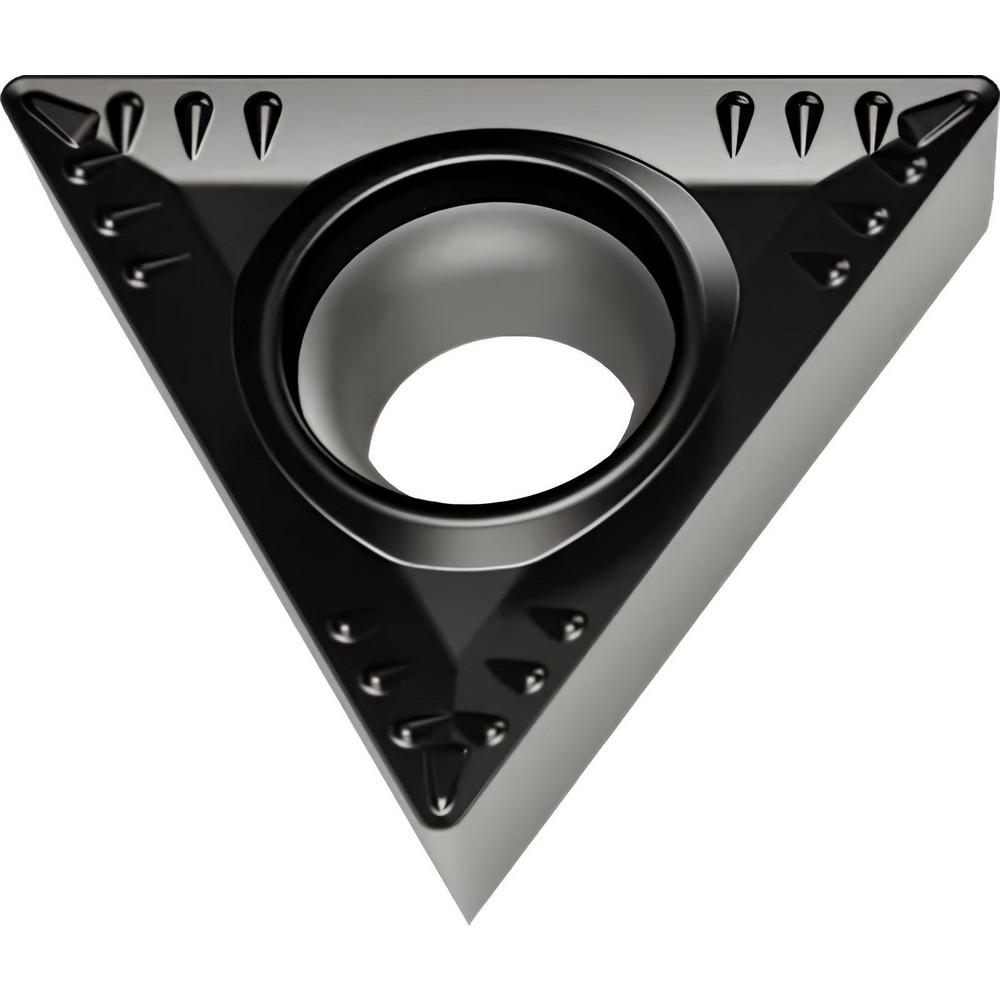

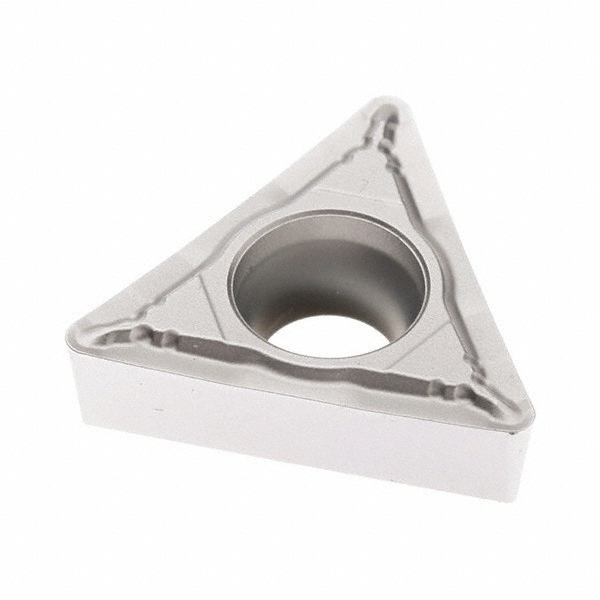

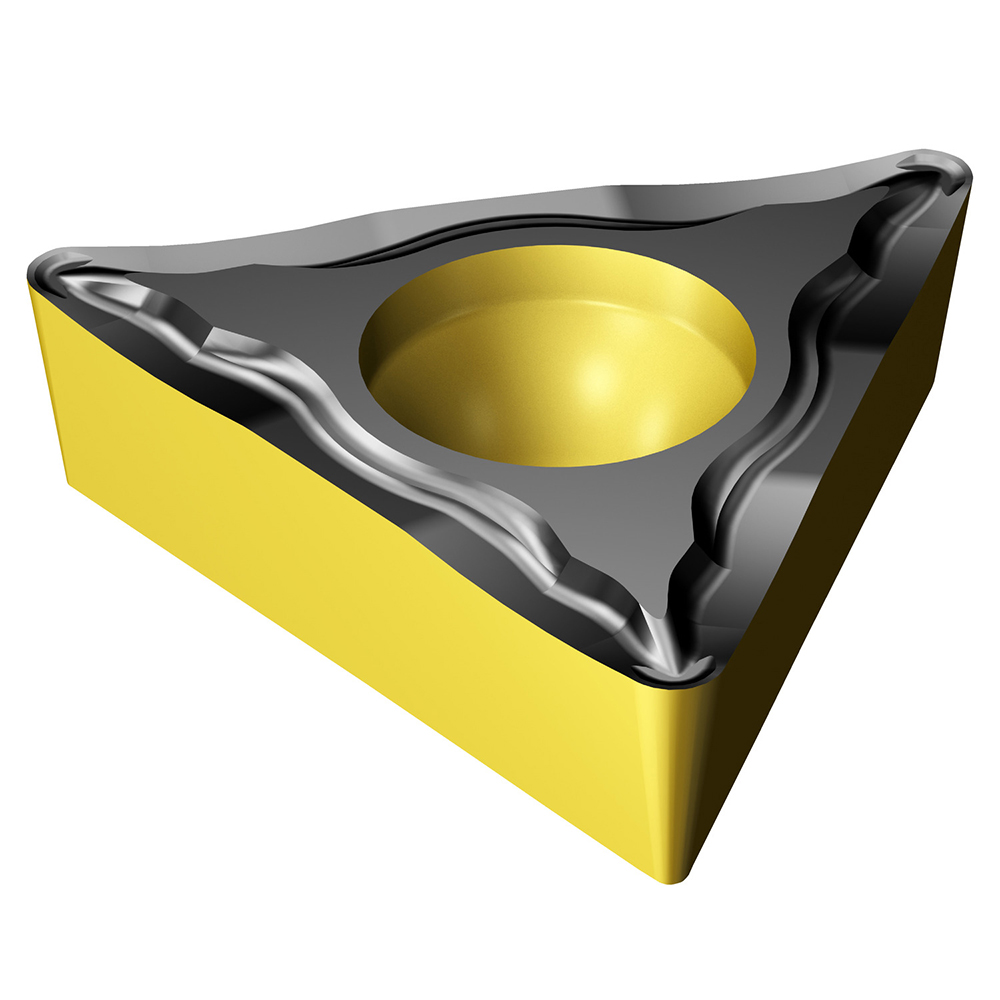

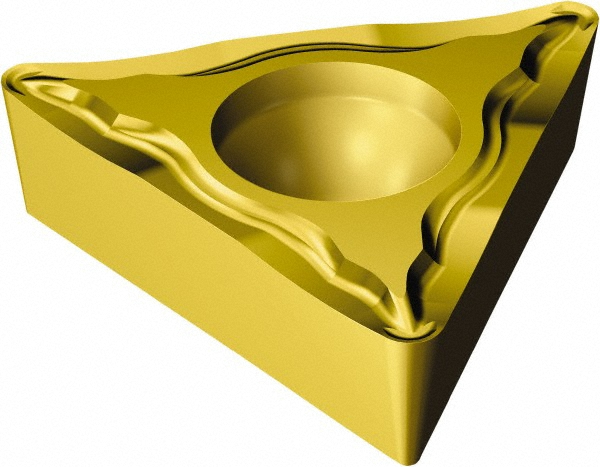

TiAlN Finish, Neutral, 11.00 mm Long, 60.00 deg T - Triangle, Series Screw-On
| Insert Style | TCMT |
|---|---|
| ISO Size Code | 110204 |
| ANSI Size Code | 21.51 |
| Insert Shape | T - Triangle |
| Included Angle | 60.00 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5010 |
| Coating/Finish | TiAlN |
| Relief Angle | 7.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| ISO Insert Code | TCMT110204 |
| ANSI Insert Code | TCMT21.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material Code | P; S; N |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 1845216 |
| Material Grade | C3; C4 |
| Coating Classification | PVD |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TCMT2151LF |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 86468329 |
