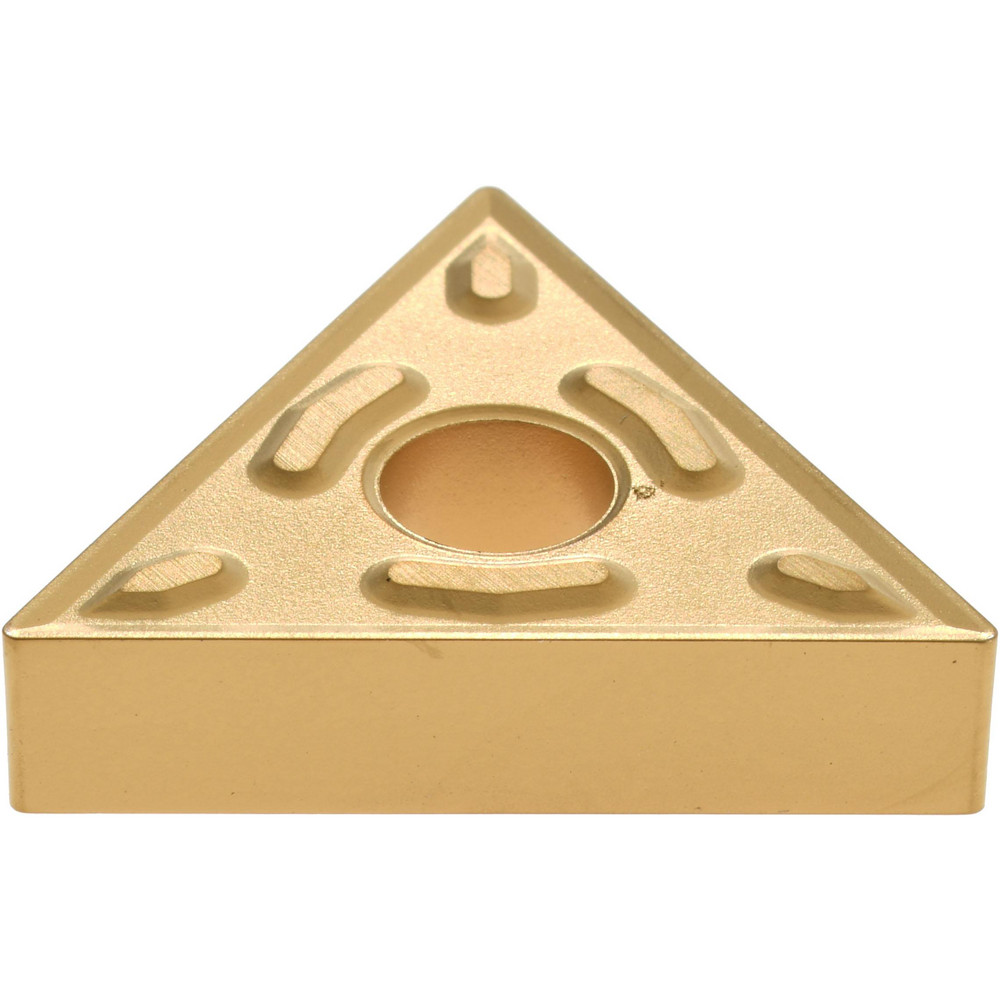

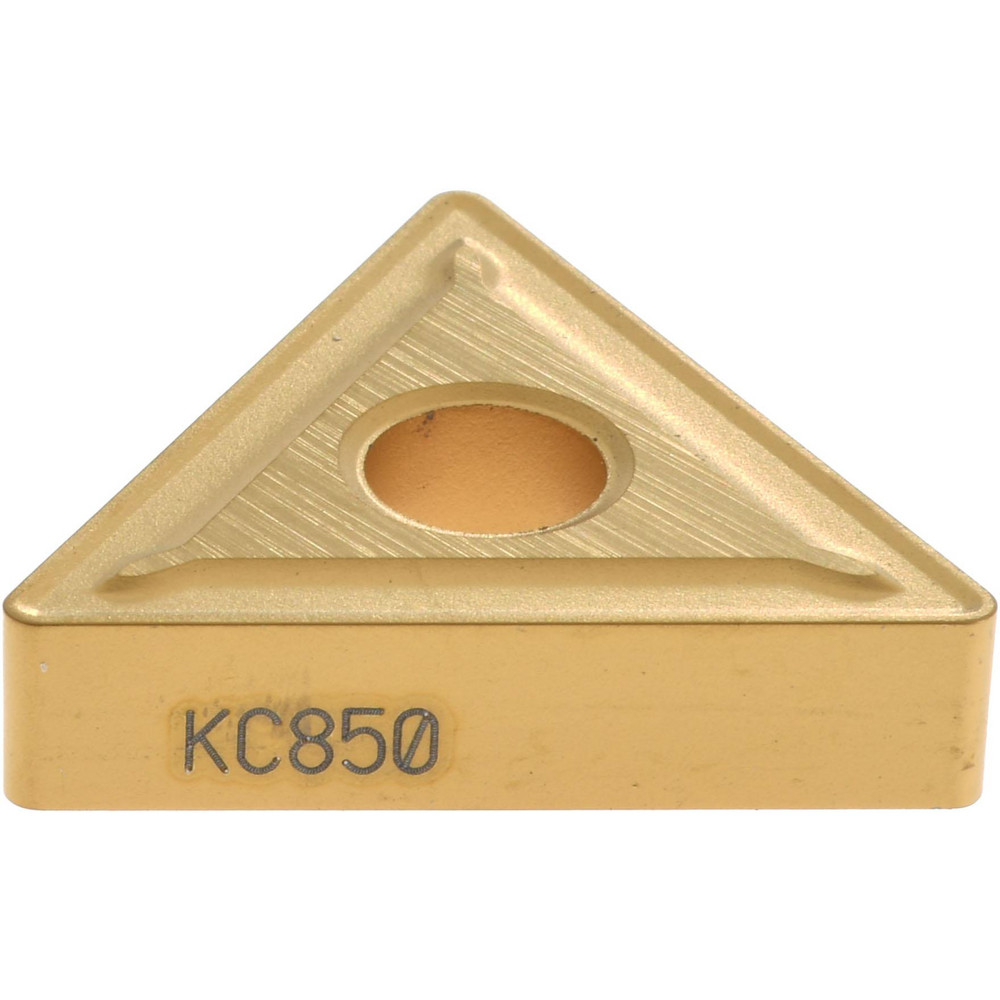

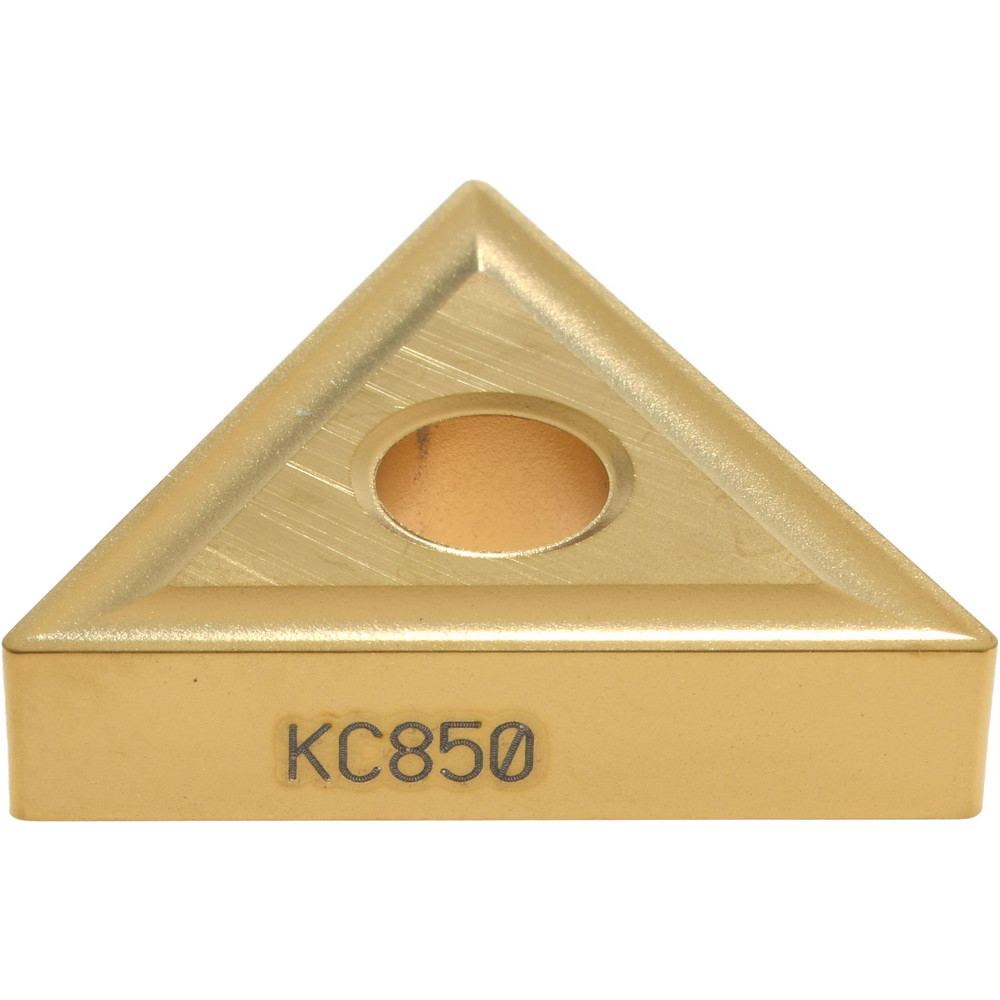

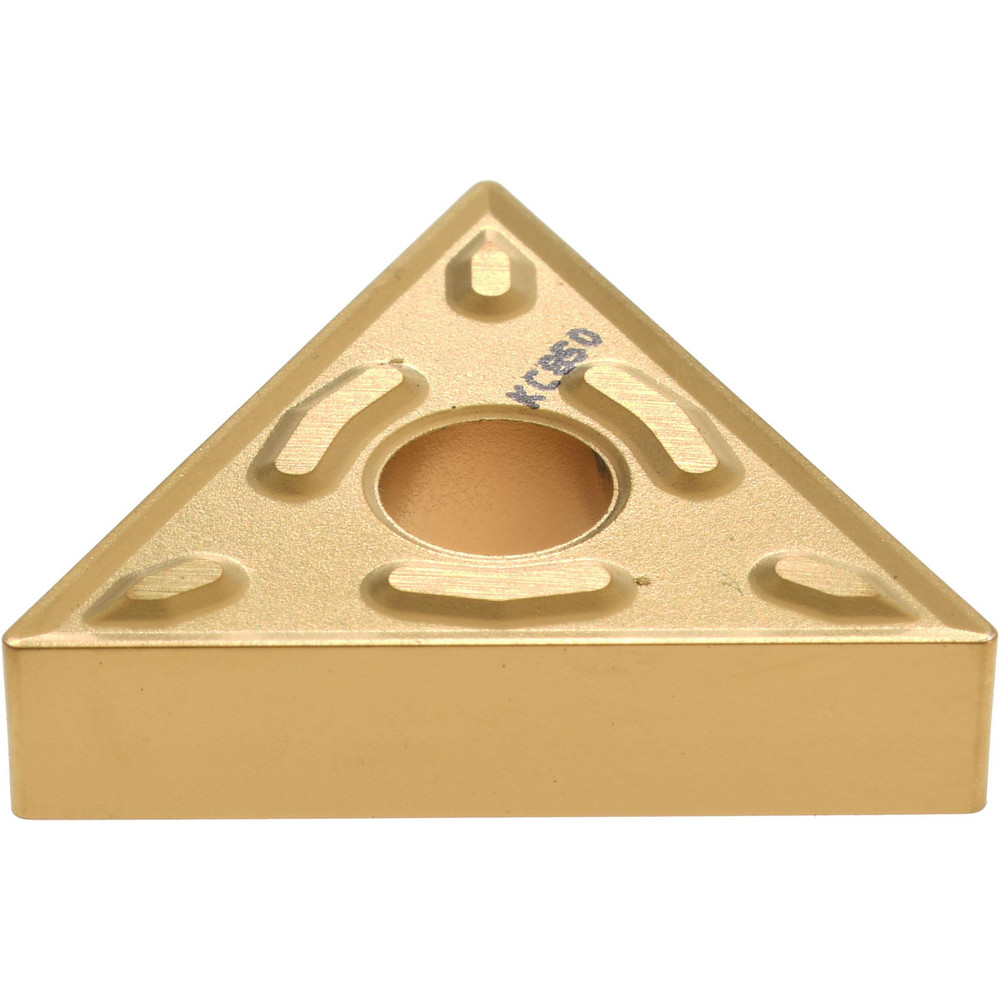

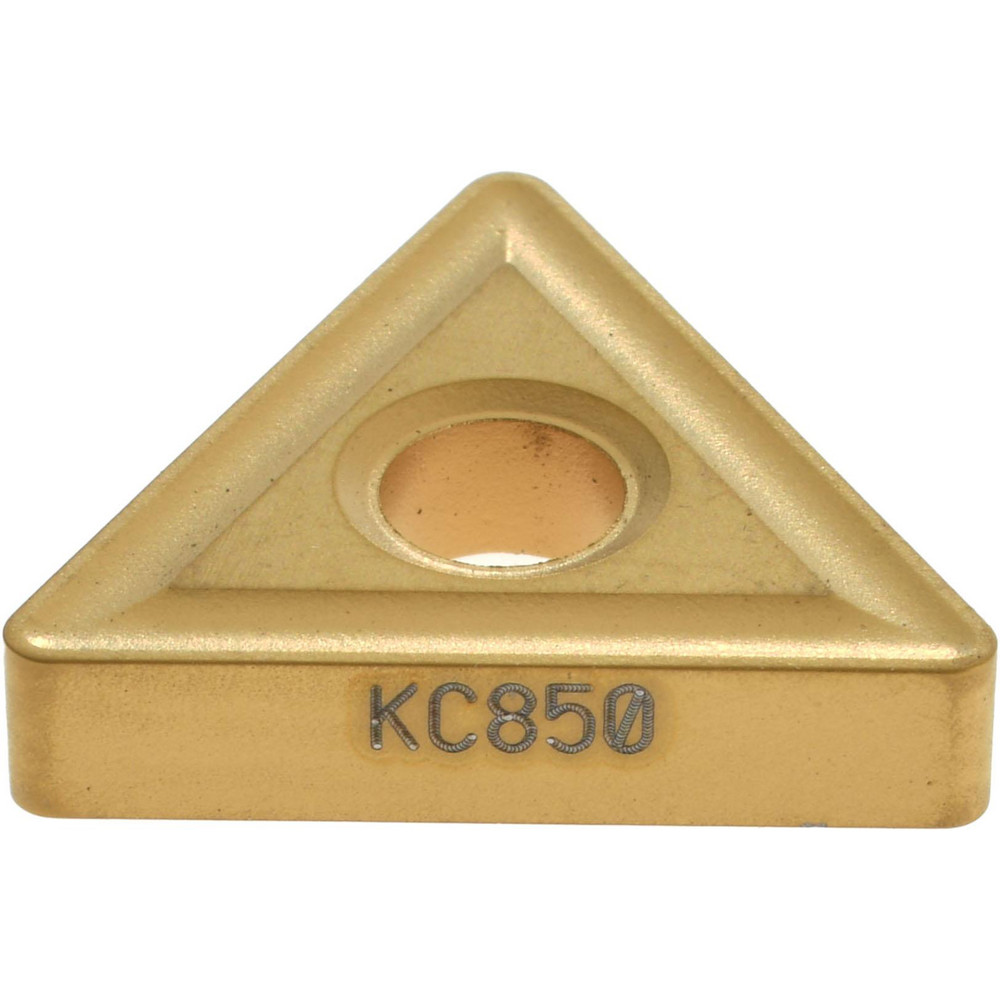

TiC, TiCN & TiN Finish, Neutral, 22.00 mm Long, 60 deg T - Triangle, Series KENLOC
| Insert Style | TNMG |
|---|---|
| ISO Size Code | 220404 |
| ANSI Size Code | 431 |
| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | KC850 |
| Coating/Finish | TiCN; TiN; TiC |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| ISO Insert Code | TNMG220404 |
| ANSI Insert Code | TNMG431 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8661 |
| Insert Length (mm) | 22.00 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material Code | K; M |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 1160310 |
| Material Grade | C5; C6 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | Common |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TNMG431P |
| Width (Decimal Inch - 4 Decimals) | 0.8661 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 62288402 |
