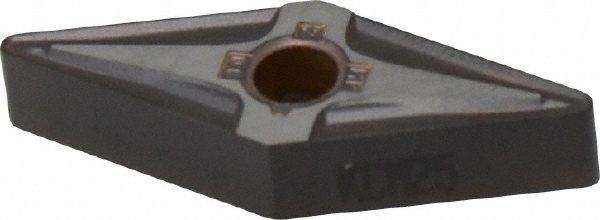

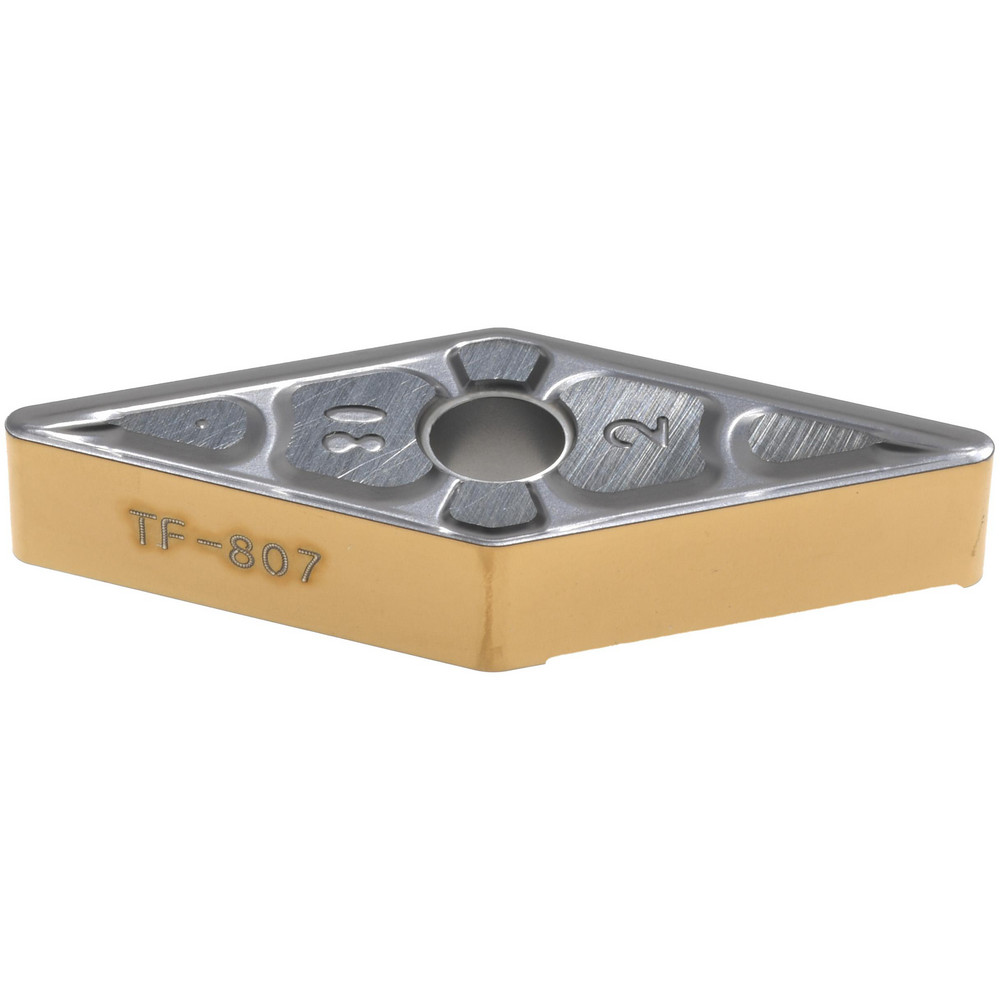

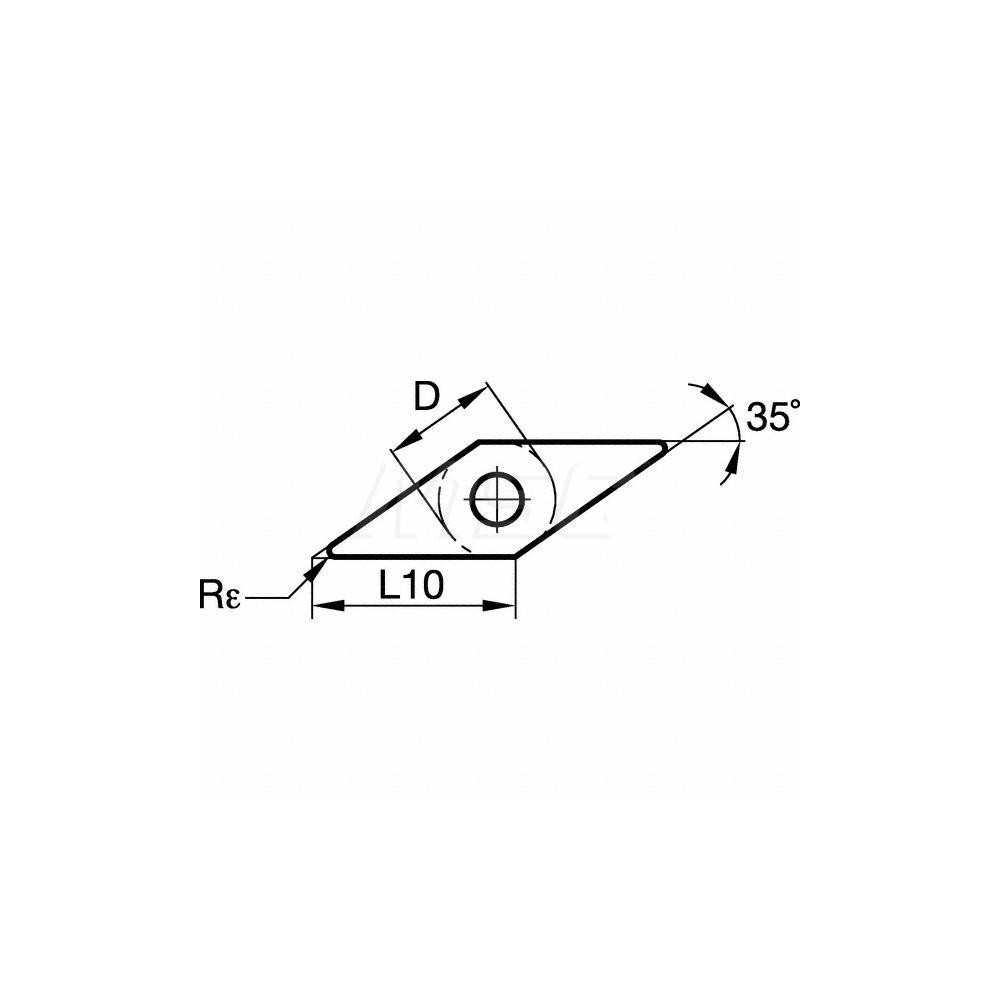

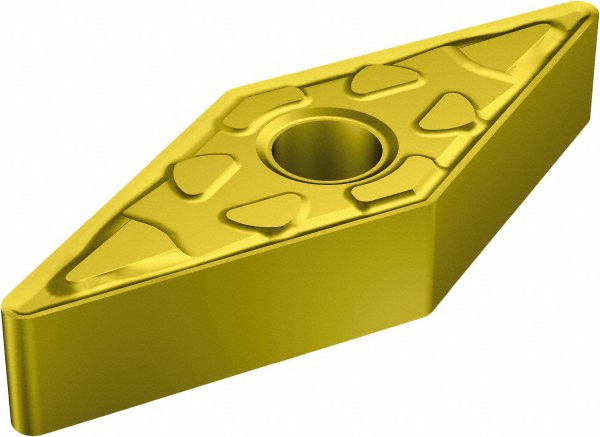

AlTiN Finish, Neutral, 1.3076" Long, 0.3750" Inscribed Circle, 0.0313" Corner Radius, 35 deg V - Diamond (Rhombic) 35-Deg, Series KENLOC
| Insert Style | VNMG |
|---|---|
| ISO Size Code | 160408 |
| ANSI Size Code | 332 |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Included Angle | 35 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25 |
| Coating/Finish | AlTiN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4354 |
| ISO Insert Code | VNMG160408 |
| ANSI Insert Code | VNMG332 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3076 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Iso Code | VNMG160408MS |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 4121715 |
| Material Grade | C6; C2 |
| Coating Classification | PVD |
| Chip Breaker | MS |
| Rake Angle | 13 |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNMG332MS |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
| Country of Origin | UNITED STATES |
