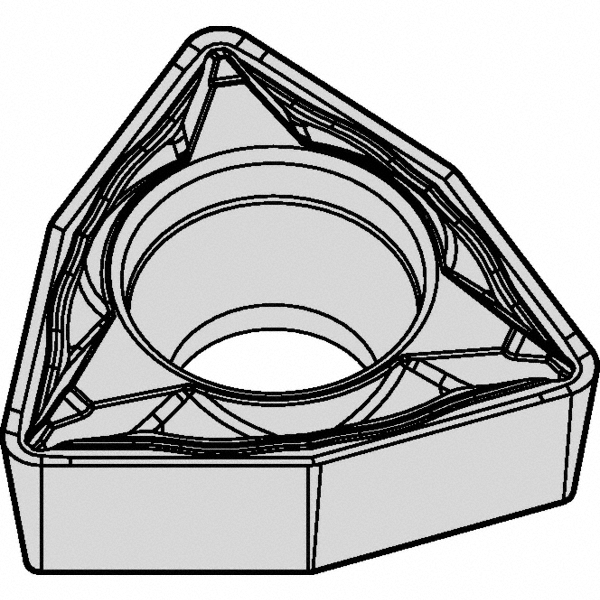

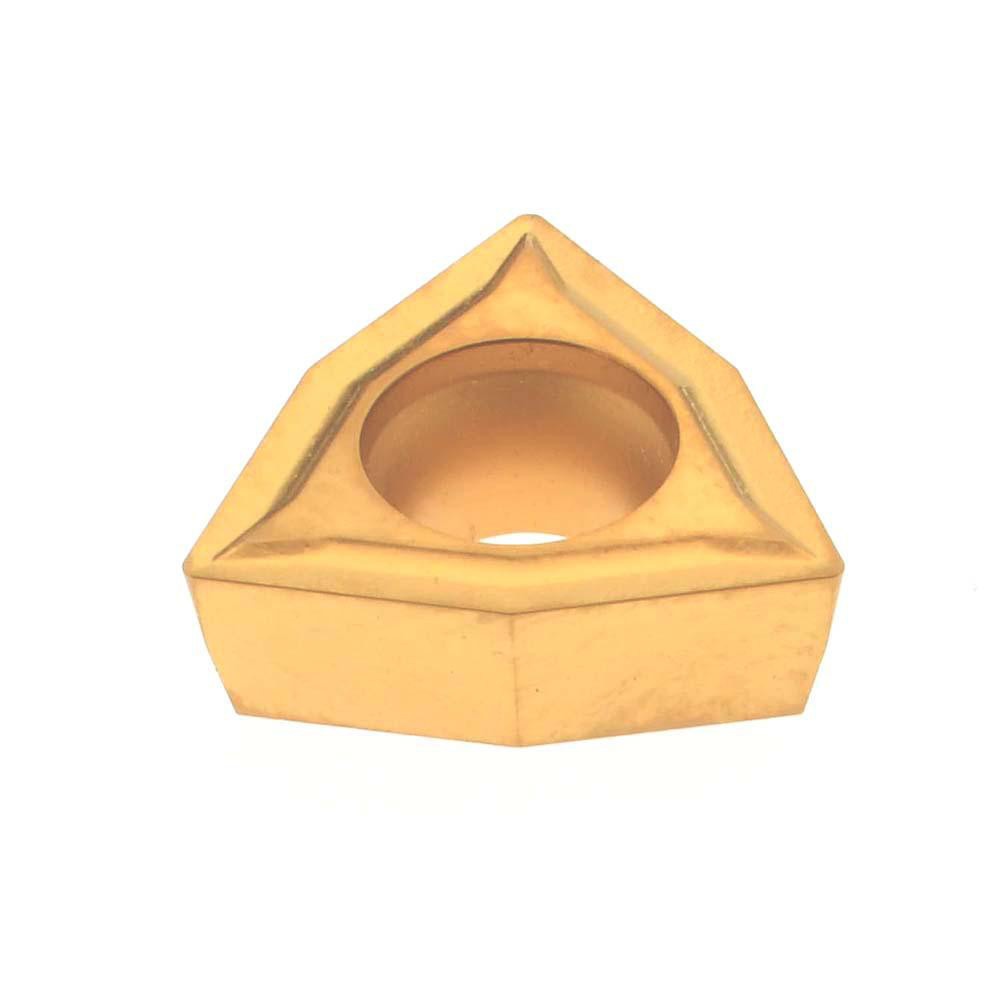

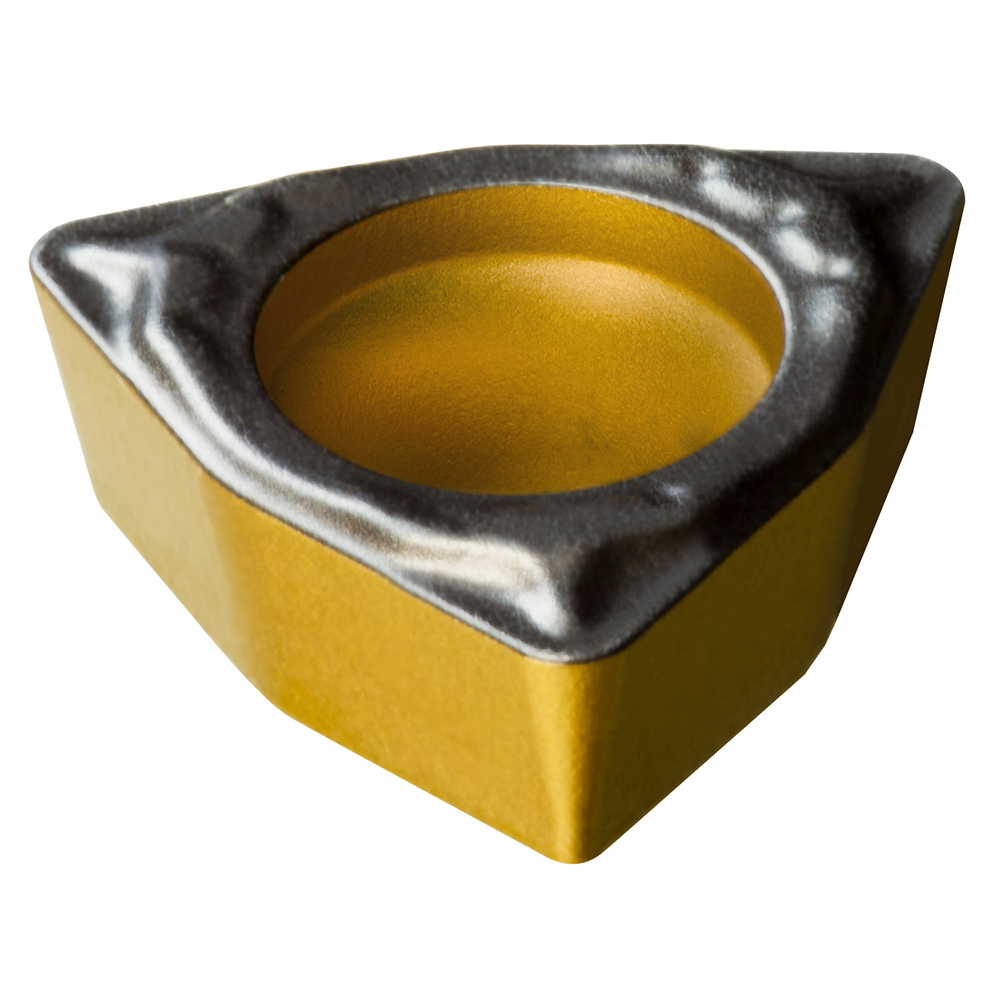

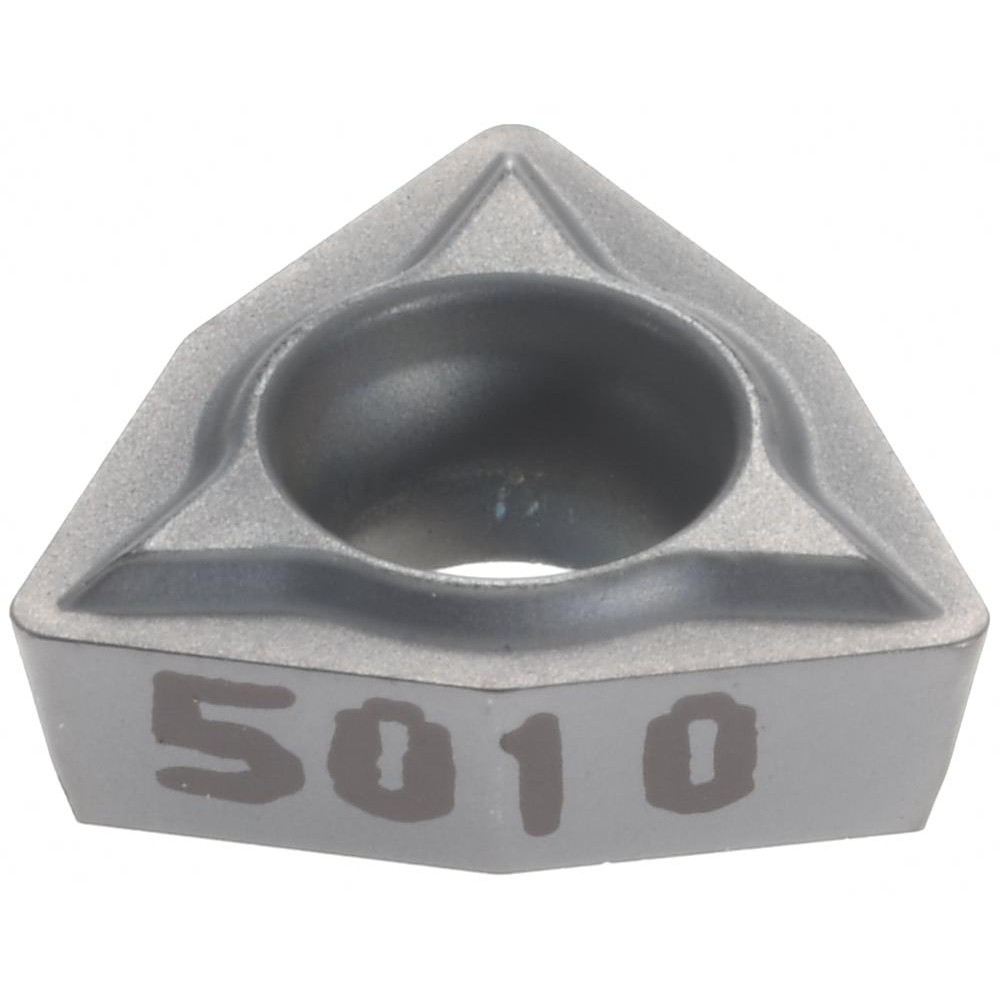

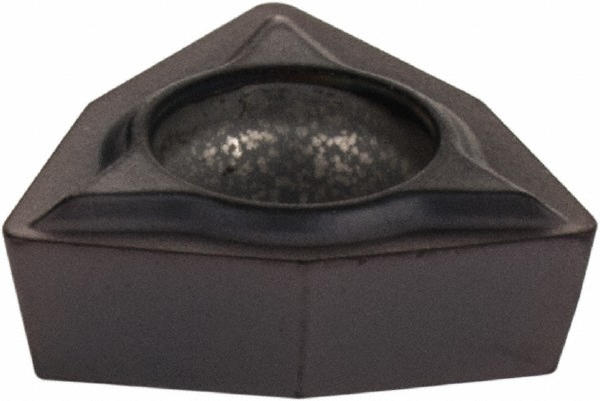

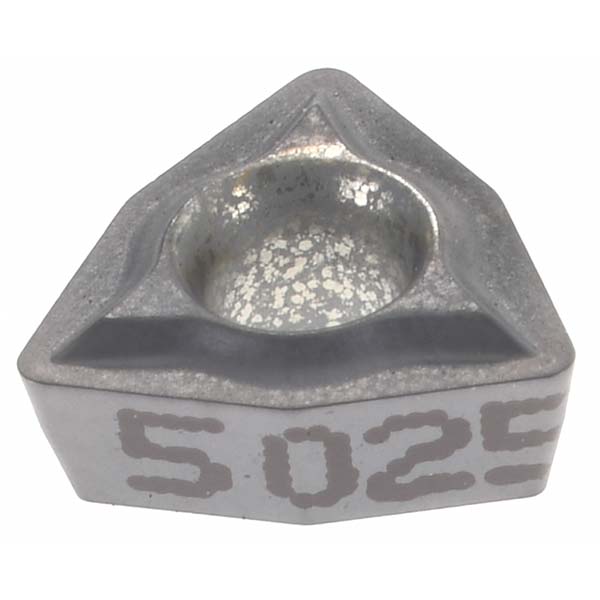

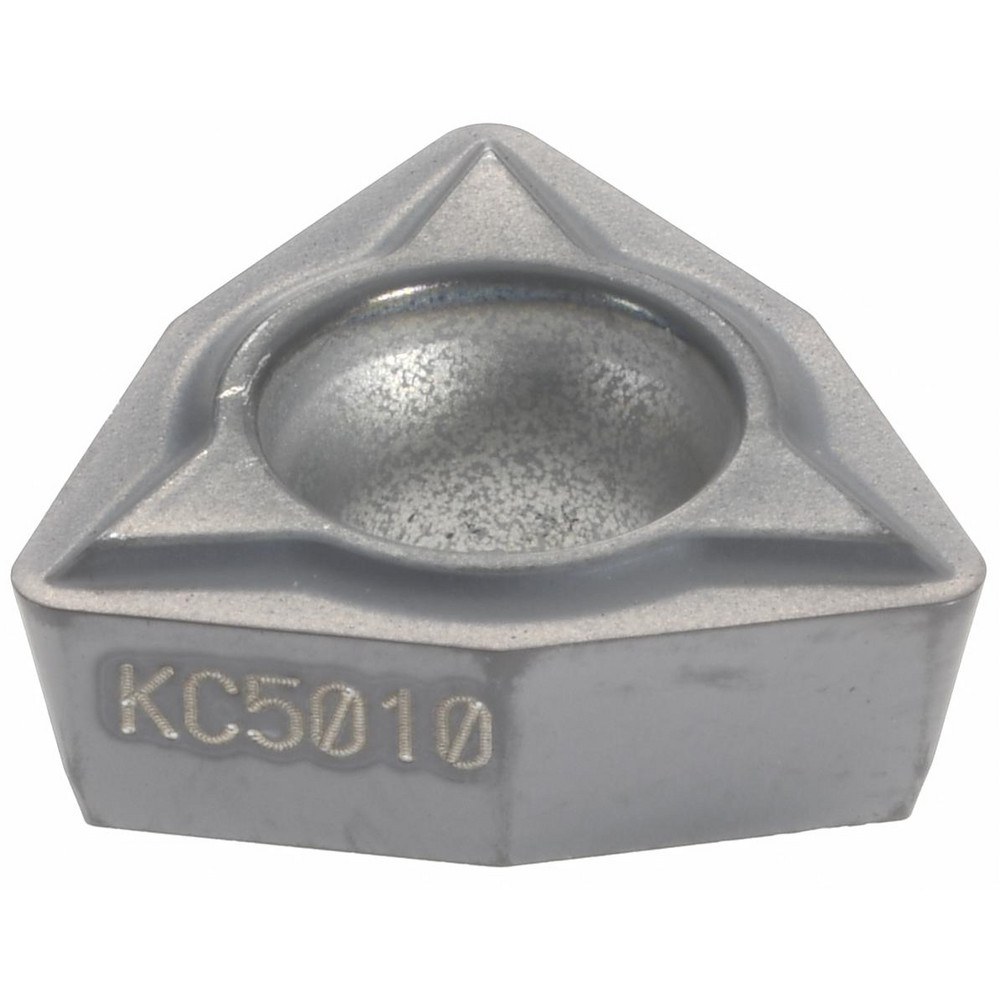

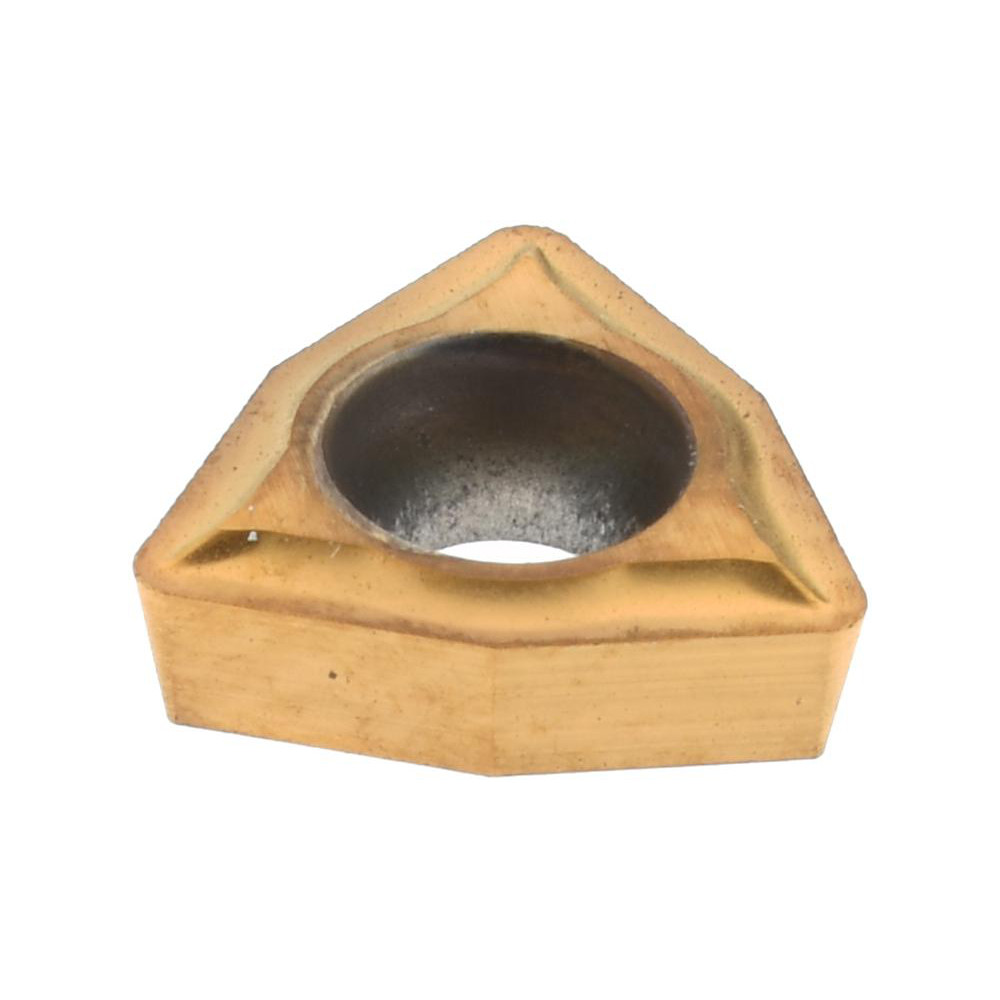

TiAlN Finish, Neutral, 3.25 mm Long, 80 deg W - Trigon 80-Deg, Series Screw-On
| Insert Style | WPMT |
|---|---|
| ISO Size Code | S3T104 |
| ANSI Size Code | 15121 |
| Insert Shape | W - Trigon 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5025 |
| Coating/Finish | TiAlN |
| Relief Angle | 11 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0781 |
| Insert Thickness (Inch) | 5/64 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.0846 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.15 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| ISO Insert Code | WPMTS3T104 |
| ANSI Insert Code | WPMT15121 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2566 |
| Insert Length (mm) | 3.25 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2425820 |
| Material Grade | C6; C2 |
| Coating Classification | PVD |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | WPMT15121LF |
| Width (Decimal Inch - 4 Decimals) | 0.2566 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 15121 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01909944 |
