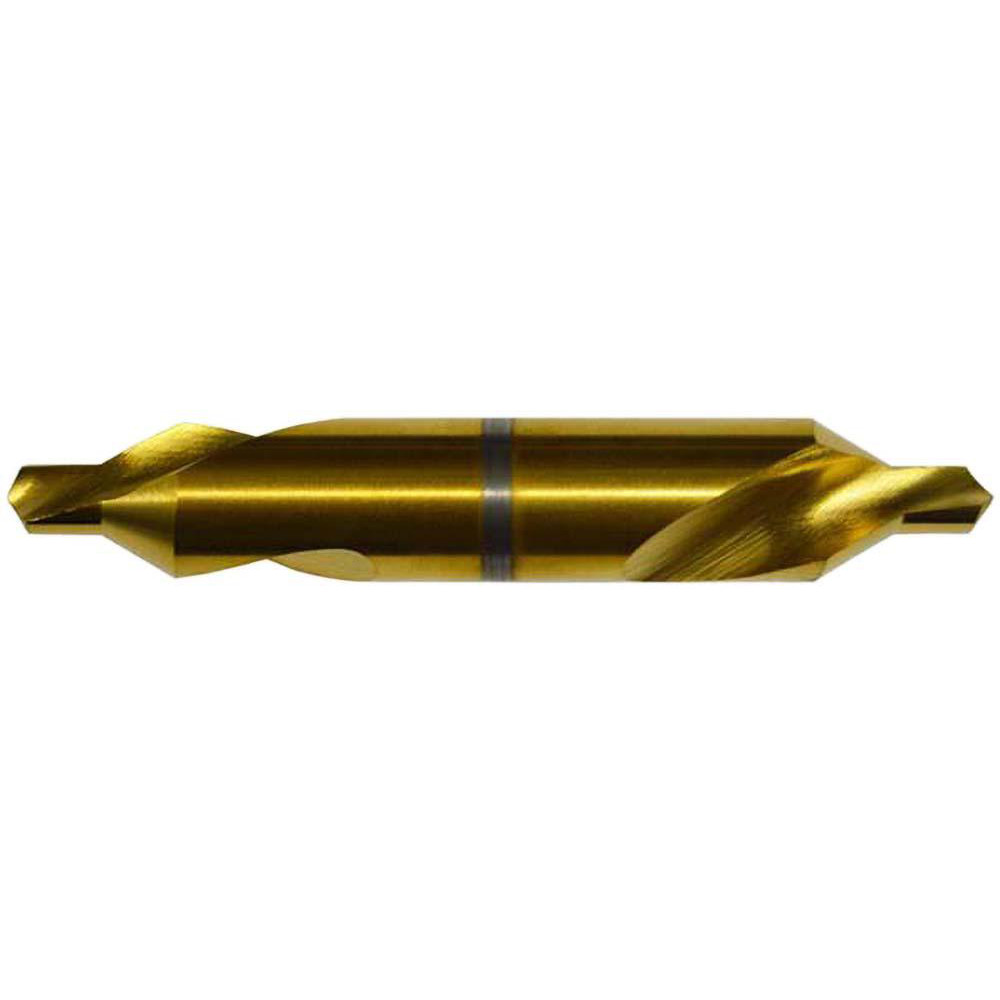

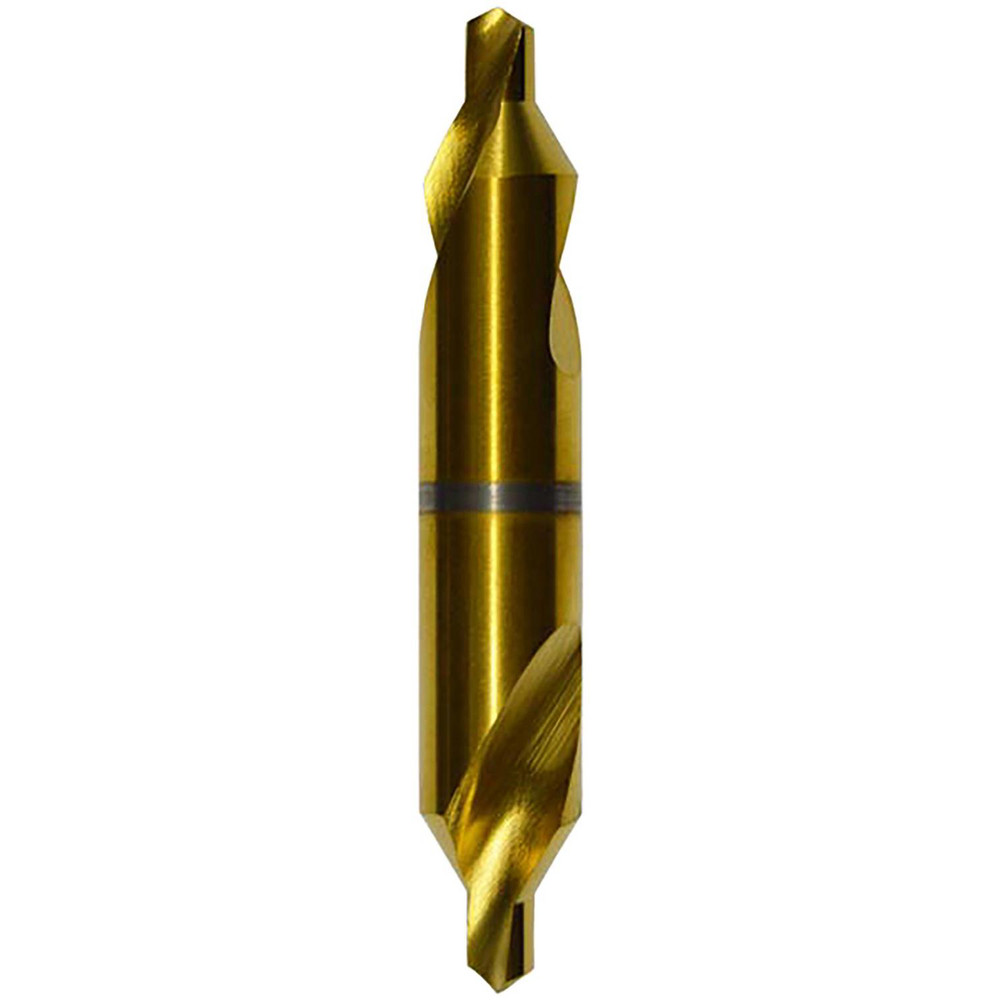

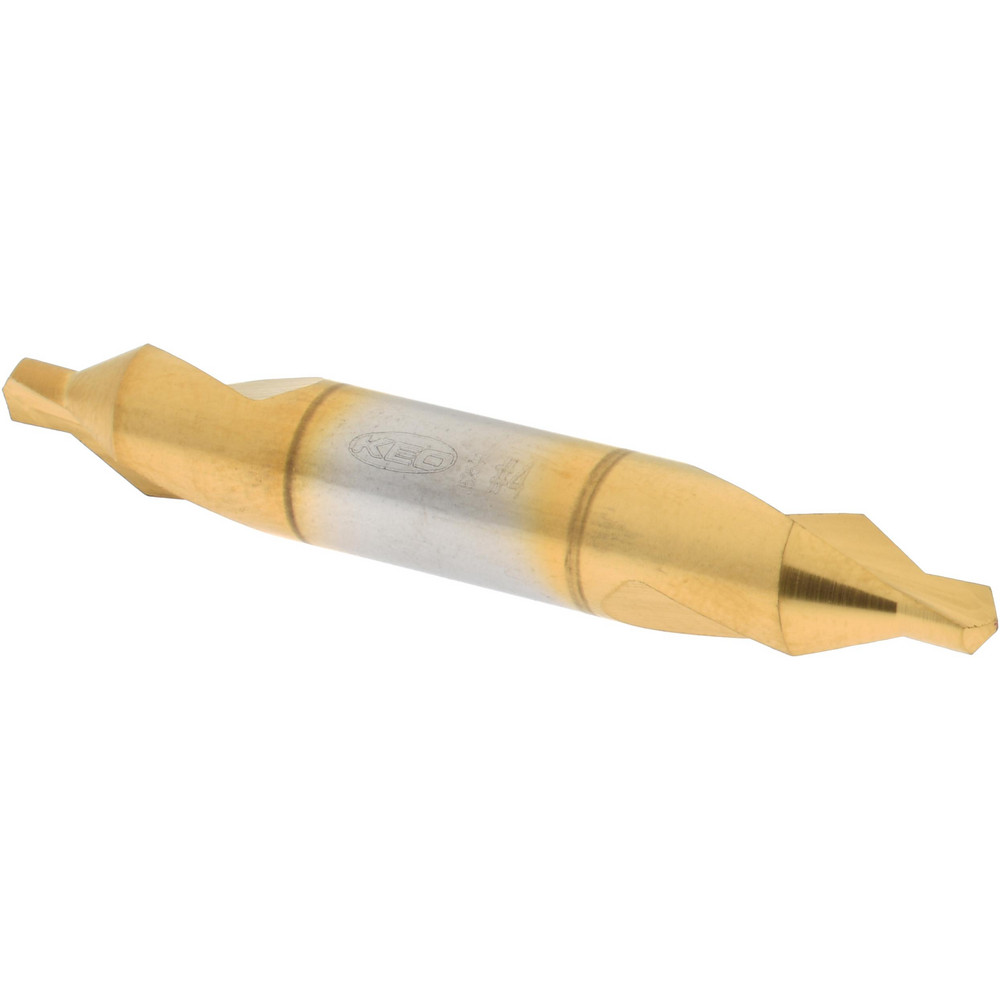

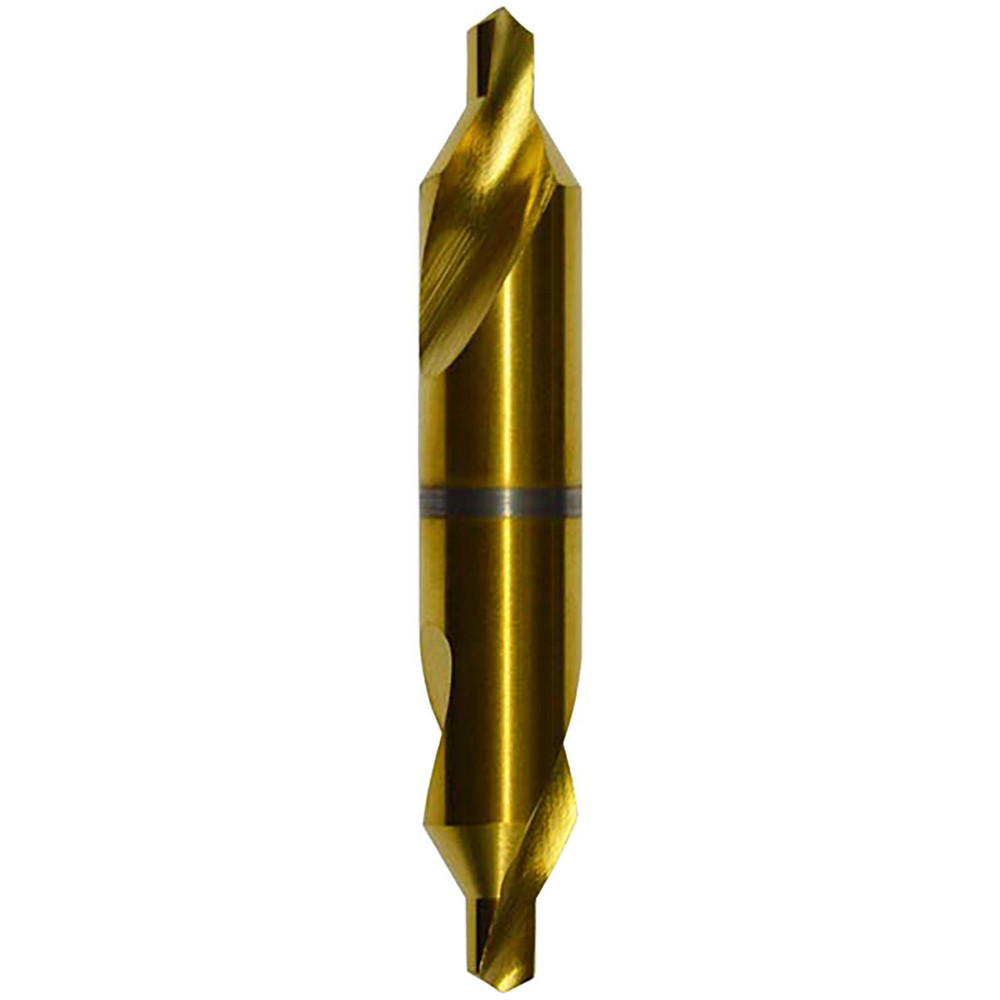

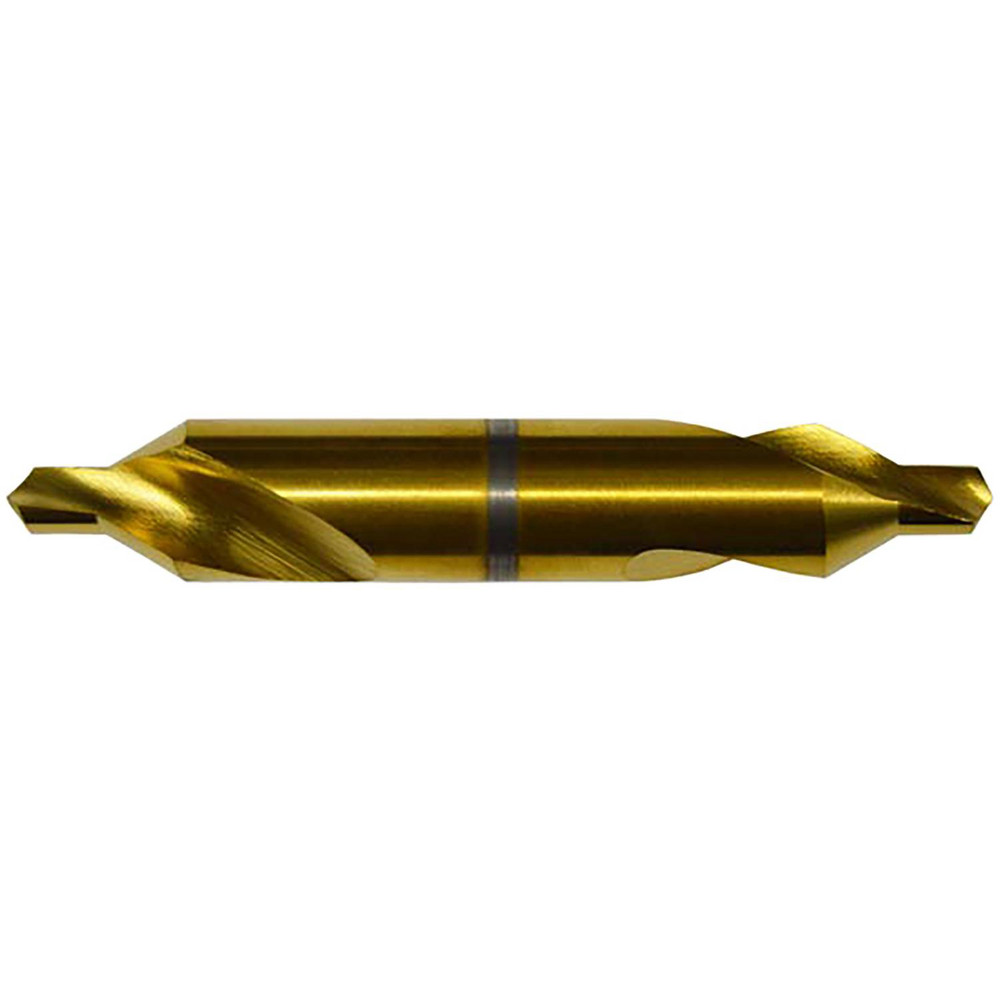

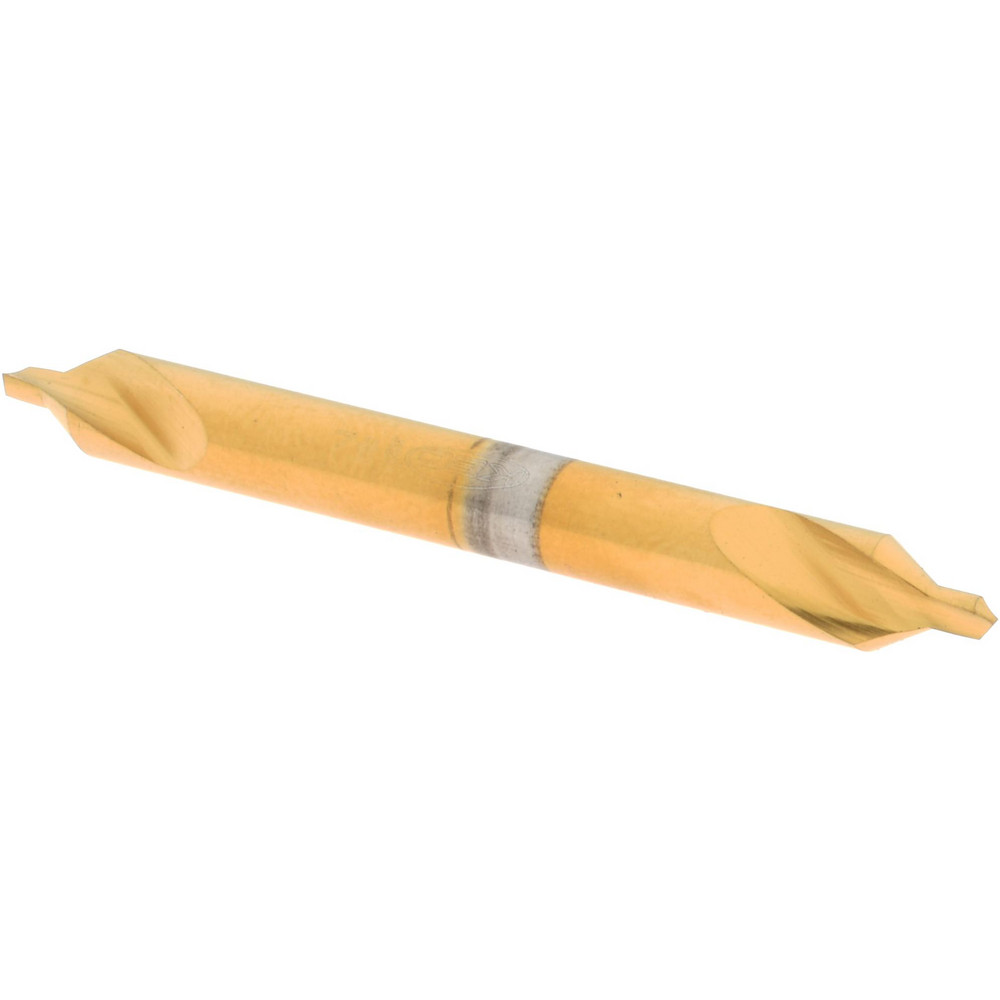

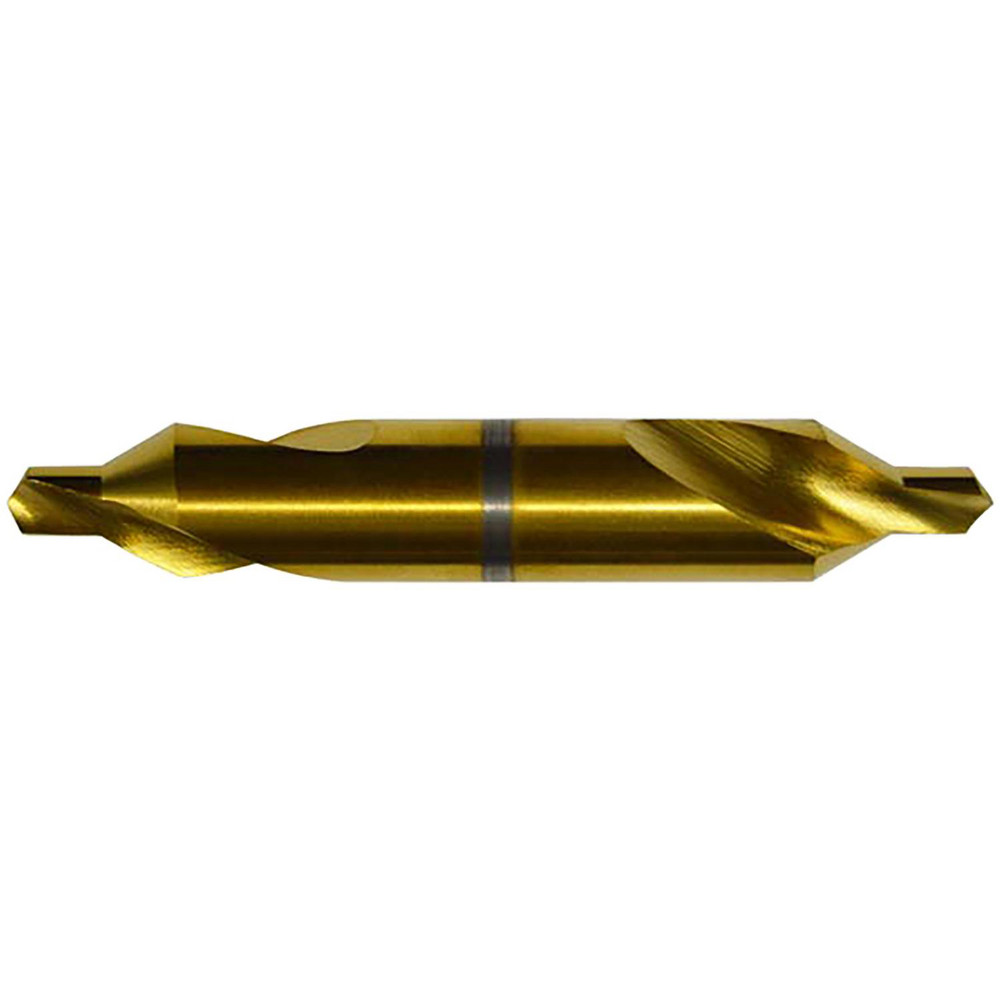

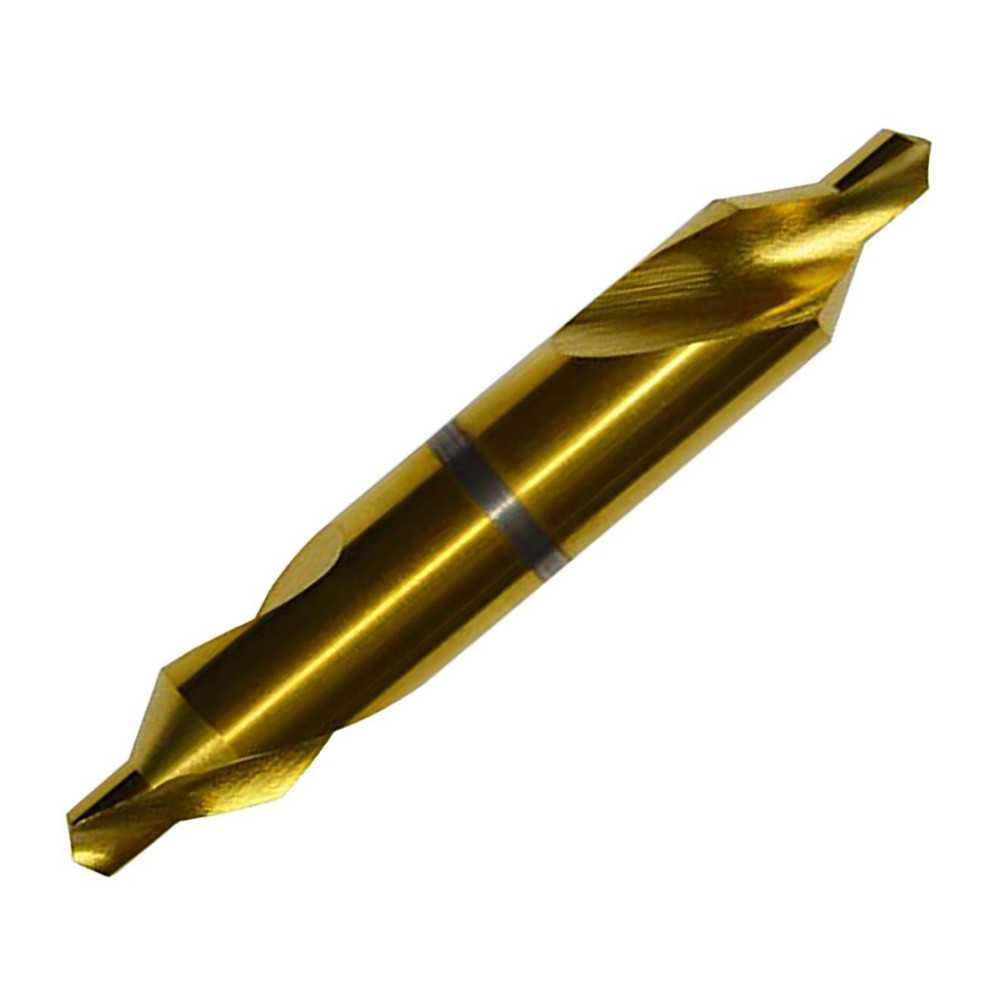

TiN Finish, 3/8" Point Dia, 3/8" Point Length, 3-3/4" OAL, Right Hand, Series 906
| Trade Size | #10 |
|---|---|
| Body Diameter (Decimal Inch) | 1.0000 |
| Body Diameter (Inch) | 1 |
| Drill Point Angle | 118 |
| Coating/Finish | TiN |
| Tool Material | Cobalt |
| Drill Point Diameter (Decimal Inch) | 0.3750 |
| Drill Point Diameter (Inch) | 3/8 |
| Drill Point Length (Inch) | 3/8 |
| Drill Point Length (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 3-3/4 |
| Cutting Direction | Right Hand |
| Series | 906 |
| Cutting Edge Style | Plain |
| Included Angle Degree | 60 |
| Insertable Cutter Head | No |
| Tool Application | Drilling; Chamfering; Countersinking; Centering; Spotting |
| Tool Performance | General Purpose |
| End Type | Double |
| Aircraft Style | No |
| Primary Workpiece Material | High Temperature Alloys; Stainless Steel; Non-Ferrous Metals; Cast Iron; Hardened Cast Iron Materials; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Long Length Tool | No |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 61801486 |
