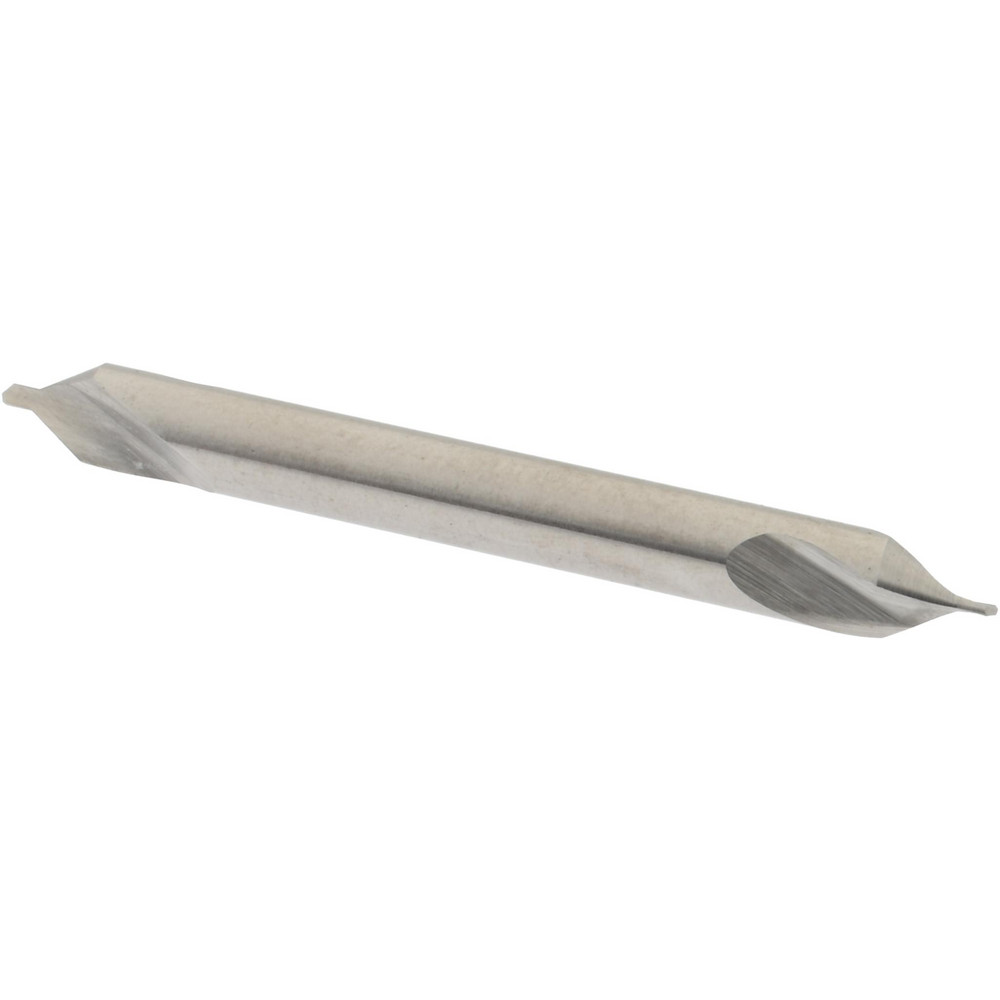

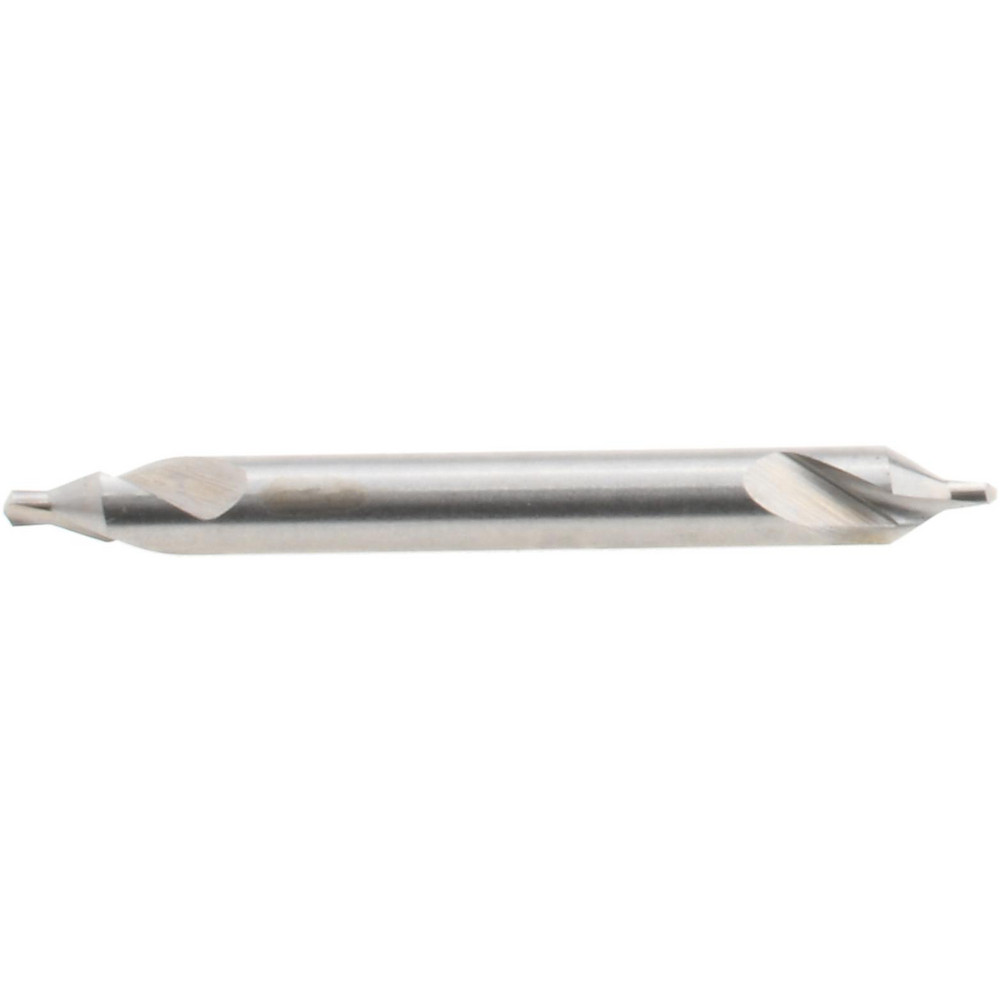

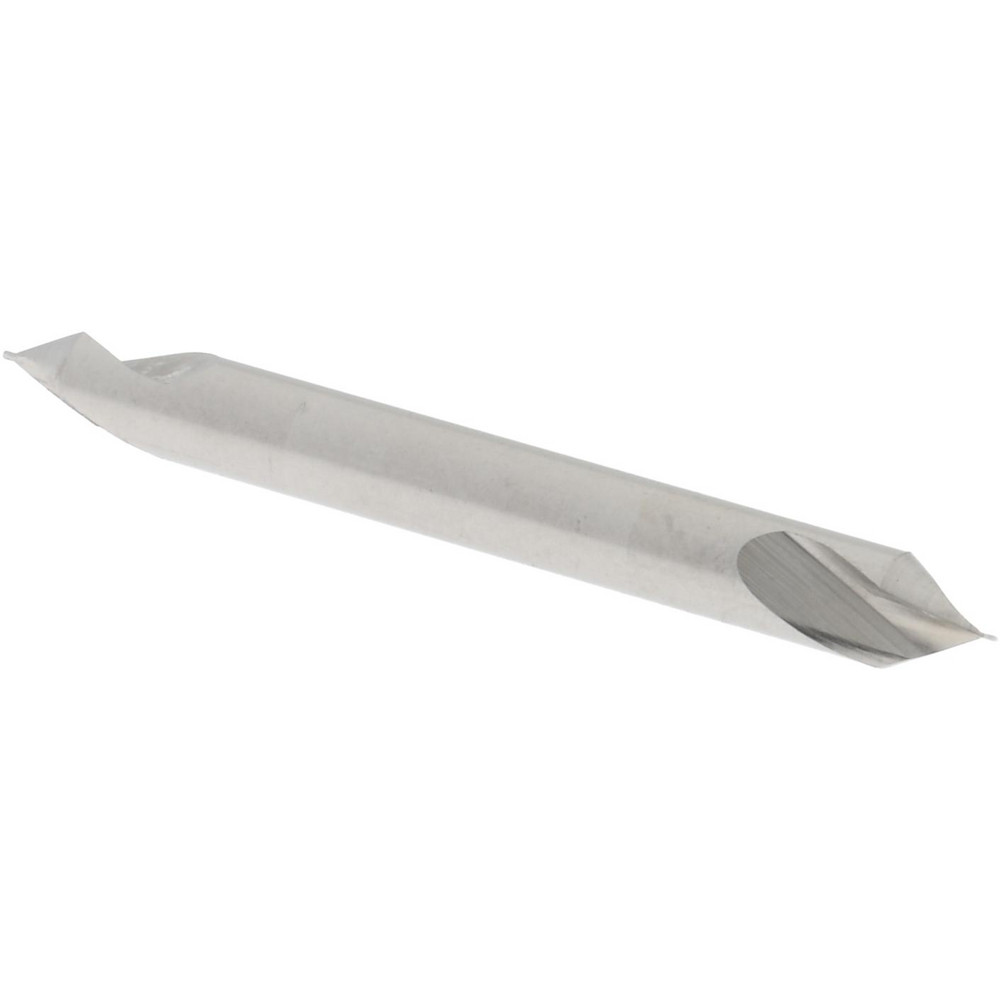

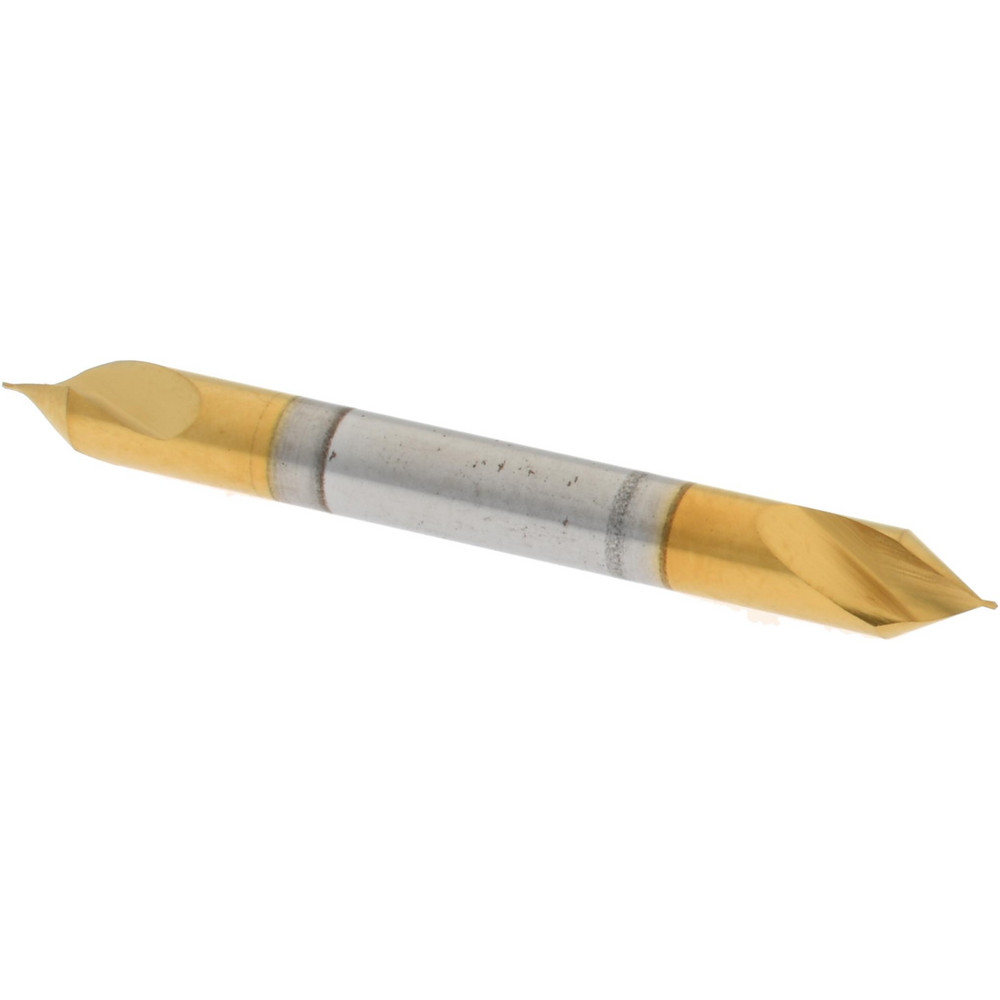

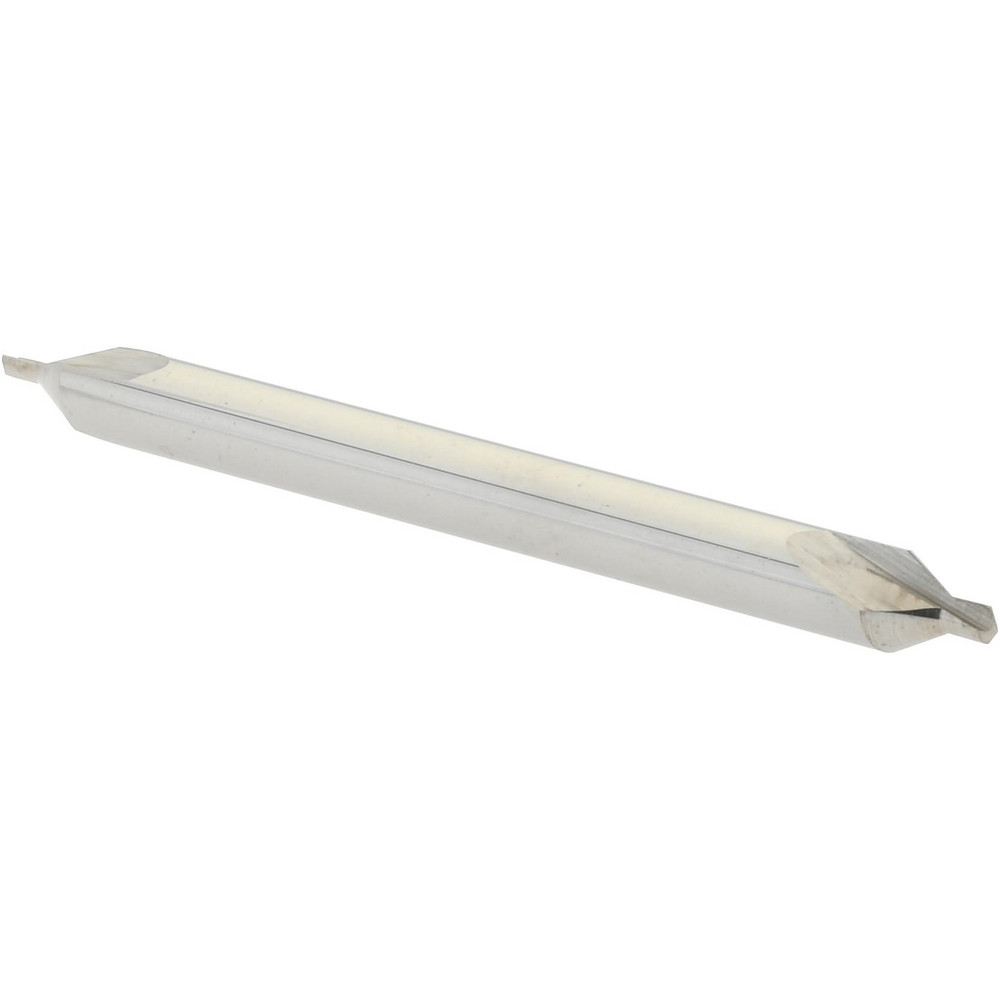

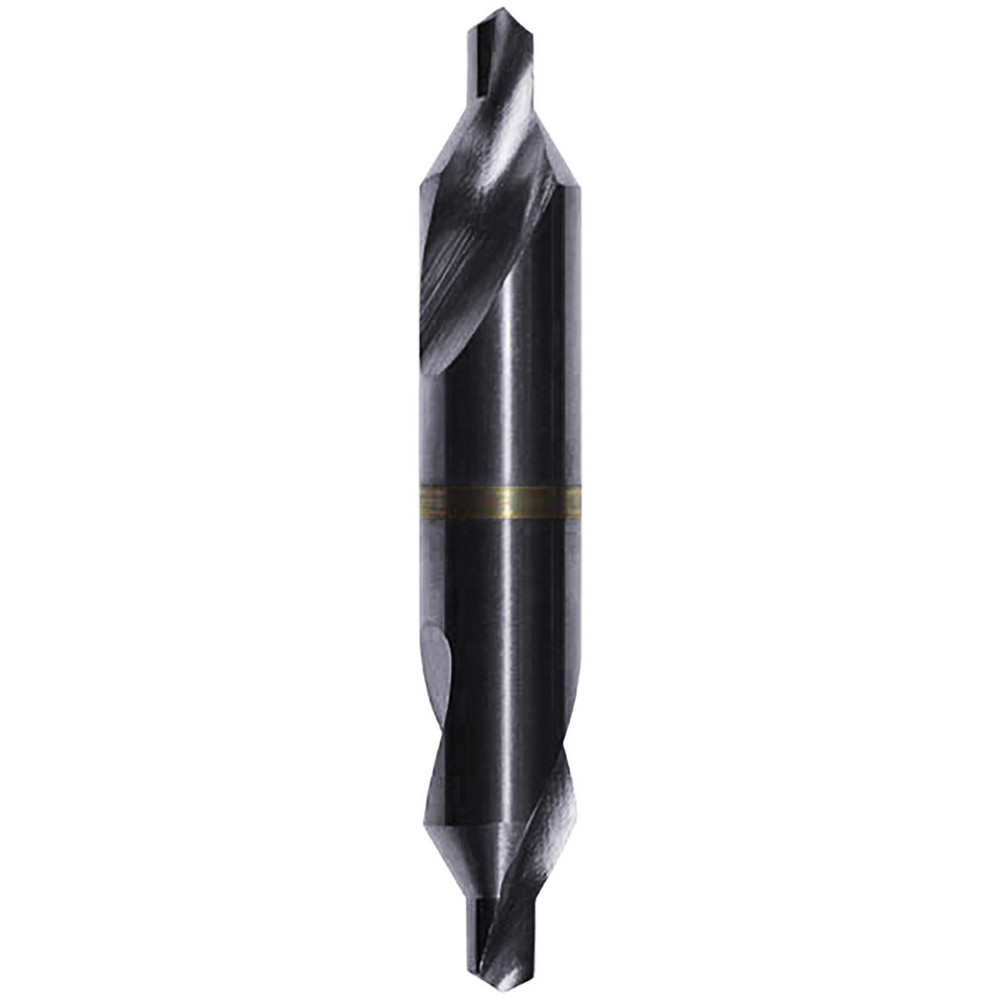

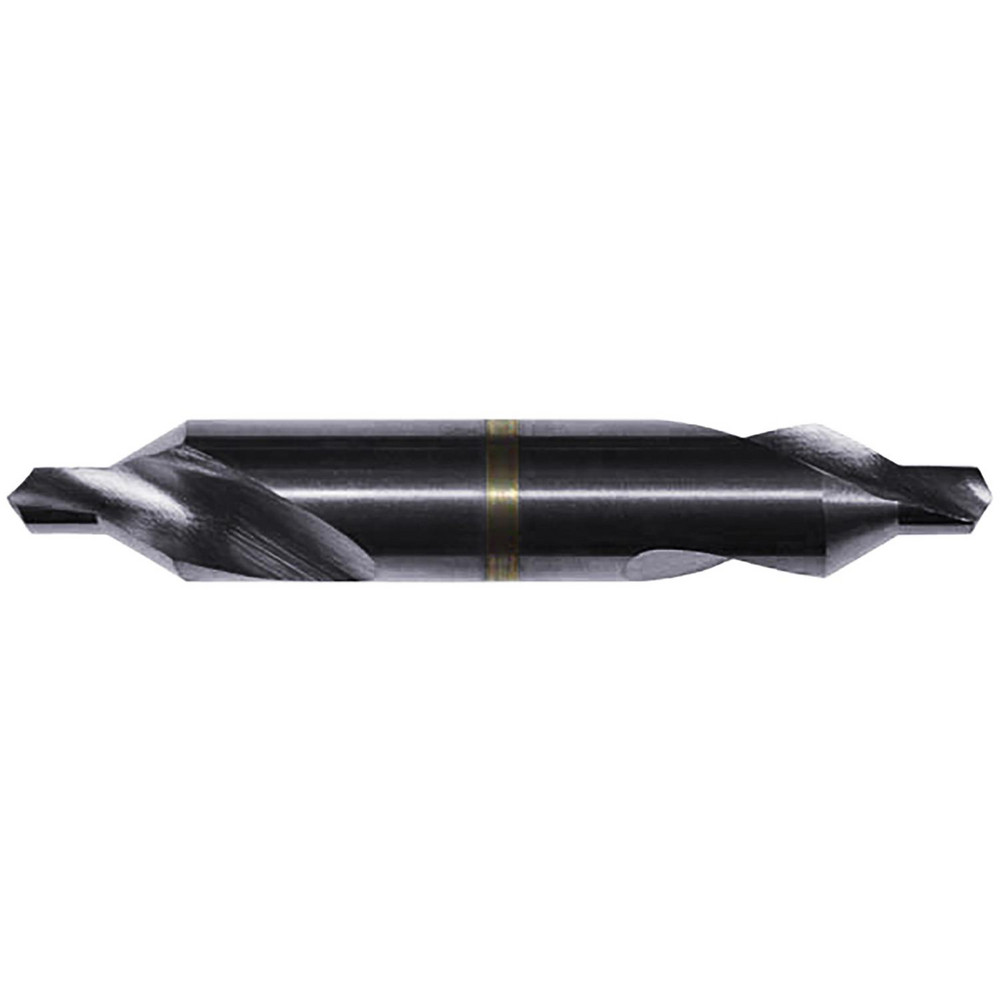

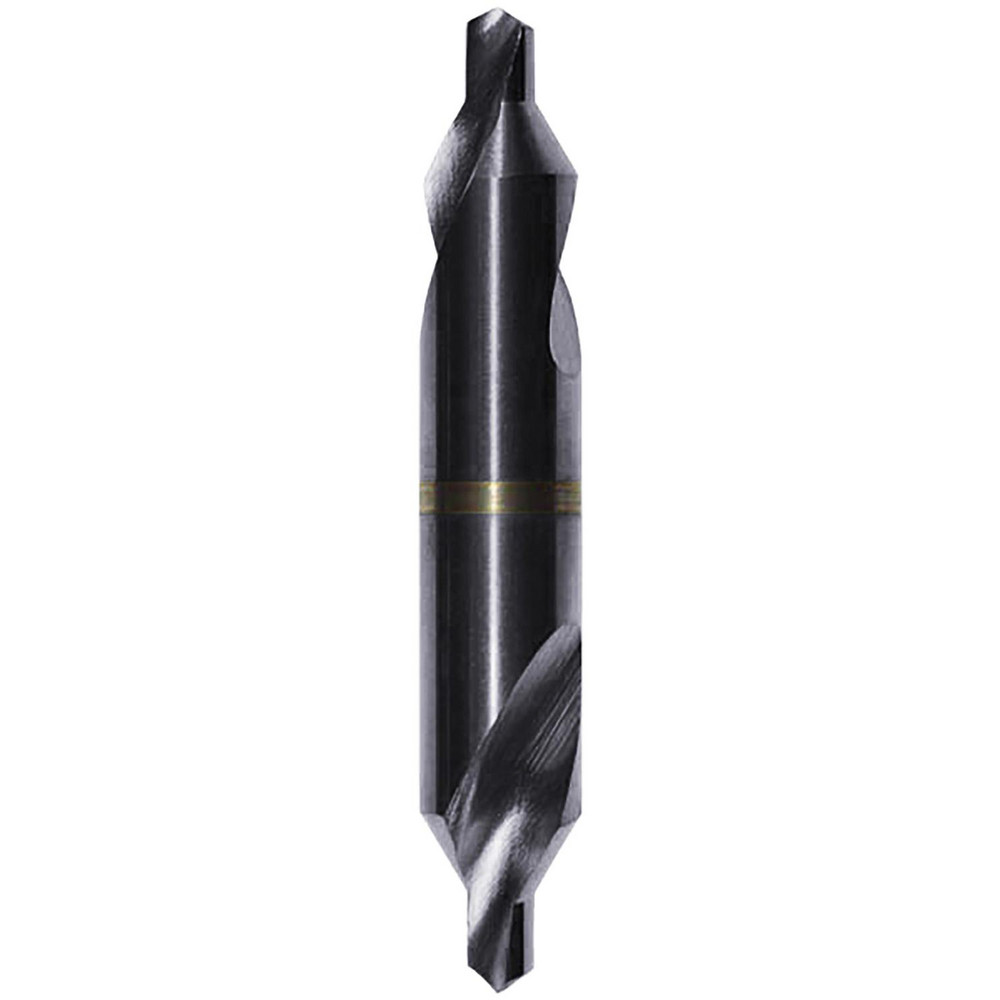

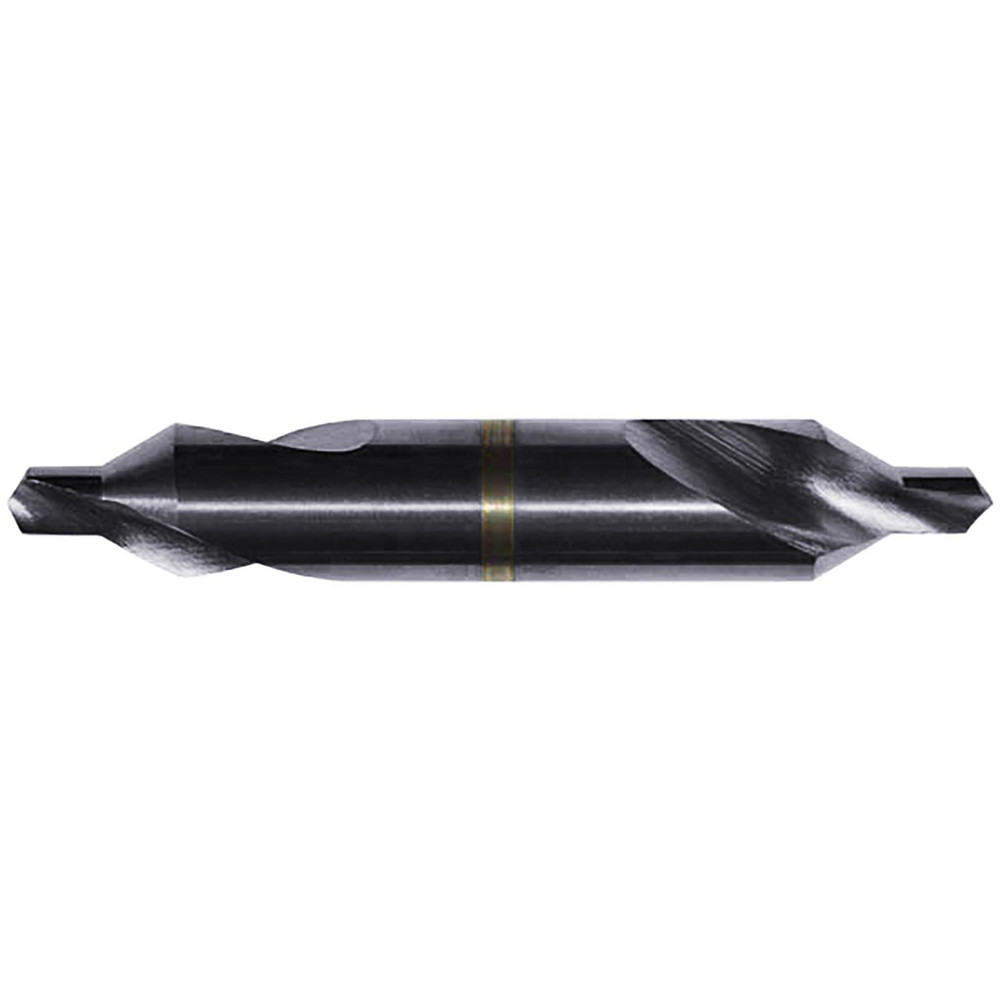

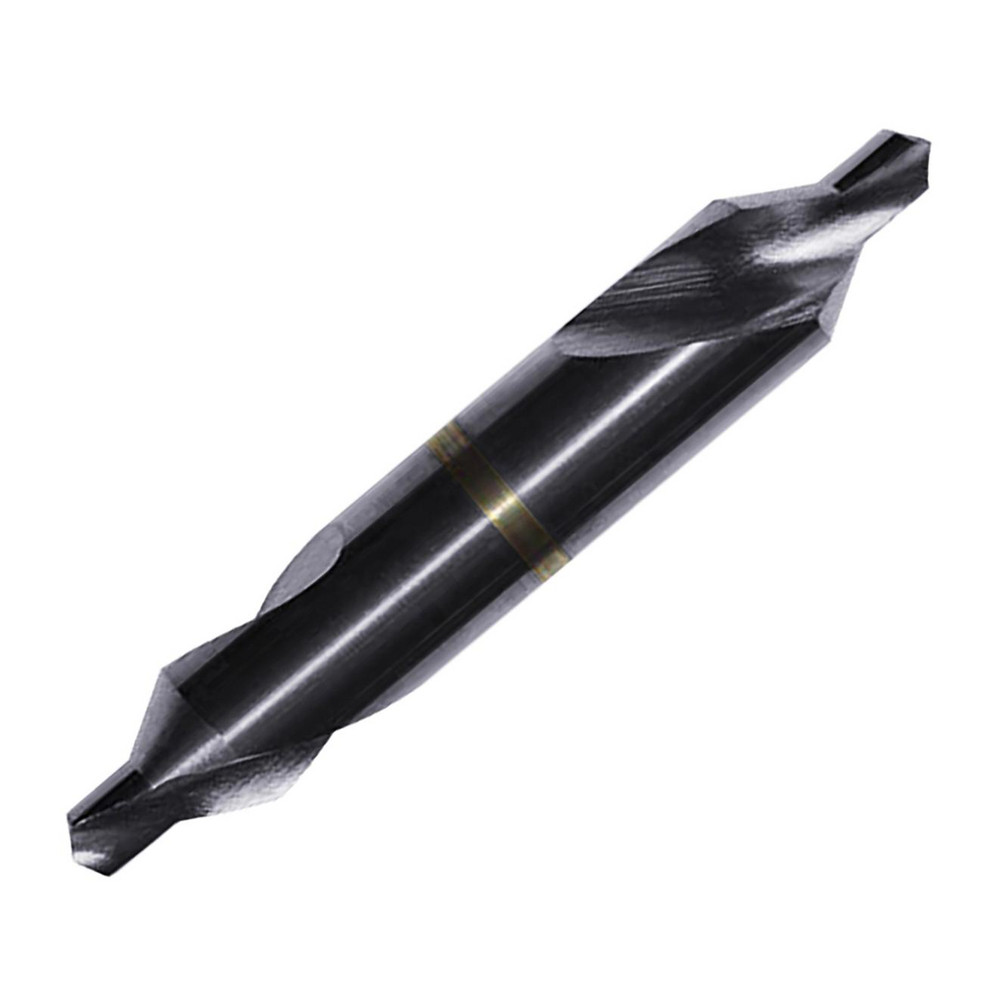

AlTiN Finish, 1-1/4" OAL, Right Hand, Series 906
| Trade Size | #5/0 |
|---|---|
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Drill Point Angle | 118 |
| Coating/Finish | AlTiN |
| Tool Material | Cobalt |
| Drill Point Diameter (Decimal Inch) | 0.0100 |
| Drill Point Length (Decimal Inch) | 0.0100 |
| Overall Length (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Series | 906 |
| Cutting Edge Style | Plain |
| Included Angle Degree | 60 |
| Insertable Cutter Head | No |
| Tool Application | Drilling; Chamfering; Countersinking; Centering; Spotting |
| Tool Performance | General Purpose |
| End Type | Double |
| Aircraft Style | Yes |
| Primary Workpiece Material | High Temperature Alloys; Stainless Steel; Non-Ferrous Metals; Cast Iron; Hardened Cast Iron Materials; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Long Length Tool | No |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 61814240 |
