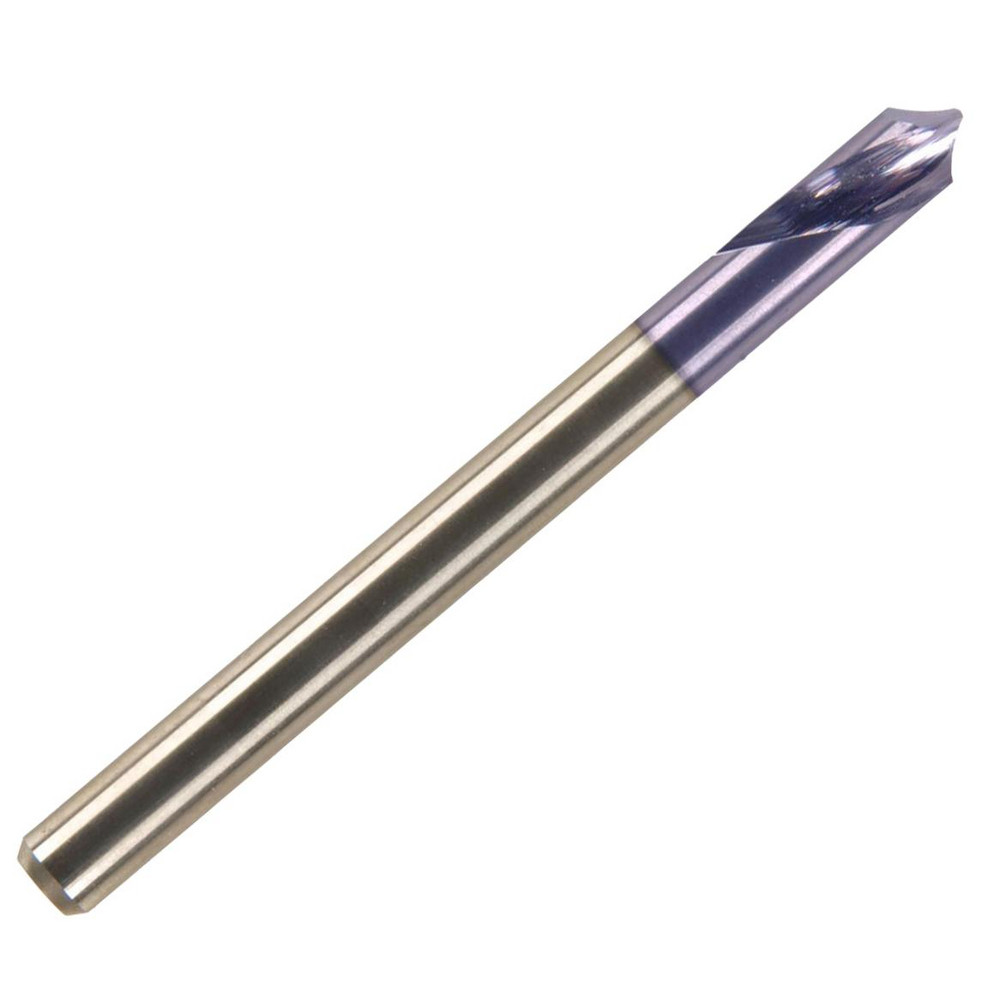

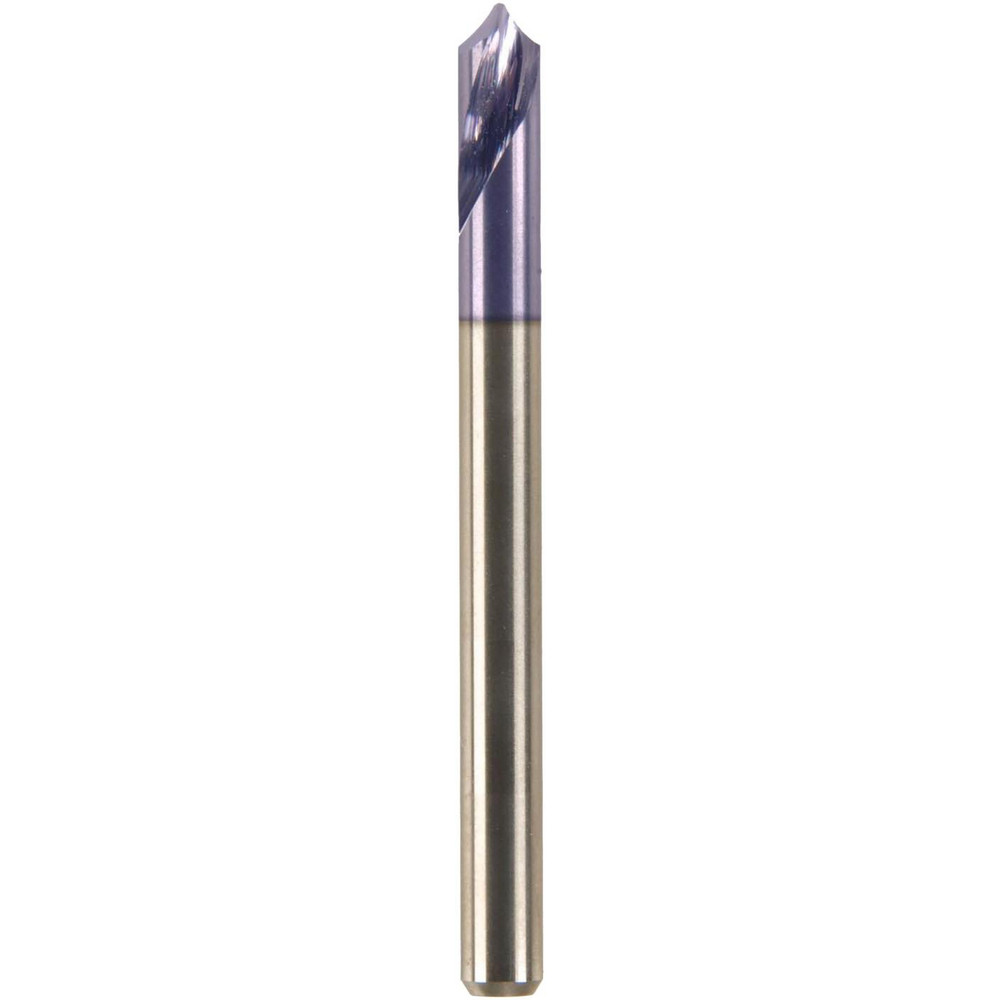

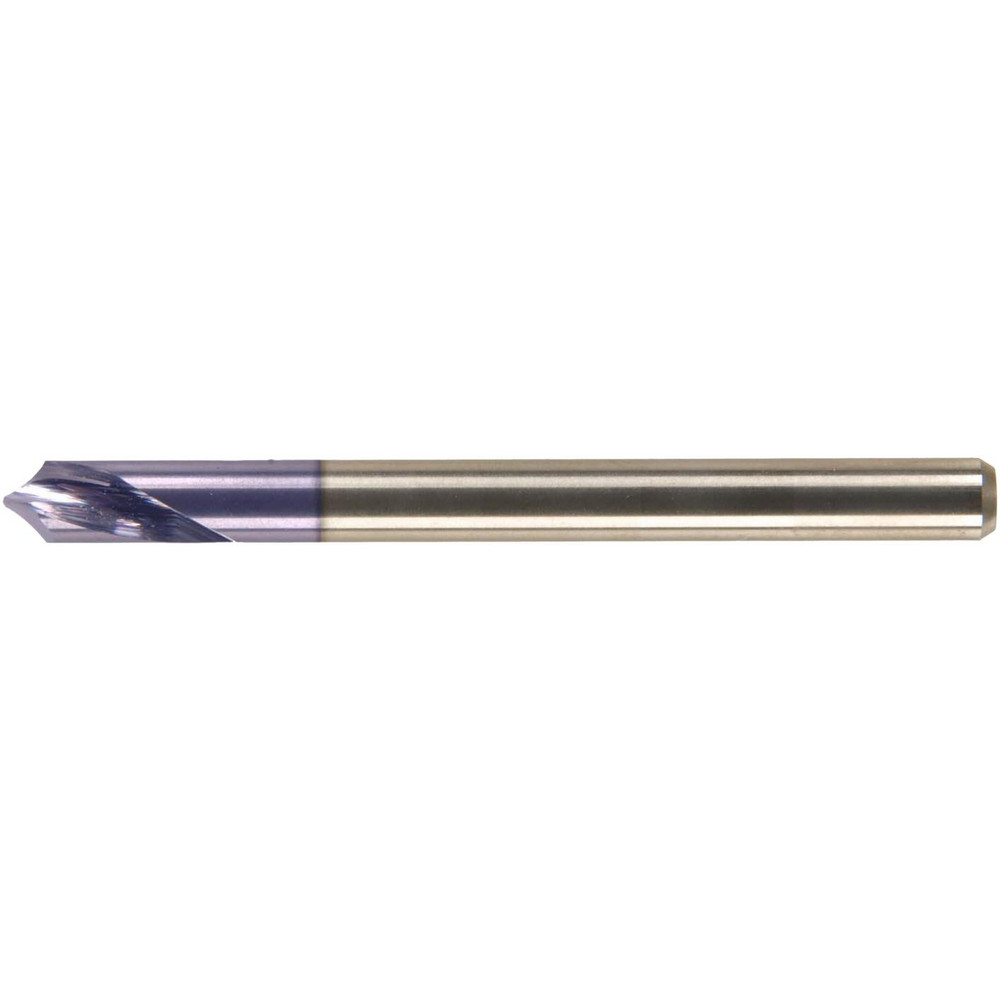

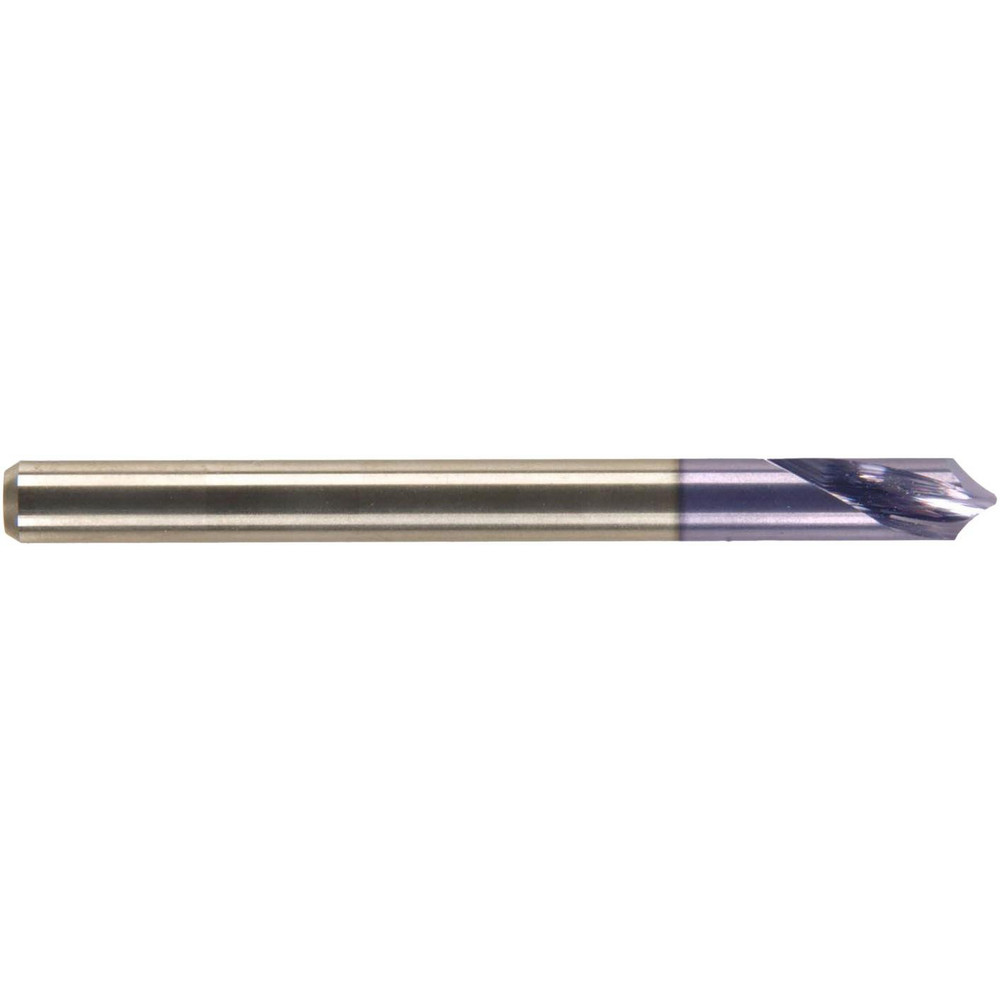

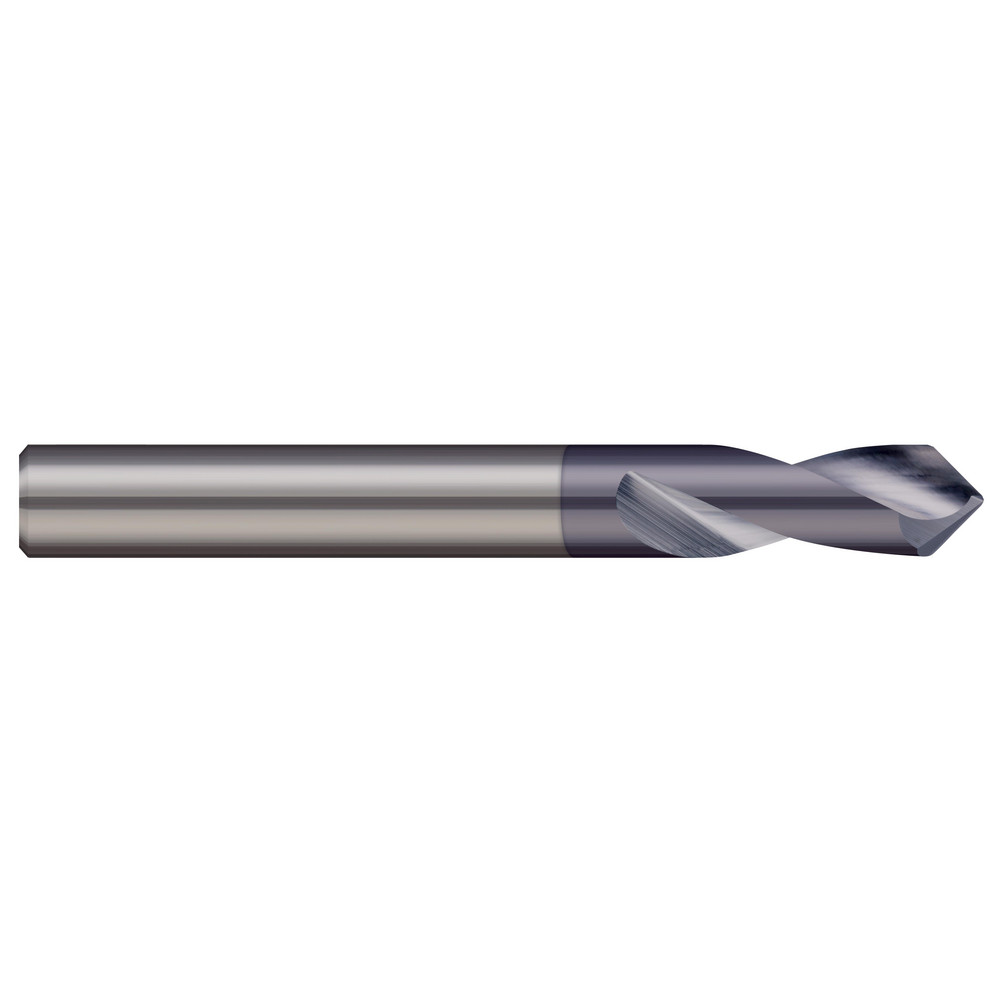

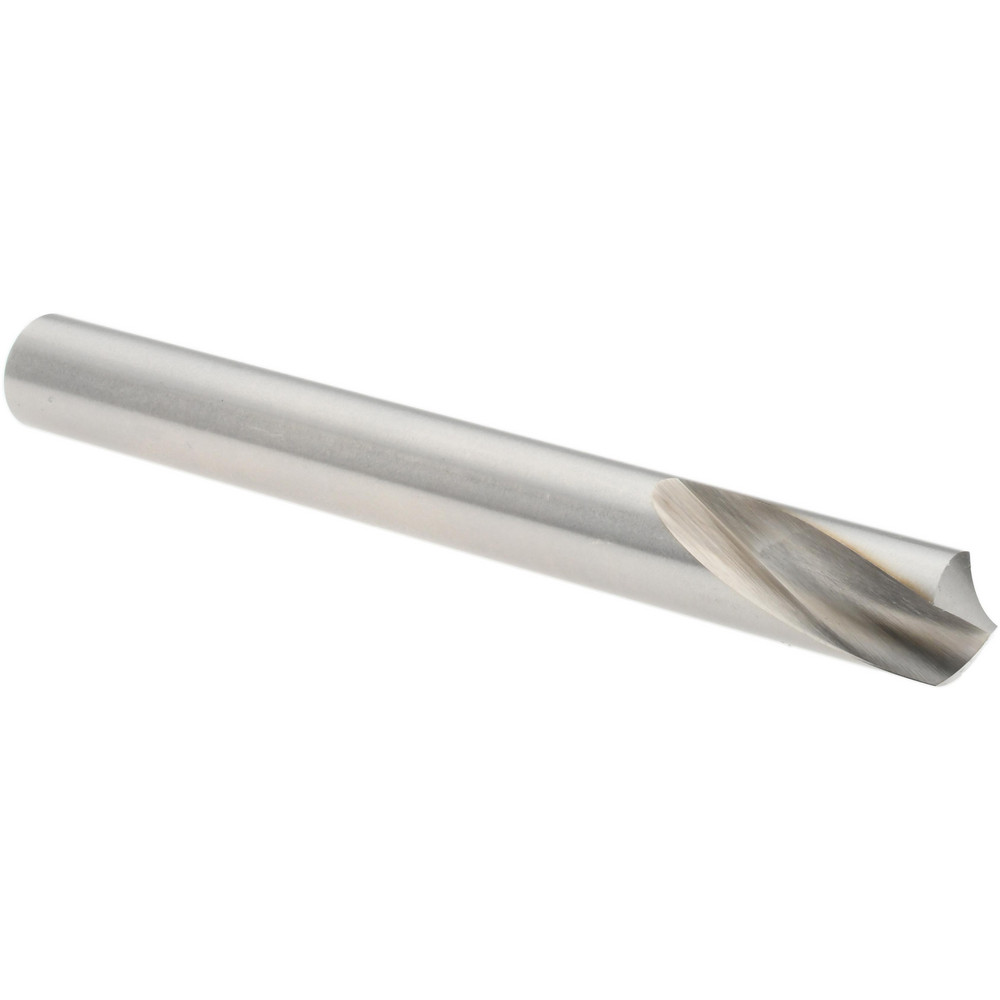

1-1/8" Flute Length, 3/8" Shank Dia, AlTiN Finish, Right Hand Cut, Series 956
| Drill Point Angle | 120 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Tool Material | Cobalt M-35 (HSS-E) |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | 956 |
| Flute Length (Inch) | 1-1/8 |
| Cutting Diameter (Inch) | 3/8 |
| Shank Diameter (Fractional Inch) | 3/8 |
| Overall Length (Decimal Inch) | 7.0953 |
| Flute Length (Decimal Inch) | 1.1250 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 80888571 |
