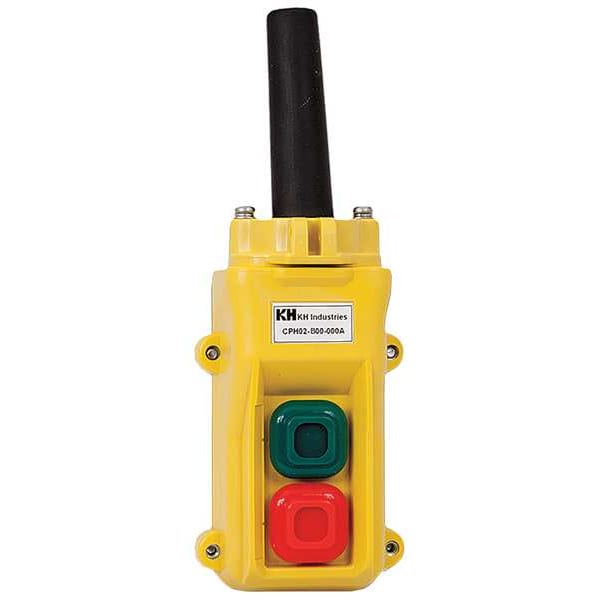

Estación de Colgante, 2, Botón de Presión, NA, NC
| Item | Pendant Control Station |
|---|---|
| Contact Form | 1NO/1NC |
| Legend | On/Off |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 4x |
| Series | Not Applicable |
| Hub Style | Dead-End |
| Housing Color | Yellow |
| Contact Rating | 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC |
| Standards | cUL, UL Listed |
| Action | Maintained |
| Hub | 19/64 in to 13/32 in |
| Mechanical Interlock | No |
| Height | 5.2 in |
| Width | 3.1 in |
| Number of Speeds | 1 |
| Depth | 1-1/2 in |
| Includes | Cable Bushing(s) |
| Housing Material | ABS |
| Switch Type | Buttons 1 and 2: Maintained On/Off |
| IP Rating | IP65 |
| Operator Color | Yellow |
| Enclosure Material | Thermoplastic |
| Enclosure Color | Yellow |
| Product Type | Pendant Control Station |
| Selector Switch Number of Positions | Not Applicable |
| Overall Depth | 1-1/2 in |
| Operator Configuration | Buttons |
| Overall Width | 3.1 in |
| Hazardous Location Specification | Not Rated |
| Overall Height | 5.2 in |
| NEMA Enclosure Rating | 4, 4X |
| Maintained Action Release | Pull, Push |
| Mounting Orientation | Not Applicable |
| Hub Size - Maximum | Not Applicable |
| Panel Cutout Diameter | Not Applicable |
| AC Contact Rating | 5 A @ 125/240 V |
| Pilot Light Color | Not Applicable |
| Resistance Properties | Corrosion Resistant, Shock Resistant, Vibration Resistant |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| DC Contact Rating | 0.4 A @ 120 V, 2 A @ 24 V |
| Cable Bushing | 0.31 to 0.41 |
| Speed | Single |
| Package Quantity | 1 |
