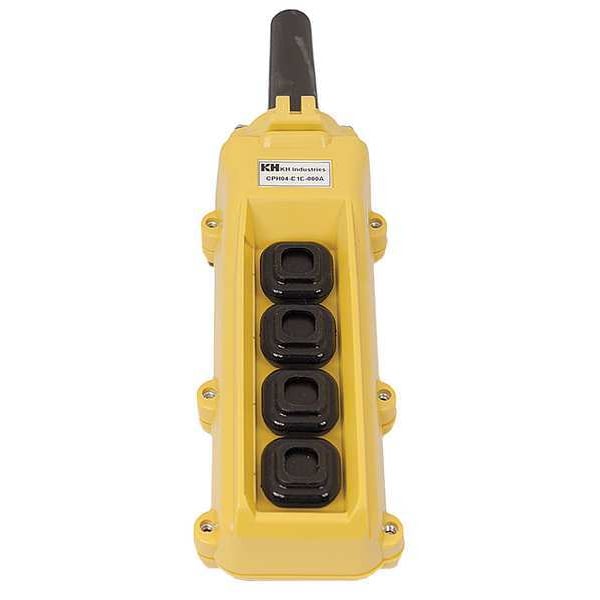

Estación Colgante, Velocidad Única, Amarilla
| Item | Pendant Control Station |
|---|---|
| Contact Form | 1NO |
| Legend | No Legend |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 4 |
| NEMA Rating | 4x |
| Hub Style | Dead-End |
| Series | Not Applicable |
| Standards | cUL, UL Listed |
| Housing Color | Yellow |
| Contact Rating | 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC |
| Action | Momentary |
| Mechanical Interlock | Yes |
| Hub | 5/16 in to 53/64 in |
| Housing Material | ABS |
| Depth | 1-1/2 in |
| Height | 7.7 in |
| Includes | Cable Bushing(s) |
| Number of Speeds | 1 |
| Width | 3.1 in |
| Enclosure Color | Yellow |
| IP Rating | IP65 |
| Enclosure Material | Thermoplastic |
| Operator Color | Yellow |
| Switch Type | Buttons 1, 2, 3, 4: Single Speed Momentary with Interlock |
| Product Type | Pendant Control Station |
| Mounting Orientation | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Overall Height | 7.7 in |
| Pilot Light Color | Not Applicable |
| Resistance Properties | Corrosion Resistant, Shock Resistant, Vibration Resistant |
| Panel Cutout Diameter | Not Applicable |
| Selector Switch Number of Positions | Not Applicable |
| Hub Size - Maximum | Not Applicable |
| Maintained Action Release | Not Applicable |
| Operator Configuration | Buttons |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| DC Contact Rating | 0.4 A @ 120 V, 2 A @ 24 V |
| AC Contact Rating | 5 A @ 125/240 V |
| Overall Width | 3.1 in |
| Overall Depth | 1-1/2 in |
| NEMA Enclosure Rating | 4, 4X |
| Speed | Single |
| Cable Bushing | 0.31 to 0.83 |
| Products By Industry | Fabricated Metals |
| Package Quantity | 1 |
