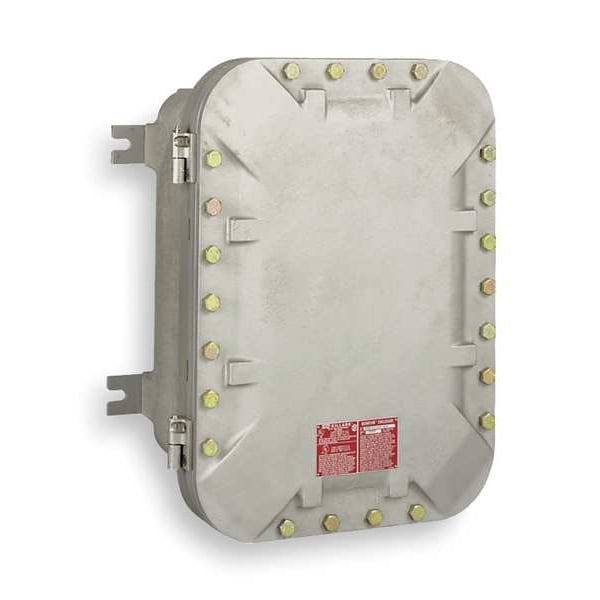

Aluminum Electrical Enclosures, 20 in H, 18 in D, 25 in W, NEMA 4, Bolted
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 25 in |
| Nominal Height | 20 in |
| Nominal Depth | 18 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Bolted |
| Enclosure Cover Type | Bolted |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Solid |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Standards | CSA File No. LR11716, IEC E x 07.0022U/IEC E x 07.0023, PTB 07 ATEX 1025U/PTB 07 ATEX 1024, UL File No. E10514/E83696/E12379 |
| Interior Panel | 2NWE5 |
| Safety Rating | Class 1, Division 1 |
| Max. Conduit Size | 5 in |
| Series | EXB |
| Material | Aluminum |
| Mounting Type | Wall Mount |
| Enclosure Material | Copper-Free Aluminum |
| Gasket | Nitrile |
| Usable Opening Depth | 8 in |
| Application | Locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w |
| CSA File Number | LR11716 |
| Cover Style | Solid |
| NEMA Enclosure Rating | 4, 4X, 3 |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Bolt On |
| Gasket Material | Nitrile |
| Package Quantity | 1 |
