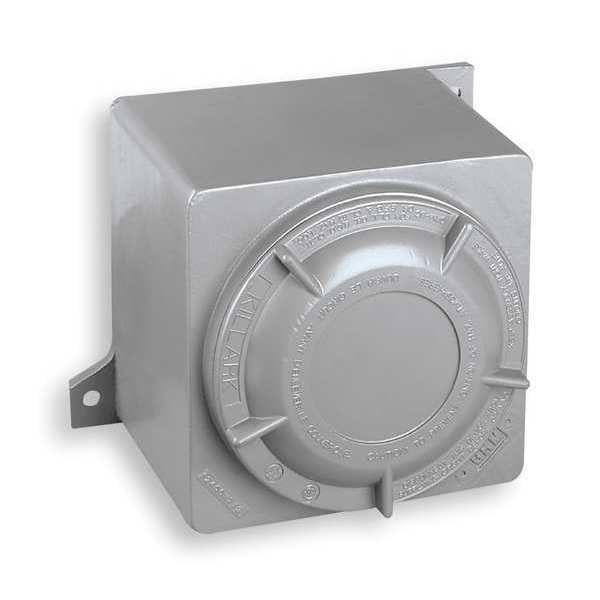

Aluminum Electrical Enclosures, 4.63 in H, 3.28 in D, 5-3/4 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 5-3/4 in |
| Nominal Height | 4.63 in |
| Nominal Depth | 3.28 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Powder Epoxy/Polyester |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Gasket Replacement | GRE-RG |
| Interior Panel | 2NWC9 |
| Safety Rating | Class 1, Division 1 |
| Material | Aluminum |
| Max. Conduit Size | 2 in |
| Lid Hinge | No |
| Cover Type | Screw On |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Series | GR |
| IP Rating | IP66 |
| Usable Opening Depth | 3.28 in |
| Enclosure Material | Copper-Free Aluminum |
| Gasket | 70 Durometer NITRILE |
| CSA File Number | LR11716 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Cover Closure Type | Screw On |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Gasket Material | Nitrile |
| NEMA Enclosure Rating | 4, 4X, 3 |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
