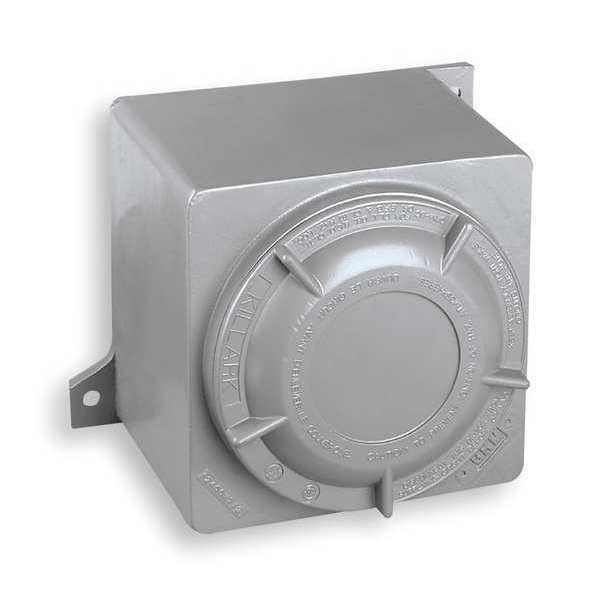

Aluminum Electrical Enclosures, 6 in H, 4.18 in D, 6 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 4.18 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Cover Type | Screw On |
| Safety Rating | Class 1, Division 1 |
| Lid Hinge | No |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Interior Panel | 2NWD4 |
| Max. Conduit Size | 2 in |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Series | GR |
| Material | Aluminum |
| Gasket Replacement | GRM-RG |
| Usable Opening Depth | 4.18 in |
| IP Rating | IP66 |
| Gasket | 70 Durometer NITRILE |
| Enclosure Material | Copper-Free Aluminum |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| CSA File Number | LR11716 |
| Environment - MERCH | Washdown |
| NEMA Enclosure Rating | 4 |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Cover Style | Solid |
| Cover Closure Type | Screw On |
| Gasket Material | Nitrile |
| Package Quantity | 1 |
