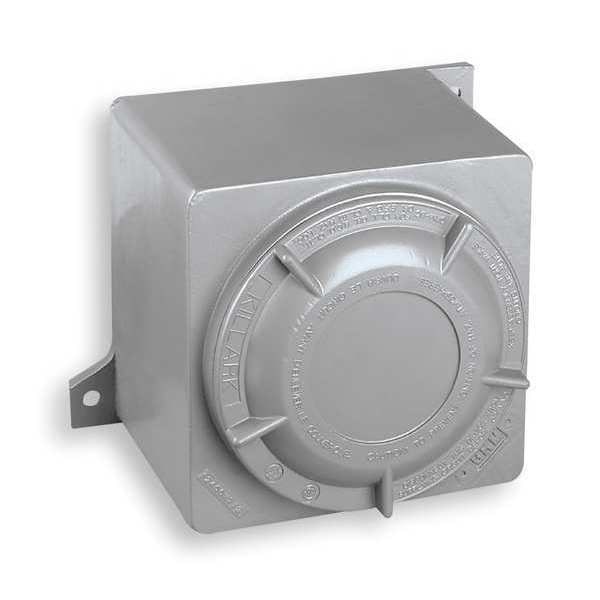

Aluminum Electrical Enclosures, 7.06 in H, 4.13 in D, 8.31 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8.31 in |
| Nominal Height | 7.06 in |
| Nominal Depth | 4.13 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Solid |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Gasket Replacement | GRK-RG |
| Safety Rating | Class 1, Division 1 |
| Lid Hinge | No |
| Max. Conduit Size | 2-1/2 in |
| Material | Aluminum |
| Mounting Type | Wall Mount |
| Interior Panel | 2NWD2 |
| Series | GR |
| Gasket | 70 Durometer NITRILE |
| IP Rating | IP66 |
| Usable Opening Depth | 4.13 in |
| Enclosure Material | Copper-Free Aluminum |
| CSA File Number | LR11716 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| NEMA Enclosure Rating | 4 |
| Cover Closure Type | Screw On |
| Environment - MERCH | Washdown |
| Cover Style | Solid |
| Gasket Material | Nitrile |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Package Quantity | 1 |
