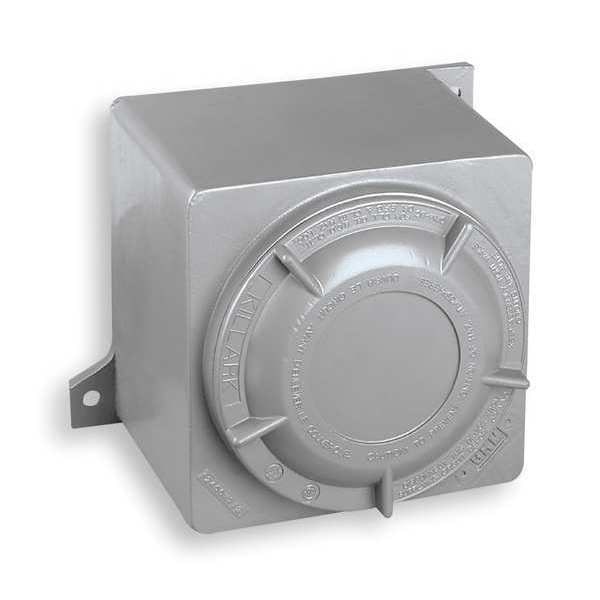

Aluminum Electrical Enclosures, 7.63 in H, 4.93 in D, 9.13 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 9.13 in |
| Nominal Height | 7.63 in |
| Nominal Depth | 4.93 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Solid |
| Lid Hinge | No |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Safety Rating | Class 1, Division 1 |
| Max. Conduit Size | 2 in |
| Interior Panel | 2NWD3 |
| Gasket Replacement | GRL-RG |
| Series | GR |
| Material | Aluminum |
| Mounting Type | Wall Mount |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Enclosure Material | Copper-Free Aluminum |
| Gasket | 70 Durometer NITRILE |
| Usable Opening Depth | 4.93 in |
| IP Rating | IP66 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| CSA File Number | LR11716 |
| Cover Closure Type | Screw On |
| NEMA Enclosure Rating | 4 |
| Cover Style | Solid |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Environment - MERCH | Washdown |
| Gasket Material | Nitrile |
| Package Quantity | 1 |
