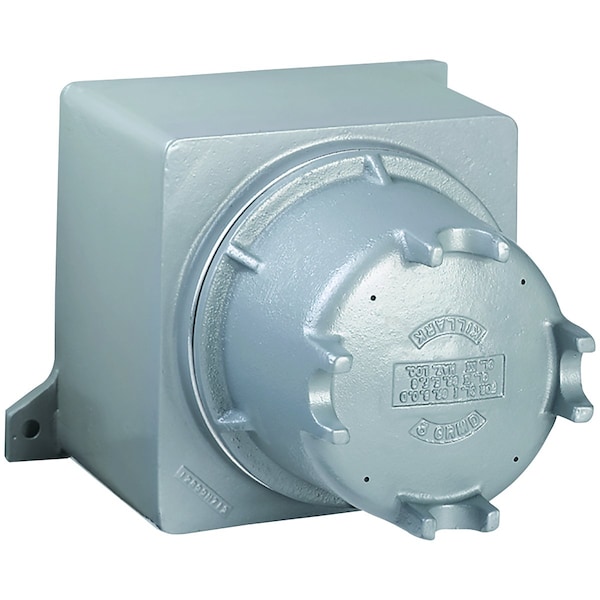

Aluminum Electrical Enclosures, 9-1/2 in H, 13 in D, 10-1/2 in W, NEMA 4, Threaded Dome
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10-1/2 in |
| Nominal Height | 9-1/2 in |
| Nominal Depth | 13 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Enclosure Cover Type | Dome |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Solid |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Series | GR Enclosures |
| Cover Type | Threaded |
| CSA File Number | LR11716 |
| Package Quantity | 1 |
