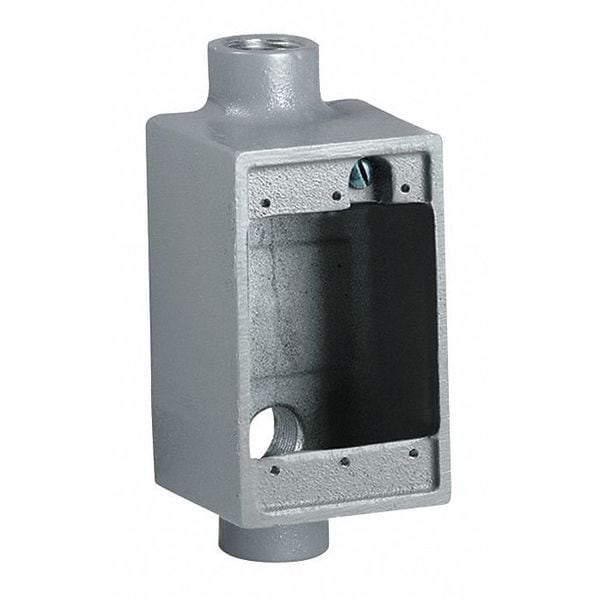

Electrical Box, 18 cu in, FSCA Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| Item | Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | FSCA |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 4.62 in |
| Width | 2.87 in |
| Depth | 2 in |
| Opening Shape | Rectangular |
| Number of Inlets | 3 |
| Conduit Size | 3/4 in |
| Color | Gray |
| Mounting Holes O.C. (In.) | 3/4 |
| Hub Size | 3/4 in |
| Description/Special Features | Internal Grounding Screw, Tapered Threads |
| Standards | CSA, UL Listed |
| Height | 3.58 in |
| Finish | Powder Epoxy Paint |
| Hub Pattern | FSCA |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42). |
| CSA File Number | LR11852 |
| UL File Number | E3397 |
| Box Depth | 2 in |
| Box Width | 4-5/8 in |
| Box Diameter | Not Applicable |
| Box Height | 2-7/8 in |
| Hub Type | Feed Through |
| Overall Width | 6-3/8 in |
| Box Shape | Rectangular |
| Overall Depth | 2-11/16 in |
| Overall Height | 2-7/8 in |
| Package Quantity | 1 |
