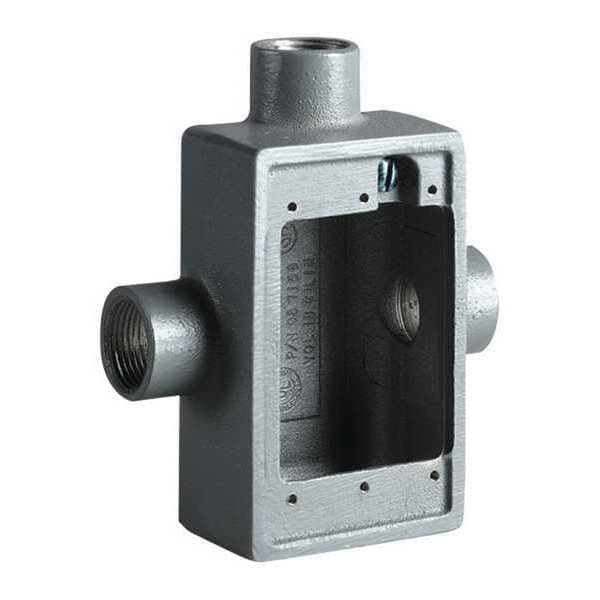

Electrical Box, 18 cu in, FST Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| Item | Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | FST |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 4.62 in |
| Width | 2.87 in |
| Depth | 2 in |
| Opening Shape | Rectangular |
| Number of Inlets | 3 |
| Conduit Size | 3/4 in |
| Color | Gray |
| Description/Special Features | Internal Grounding Screw, Tapered Threads |
| Mounting Holes O.C. (In.) | 3/4 |
| Hub Size | 3/4 in |
| Standards | CSA, UL Listed |
| Height | 2-3/4 in |
| Finish | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| Hub Pattern | FST |
| UL File Number | E3397 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42). |
| UPC | 783936000000 |
| Box Depth | 2 in |
| Box Shape | Rectangular |
| Overall Width | 5-1/2 in |
| Overall Height | 4-5/8 in |
| Overall Depth | 2 in |
| Box Width | 4-5/8 in |
| Hub Type | Feed Through |
| Box Diameter | Not Applicable |
| Box Height | 2-7/8 in |
| Package Quantity | 1 |
