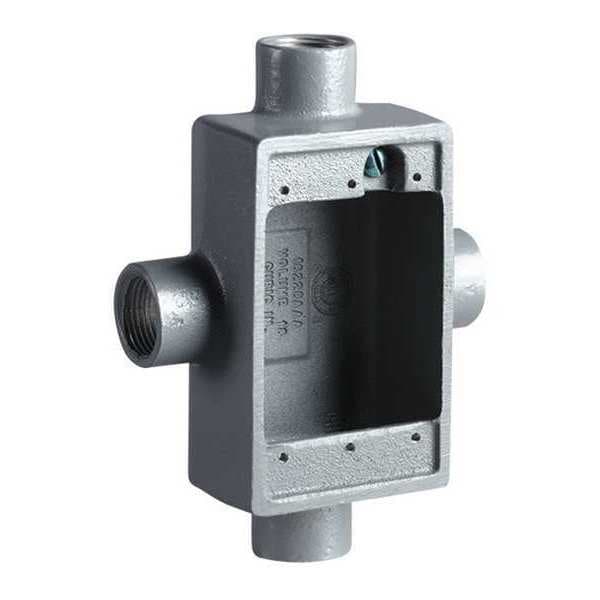

Electrical Box, 18 cu in, FSX Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| Item | Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | FSX |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 4.62 in |
| Width | 2.87 in |
| Depth | 2 in |
| Opening Shape | Rectangular |
| Number of Inlets | 4 |
| Conduit Size | 3/4 in |
| Color | Gray |
| Hub Size | 3/4 in |
| Mounting Holes O.C. (In.) | 3/4 |
| Description/Special Features | Internal Grounding Screw, Tapered Threads |
| Standards | CSA, UL Listed |
| Height | 2-3/4 in |
| Finish | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| UPC | 783936000000 |
| UL File Number | E3397 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42). |
| Hub Pattern | FSX |
| Overall Depth | 2 in |
| Overall Width | 6-3/8 in |
| Hub Type | Feed Through |
| Box Width | 4-5/8 in |
| Overall Height | 4-5/8 in |
| Box Shape | Rectangular |
| Box Height | 2-7/8 in |
| Box Depth | 2 in |
| Box Diameter | Not Applicable |
| Package Quantity | 1 |
