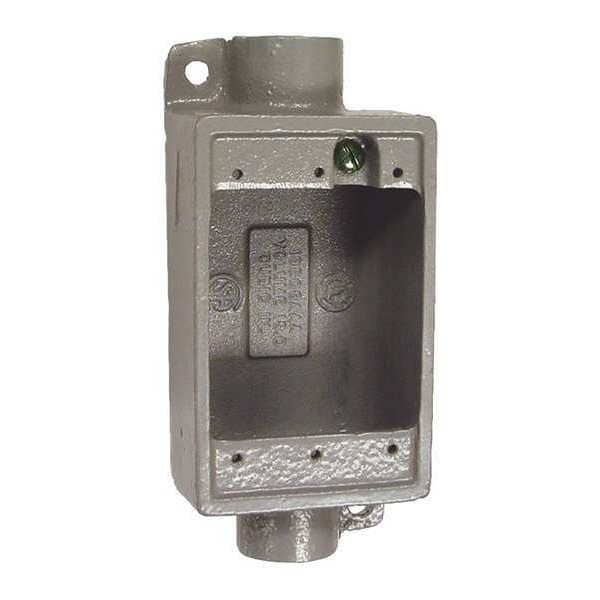

Electrical Box, 32 cu in, FSC Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| Item | Electrical Box |
|---|---|
| Capacity | 32 cu in |
| Box Type | FSC |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 4.62 in |
| Width | 2.87 in |
| Depth | 2 in |
| Opening Shape | Rectangular |
| Number of Inlets | 2 |
| Conduit Size | 1 in |
| Color | Gray |
| Mounting Holes O.C. (In.) | 1 |
| Hub Size | 1 in |
| Description/Special Features | Internal Grounding Screw, Tapered Threads |
| Standards | CSA, UL Listed |
| Height | 2 in |
| Finish | Powder Epoxy Paint |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove |
| CSA File Number | LR11852 |
| Hub Pattern | Feed-Thru |
| UPC | 783936000000 |
| UL File Number | E3397 |
| Box Width | 4-5/8 in |
| Overall Height | 2-7/8 in |
| Box Diameter | Not Applicable |
| Overall Width | 6-3/8 in |
| Hub Type | Feed Through |
| Box Shape | Rectangular |
| Box Depth | 2 in |
| Box Height | 2-7/8 in |
| Overall Depth | 2 in |
| Package Quantity | 1 |
