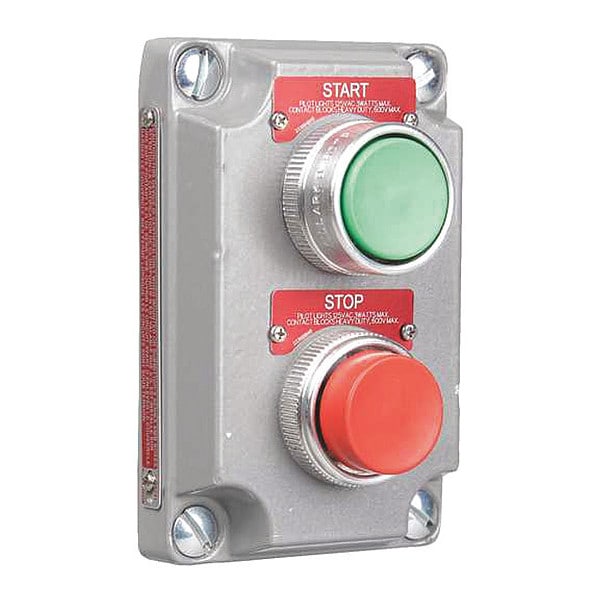

Inicio por Push de color verde y rojo a prueba de explosiones, 6.375 pulgadas x 6 pulgadas x 4.375 pulgadas, Verde-Rojo
| Action | SP |
|---|---|
| Size | 6.375 in x 6 in x 4.375 in |
| Color | Green-Red |
| Item | Green And Red Push To Start Expl Proof |
| Contact Rating | 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; |
| Material | Copper-free aluminum |
| Height | 4-3/8 in |
| Width | 6 in |
| Depth | 37989 |
| Type | Aluminum Cover With Two Push Buttons |
| Series | XCS |
| Amperage Rating | 10 A |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Special features | Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified. |
| Actuator | pushbutton |
| Number of Poles | 2, 2 |
| Length | 6-3/8 in |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil |
| Dimensions | 6.375 in x 6 in x 4.375 in |
| Frequency Rating | 50/60 Hz |
| Back Box Type | SWB |
| Package Quantity | 1 |
