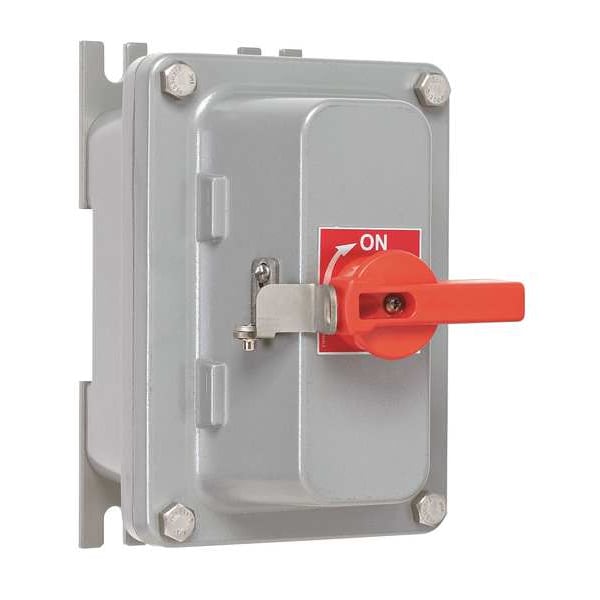

Interruptor de Seguridad para Ubicación Peligrosa No Fusible, Deber Pesado, 600V, 3PST, 30 A
| Item | Hazardous Location Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V |
| Phase | 3 |
| HP | 10 HP @ 240 V AC, 20 HP @ 480 V AC, 30 HP @ 600 V AC |
| NEMA Enclosure Type | 4X, 4, 3, 7, 9 |
| Number of Wires | 3 Wire, No Neutral |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Material of Construction | Copper Free Aluminum |
| Amps | 30 |
| Fusible / Nonfusible | Nonfusible |
| Neutral Assembly | Not Available |
| NEMA Rating | 3, 4, 4X, 7 (B, C, D), 9 (E, F, G) |
| Material | Aluminum |
| Width | 5-3/4 in |
| Height | 8-1/16 in |
| Standards | cCSAus |
| Includes | Adder |
| Safety Rating | Class I, Div. 1 & 2, Groups B,C,D, Class l, Zones 1 & 2, Groups llB+ H2, llA, Class II, Div. 1 & 2, Groups E,F,G, Class III |
| Depth | 6-5/16 in |
| Series | B7NFD Series |
| Operator | Rotary Handle |
| Neutral Assembly Included | No |
| Electrical Connection | Bolt |
| Type | Non-Fused Disconnect |
| Use | Hazardous Locations; Outdoors or Indoors in Damp, Wet and Dirty Locations; In Areas where Frequent Washdowns, Heavy Rain, or Water Spray Routinely Occurs |
| Enclosure Type | Enclosed |
| Mounting | Wall |
| Features | 316 Stainless Steel Cover Bolts, Gasketed Flange with Silicone O-Ring, Gray Powder Polyester Painted Exterior, Rotary Handle Operating Mechanism with Lockout |
| NEMA Enclosure Rating | 3, 4, 4X, 7, 9 |
| Horsepower @ 480V AC | 20 HP |
| NEC Hazardous Location Classification | Division 1 & 2, Class I, Class II, Groups B, C, D, Groups E, F, G, Class III, Groups IIB+H2, IIA, Zone 1 & 2 |
| Standard Conduit Size | 1-1/2 in |
| Horsepower @ 600V AC | 30 HP |
| Horsepower @ 240V AC | 10 HP |
| For Fuse Class | Not Applicable |
| Maximum Enclosure Depth | 5.06 in |
| Maximum Operating Temperature | 40 Degrees C |
| Current Rating | 30 A |
| Environment | Indoor, Outdoor |
| Mounting Style | Surface Mount |
| Housing Material | Aluminum |
| Primary Voltage | 600 VAC |
| Amperage Rating | 30 A |
| Action | 3P |
| Operating Temperature Celcius Max | 40 Degree |
| CSA File Number | LR11714 |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall |
| Actuator | Rotary Handle |
| Package Quantity | 1 |
